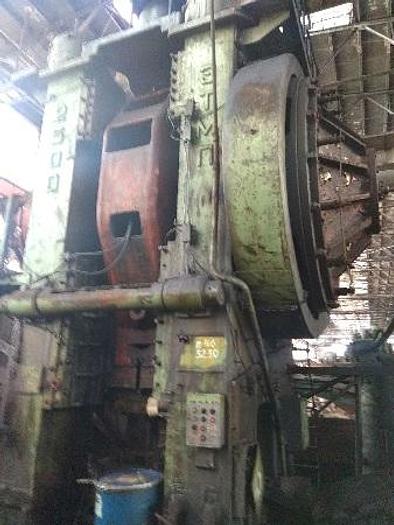

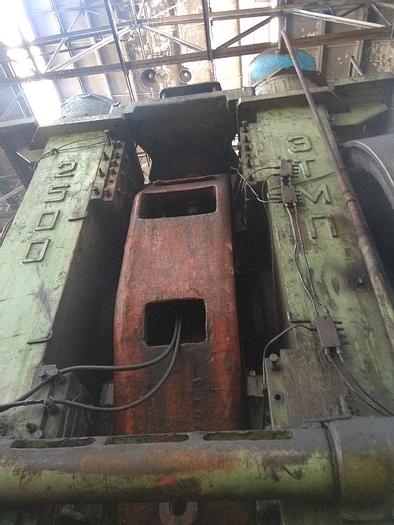

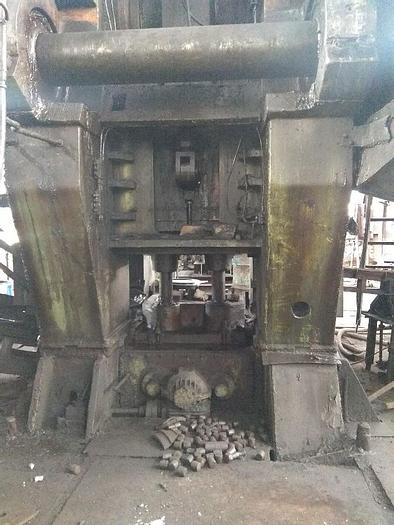

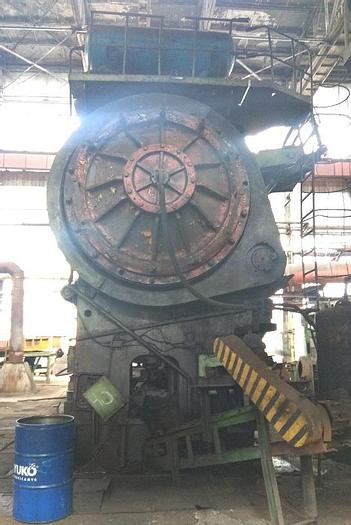

Press Hot Forging K8544
Specifications
Manufacturer | TMP Voronezh Russia |
Model | K8544 |
Condition | Used |
Stock Number | MA1234 |
Item condition | Good condition |
Capacity tons | 2500 |
Description
Capacity : 2500 tons,
Ram stroke : 350 mm,
Table dimensions :-
L to R : 1200 mm,
F to B : 1400 mm,
Continuous stroke per minute : 60 N°,
Single stroke per minute : 14 N°,
Connecting rod : 1 N°,
Die space : 890 mm,
Die Space adjustment in the table : 10 mm,
Space between uprights : 1320 mm,
Ram dimensions :-
L to R : 1070 mm,
F to B : 1120 mm,
Upright opening dimensions :-
Width :720 mm,
Height : 890 mm,
Upper knockout :-
Power 6 tn,
Stroke : 50 mm,
Pushers : 1 N°,
Lower knockout,
Power : 10 tn,
Stroke : 50 mm,
Pushers : 1 N°,
Main motor power : 132 kw,
Overall dimensions :-
L to R : 5350 mm,
F to B : 4680 mm,
Height above floor level : 6840 mm,
Press weight : 198 tons.
