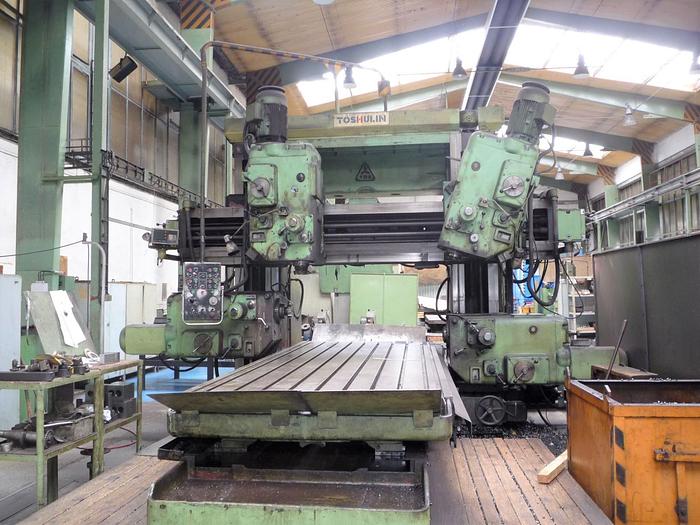

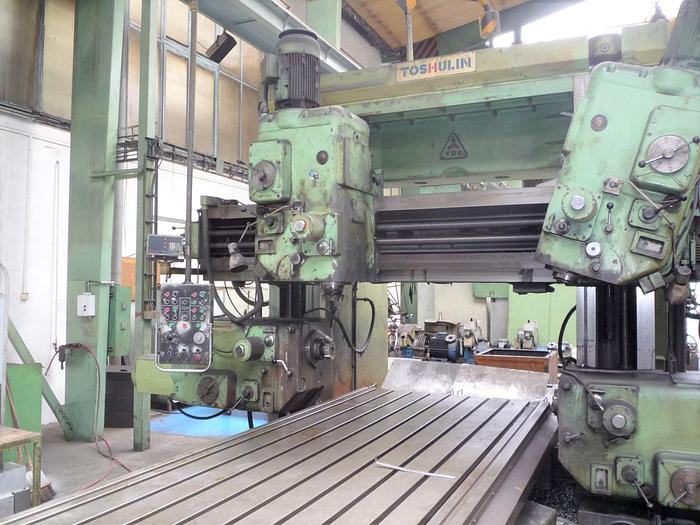

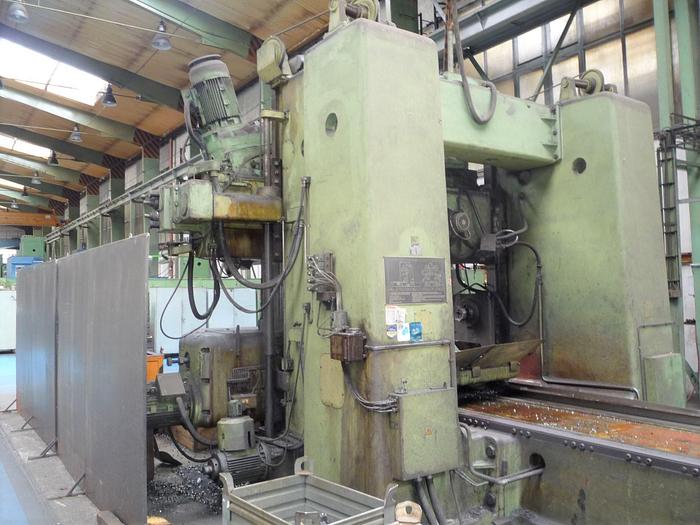

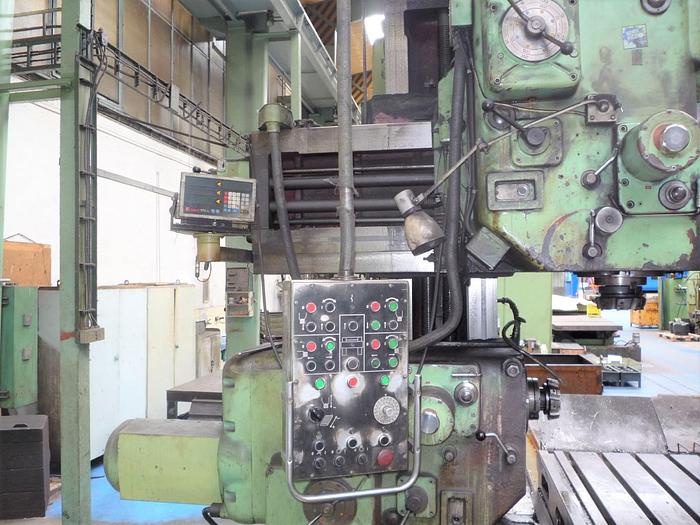

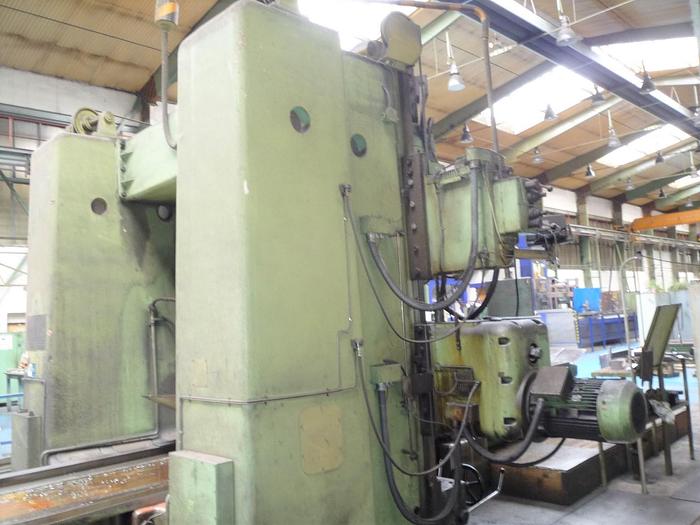

Plano Miller FP20

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerTos Czech
ModelFP20
ConditionUsed
Stock NumberMA1238
Item conditionGood Condition
Capacity tons0

Description

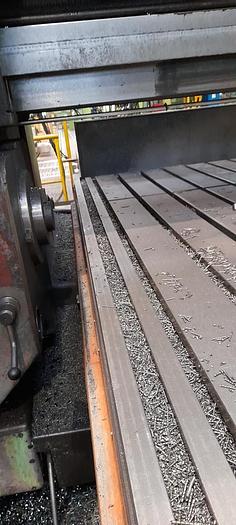

Clamping area table : 1600 x 4000 mm,

Number of Groove : 9,

Width x Spacing : 28 x 165 mm,

Max load table : 10 tons,

The movement of the bed Length table : 3700 mm,

Table Feed, continuously adjustable : 25-750 mm min-1,

Fast table mm min-1 spindle cutter steep Cone : 55,

Axial adjustment of the clamp spindle : 250 mm,

Cutter spindle Speed :

The number of degrees range : 10-16 500 min-1,

Feed the spindle smoothly adjustable 25-1000 mm min-1,

Spindle Quick : 1000 mm min-1,

Fast rail : 750 mm min-1,

Passage Between : 2060 mm,

Axis Distance stands horizontal spindles from the table : 100-1170 mm,

The distance from the head of the vertical spindles table : 100-1400,

The distance between the ends of horizontal spindles : 1285-1785 mm,

The distance between the horizontal vreteník : 1920 mm,

Min distance vertical spindle axis : 450 mm,

Electric motor to drive the cutter spindle : 20/23,

5kW electric motor for propulsion table : 1-15 kW,
