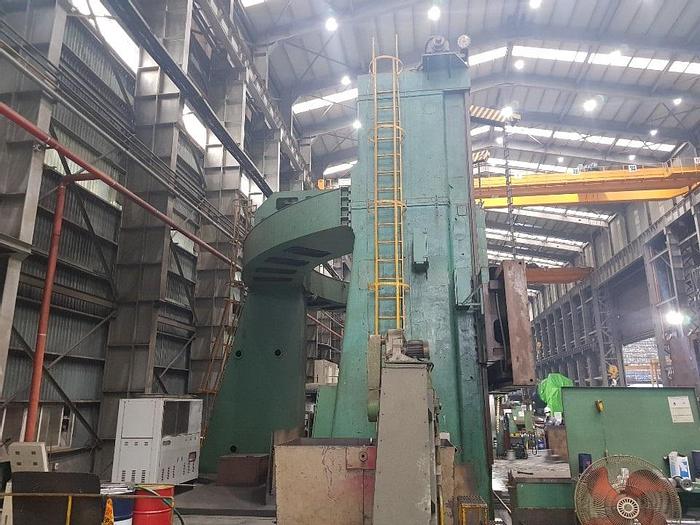

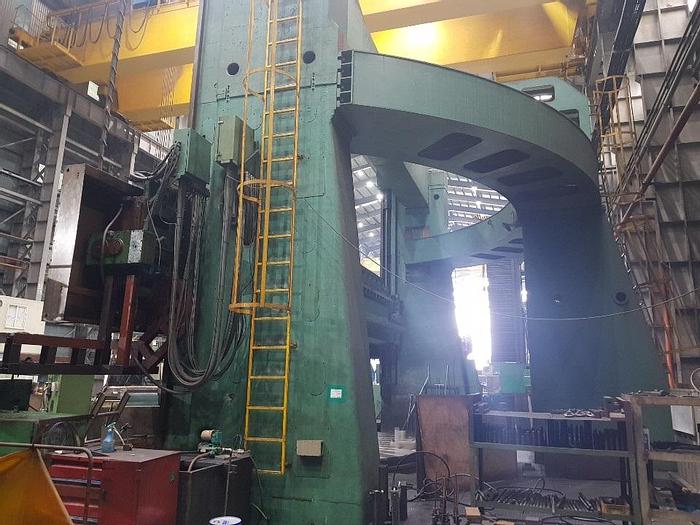

Lathe Vertical Turning CNC 1563

Full Retrofitted NC Vertical Lathe By Korean Engineers of EunKwang

Table Dia : 6300 mm,

Swing : 10500 mm,

Height : 5500 mm,

Loading Capacity : 350 ton,

Travel of Ram : 2800 mm,

Machine's Weight : approx 350 ton,

CNC System : Sentrol-2  ( same with Fanuc system code ),

Table Rotation Speed : 1.7~23.2 RPM (Motor RPM 2,000 ),

Main Motor : ( AC / DC )  150Kw (200 HP),

Hydrostatic for table upward moving.
