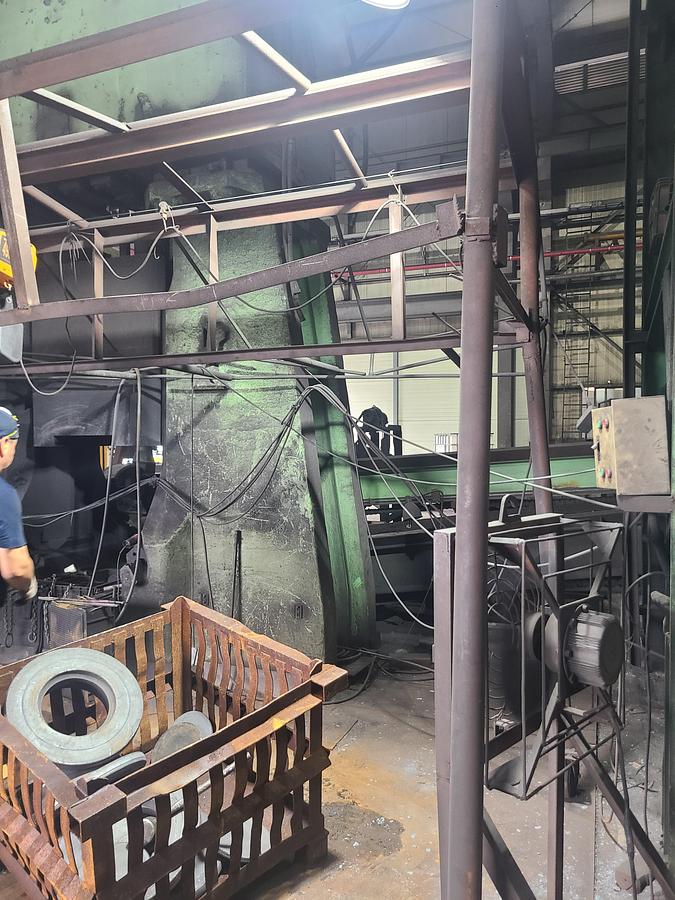

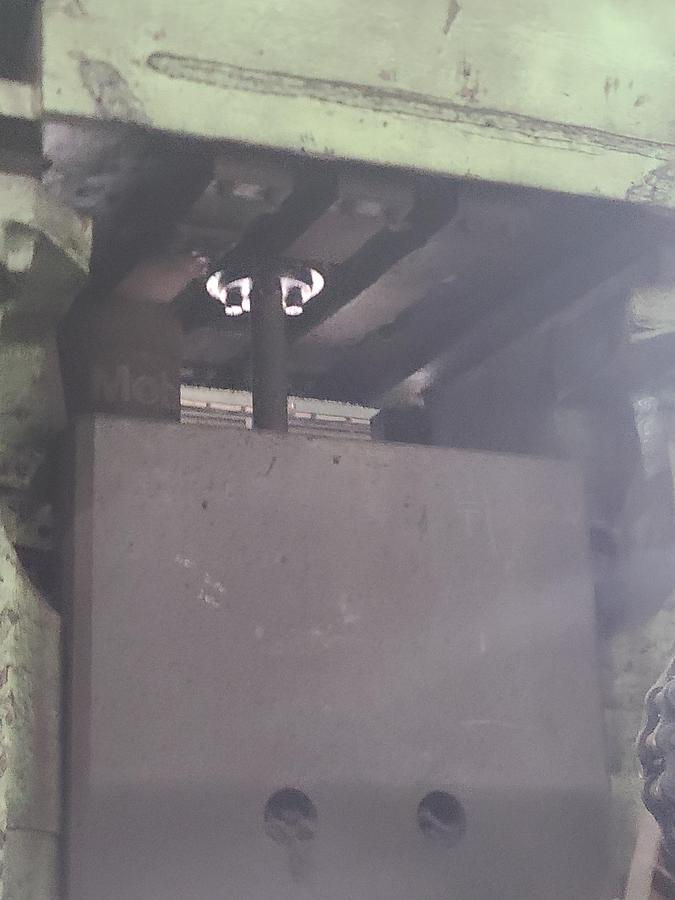

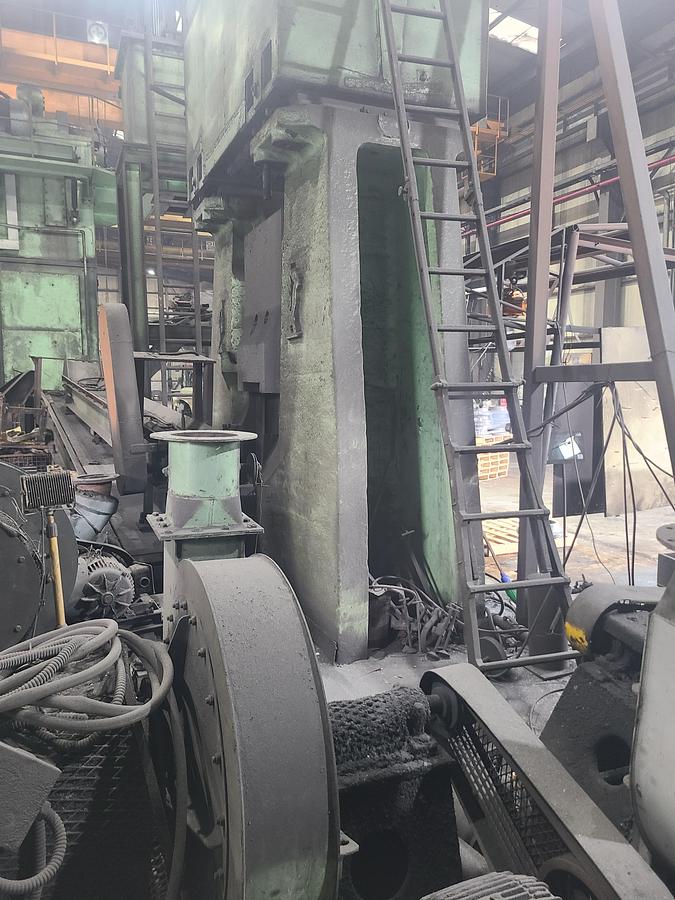

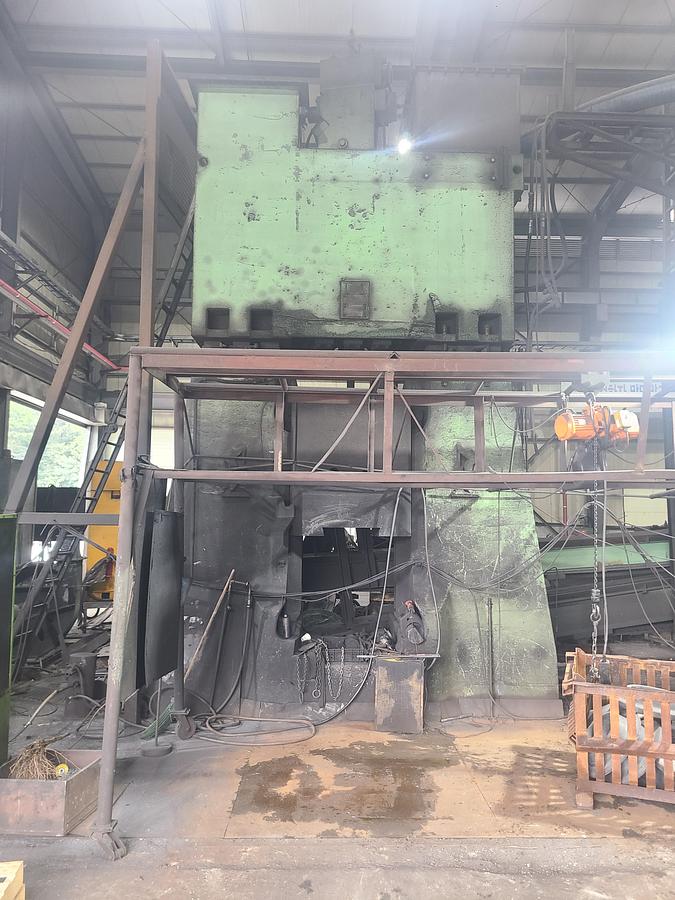

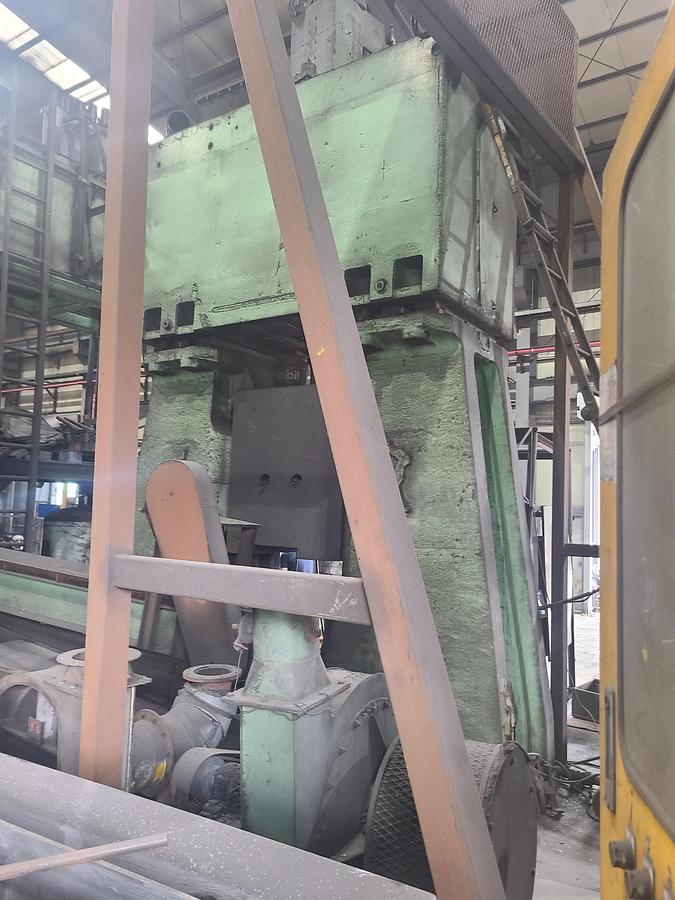

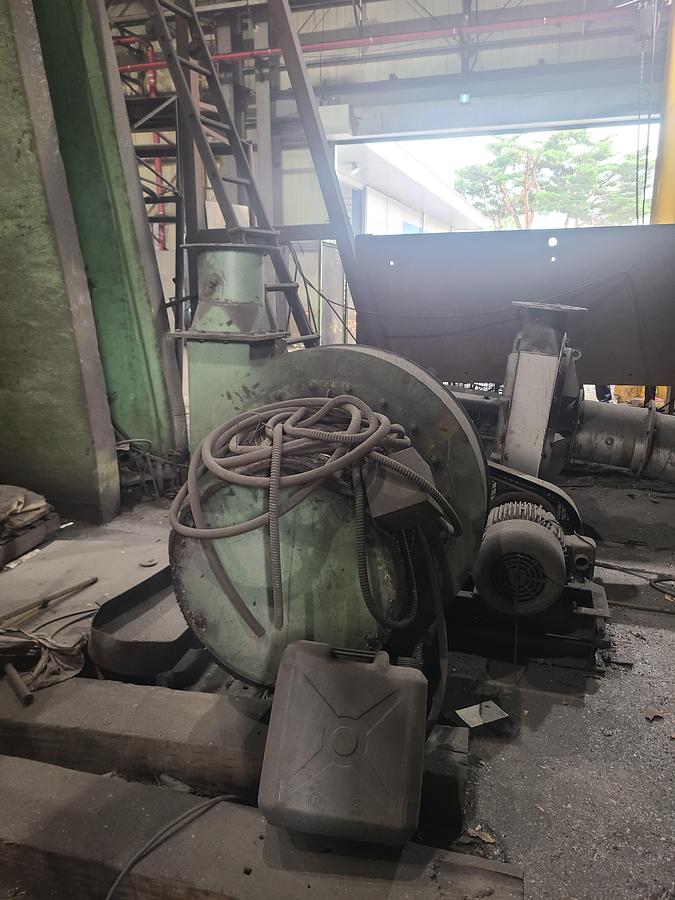

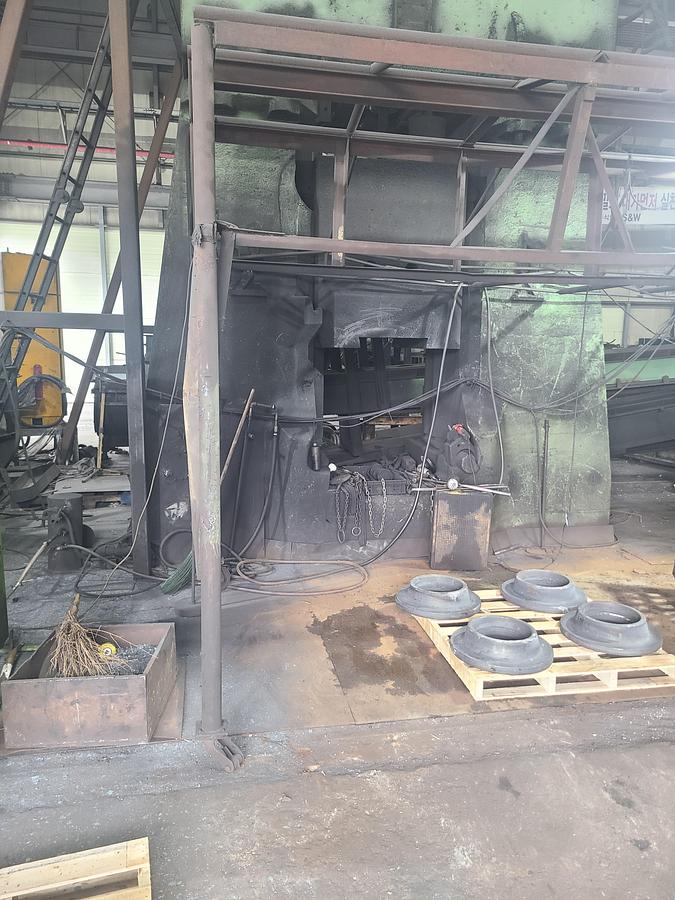

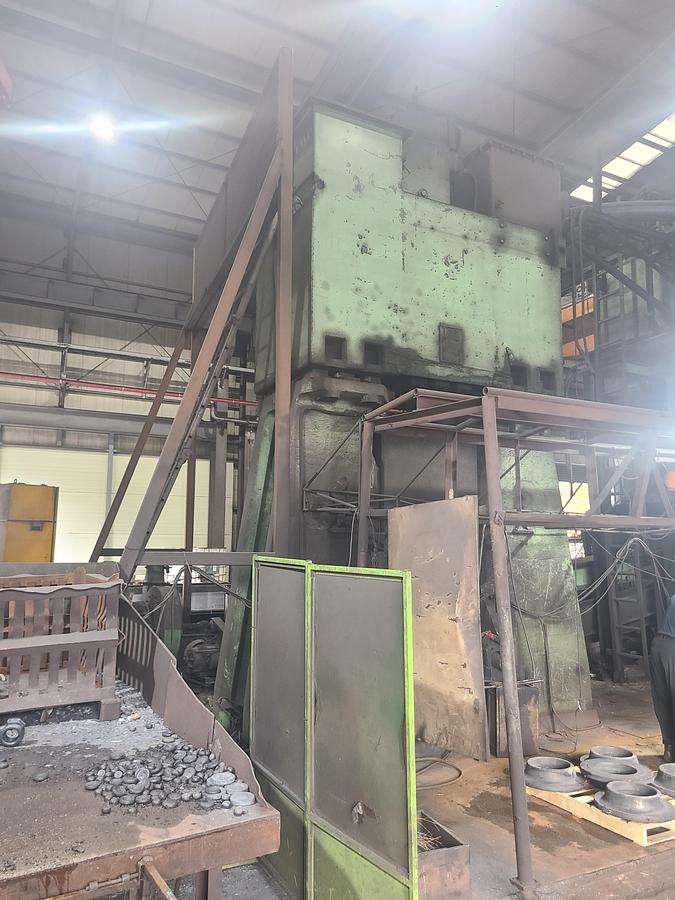

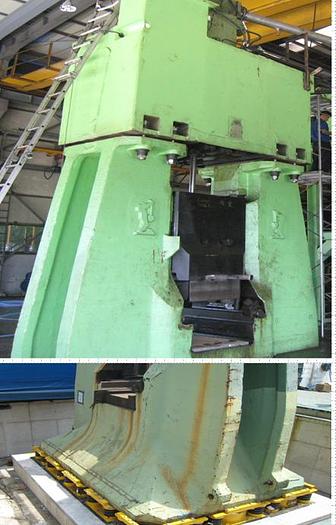

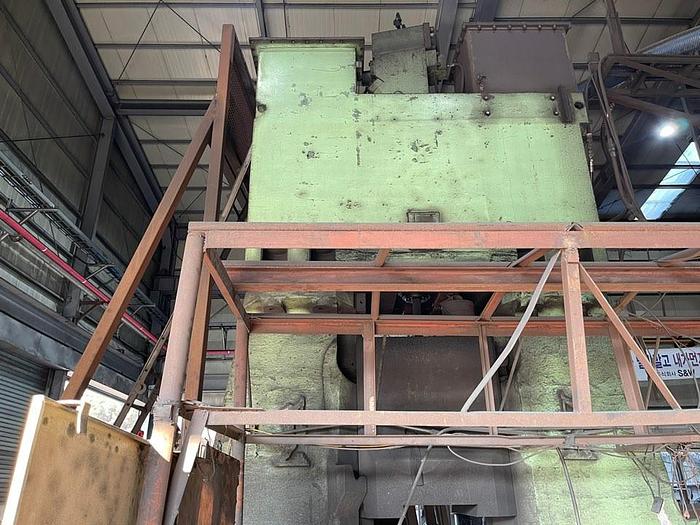

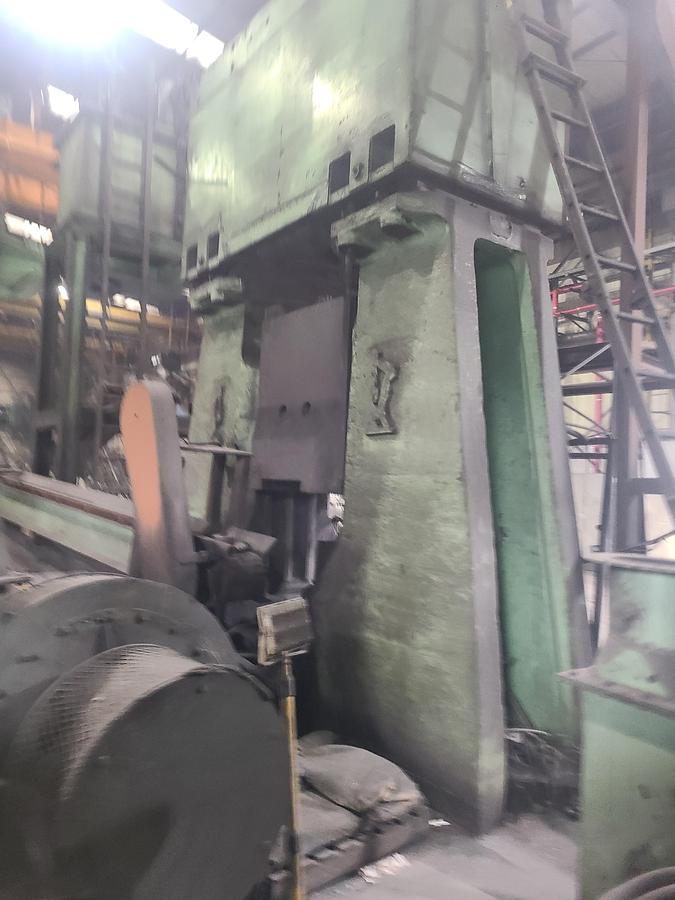

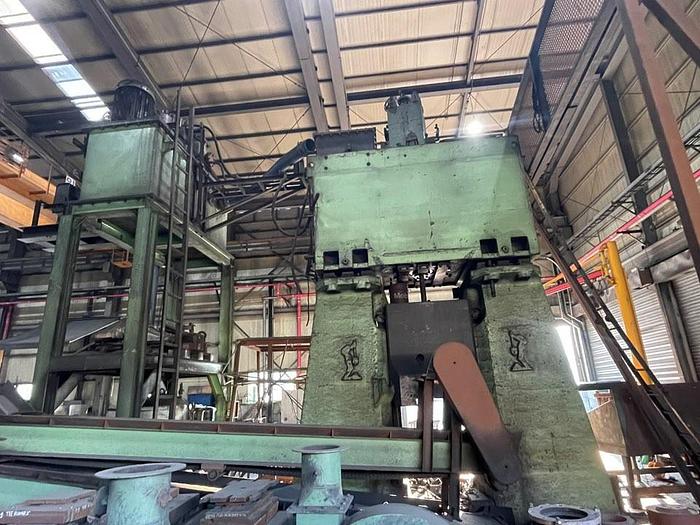

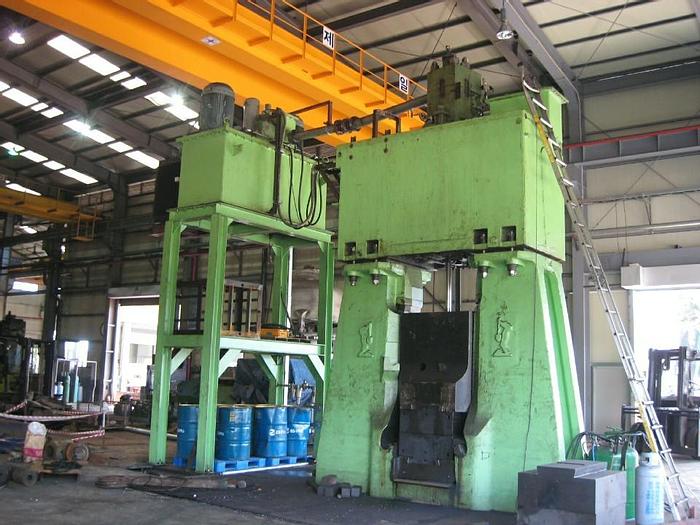

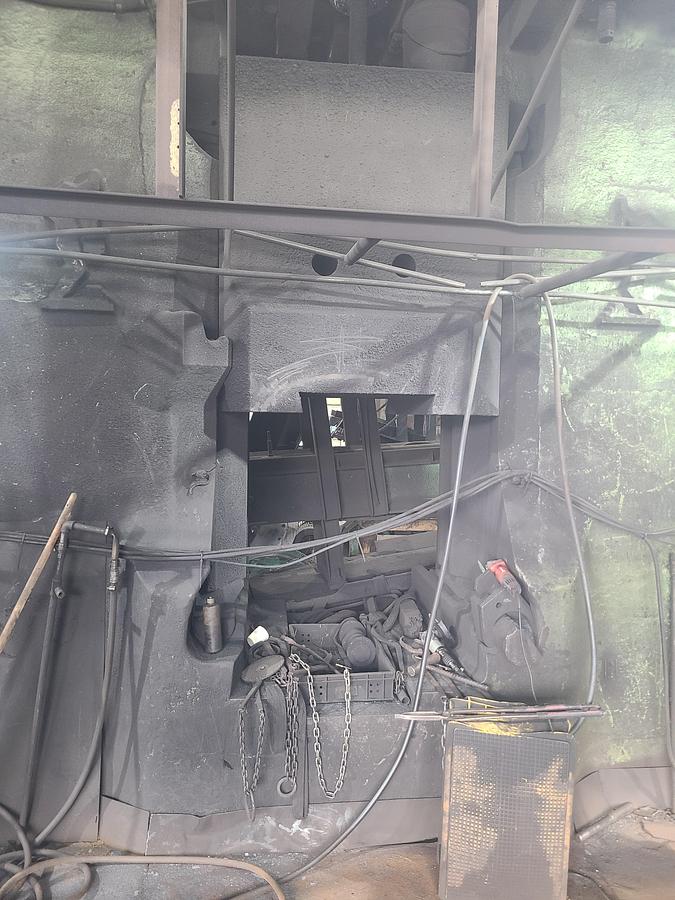

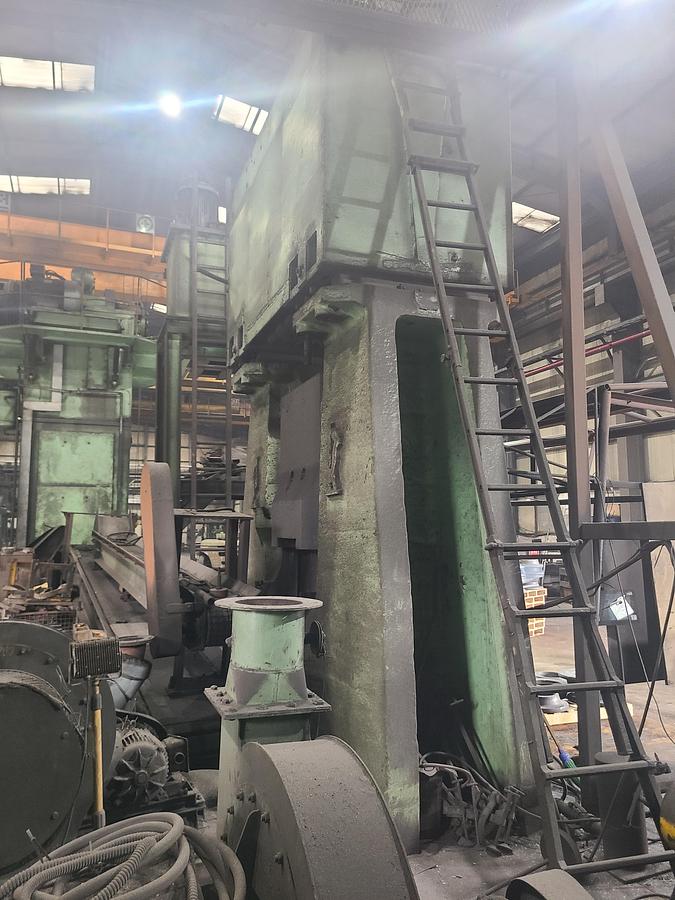

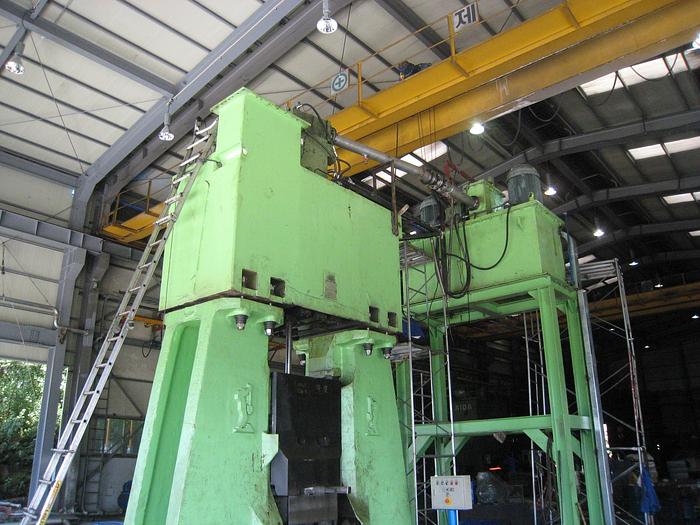

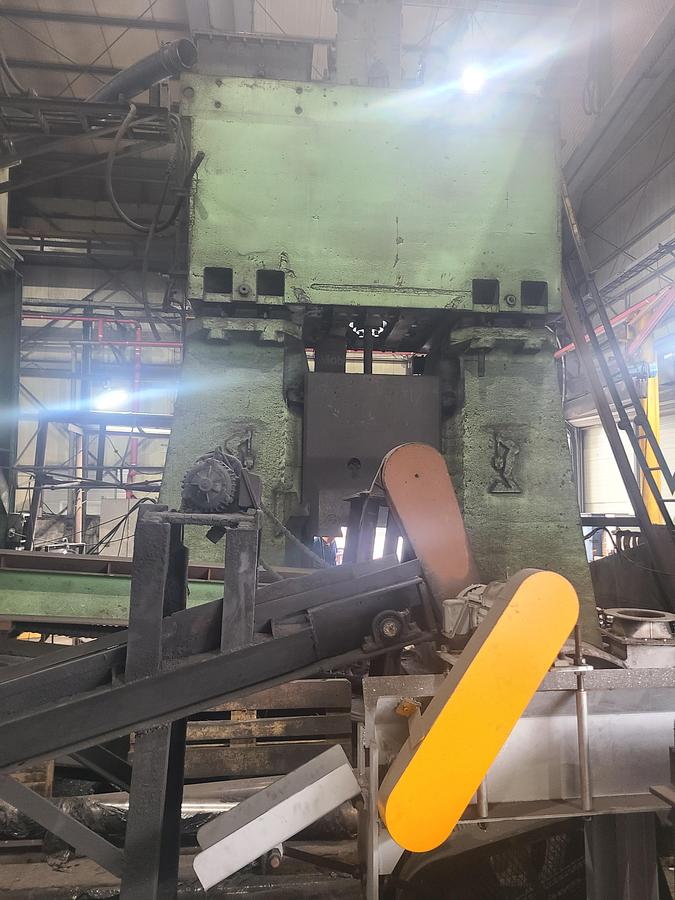

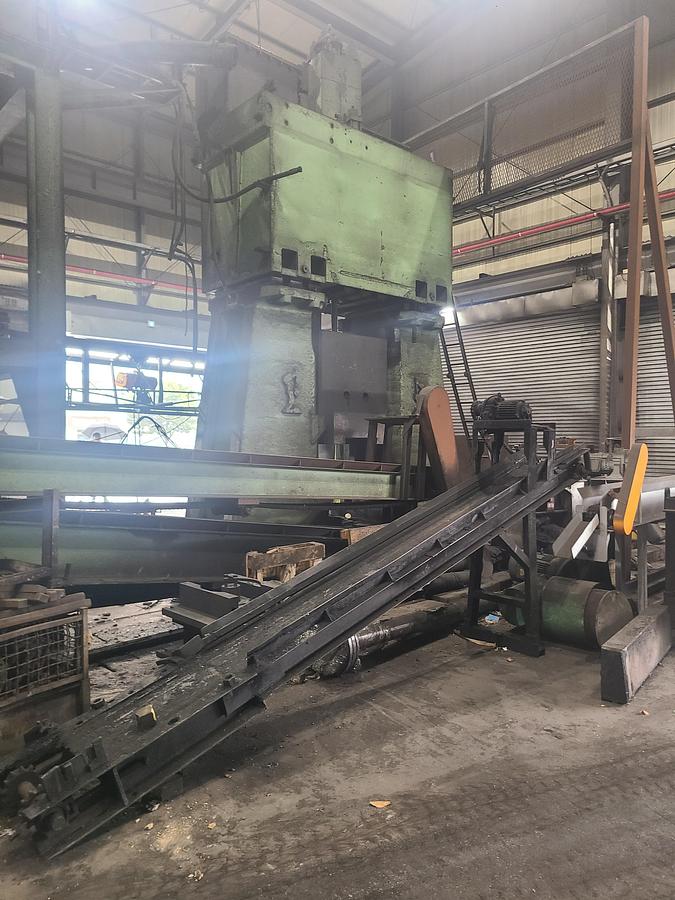

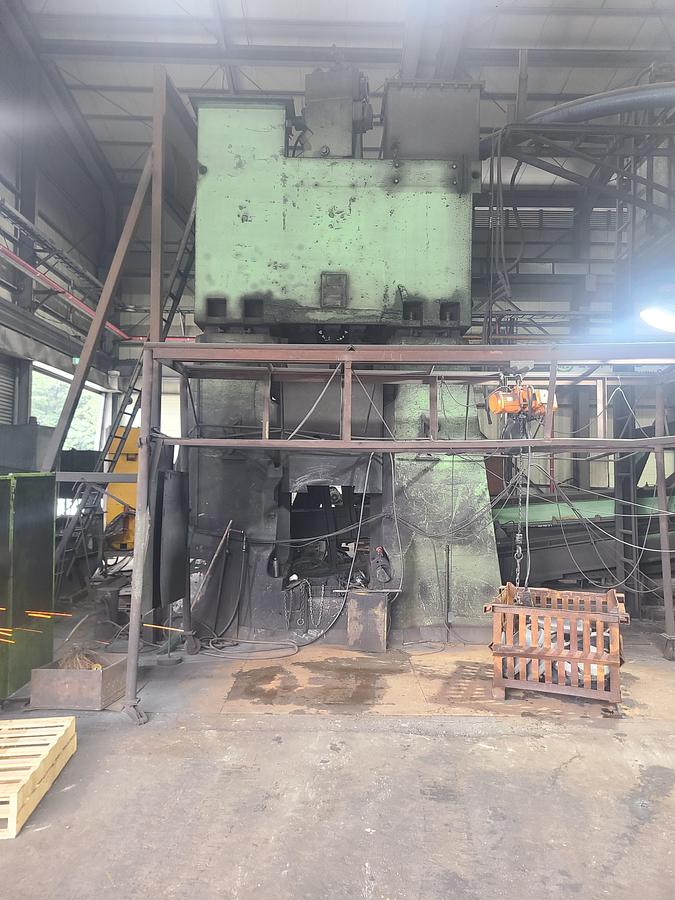

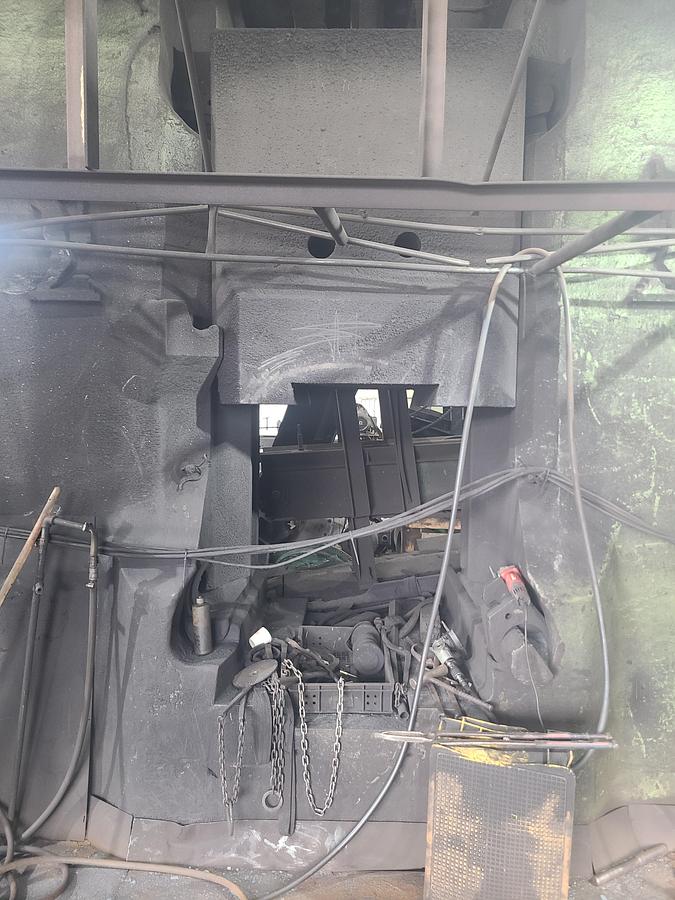

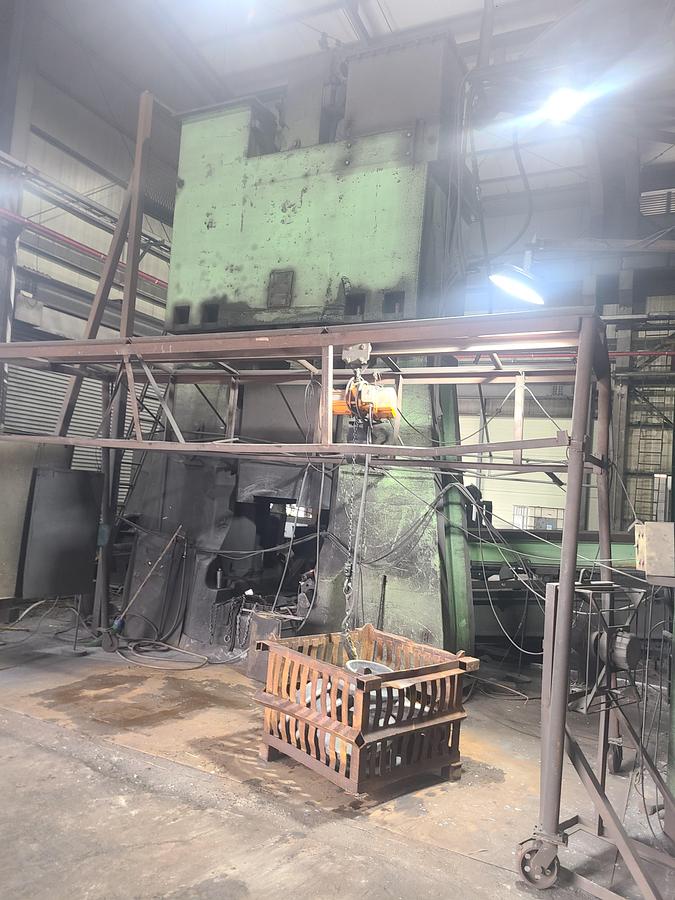

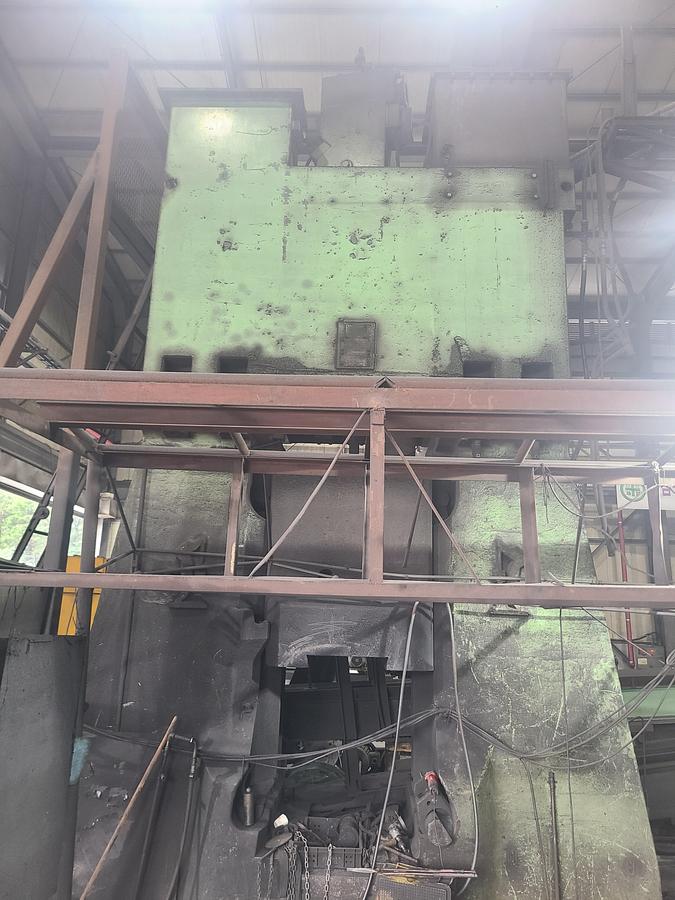

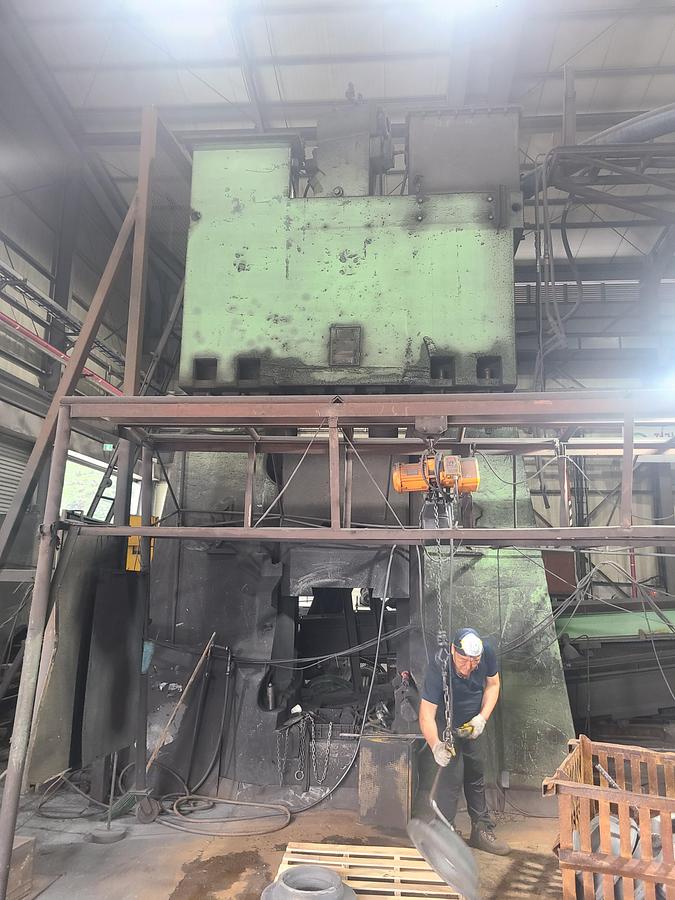

10 tons Hammer Forging Hydraulic Eumuco MD HOG-10

Electro-Hydraulic Drop Forging Hammer :

Model : MD HOG-10

Capacity : 10 tons,

Work resulting a blow: 10,000 kgm (real 80,000kgm),

Stroke : 1270 mm,

Stroke per minutes : 68~90/min

Table size : 480 x 480 mm,

Height of fall: 590 mm,

Weight of ram hammer: 7,800 kg,

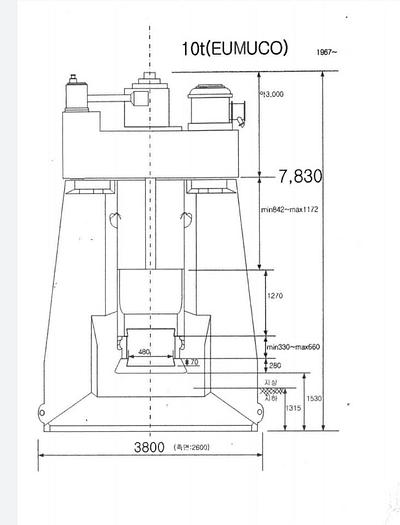

Shut height: 330~660 mm,

Clearance distance between guidance: 940 mm,

Depth of ram hammer: 1,000 mm,

Power: 2 x 75 kw,

Weight of anvil bed: 101 tons,

Total height: 8 m,

Height From the Floor: 6.7 m.

Total weight: 143 tons.

Technical manuals available.
