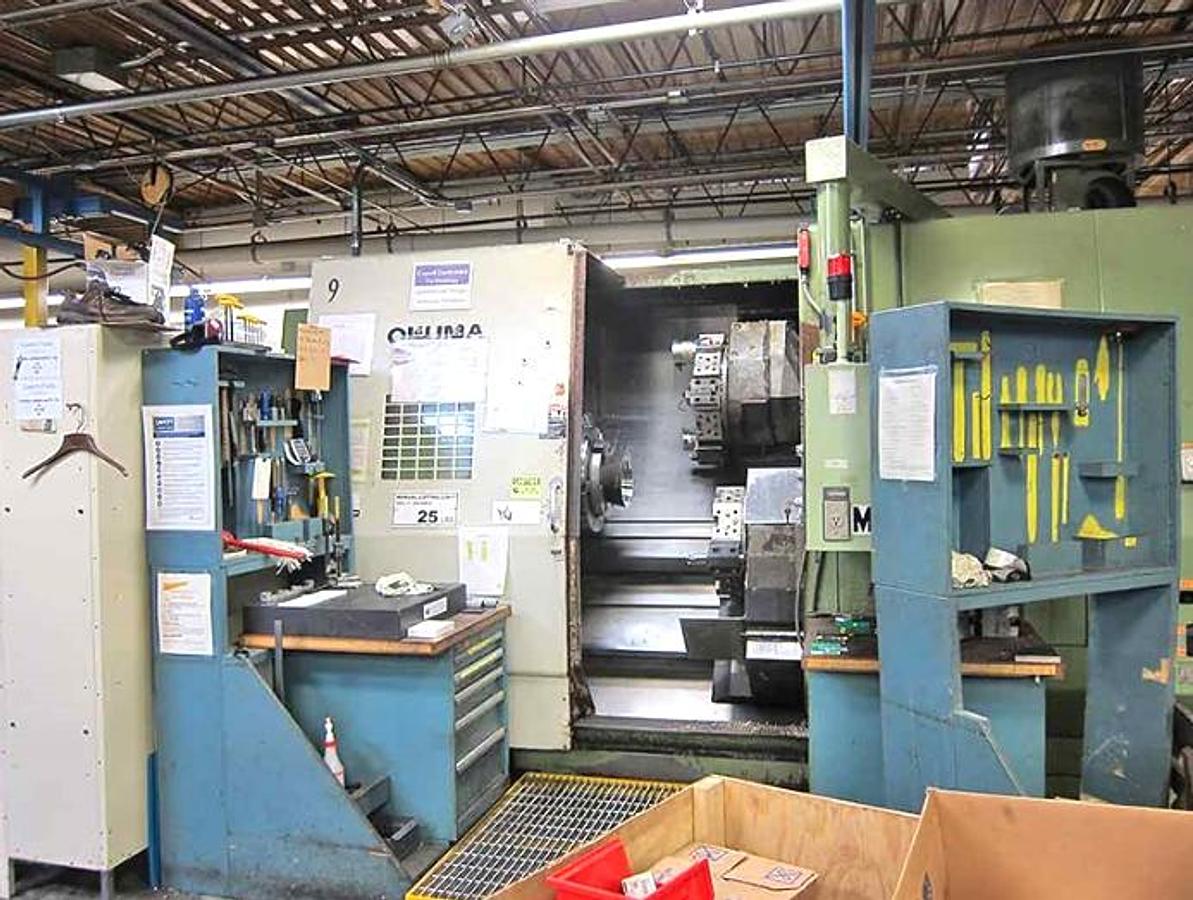

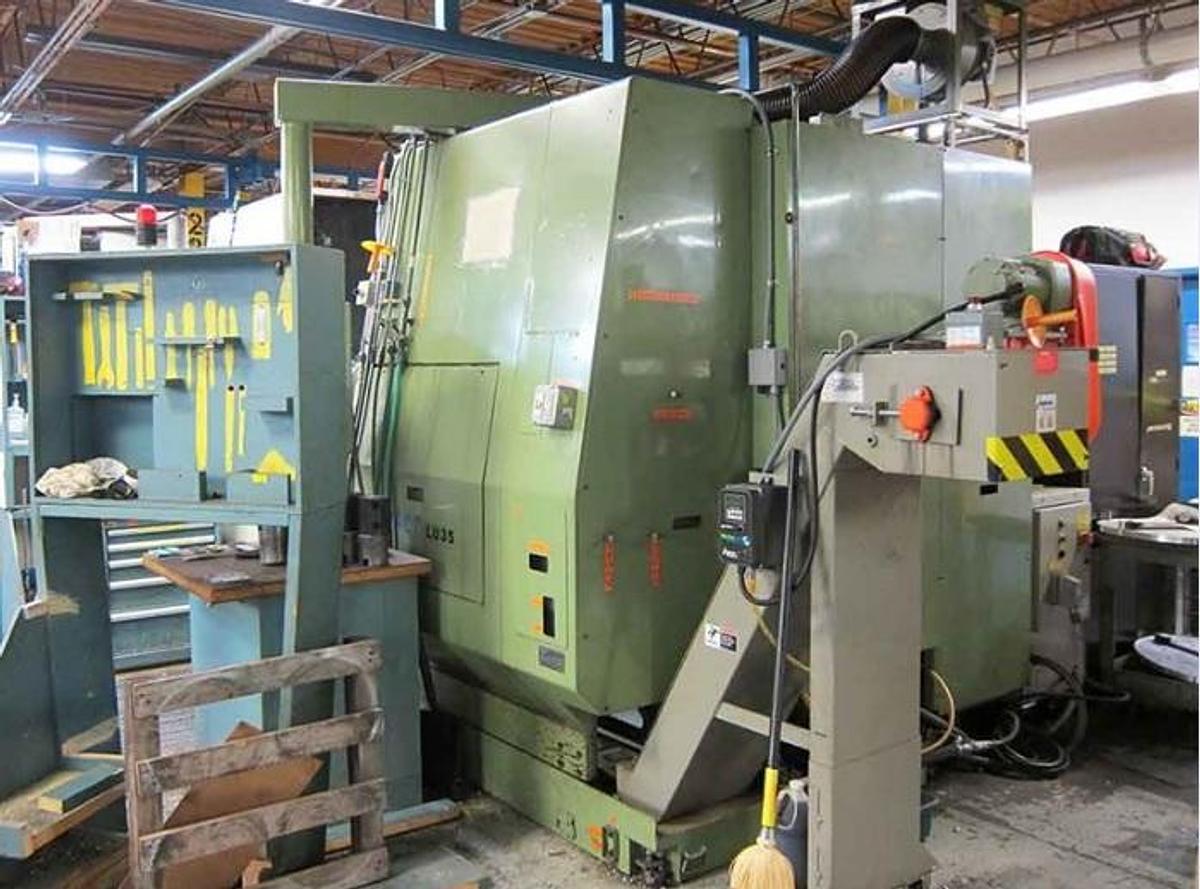

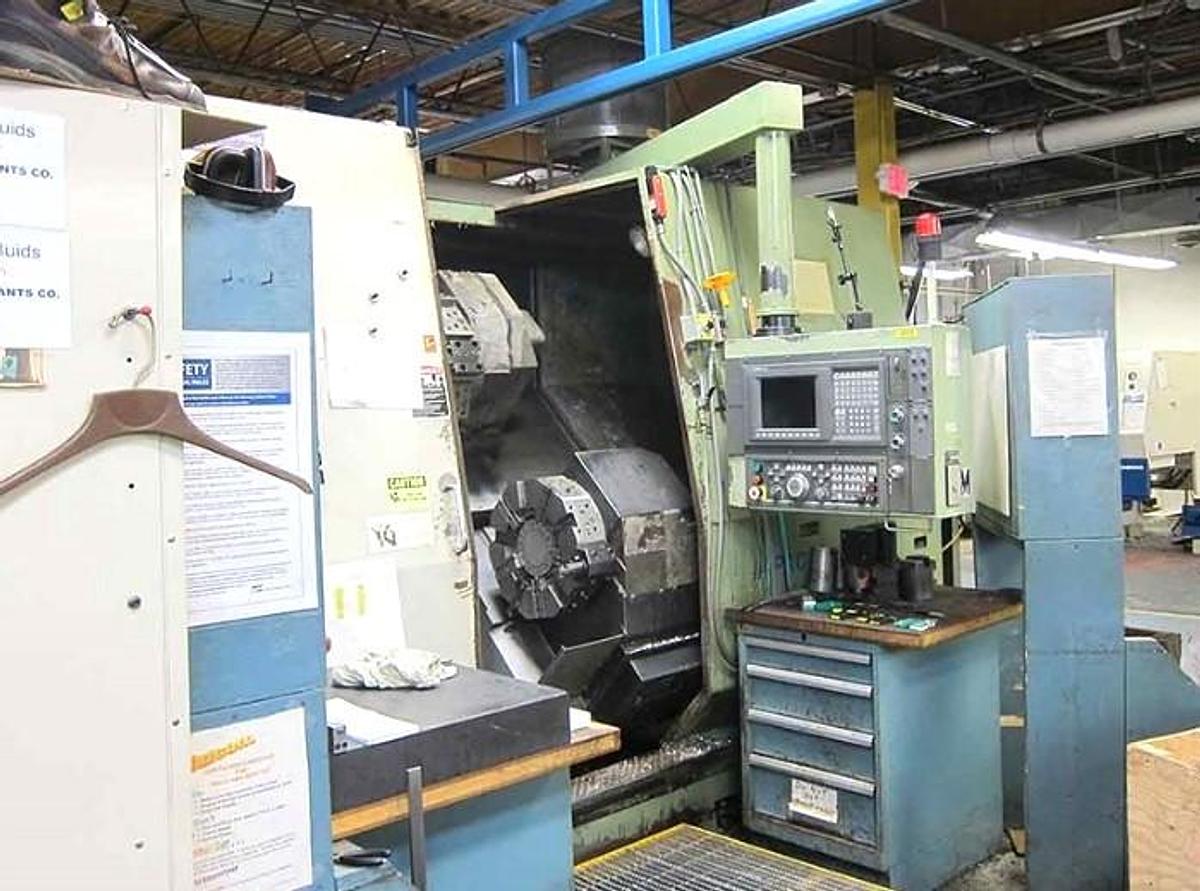

Lathe Vertical Turning CNC Okuma LU-35
No longer available
Specifications
| Manufacturer | Okuma |
| Model | LU-35 |
| Year | 2002 |
| Condition | Used |
| Stock Number | MA3056 |
| Item condition | Very good working condition |
Description
4-Axis CNC Turning Center, OSP-7000 ctrl, 12/10 pos Dual Turret
Swing : 740 mm,
Centers : 1499 mm

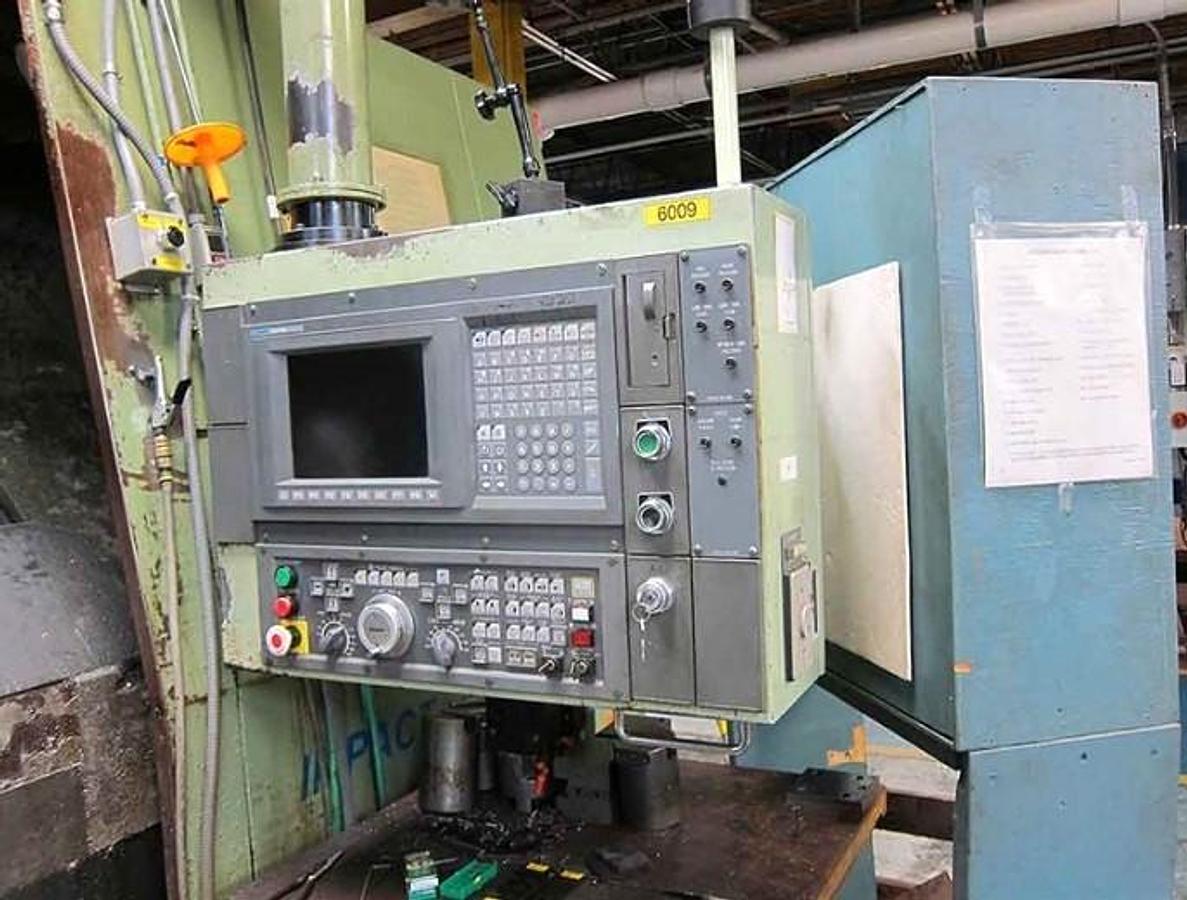

Control : OSP-7000
Max Workpiece diameter : 550 mm,
Spindle Speeds : 14 ~ 3,200 rpm,
Carriage travel (X-Axis) : 660 mm,
Carriage Traverse (Z-Axis)919 mm,
Tailstock Quill diameter :120 mm,
Tailstock Quill travel : 170 mm,
Main drive motor : 30 kW,
Machine length : 4521 mm,
Machine width : 2845 mm,
Machine height : 2591 mm,
Machine weight : 8981 kgs,

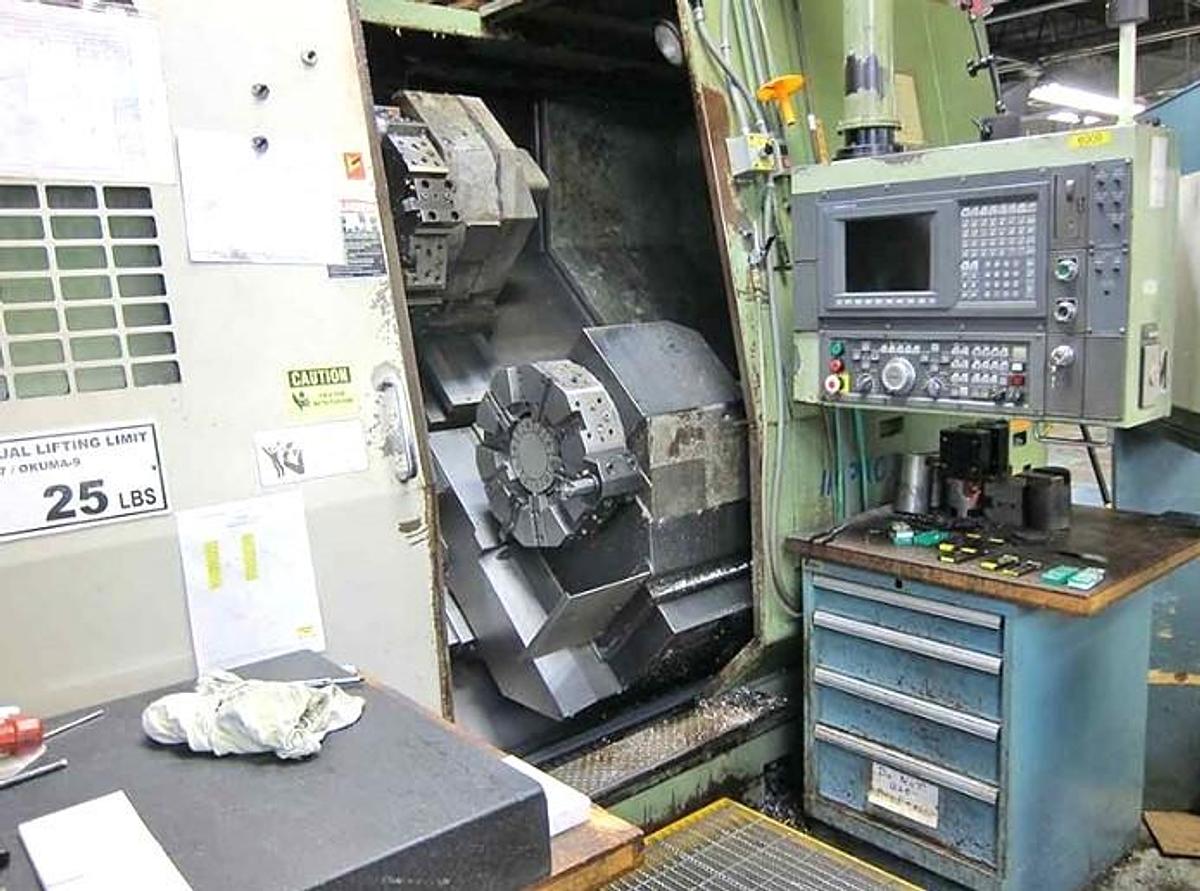

It has a Dual Turret System with 12 tool positions on the Upper Turret and 10 tool positions on the Lower Turret
- Still installed and under power
