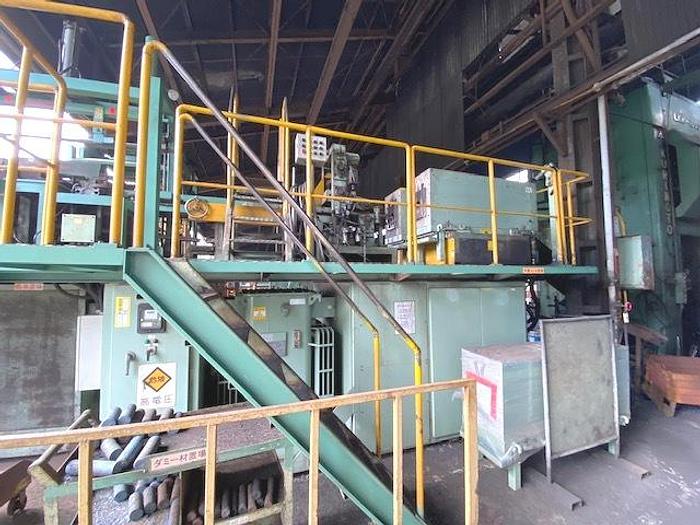

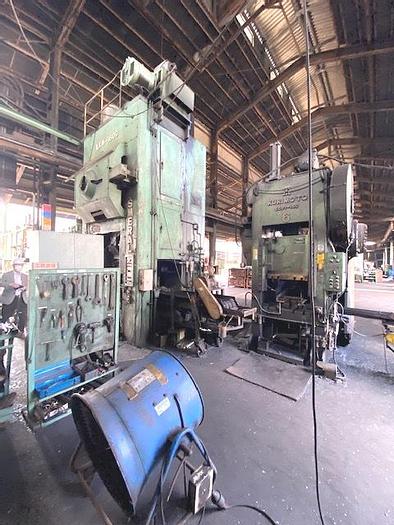

Hot Forging Line LKM1600

Capacity at 3 mm above bottom dead point : 1600 tons,

Allowable Eccentric load left/right 250 mm : 1600 tons,

Stroke : 280 mm,

Shut Height : 760 mm,

Ram adjustment : 14 mm

Stroke per min : 85,

Production Stroke : 22 mm,

Bed size (LR X FR) : 1243 x 1360 mm,

Ram size : 920 x 1040 mm,,

Bottom Knockout capacity at center : 20 tons

Bottom Knockout Stroke at center : 50 mm,

Upper knockout capacity at center : 20 mm,

Upper knockout stroke at center : 5 kg/cm2,

Air pressure : 5 kg/cm2,

Main motor power : 75 kW,

Lubrication Motor : 0.2 kW,

Work height : 570 mm,

Weight : 80 tons.

With bolster.

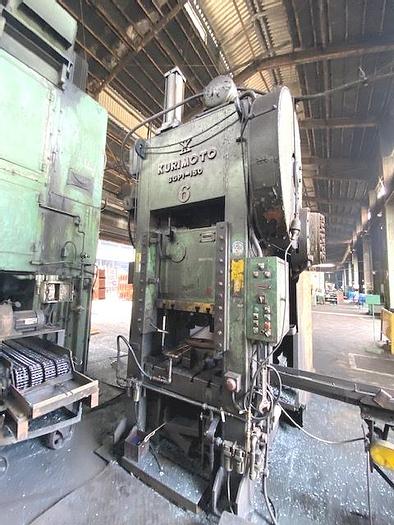

Trimming Press :

Make : Kurimoto,

Model : SGP1-150,

Capacity : 150 tons,

Stroke : 180 mm,

SPM : 45,

Die Height : 400 mm,

Adjust : 110 mm,

Bolster : 800 x 800 mm,

Slide : 650 x 700 mm,

Main motor power : 11 kW,

Weight : 15 tons.

Induction Heater :

Make : Ushio,

Yom : 2007,

Capacity : 300 kW,

3 phase 200 V,

2 coil : 50 mm and 60 mm.
