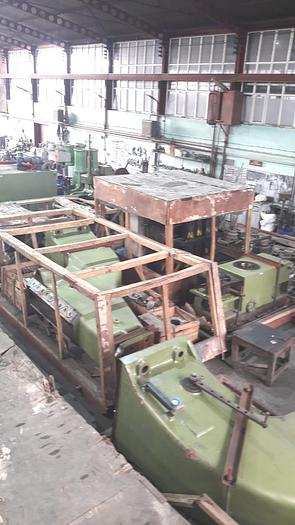

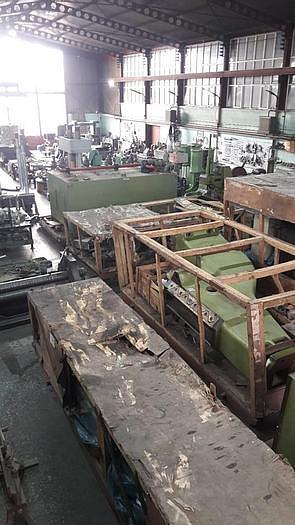

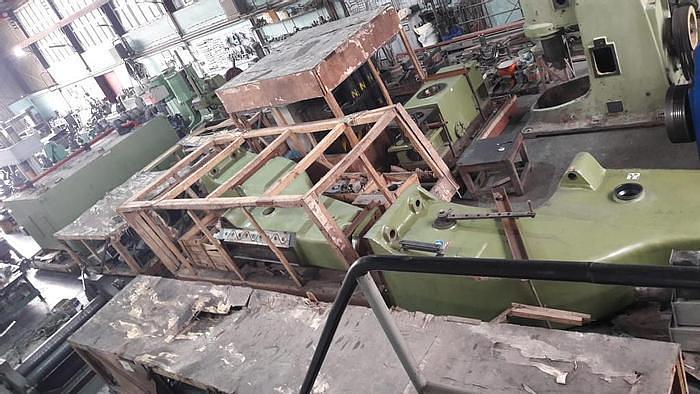

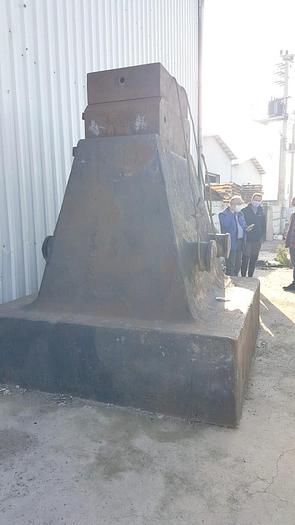

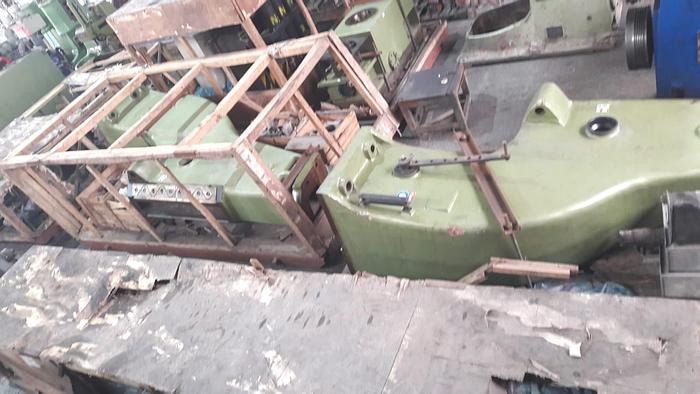

Hammer Forging Hydraulic C66Y-120


Contact us for price

orCall +919920651051


ManufacturerAnyang Forging Press Group China
Stock NumberMA1303
Item conditionGood condition
Capacity tons3


Electric Hydraulic Hammer

Capacity : 3 tons,

Energy : 120 kJ,

Rated weight of falling parts : 4200 kg,

Max. Stroke : 1450 mm,

Stroke per min : 50-55,

Main oil pump : type A2F160R2P3,

Main motor type : T250m-4-B35,

Main motor Power : 55 kW,

Working Area : 2700 X 1470 mm,

Lower die surface height above ground : 760 mm,

Machine outside size (L X W X H) : 5100 X 2300 X 7500 mm.

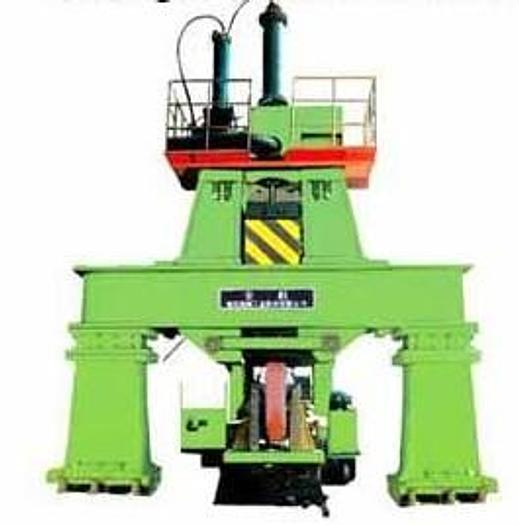

Fully Hydraulic Hammer Introduction :

C66Y series fully hydraulic open die forging hammer is fully hydraulic drive open die forging hammer, there single arm type, arch type and bridge type etc. structure type. The system principle is the below chamber of hammer rod piston connect the high pressure oil all the time, realize hit through control the upper and below oil pressure of piston of piston. It’s used for open die forging. The fully hydraulic open die forging hammer hitting is powerful and faster, less malfunction, the ram can hang up at any position. It suit to produce all kinds of open die forgings.

Technical Characteristics of Hydraulic Hammer :

  1. The full hydraulic power drive system avoids the mutual exchange of oil and gas, and greatly improves the life of the hammer rod piston seal;
  2. The back pressure of the upper cavity is very low during the return stroke, and there is no boring phenomenon when striking, the return speed and striking frequency are improved, and the production efficiency is high;
  3. The unique X-shaped guide rail structure doubles the life of the hammer rod, from the original "wearable parts" to the current "longevity parts";
  4. The striking valve adopts the differential servo principle, the operating system is extremely flexible, and it is easy to control light and heavy strikes;
  5. The percussion valve adopts a clever slide valve + poppet valve structure, which makes the system maintain an excellent pressure without increasing the oil temperature;
  6. Unique advantage: Cost-effective, suitable for free forgings that do not require high hitting accuracy, especially for forging of large and medium-sized free forgings.
