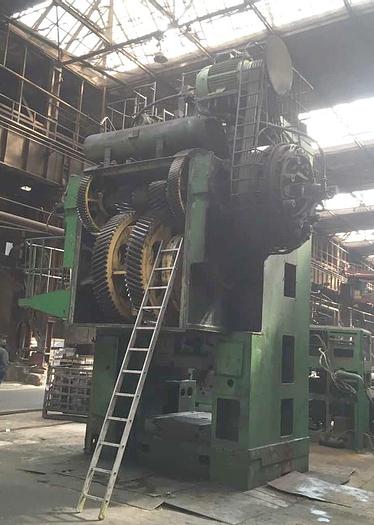

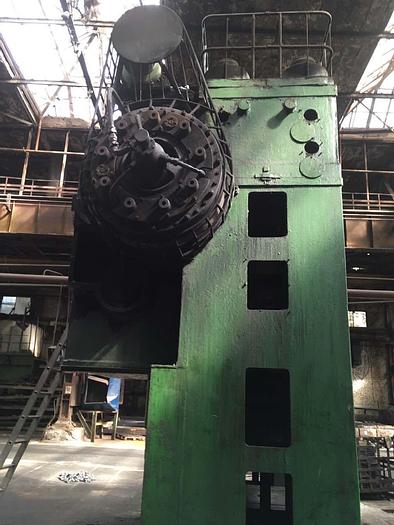

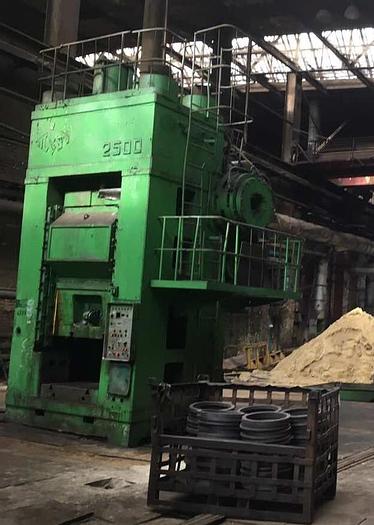

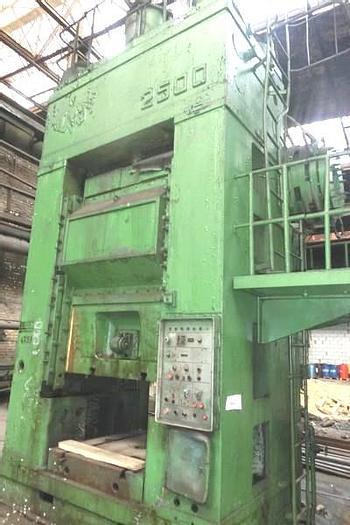

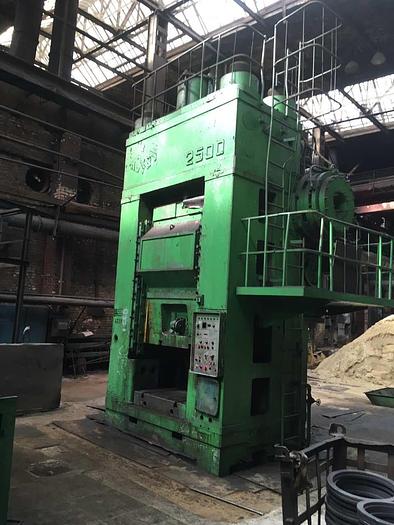

Press Knuckle Joint Coining K504.003.844 / KB8344

Capacity : 2500 tons,

Stroke : 190 mm,

Stroke per minute : 14-20,

Max. distance between table and slider in lower position : 800 mm,

Bolster plate-to-ram adjustable stroke: 15

Ram course in bottom position with max. power: 4,5

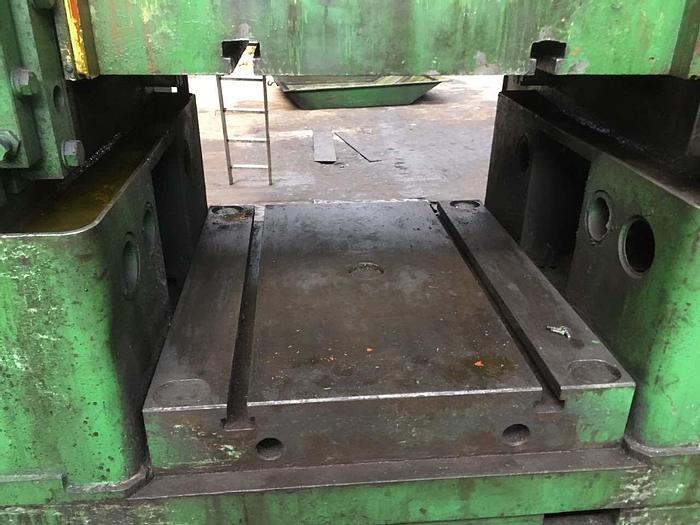

Table size: 1250 x 1400 mm,

Ram size:

-Front-to-back: 900 mm,

-Left-to-right: 1250 mm,

Lower knockout:

-Stroke: 50 mm,

-Force: 100 kN,

Upper knockout:

-Stroke: 40 mm,

-Force: 100 kN,

Main motor: 77 kW, 380 V,

Overall dimensions: 4770 x 3050 x 5890 mm,

Weight: 125 tons.
