Lathe CNC Slant Turn ST40N


Contact us for price

orCall +919920651051


ManufacturerMazak, Japan
ModelSlant Turn ST40N
Stock NumberMA1358
Item conditionGood condition, Under power
Capacity tons0


400 A.P. (max diam.800 mm) between center 2000,

Distance between center: 2060 mm,

Max. swing: 540 mm,

Max. diameter of shaft work: 370 mm,

Spindle nose: 104 mm,

Spindle speed: 6-3000 rpm,

Spindle indexing: C-axis 360, 0.001,

X= 550 mm,

Z= 2122 mm,

Cutting feed rate: X, Z axis 10 m/min,

Bed slide width: 710 mm,

Diam. of tailstock quill: 100 mm,

Tailstock center: MT no. 4,

Tailstock body stroke: 1850 mm,

Main motor drive: 40 hp,

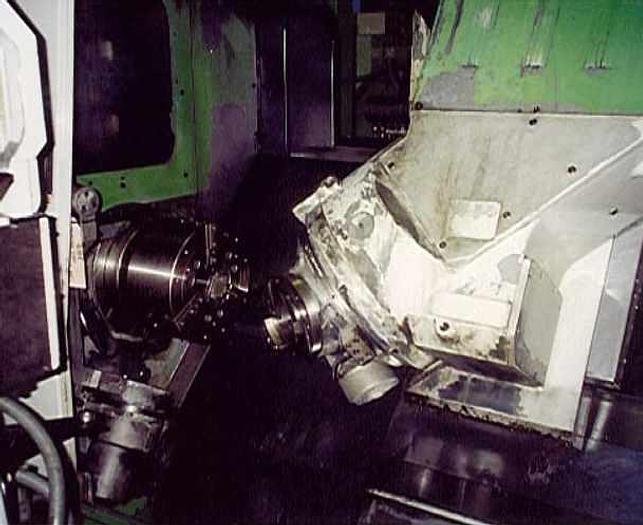

Type of turret: 2 position turret with ATC,

Max. tool magazine: 80 rotary and turning tools,

Rotary tool spindle: NT no. 50,

Rotary tools spindle speed: 20-3000 rpm,

Rotary tool spindle motor: Hp 5.5 kw,

Turret clamping force: kg. 600,

Purification plant KNOLL,

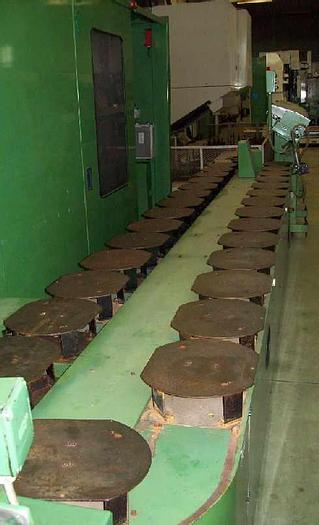

Feeder and robot with 30 workstation, transformer and tools


Machine weight : 11.4 tons.

Technical manuals available.
