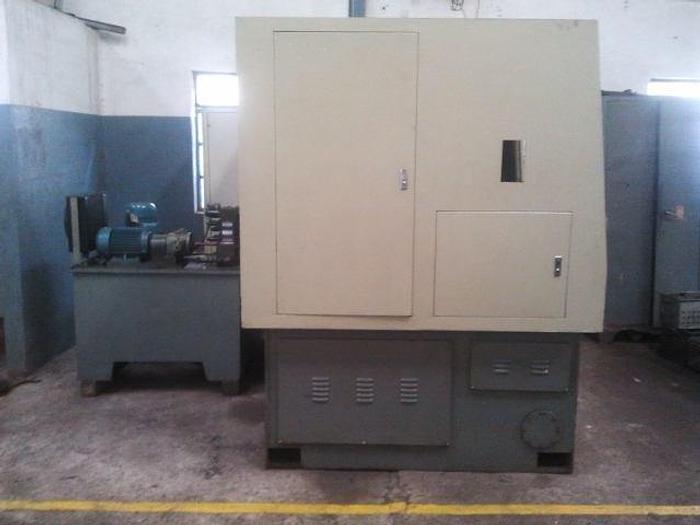

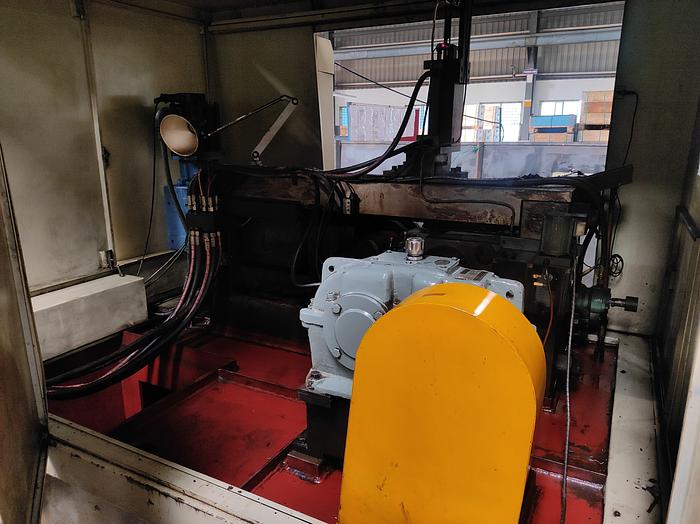

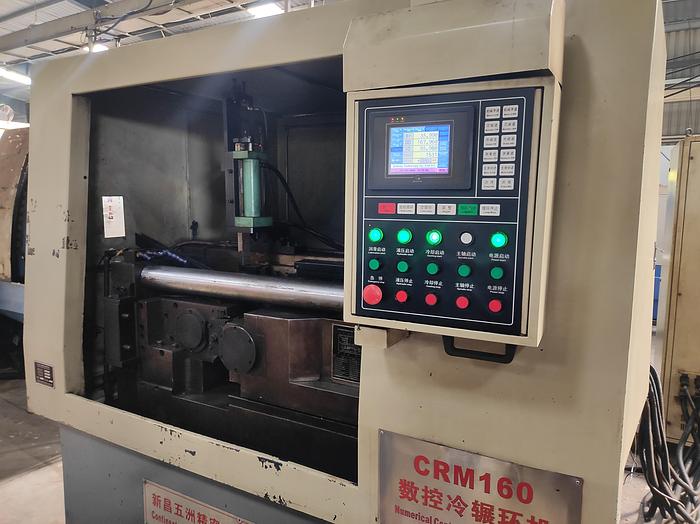

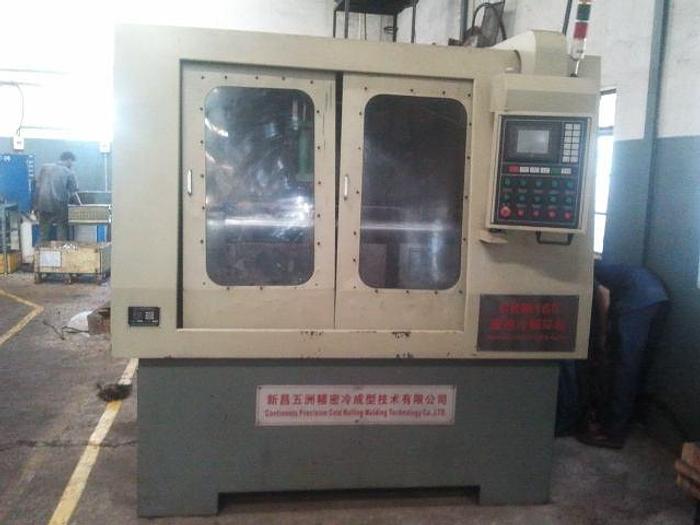

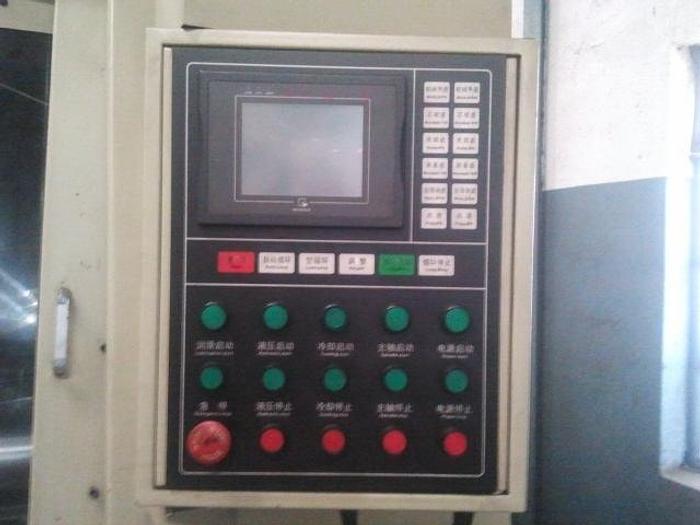

Ring Rolling Machine CRM160

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerXinchang Continents
ModelCRM160
ConditionUsed
Stock NumberMA1379
Item conditionNew ,Unused
Capacity tons160

Description

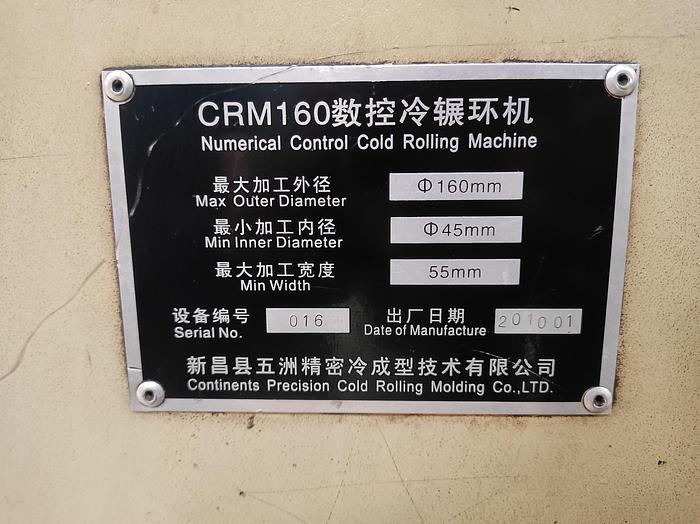

Maximum outer diameter : 160 mm,

Minimum inner diameter : 45 mm,

Minimum width : 55 mm,

Minimum center distance between runner wheel and mandrel : 105 mm,

Maximum outer diameter of mandrel : 25 mm,

Nominal rolling pressure : 280 kN,

Speed of main shaft : 208 r/min,

Maximum travel of main slide : 130 mm,

Feeding speed of main slide : 0.02-15 mm,

Minimum close center distance between runner wheel and mandrel : 115 mm,

Working time : 10-35,

Main motor : 30 kW,

Hydraulic pressure motor : 2 x 3 kW,

Lubrication pump : 0.06 kW,

Electric Power :-

Cooling pump : 0.18 kW,

Servo motor for feeding driving : 5.5 kW,

Total weight of machine tool (excluding oil) : About 6200 kg,

Floor space of machine tool L x W x H : 2355 x 2250 x 2450 mm,

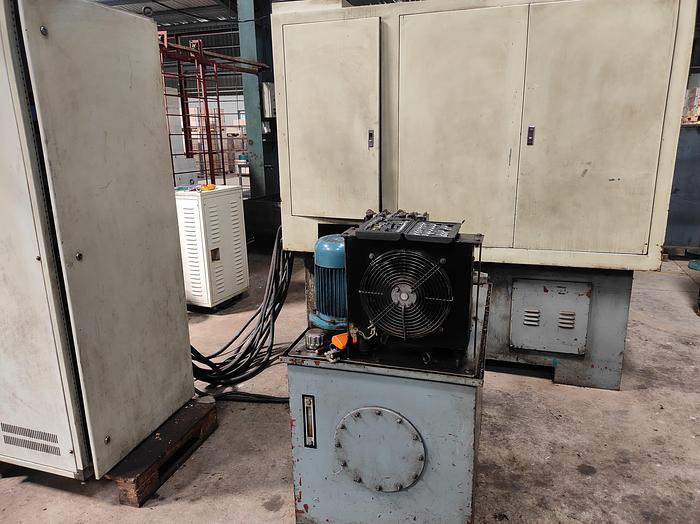

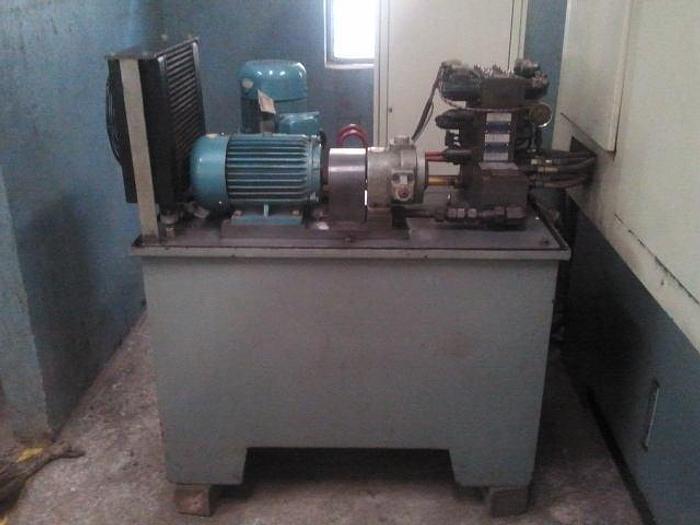

Hydraulic pressure unit : 1290 x 1070 x 1380 mm.
