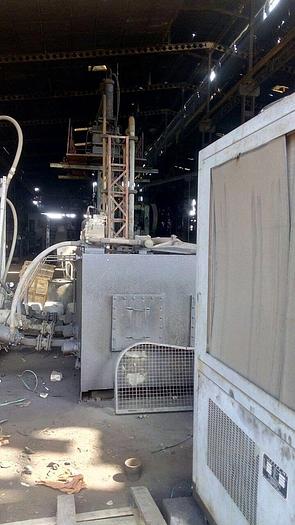

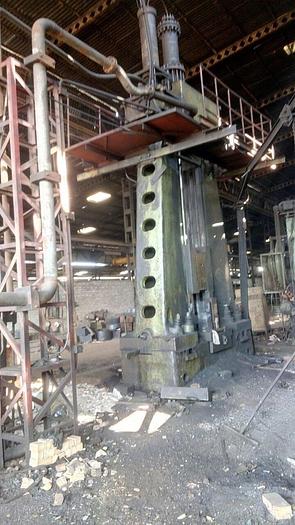

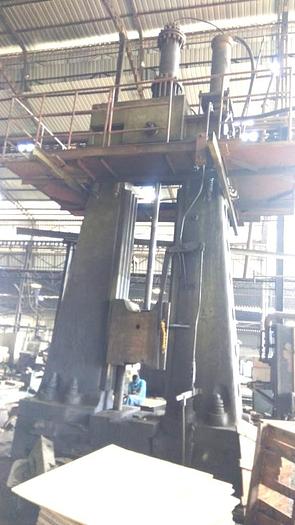

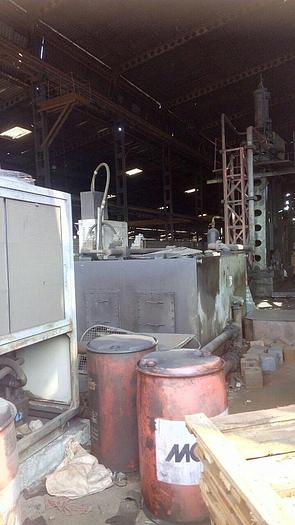

Hammer Forging Electro Hydraulic C86-75

Manufacturer	Anyang Forging Press Group China
Model	C86-75
Year	2014
Condition	Used
Stock Number	MA1400
Item condition	Good working condition
Capacity tons	3

Capacity : 3 tons,

Blow Energy : 75 kj,

Rated weight of falling part : 3500 kg,

Max stroke : 1250 mm,

Hit frequency per 1 min : 5s = 5 hits,

Working gas pressure : 2 - 4 mpa,

Working oil pressure : 9 - 14 mpa,

Power : 3 x 55 kw,

Min. closed dia. height (without dovtail) : 350 mm,

Distance between guides :700 mm,

Dimensions : 3700 x 1800 x 7100 mm,

Weight : 110 tons.
