Billet Shear Mitsui

1600kW / Actual output up to 2000kW,

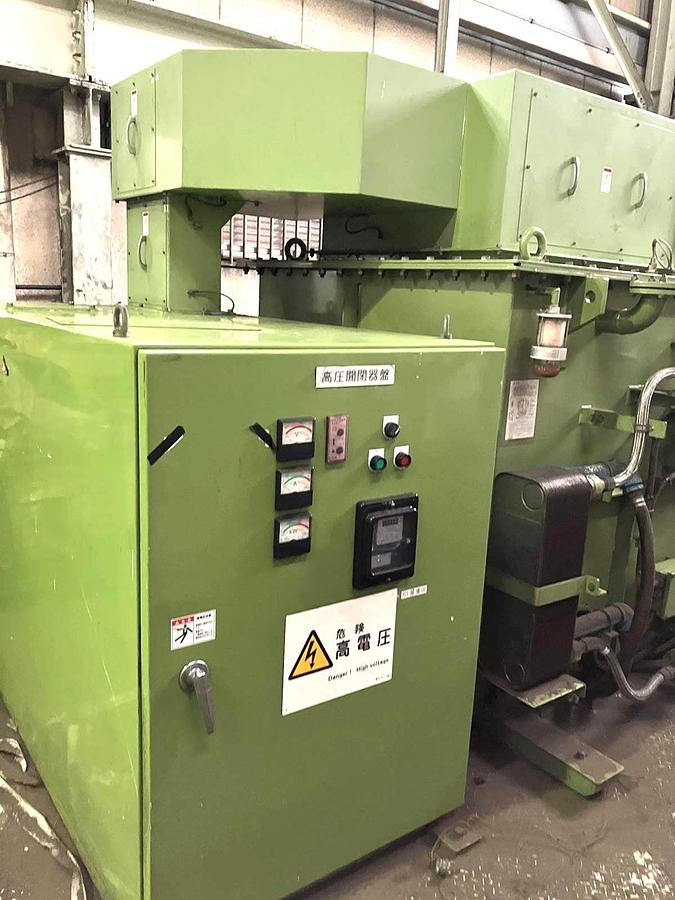

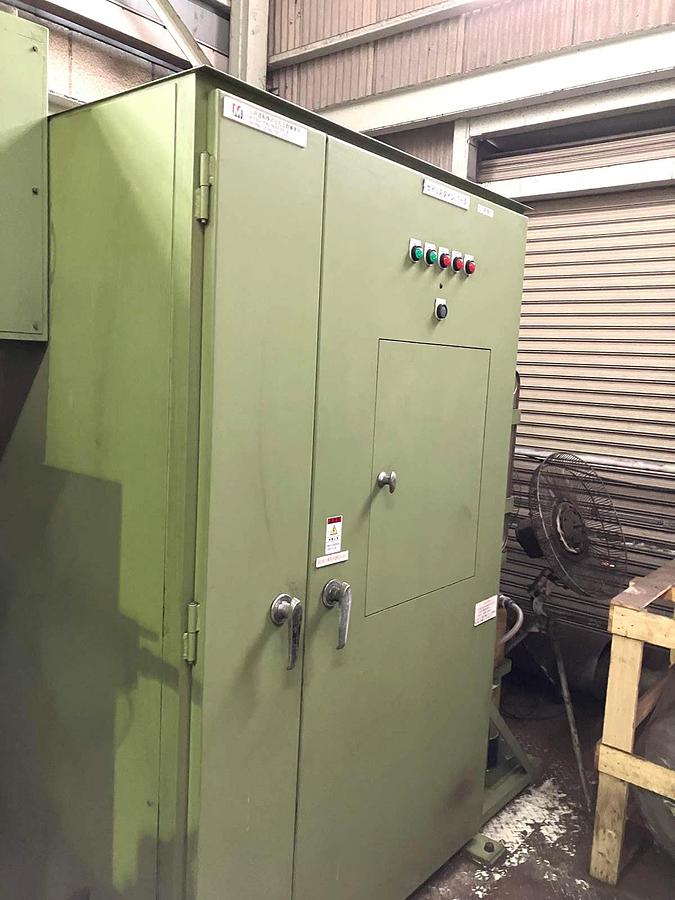

High Voltage Switchgear 60 Hz 6600 V ×1

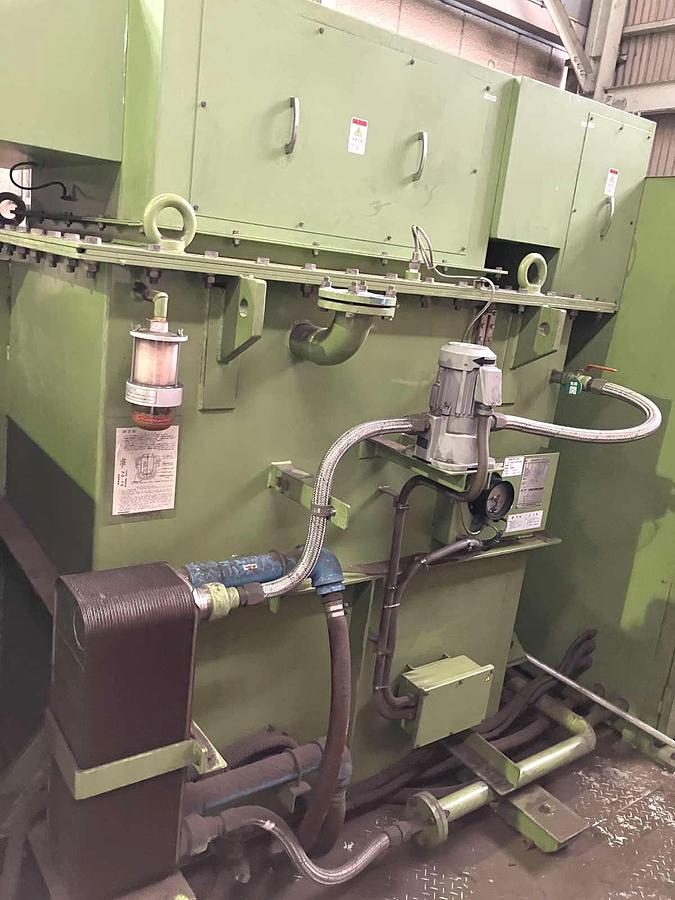

Power Transformer 60 Hz 6600 V/2500 kVA ×1

Intermediate Frequency 2000 kW 500 Hz ×1

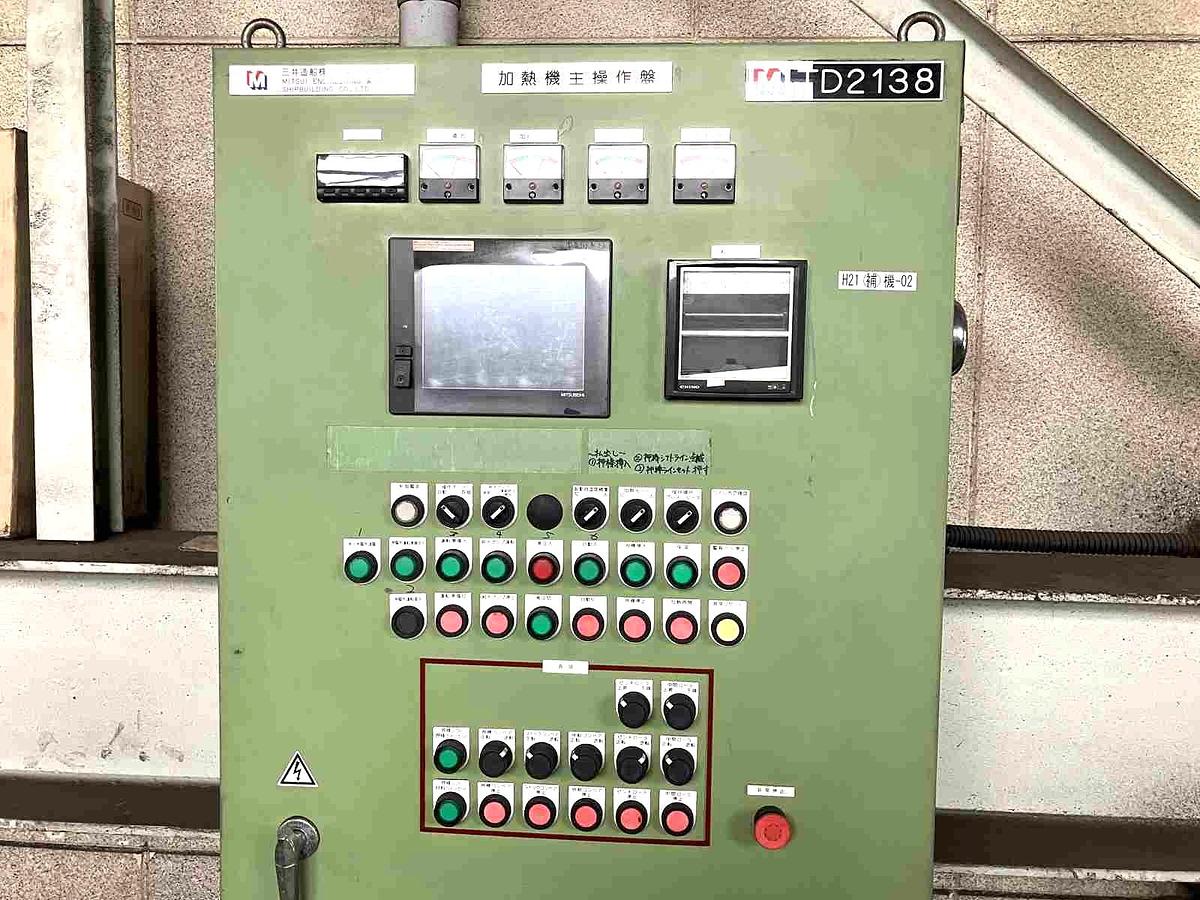

Integrated Control Cabinet ×1

Standalone Control Box × 1

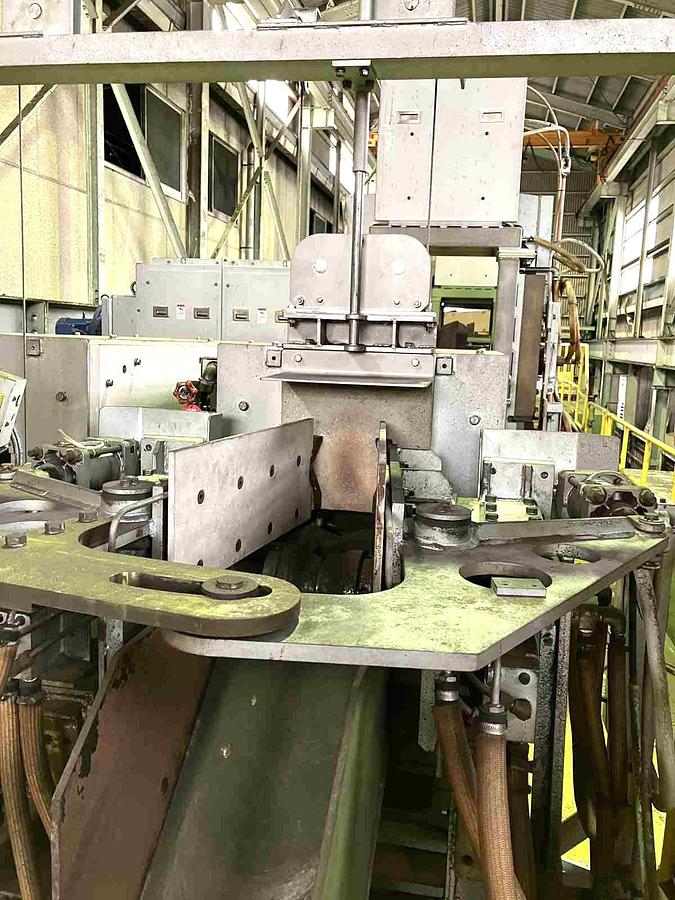

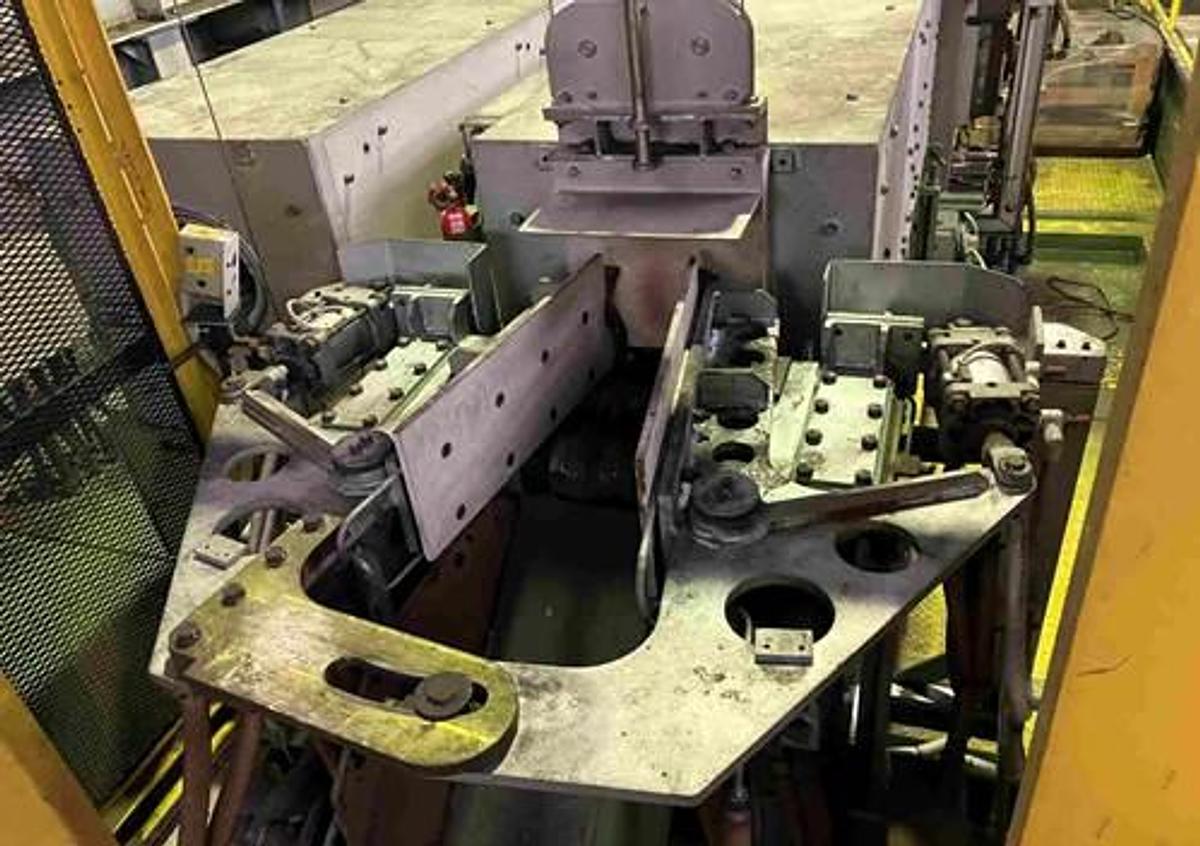

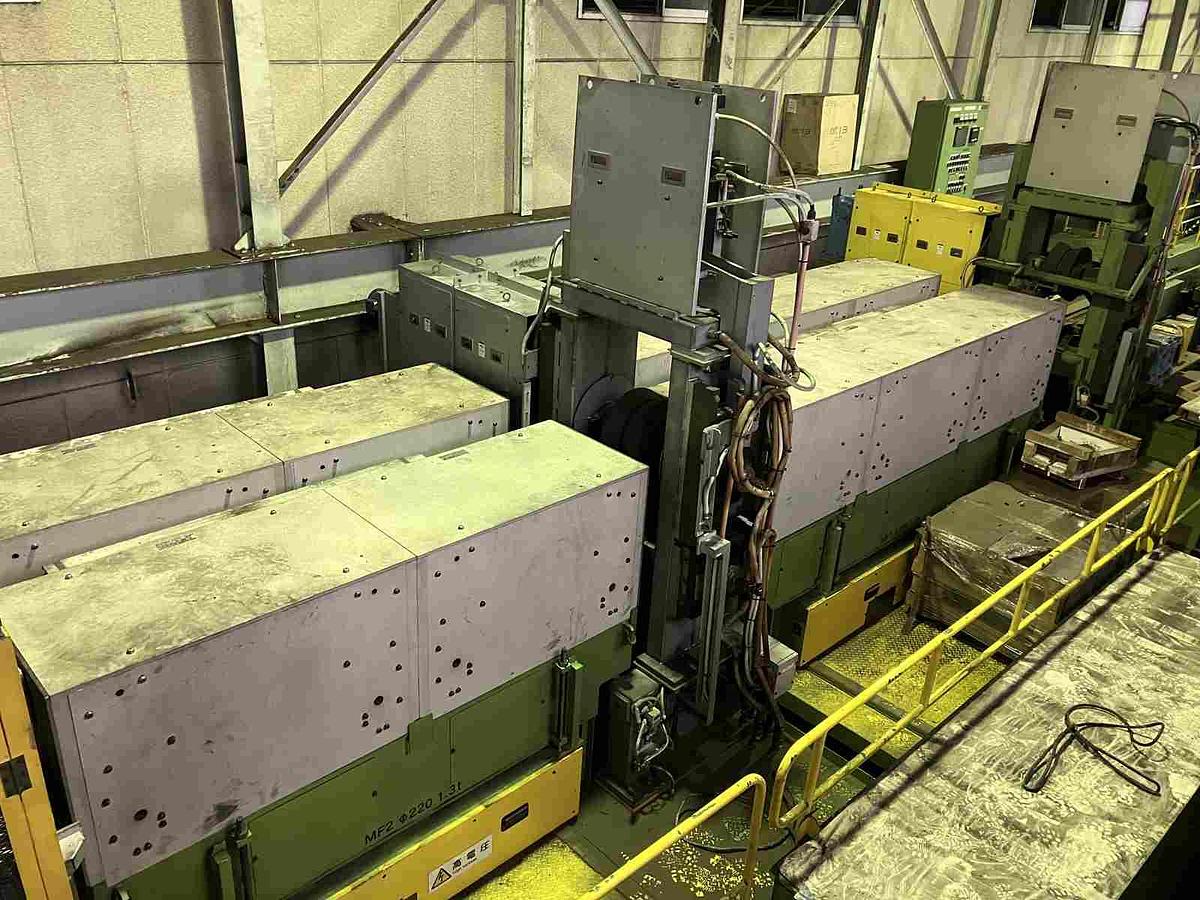

Standard Induction Coil × 1

Ø170 Induction Coil ‒ 1 (Factory-installed on line A)

Ø220 Induction Coil ‒ 1 (Factory-installed on line B)

Coil Transfer Unit (including Terminal Tightening

Machine) 1 each (MF1 & MF2)

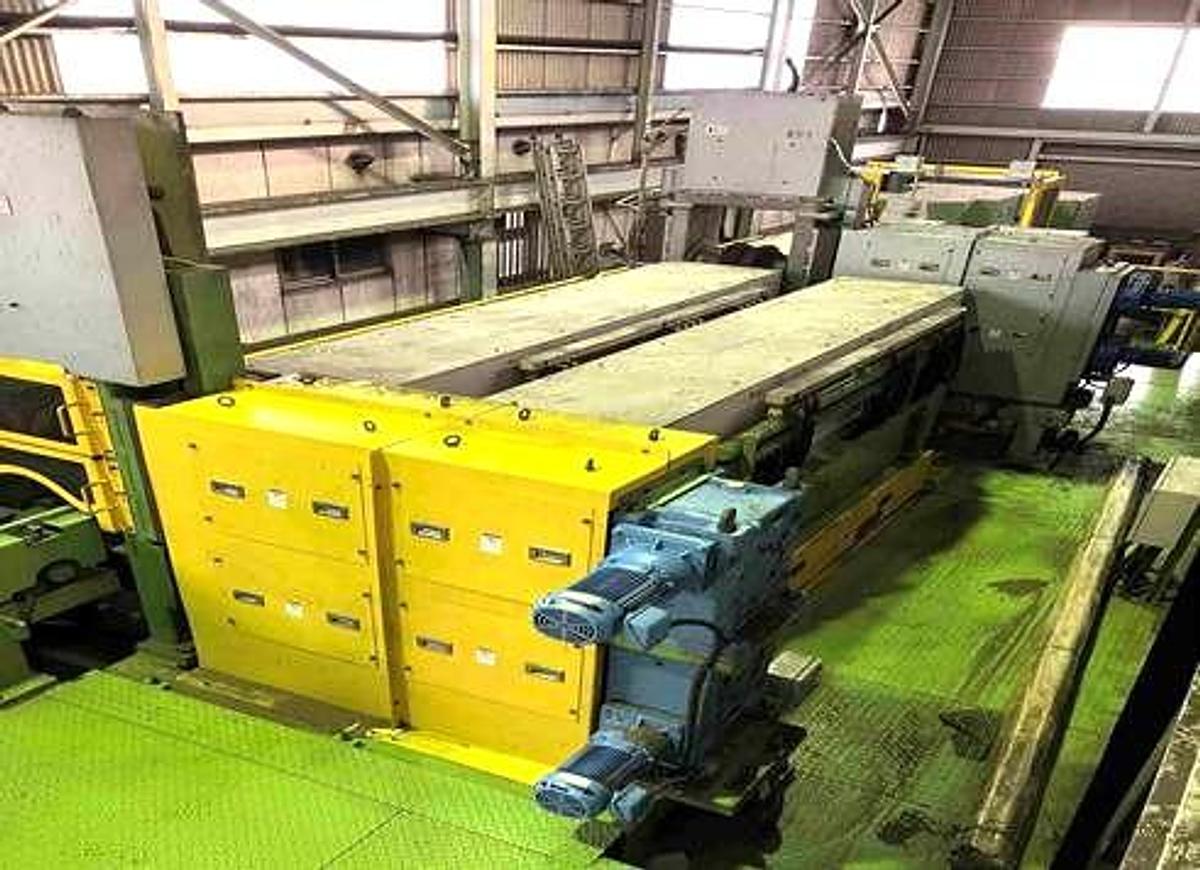

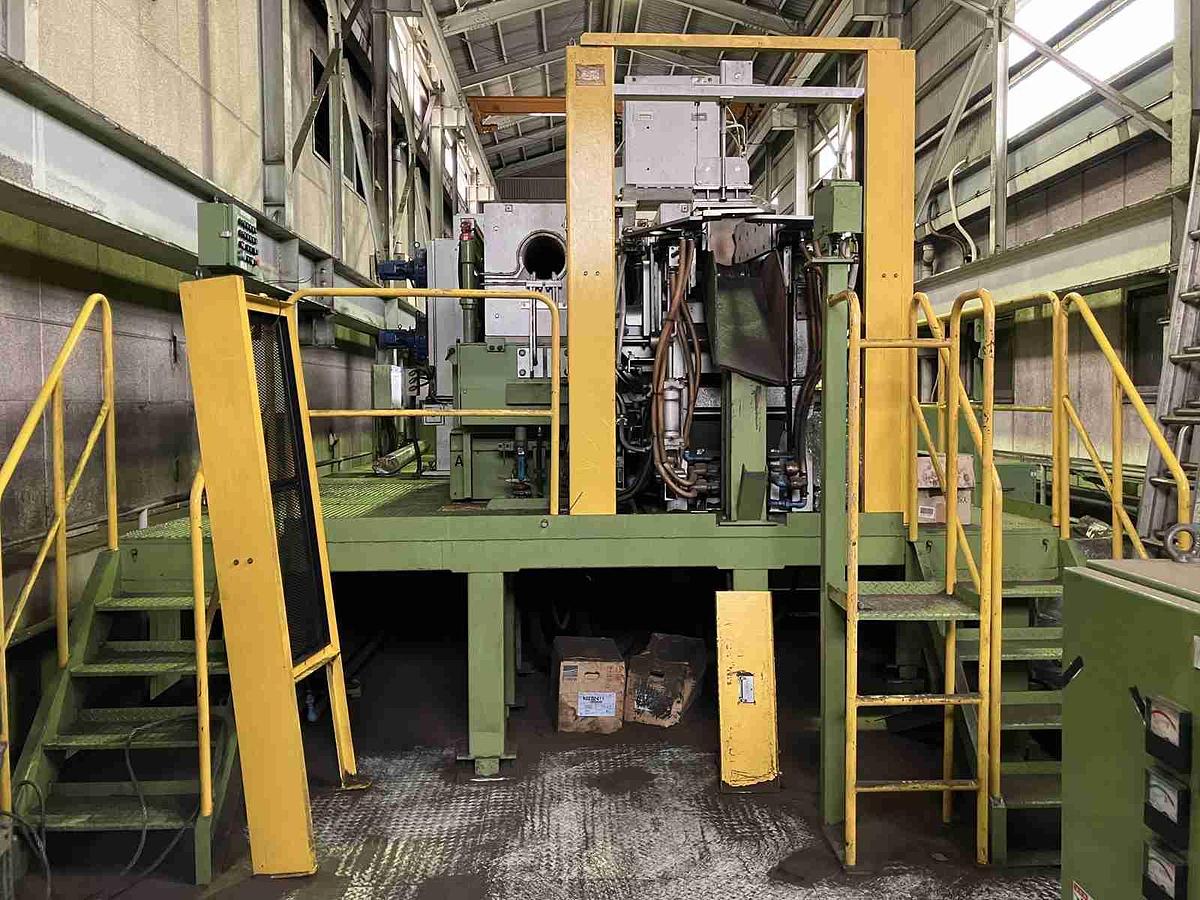

Pinch Roller Feeder (including Conveyor) × 1

Load Push Rod Mechanism ×1

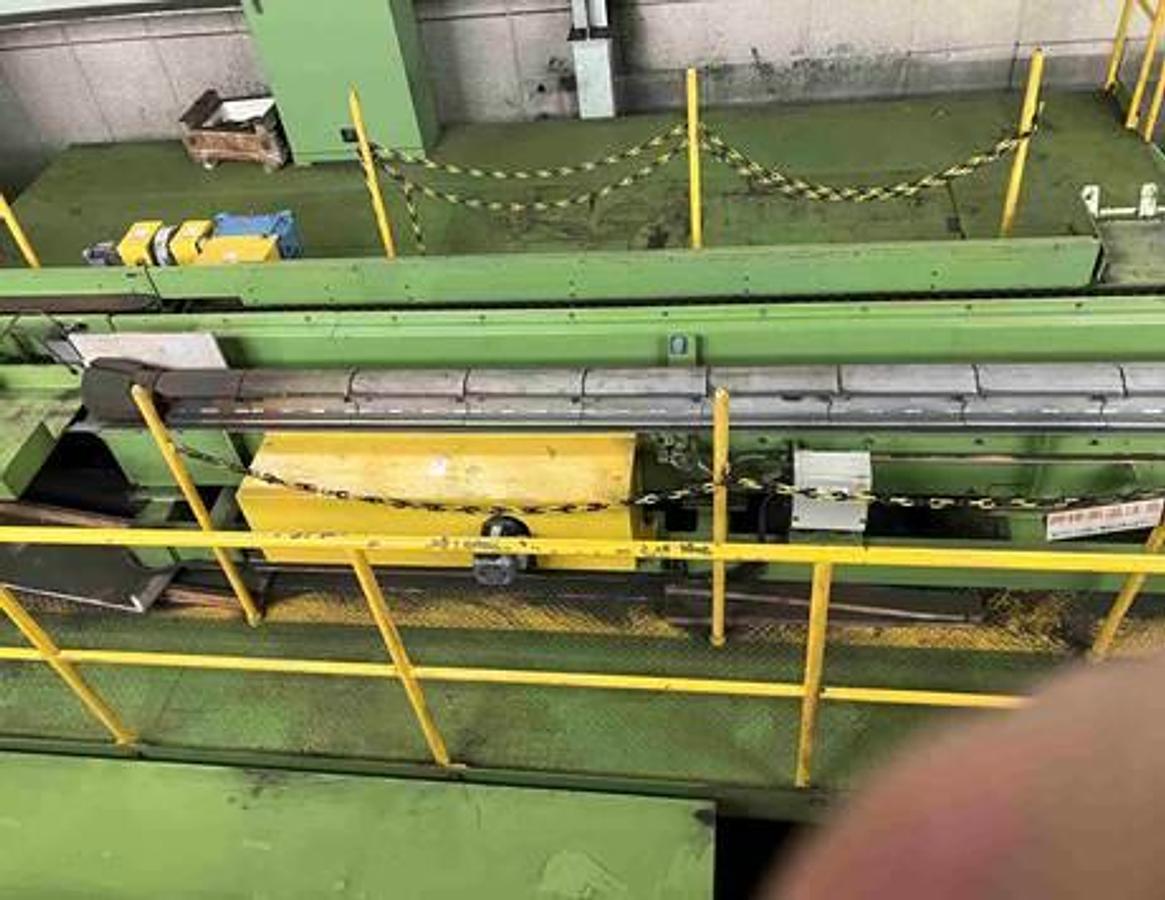

Push Rod Conveyor and Conveyor Transfer Mechanism ×1

Discharge Roller Table (with Pull-out Device) ×1

Overall Machine Frame ×1

Water Supply and Drainage Unit ×1

No Spare Parts Included

This equipment requires the following utilities: electrical power, cooling water.

1. Power Supply

(1) Main Power Supply (Three-phase)

60 Hz, 6.6 kV ±5% 2500 kVA

(2) Control Power Supply (Three-phase)

60 Hz, 220 V ±10% 30 kVA

(Excluding power consumption for the Cooling Tower and Circulation Pump)

2. Cooling Water

(Please refer to the attached "Cooling Water Quality Standard" for water quality requirements.)

(1) Standard Cooling Water

Pressure (at Equipment Inlet): 0.3~0.4 MPa

※ The difference between the supply water pressure and back pressure must

be ≥ 0.2 MPa

Back Pressure: 0.1 MPa or less

Water Temperature: 0°C ~ 32°C (non-freezing range)

Flow Rate: ____ L/min

(Including the cooling water required for the standby coil after coil switching)

Number of Water Supply Points: One per Heater

Number of Drainage Points: One per Heater

Water Temperature Rise: 7°C

(2) Emergency Cooling Water (for Induction Coil Protection)

Pressure (at Equipment Inlet): ≥ 0.1 MPa

Water Temperature: 0°C~50°C (Non-freezing)

Water Supply Duration: ≥ 30 min

Flow Rate: 200 L/min

Water Supply Point: Same as Standard Cooling Water Supply

3. Plant Compressed Air

Pressure (at Equipment Inlet): 0.45‒0.7 MPa

Flow Rate: 1 Nm3/h

(Additional air is required for pusher tip cooling via a manual solenoid valve.)

4. Ambient Temperature: 0‒40°C
