Lathe Vertical Turning 14DK100A

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerSchiess Froriep
Model14DK100A
Year1977
ConditionUsed
Stock NumberMA1416
Item conditionDisassembled
Capacity tons1400

Description

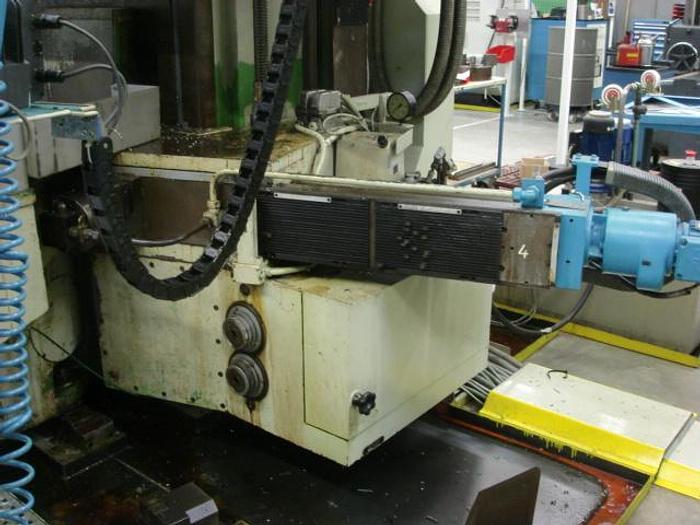

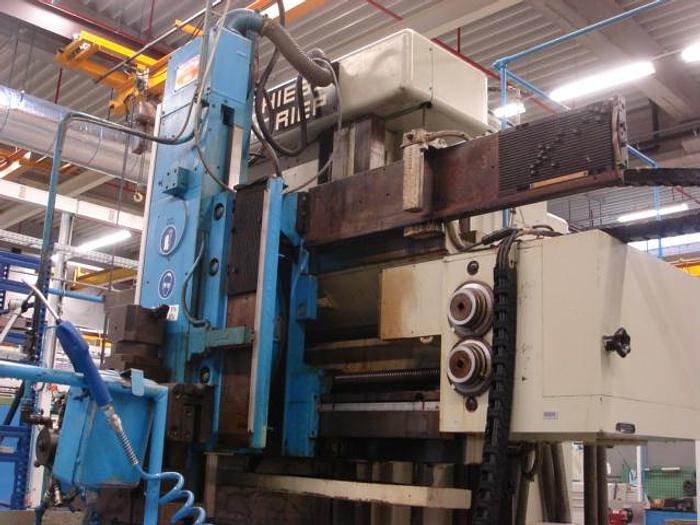

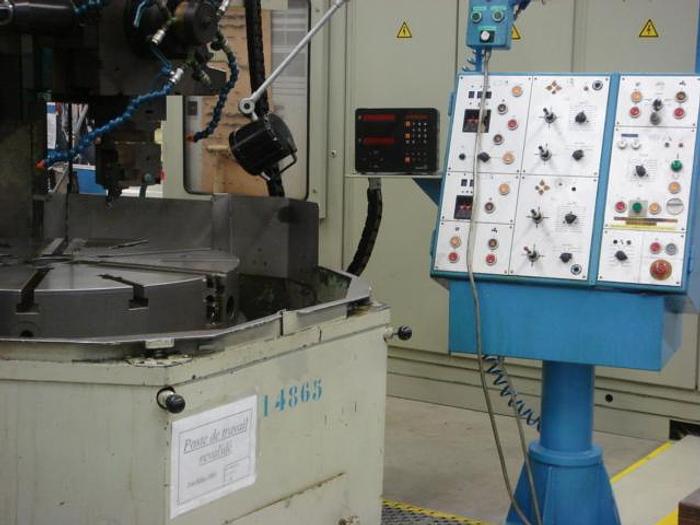

Single Column Vertical Turning Lathe :

Table diameter : 1000 mm,

Swing diameter : 1400 mm,

Turning height : 1200 mm,

Faceplate turning speed range : 6.3 - 315 RPM,

Workpiece weight max : 4 tons,

Ram head - vertical travel : 1000 mm,

Ram head - cross travel : 995 mm,

Cross rail adjustment - vertical : 500 mm,

Feeds - steeples : 0.1 - 2000 mm/min,

Rapid traverse : 6 m/min,

Main drive motor : 30 kW,

Total power requirement : 45 kW

Weight of the machine approx. : 14.5 tons,

Dimensions of the machine approx. : 3500 x 5500 x 4000 mm,

Equipped with:

Coolant device, Miscellaneous tool holder, Side support.

Set of machine tooling, tool holders which are part of the machine is included.

The machines include all the attachments which we have for them for tool holding etc.
