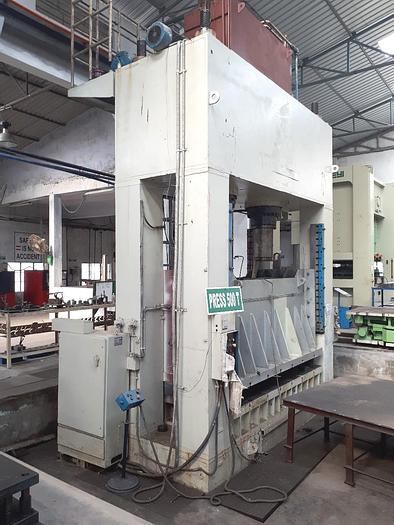

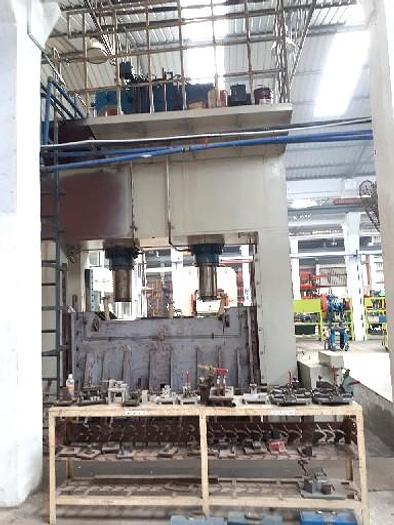

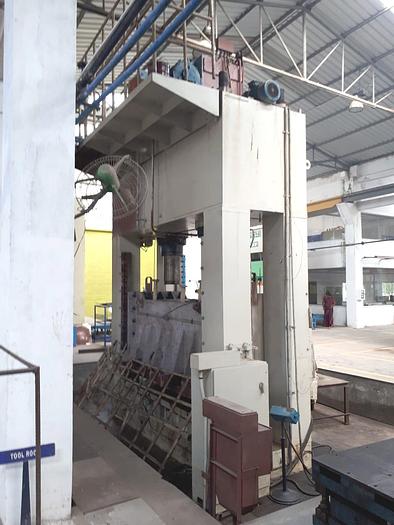

Press Sheet Stamping Hydraulic Bemco
Specifications
| Manufacturer | Bemco |
| Condition | Used |
| Stock Number | MA1442 |
| Item condition | Good condition |
| Capacity tons | 500 |
Description
Capacity : 500 tons,
Main ram return capacity : 28 tons,
Main cylinder bore/ram dia : 360 / 340 x 2 mm,
Main ram stroke : 500 mm,
Day light : 1000 mm,
Main table size : 3000 x 1500 mm,
Location bore in main table : 140 H7 mm,
T-short in main table : T-2s mm,
Working height of the press : 800 mm,
Die cushion capacity : 2000 KN,
Die cushion stroke : 200 mm,
Die cushion table size : 1800 x 900 mm,
Die cushion ram dia : 200 x 3 mm,
Mechanical knockout stroke : 50 mm,
No-of knockout bar : 3 nos,
Overall approx. dimensions of press
Width : 4090 mm,
Depth : 2925 mm,
Height above ground level : 6000 mm,
Total height : 7340 mm,
Speeds :
Main ram approach : 100 mm/sec,
Main ram pressing : 9.5 mm/sec,
Main ram return (upto 110 KN) : 125 mm/sec,
Main ram return (above 110 KN) : 85 mm/sec,
Die cushion forward : 60 mm/sec,
Electric motor capacity : 55 KW + 11 KW.
