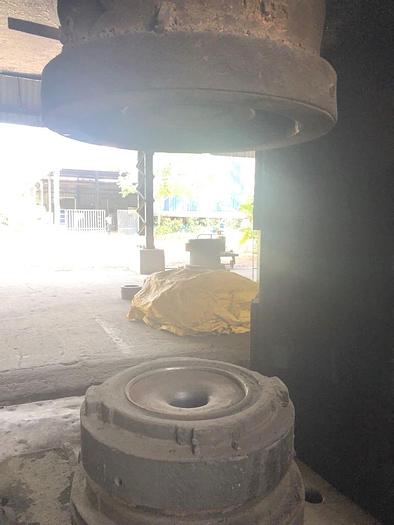

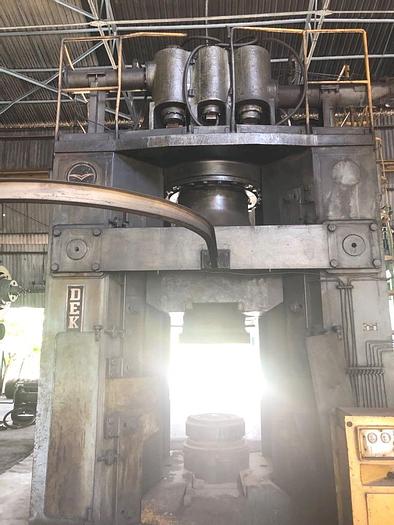

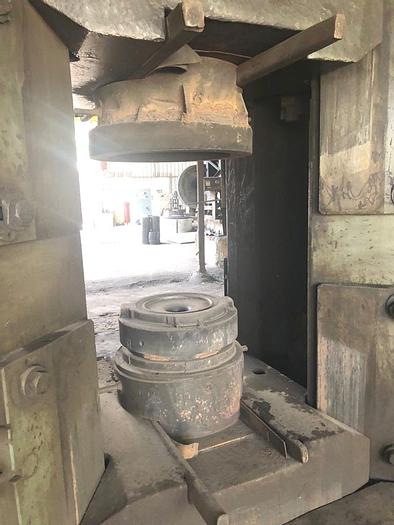

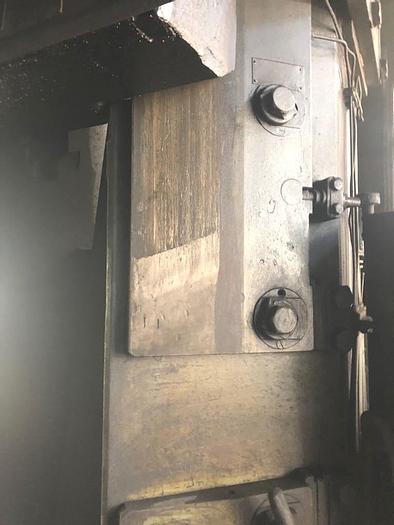

Hammer Counterblow DEK32

Digep counterblow hammer EK 32,

Impact energy : 320 KJ,

Full stroke of the rams (in case of min. die thickness) : 1526 mm,

Minimum total thickness of the dies without the dovetail section : 574 mm,

Length of the die maximum : 2400 mm,

Length of the die minimum 1100 mm,

Distance between the guide ways (open gap) : 1145 mm,

Air pressure to operate the machine : 0,7 MPa,

Maximum number of blows ; 50 per min,

Average actual number of blows : 6-12 1/min,

Capacity of air tank required : 30 m3,

Air consumption/blow in case of nominal impact energy : 5,2 m3 /blow,

Air consumption in case of min. nominal number of blow : 31 m3 /blow,

Compressor performance : 140 kW,

Dimensions of the connecting pipe system : (outer diameter Ø/wall thickness) admission : Ø245/6,3 mm exhaust Ø219/6,3 mm control, mm Ø42,25/3,2 mm,

Weight of work piece to be forged economically : 40-240 kg,

Dimensions : Height (over the ground level) : 5730 mm,

Base pit : 5600 × 4200 mm,

Mass of the machine without anti-vibration material : 150.5 tons,

Mass of the machine filled with anti vibration material : 180.2 tons.
