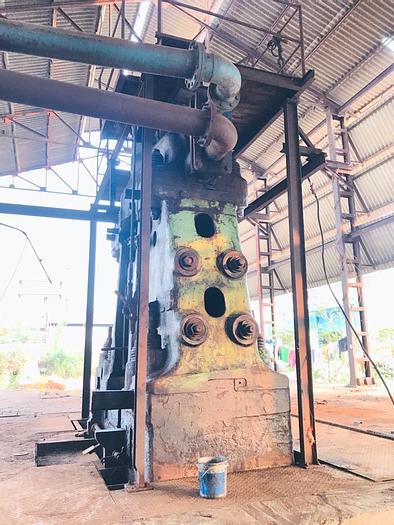

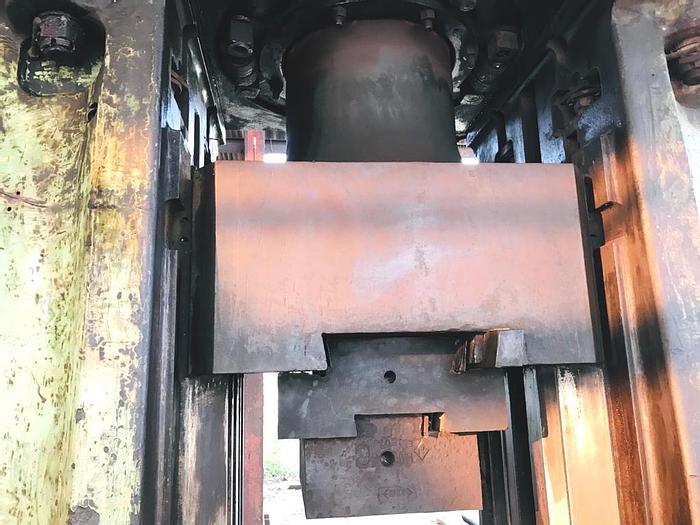

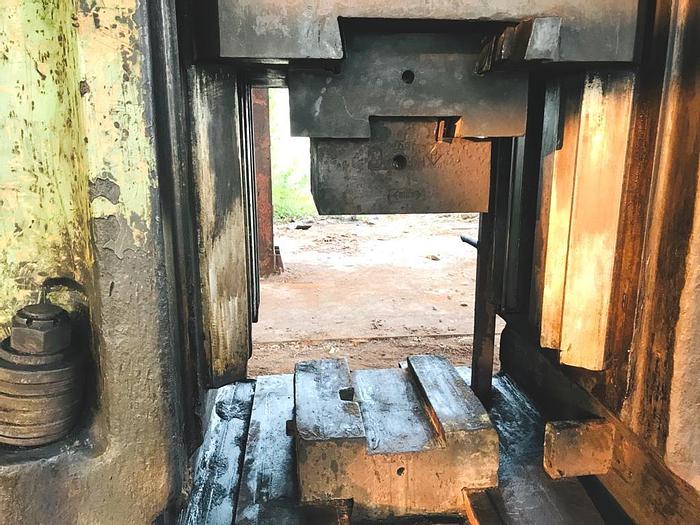

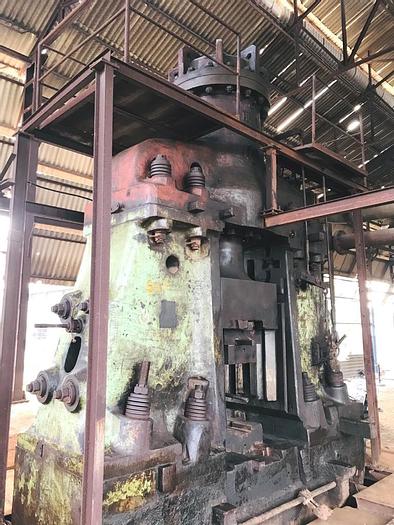

Hammer Forging Pneumatic MPM16000B

Capacity : 6 tons,

Energy of blow : 175 kJ,

Weight of falling part : 6265 kg,

Max. weight of upper die : 1600 kg,

Weight of anvil block without die holder : 120 tons,

Weight of hammer with anvil block : 168 tons,

Approximate forging weight : 15-45 kg,

Steam of incoming air pressure : 0.5-0.7 MPa,

Average steam consumption : 1600 kg/h,

Average cold air consumption : 38 m3/min,

Average hot air consumption : 30 m3/min,

Number of blows per minute : 80 1/min,

Overall dimension :

Length of hammer : 4080 mm,

Width of hammer : 2400 mm,

Total height of hammer : 7580 mm,

Height of hammer above floor : 5180 mm,

Min height of die partition above : 740 mm,

Min height of the die (without tail) : 400 mm,

Guideway spacing 834 mm

Length of die seat : 900 mm,

Length of the seat in the die holder : 1250 mm,

Max width of working area : 850 mm,

Max tup stroke : 1100 mm.
