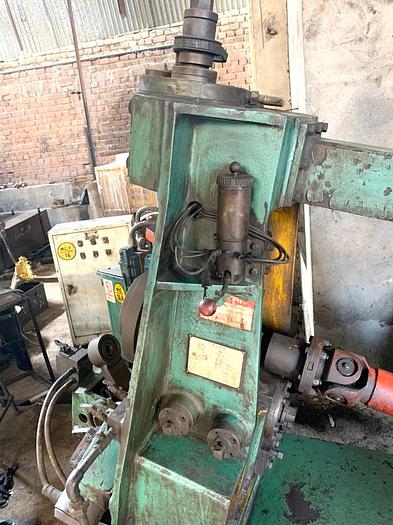

Ring Rolling Machine D51Y-160E

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerAnyang Forging Press Group China
ModelD51Y-160E
Year2013
ConditionUsed
Stock NumberMA1551
Item conditionGood condition
Capacity tons160

Description

Ring rolling capacity : 160 mm outside diameter,

Nominal rolling pressure : 11300 kgs,

Max productivity --300 pcs per hour

Slide stroke : 70 mm,

Rolling linear speed : 1.64 meter/second,

Active speed : 92 revolutions/minute

Outside diameter of rolling wheel : 360-380 mm,

Min distance b/w rolling wheel and press rolle : 185 mm,

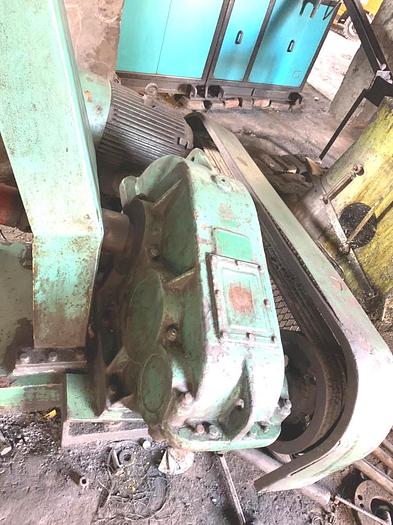

Main motor model y200l-4-b3,

Power kilowatt : 30,

Rotation speed revolution/ minute : 1470 ,

Dimension (length x width x height) : 2350 x 1700 x 1900 mm,

Total weight : 3.6 tons.

15

Technical manuals available.
