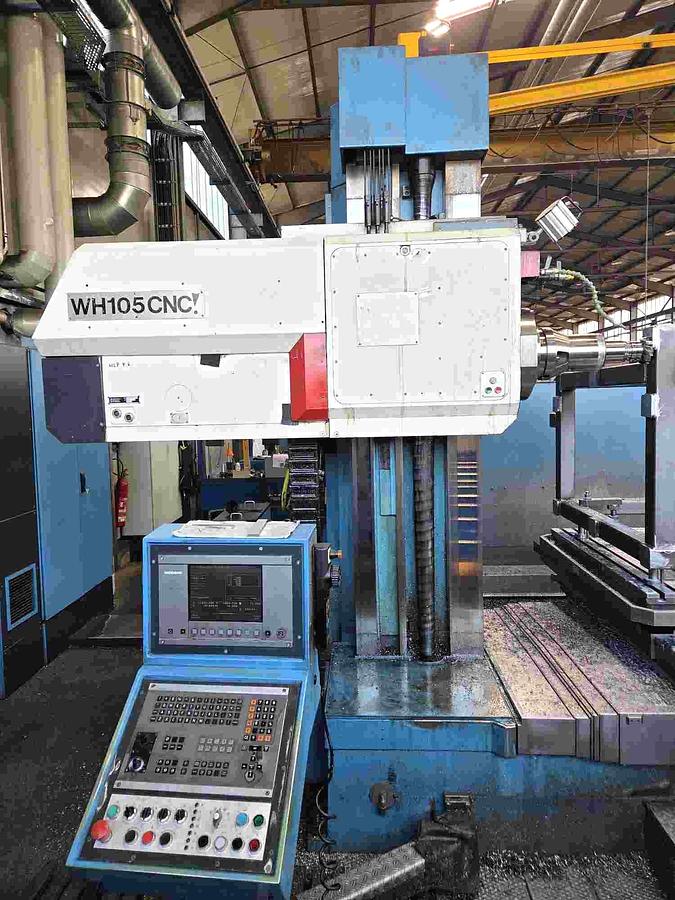

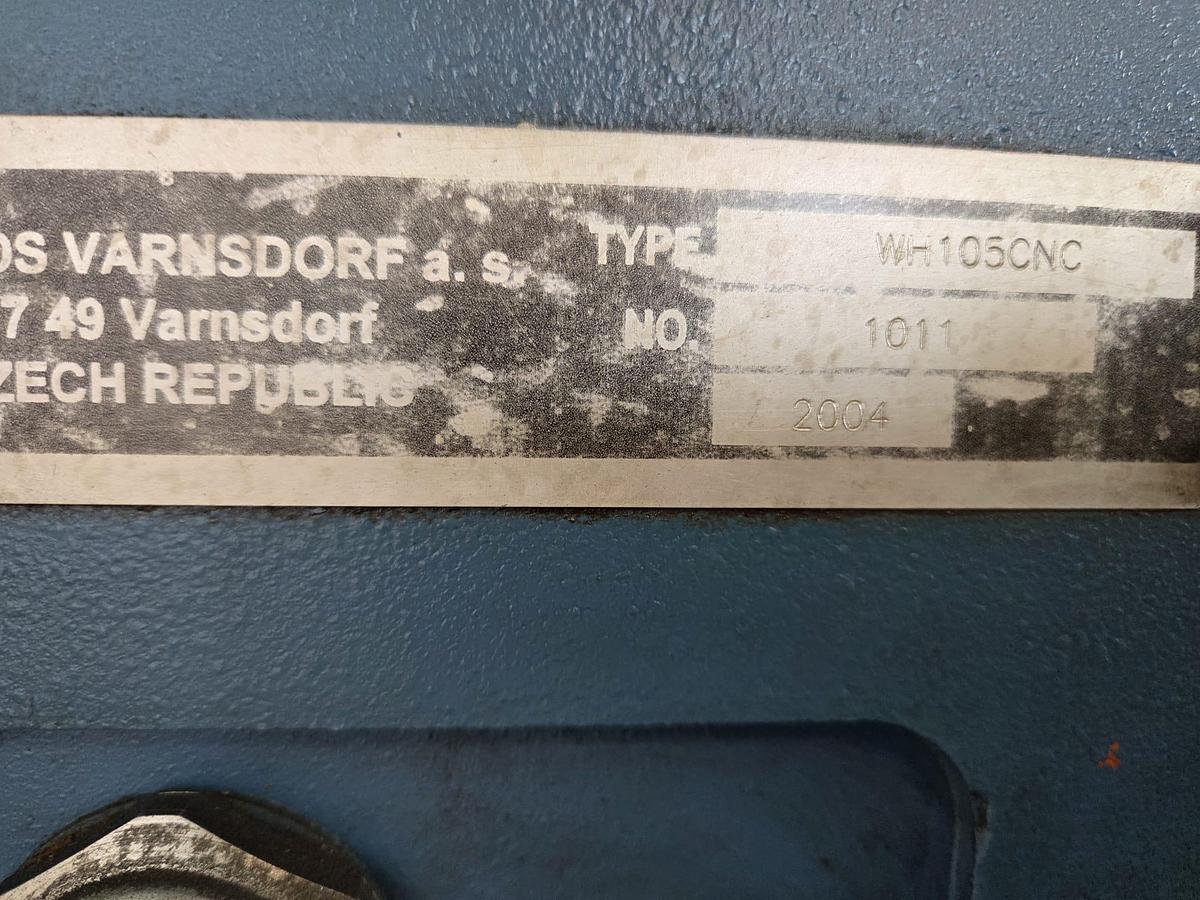

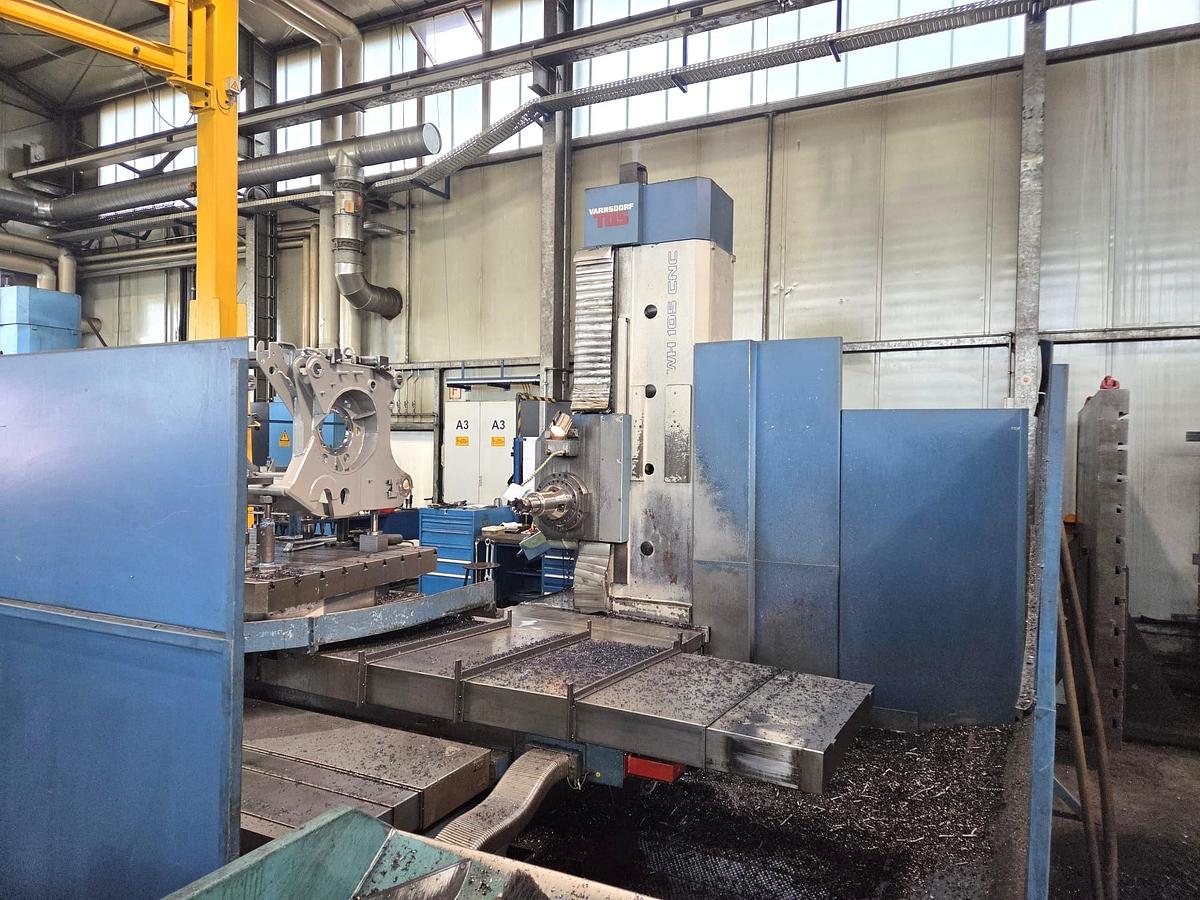

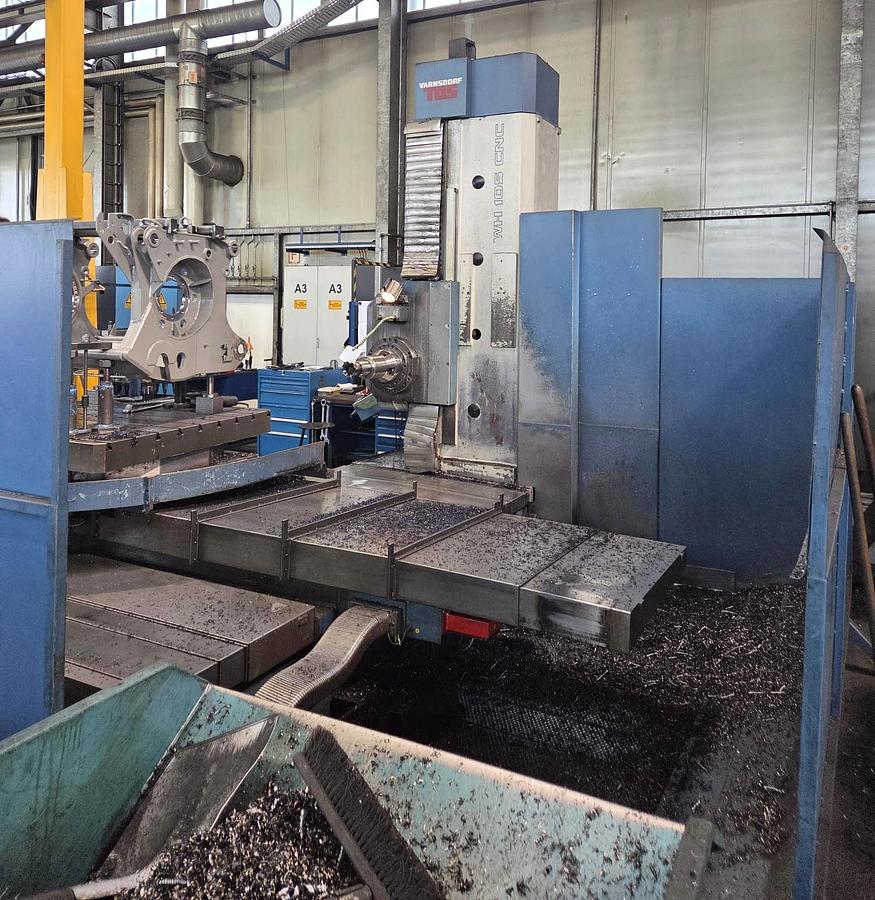

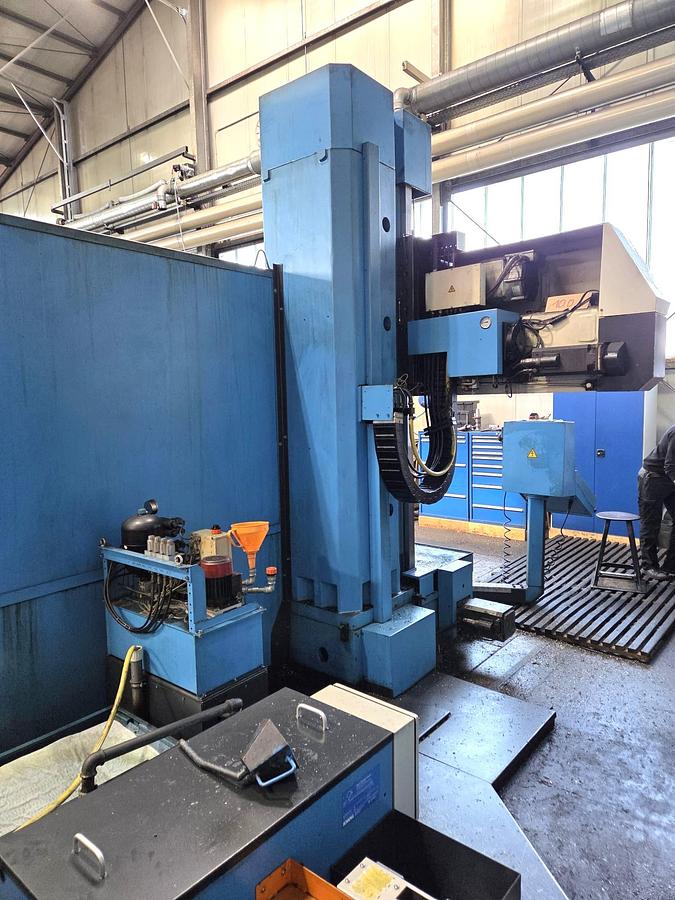

Borer Horizontal Table Type CNC Tos Varnsdorf WH105

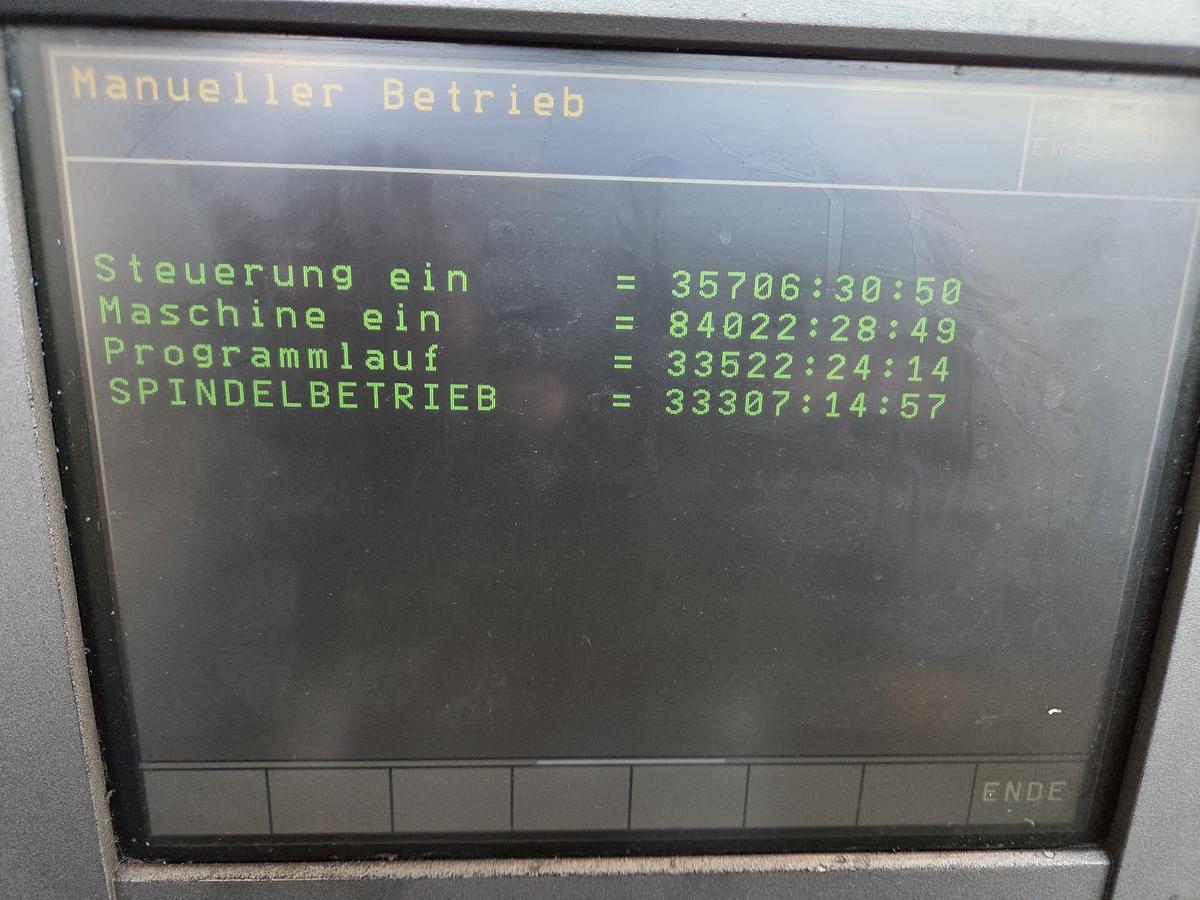

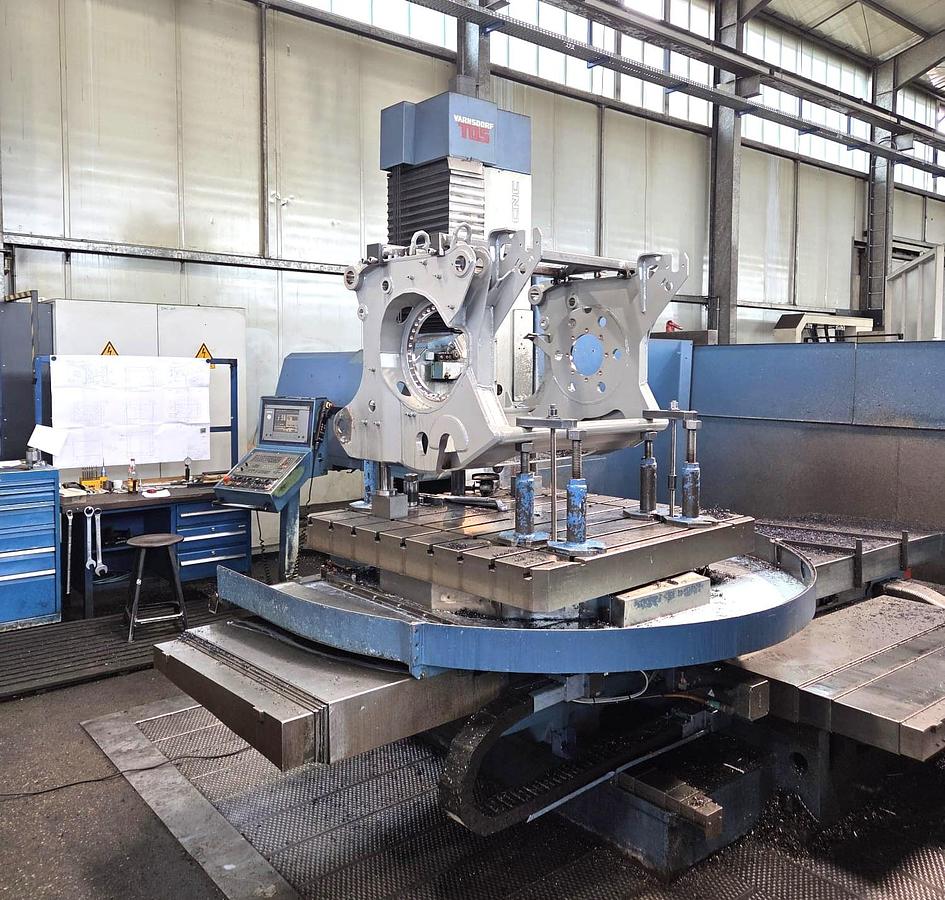

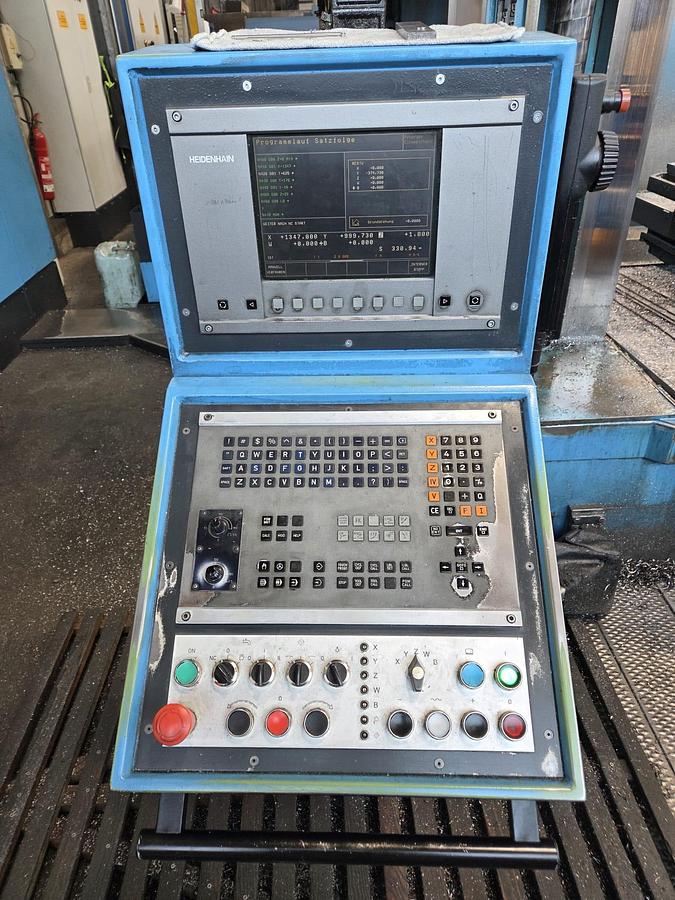

Universal horizontal table boring machine WH105 CNC with 4 linear axes and rotary table, Heidenhain TNC 426.

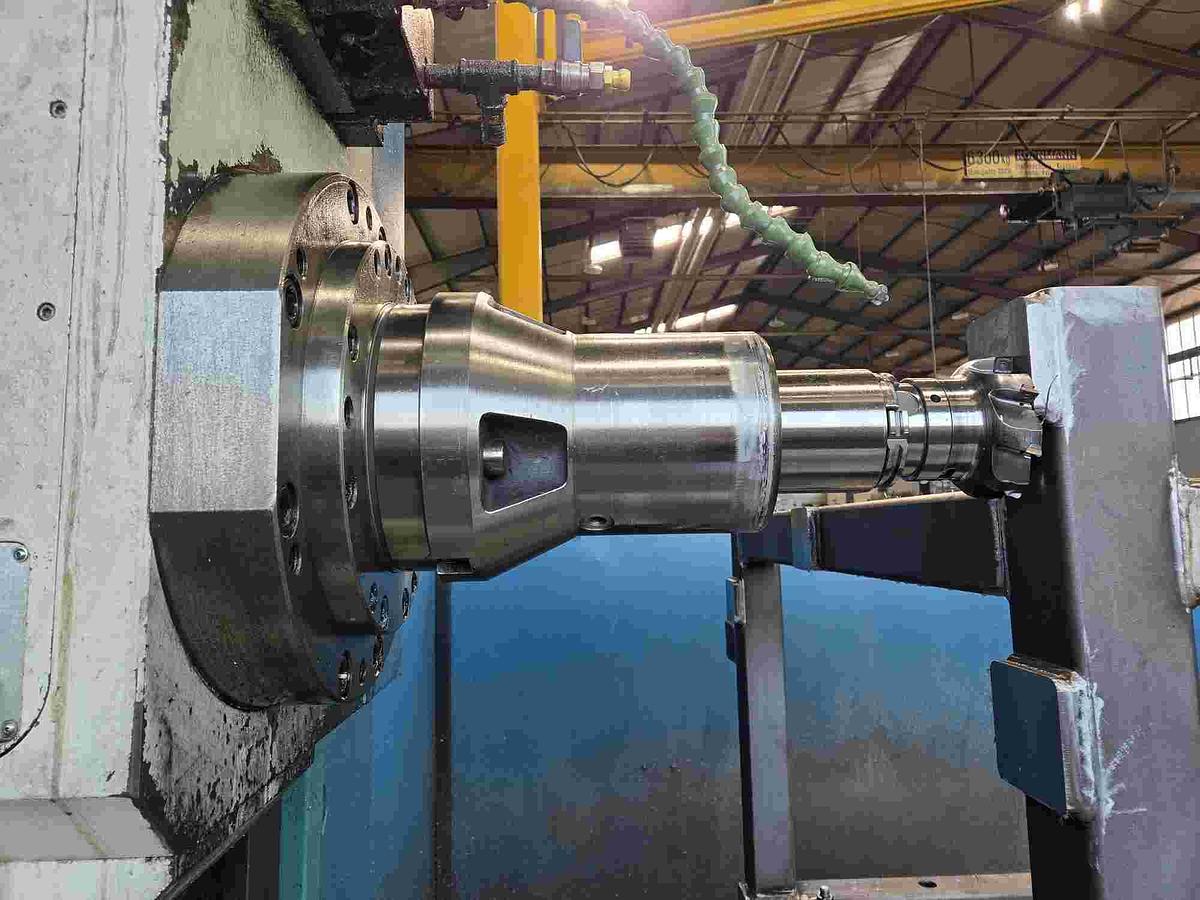

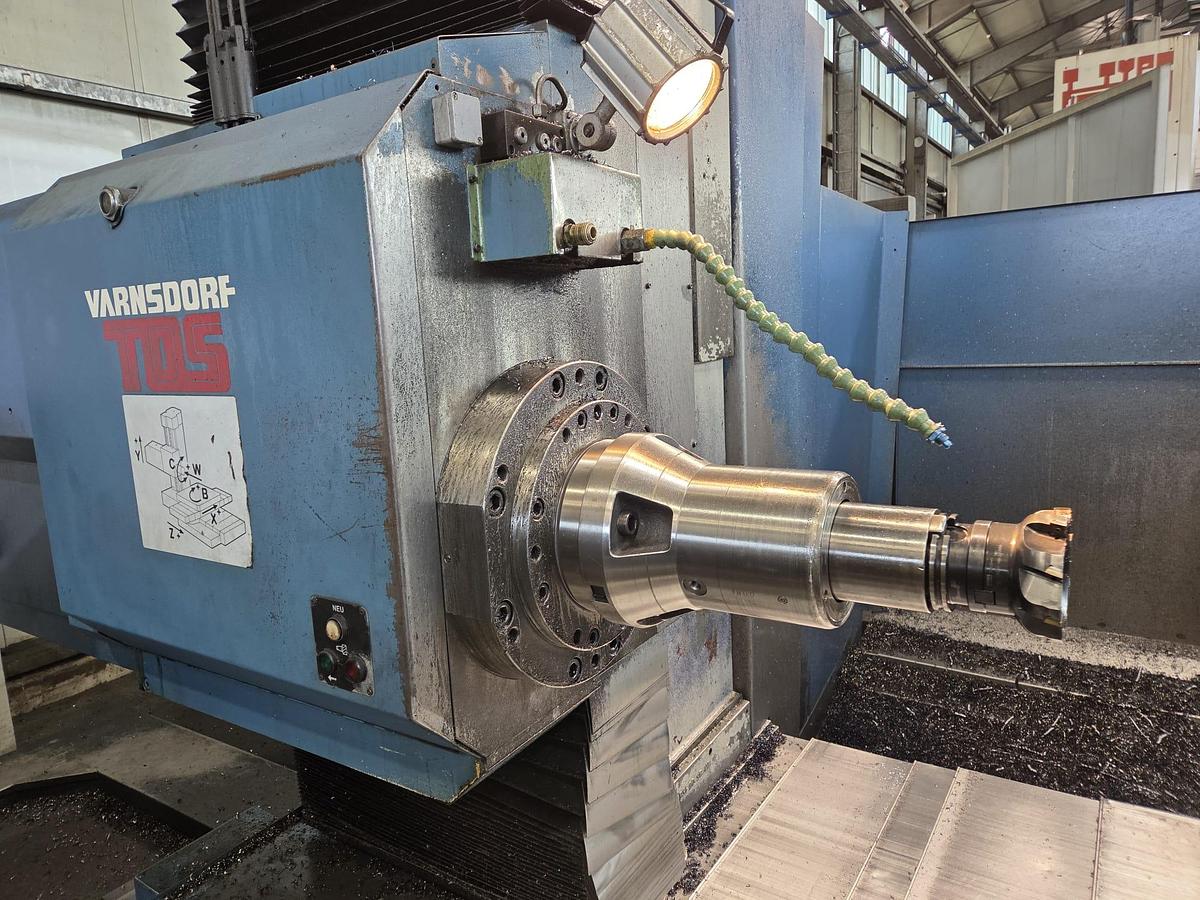

Sliding work spindle with max. 3000 rpm and hydraulic clamping ISO 50.

Working spindle diameter : 105 mm,

Clamping cone : ISO 50

Tool shank : 69871 DIN,

Clamping adapter - screw : TOS 4100793,

Main engine power : 28 kW,

Max. spindle speed : 3000 rev/min,

Table cross travel X : 1800 mm,

Vertical spindle travel along the Y stand : 1250 mm,

Table travel Z : 1250 mm,

Spindle extension W : 630 mm,

Table clamping surface : 1400 x 1250 mm,

Workpiece weight max. : 4000 kg,

Feed : 5 – 5000 mm/min,

Total energy consumption : 52 kVA,

Machine weight : 17.6 tons.
