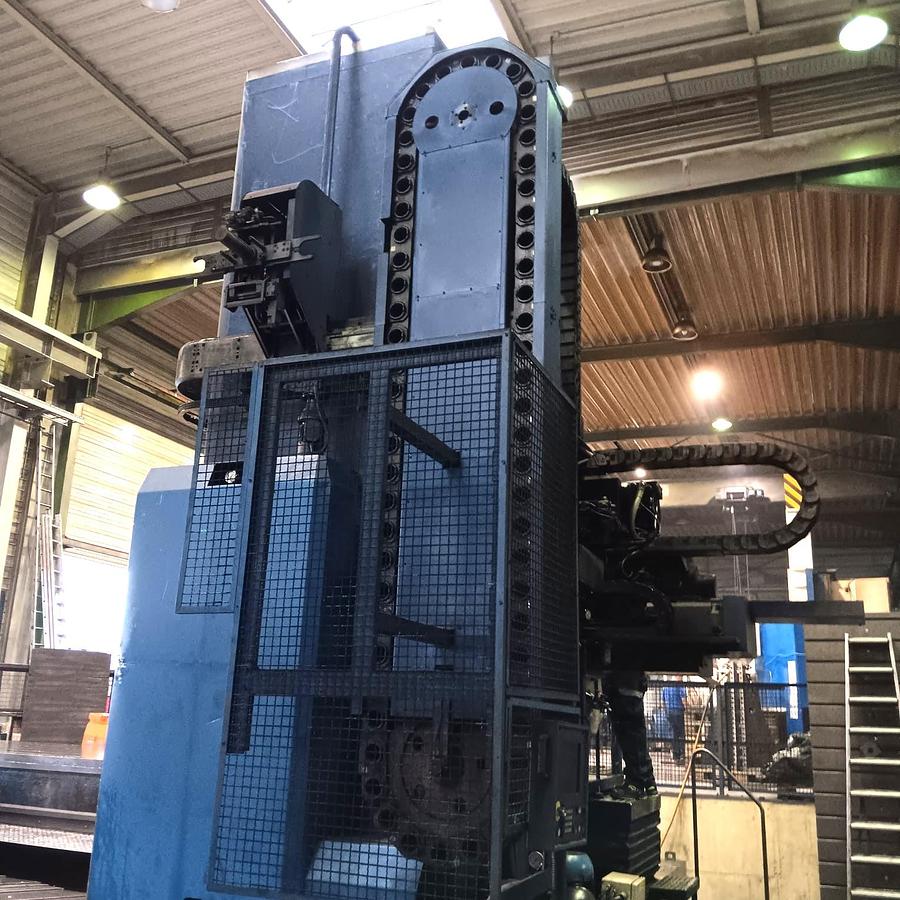

Borer Horizontal Table Type CNC Tos Varnsdorf WRD130CNC

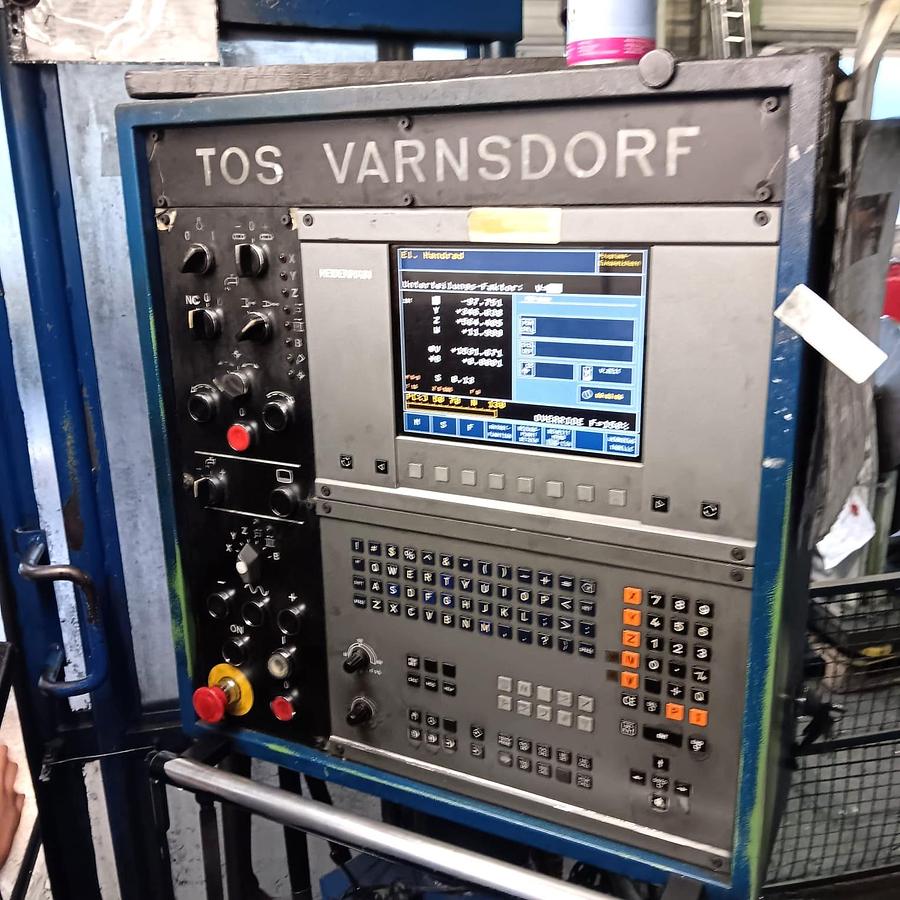

TOS Varnsdorf WRD130CNC Heidenhain 426M, year 2001, inkl.  CNC rotary table S25 and floor plates

Spindle dia : 130 mm,

X axis : 6000 mm(The machine bed consists of 2 segments and could therefore be shortened),

Y axis : 3000 mm,

Z axis : 800 mm,

W axis : 560 mm,

Z+W axis : 1360 mm,

Max. spindle speed : 3000 rpm,

Through spindle coolant

Rotary table S25

Clamping surface : 2000 x 2500 mm,

Max. load capacity : 30000 kg,

Table travel V : 1800 mm,

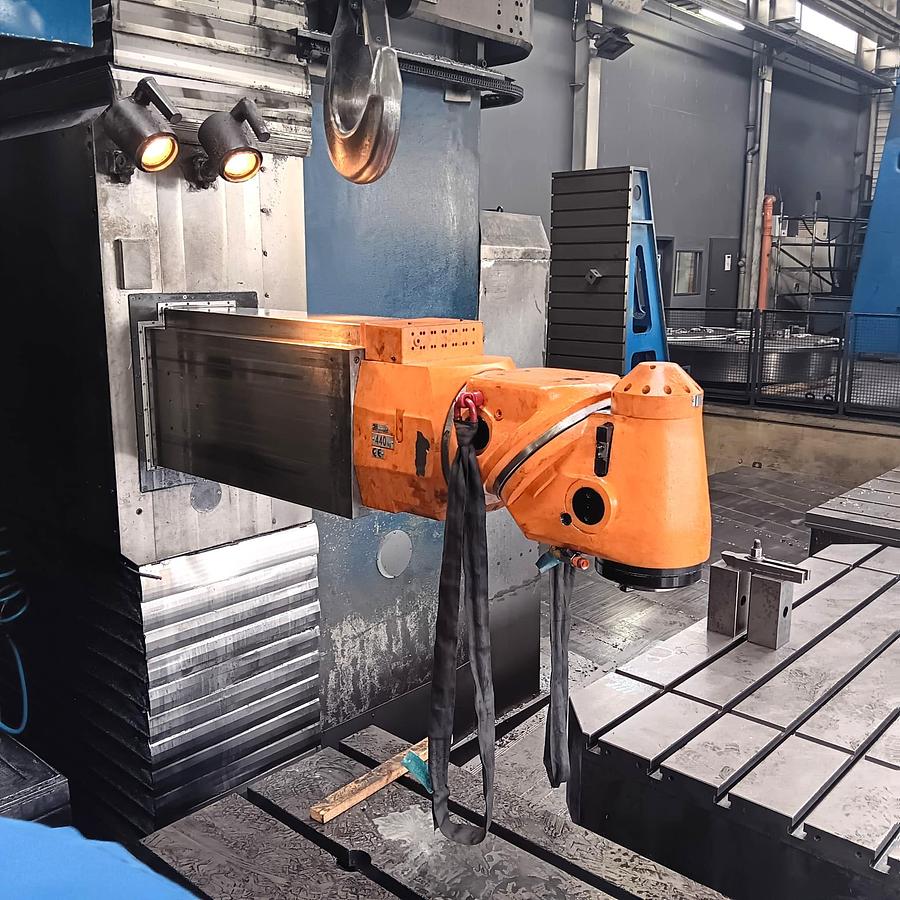

Automatic indexable milling head HUI 50A, incl. pick-up station

• Number of axes: 2

• Spindle speed (rpm): 3000

• Power (kW): 32

• Torque (Nm): 1000

• Weight (kg): 440

• Positioning accuracy: Index 2.5

Automatic tool changer : 60 positions.

Through spindle coolant
