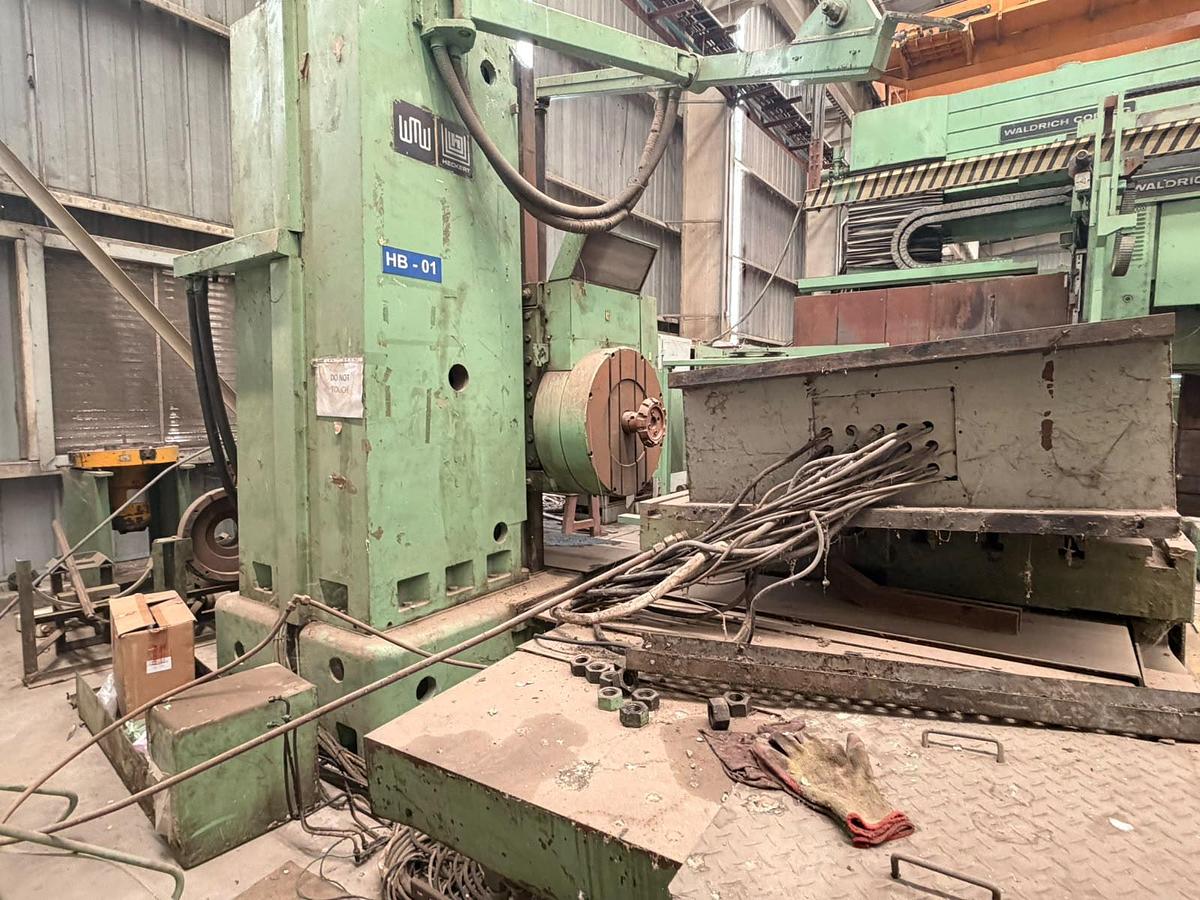

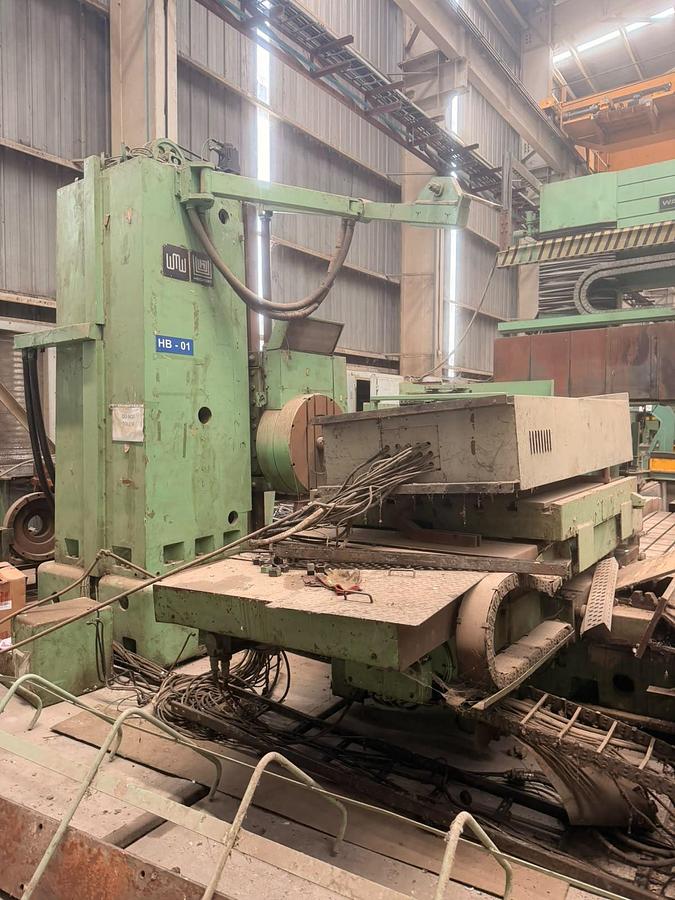

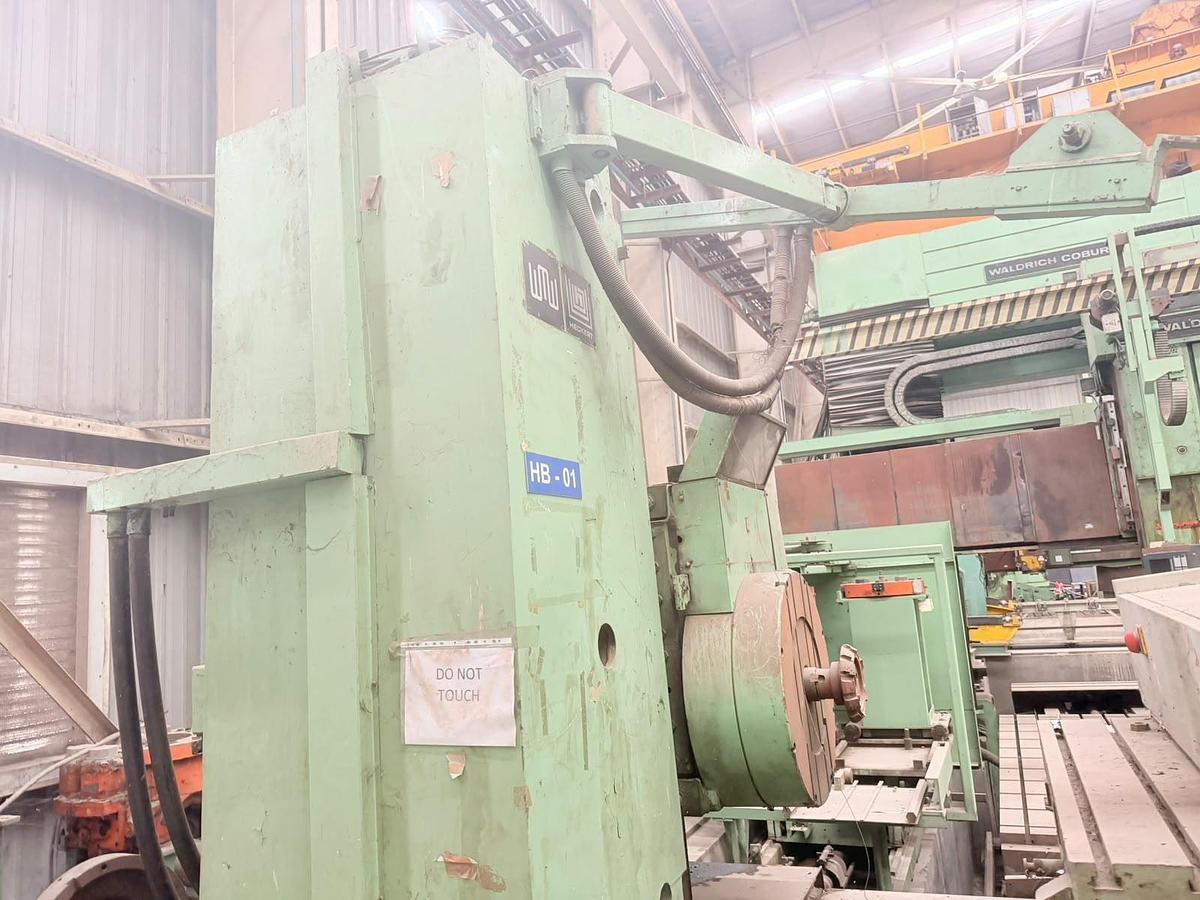

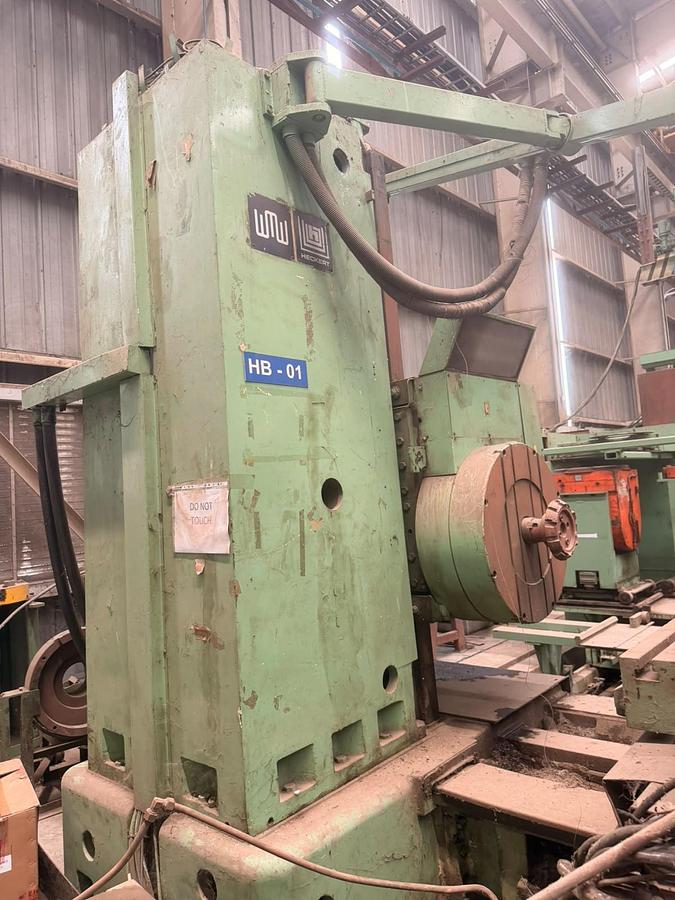

Borer Horizontal Table Type WMW Union BFT110/6

Spindle dia. : 110 mm,

Spindle taper : ISO 50,

Spindle/quill (W) travel : 800 mm,

X-axis travel : 1950–2000 mm,

Y-axis travel : 1600 mm,

Z-axis travel : 1950–2000 mm,

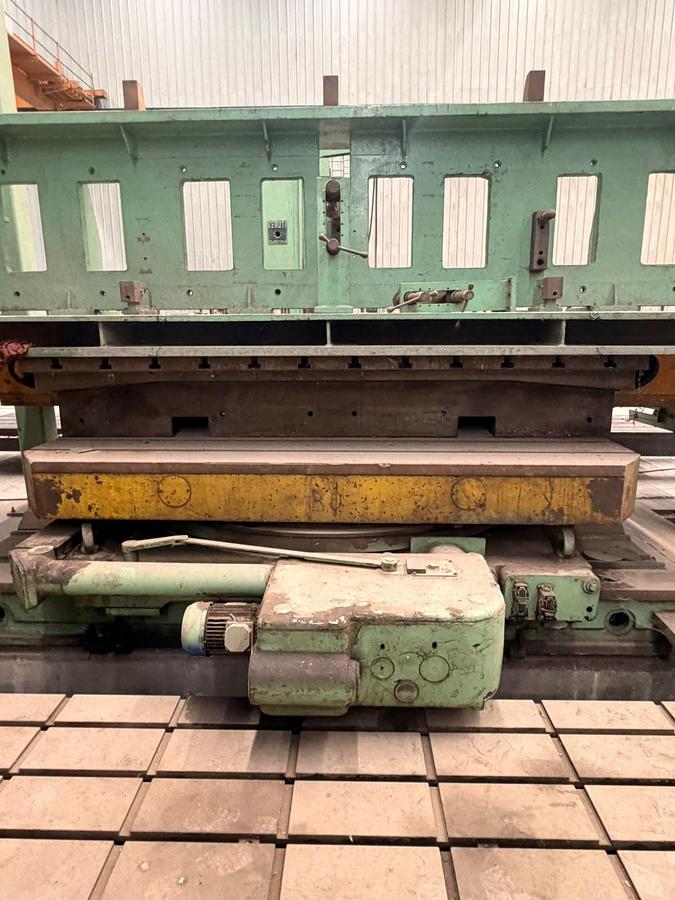

Table size : 1400 × 1600 mm,

Table rotation : 360°,

Maximum table/workpiece load : 6300–8000 kg, depending on version,

Spindle speed range : 5.6–1,120 rpm,

Facing head diameter : 700 mm,

Main spindle motor : 15 kW or 40 kW, depending on version,

Overall machine size : approx. 7000 × 4700 × 4400 mm,

Machine weight : approx. 26.7–28 tons; some versions ~30 tons,

Typical CNC : Heidenhain TNC 125 / TNC 415 / TNC 310, depending on year/retrofit
