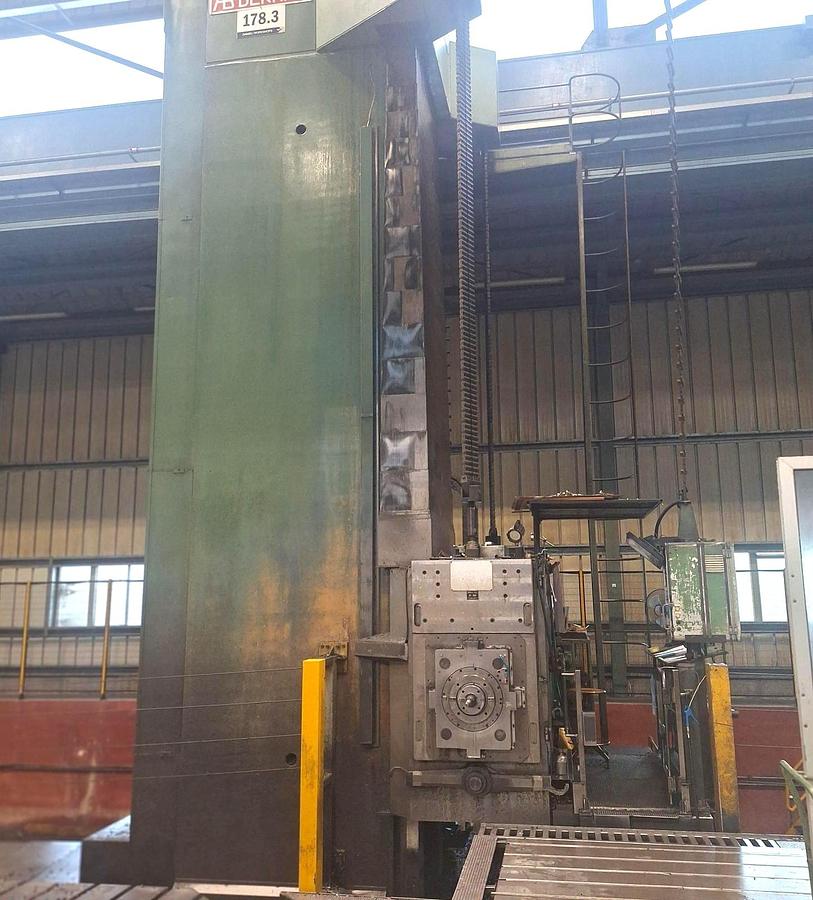

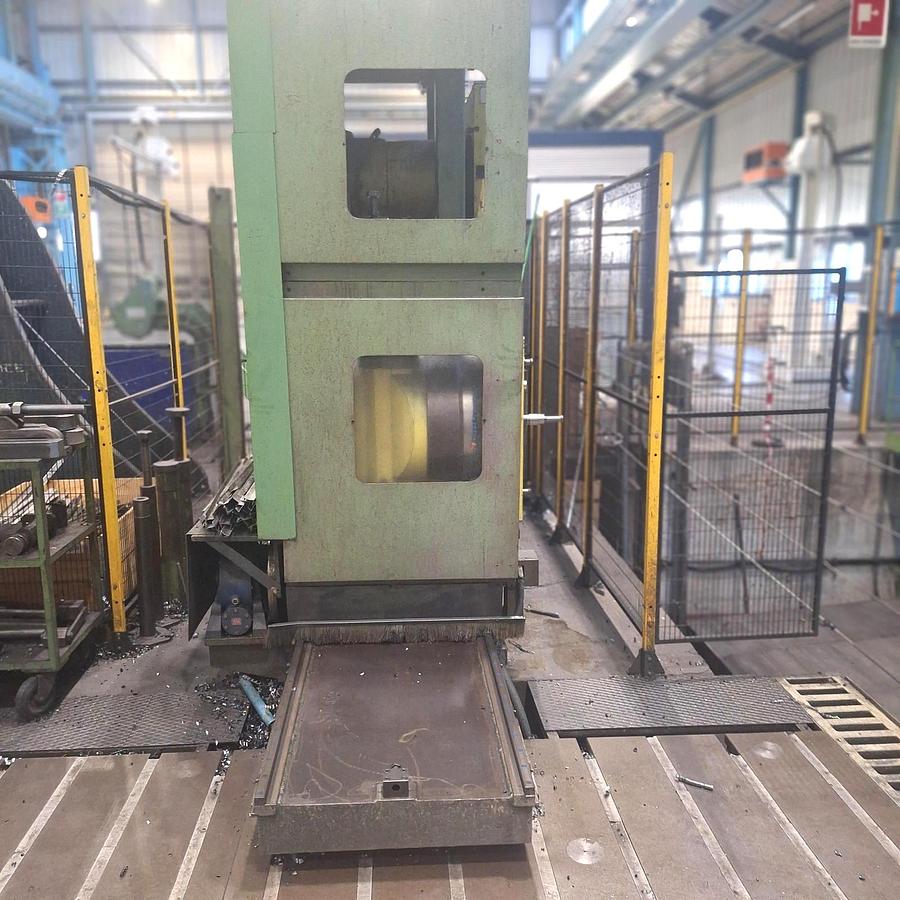

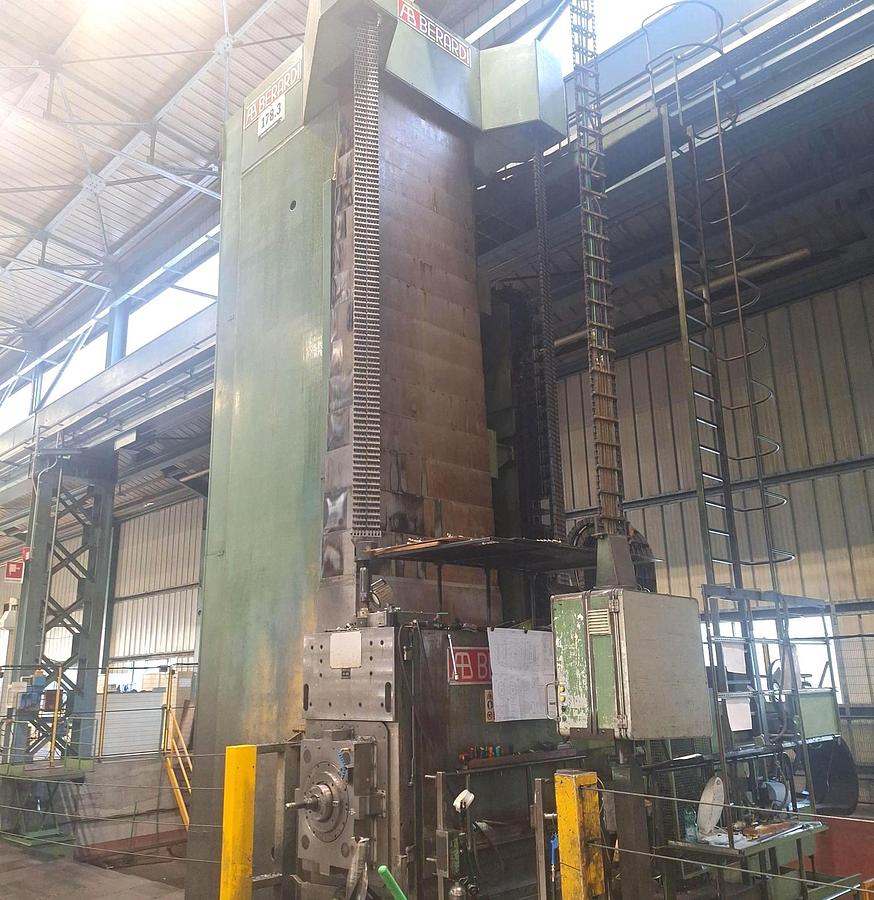

Borer Horizontal Floor Type CNC Innse Berardi

Dia. spindle : 200 mm – ISO 50,

Dimension RAM : 820 x 685 mm,

Axis : 4900 mm ( vertical ),

          12000 mm  ( longitudinal ),

              1600 mm  ( RAM ),

              1600 mm ( spindle ),

Total (RAM + SPINDLE ) 3200 mm,

Spindle motor : 81 Kw,

Spindle RPM : 5 – 1000,

Rapid :  8000 mm/min.,

Accessories :

CNC Rotary table

Dimension :  4500 x 3500 mm,

  axis V : 1230 mm,

  loading  capacity : 40 tons,

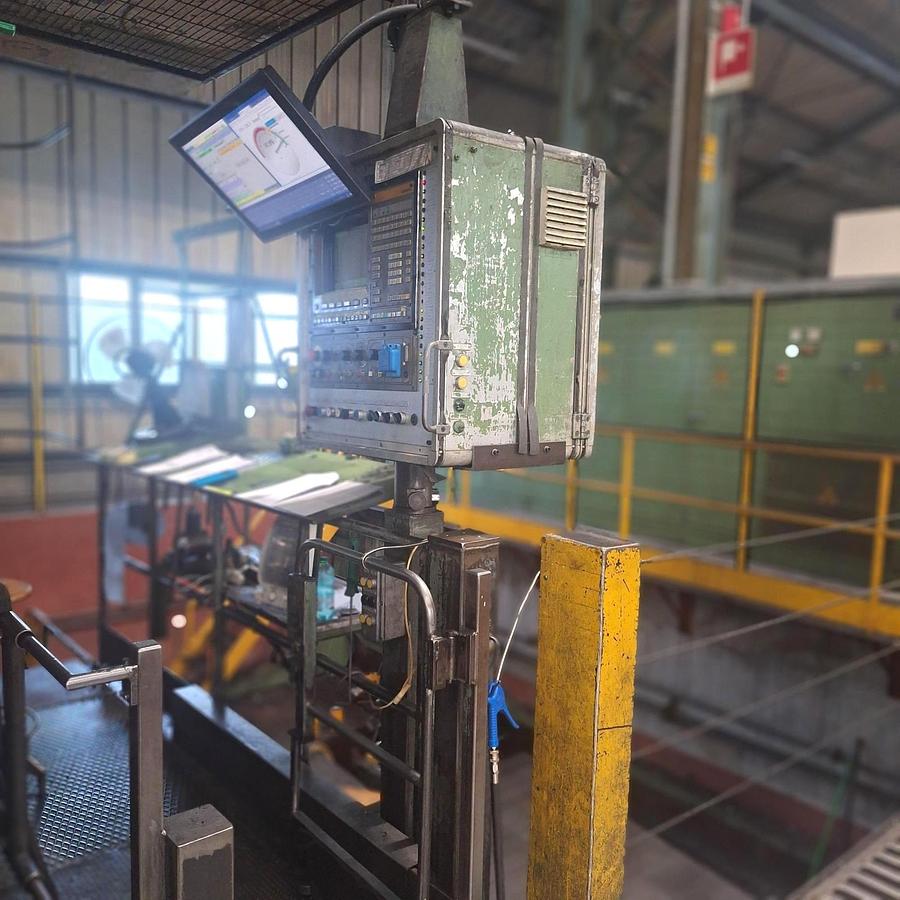

CNC : SIEMENS 850 M,

ATC  90 tools,

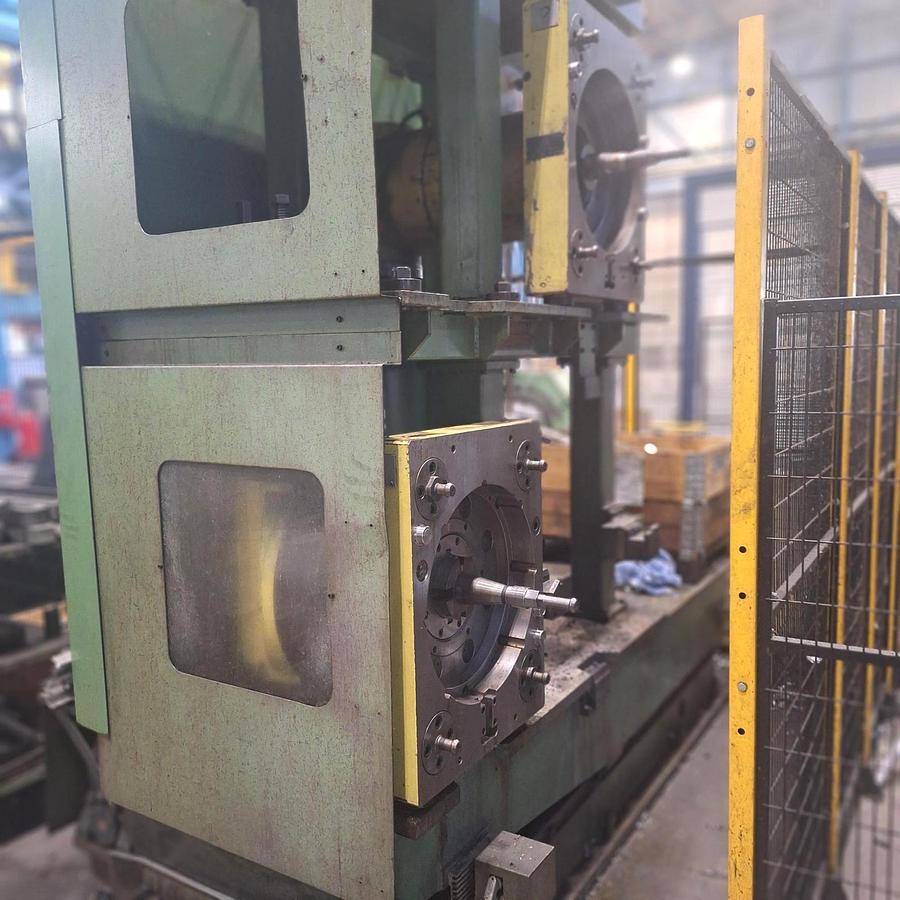

 n.2 ( two ) AUTOMATIC MILLING HEADS
