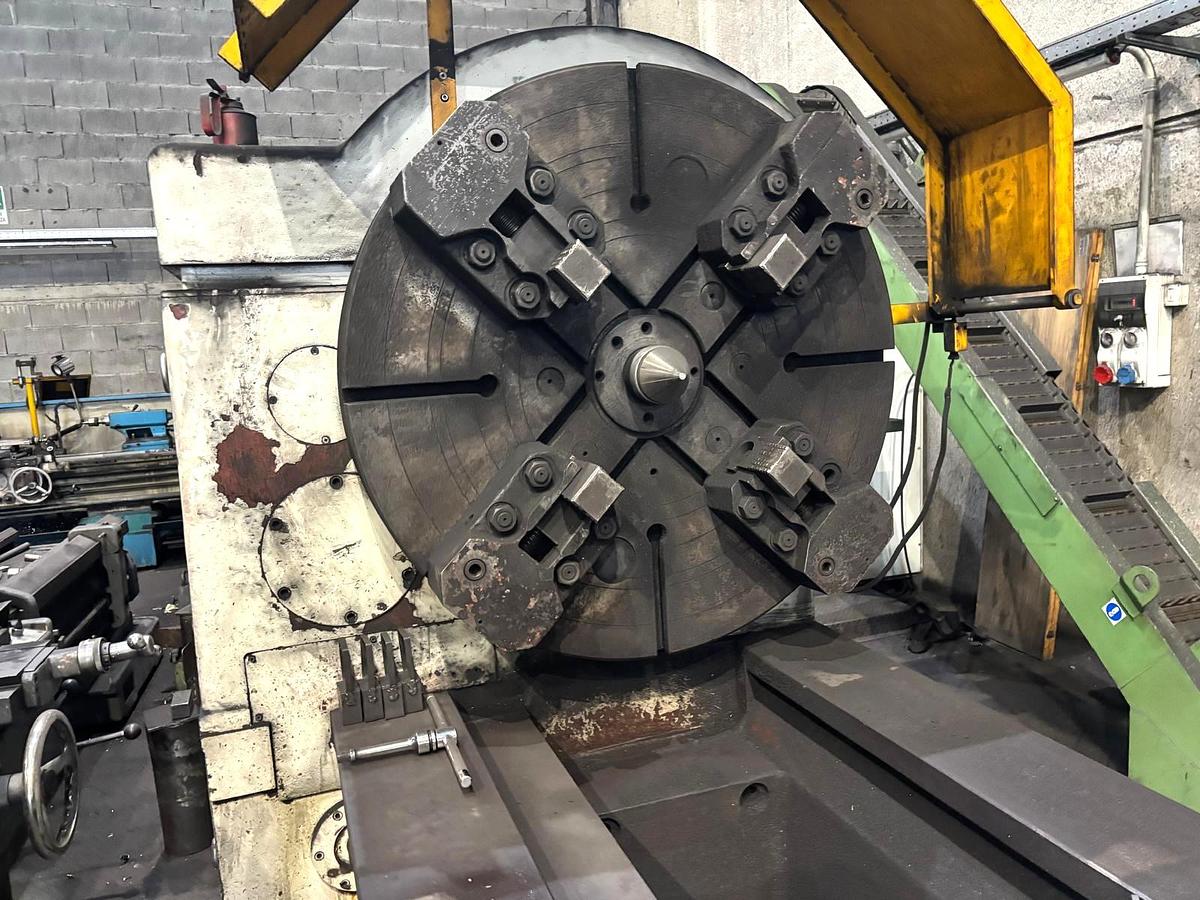

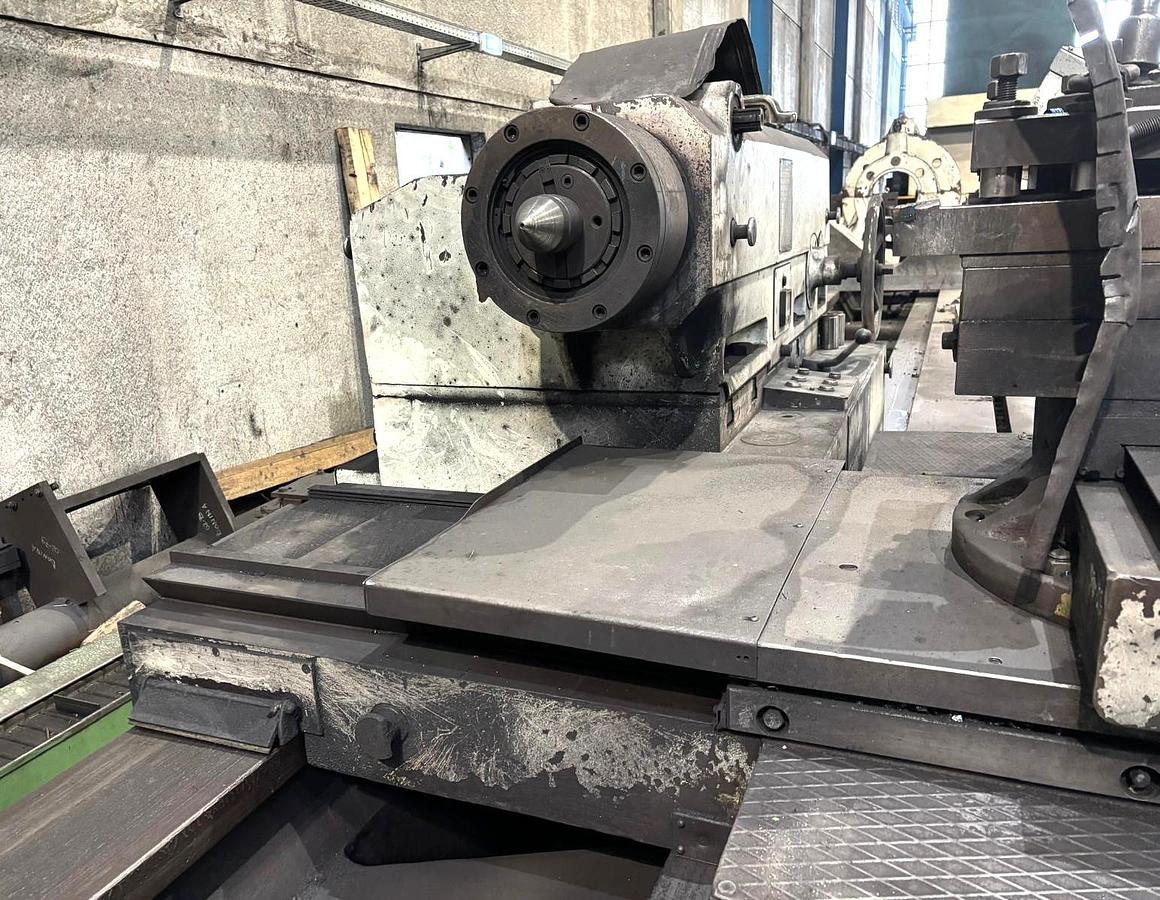

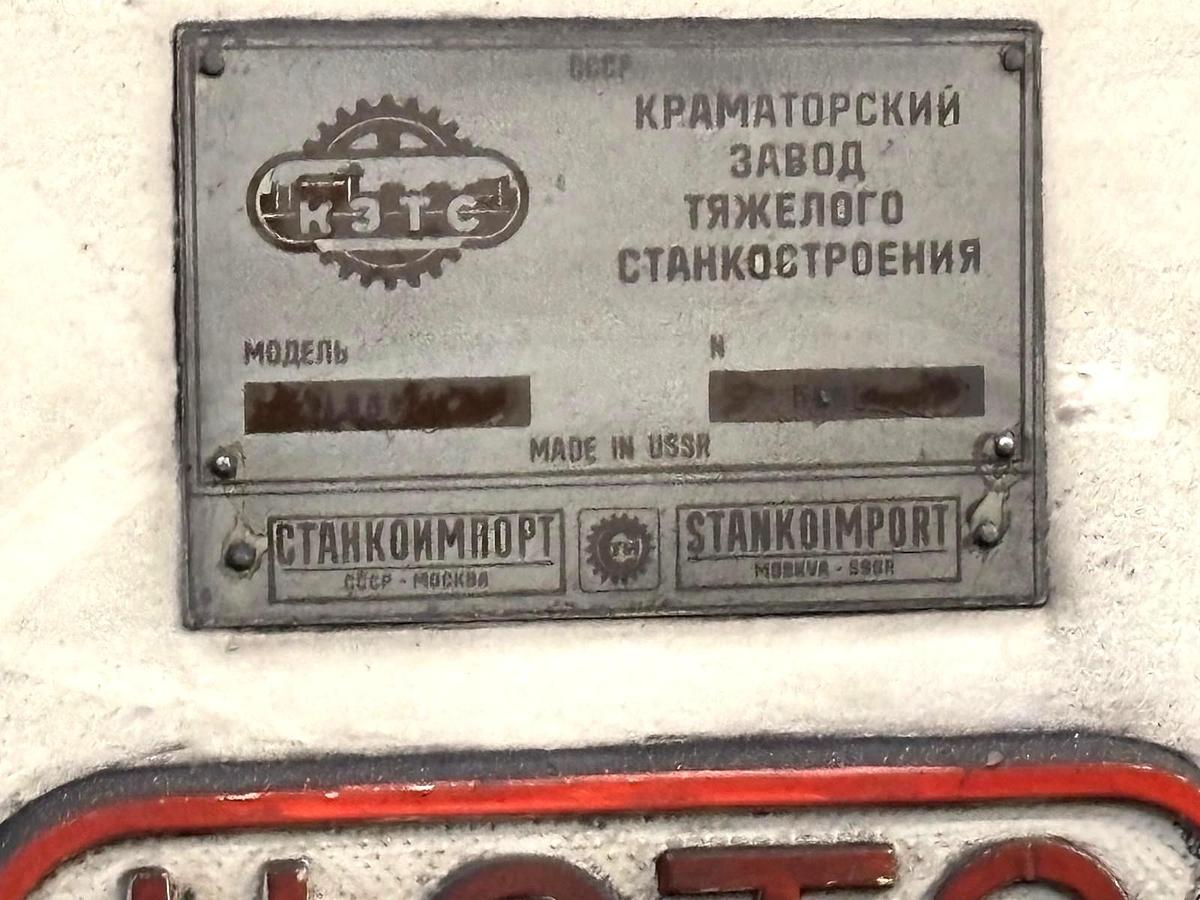

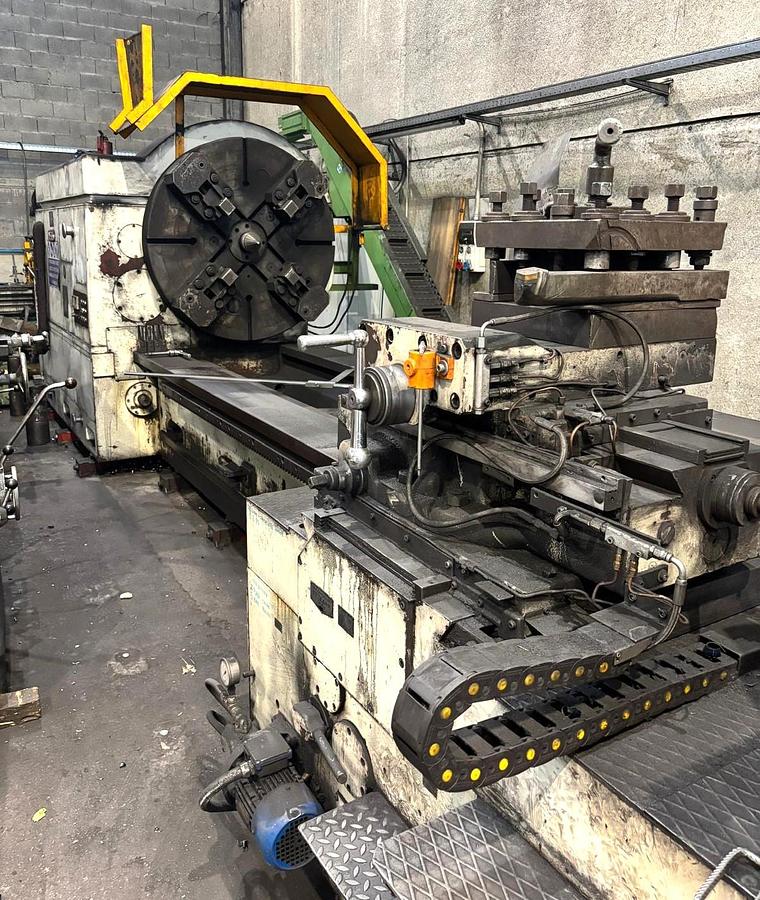

Lathe Heavy Duty Kramatorsk

Horizontal lathe KZTS 900 mm x 10.000 mm 25 Ton capacity

Center height : 660 mm,

Max turning dia. on the slides : 1300 mm,

Max turning dia. on the carriage : 900 mm,

Distance between centers : 10000 mm

Platform dimension : 1250 mm

Maximum workpiece weight between centers : 25 tons,

Tailstock quill diameter : 250 mm,

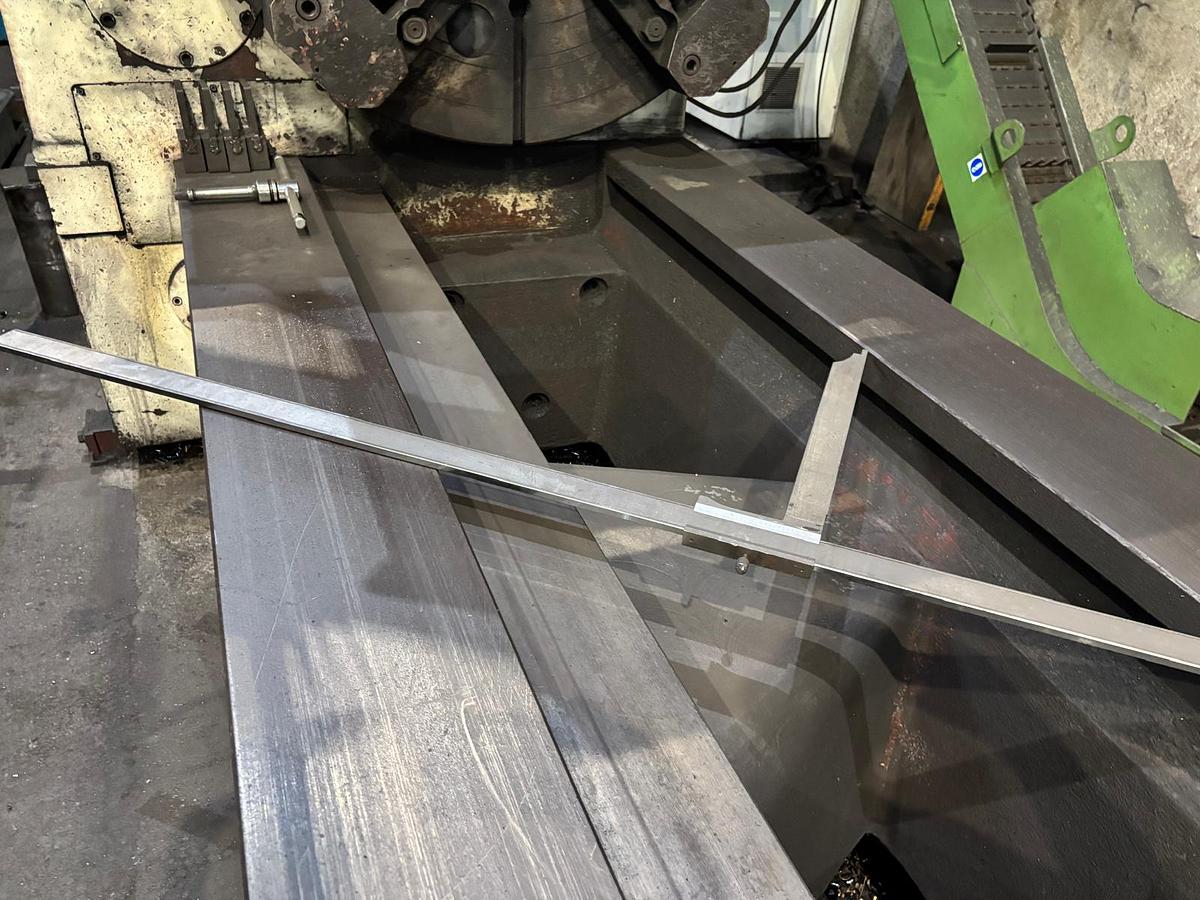

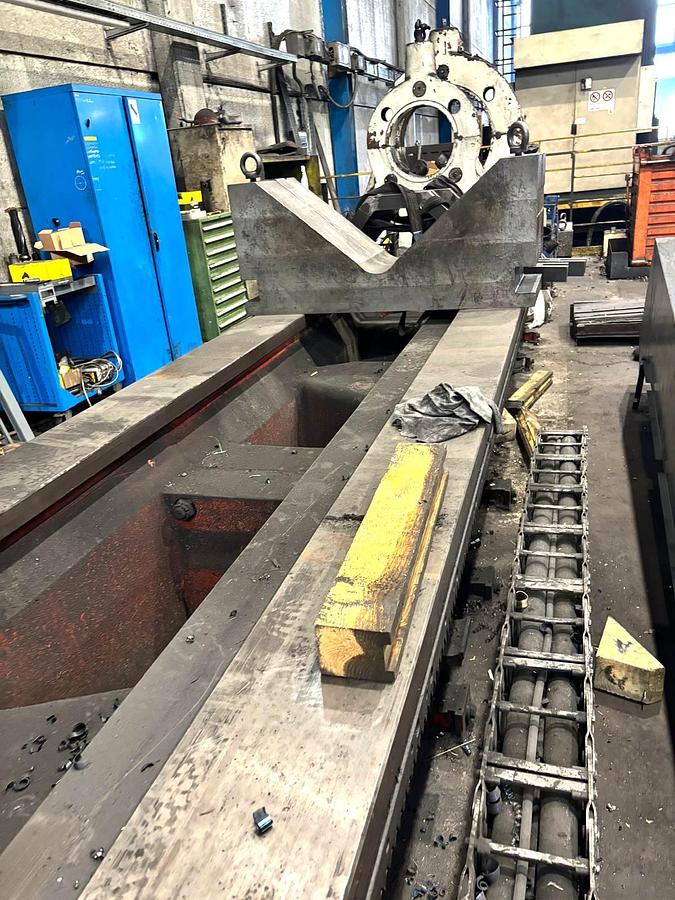

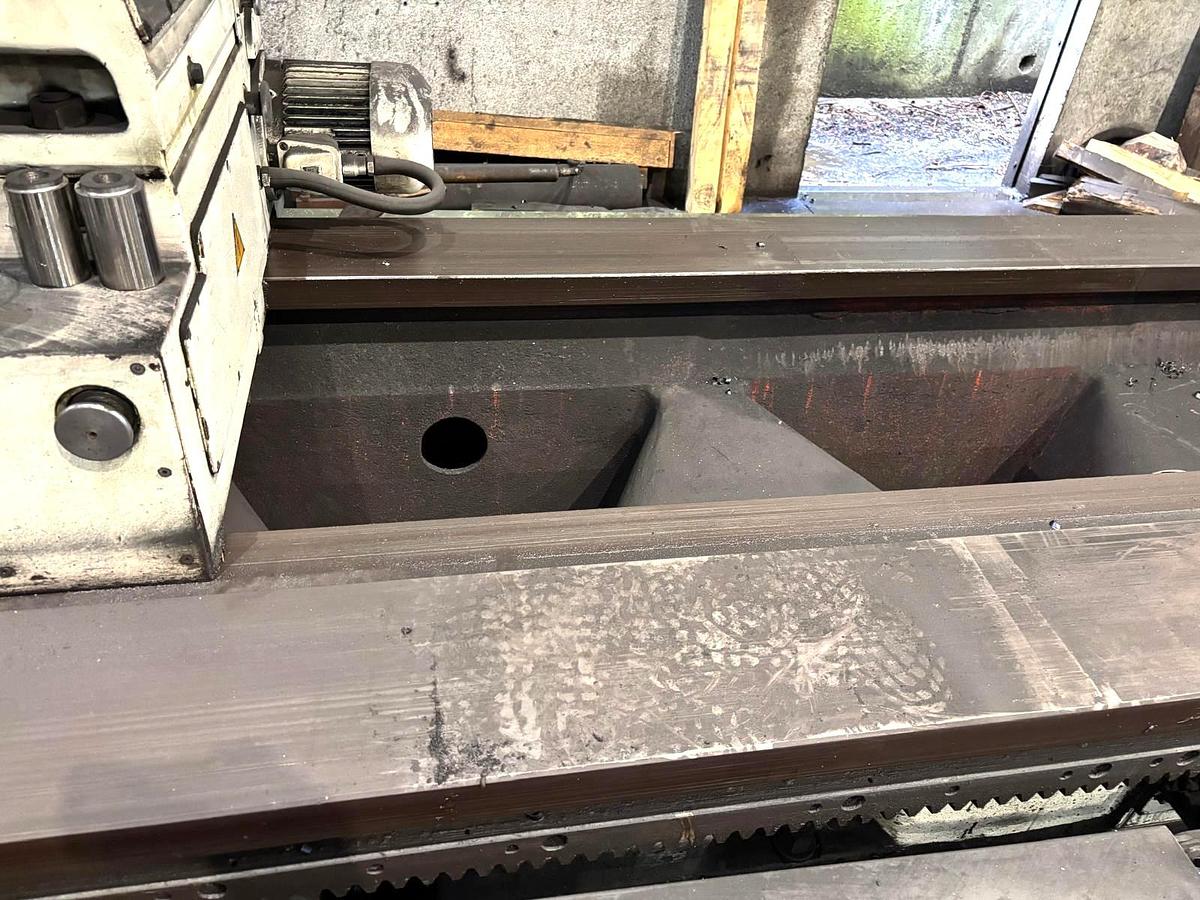

Bed width : 1200 mm,

Spindle speed : up to 200 rpm,

Main motor power : 110 kW,

Weight : approx. 40 tons.

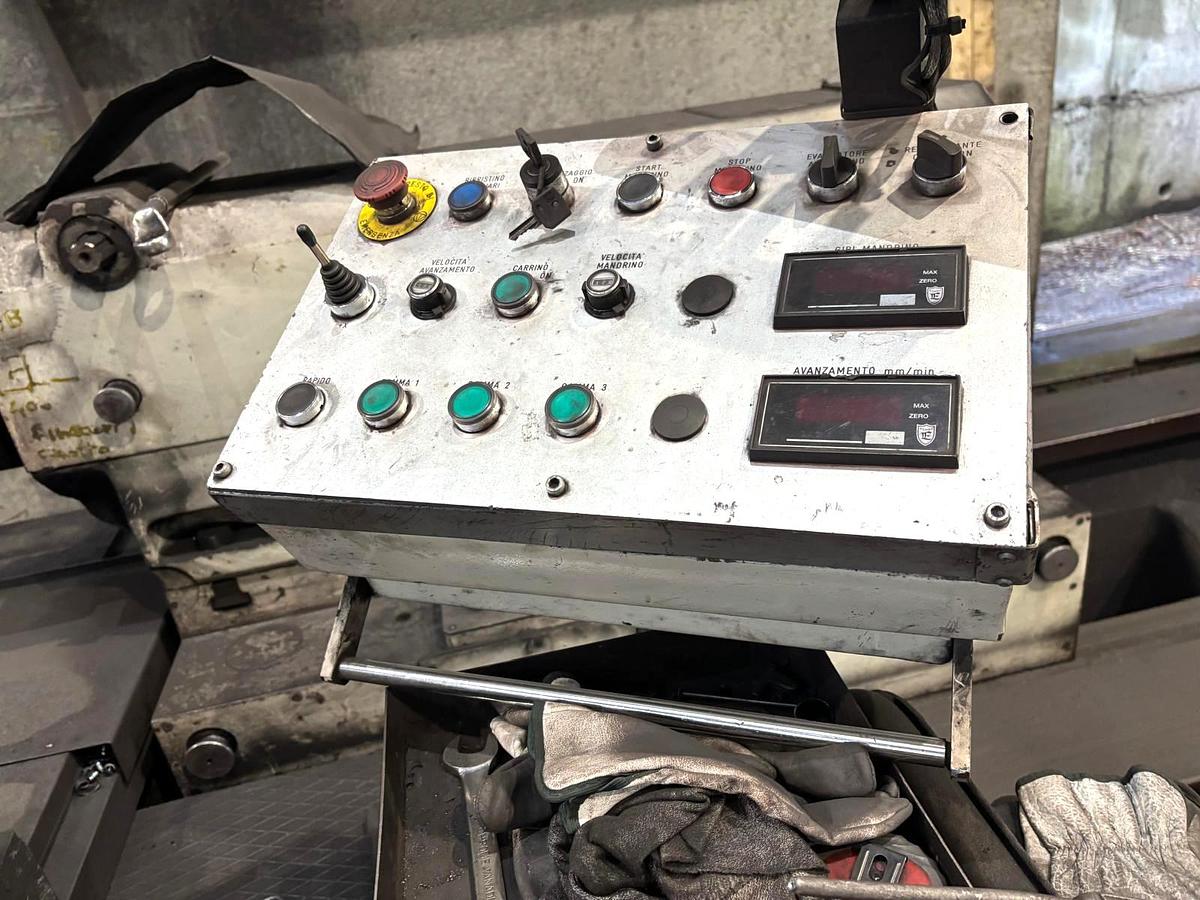

Machine in working condition complete of electrical part
