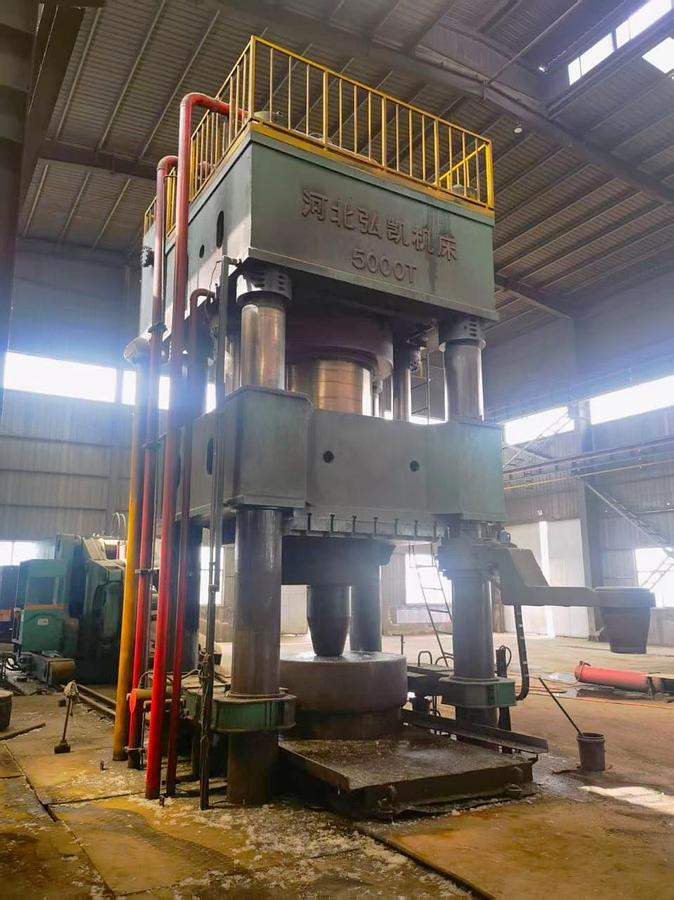

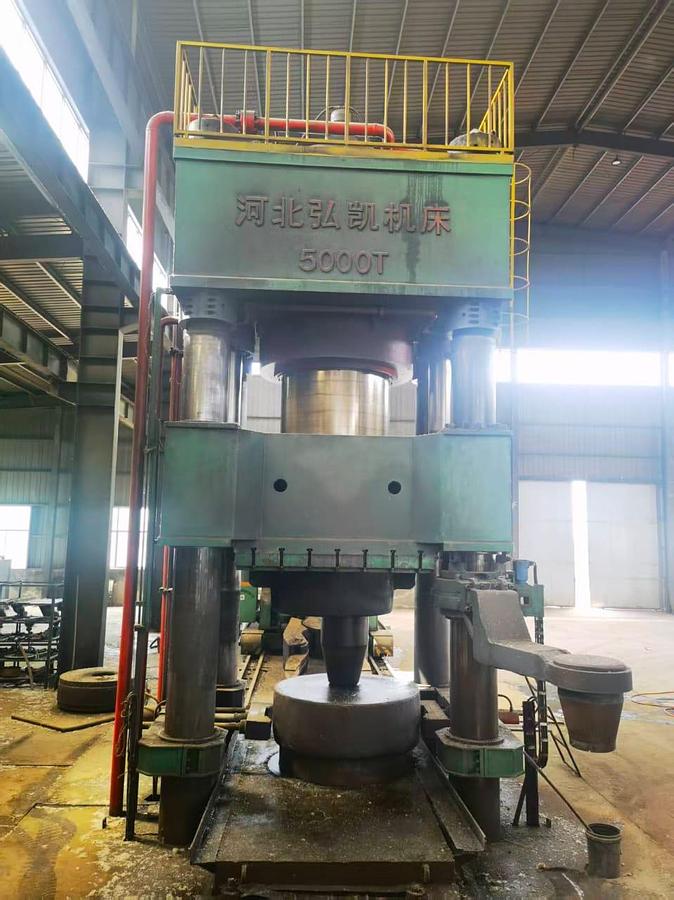

5000 tons Press Forging Open Die Hydraulic Hongkai

Capacity : 5000 tons,

Clear Opening : 5000 mm,

Slider Stroke: 1600 mm,

Distance Between Columns : 5000 × 2000 mm,

Column Diameter : Φ500 mm,

Main Cylinder Diameter : Φ1400 mm,

Maximum Eccentric Load : 120 mm,

Return Speed : 200 mm/s,

Working Speed : 18–44 mm/s,

Fast Approach Speed : 200 mm/s,

Moving Worktable Size : 4800 × 1800 mm,

Moving Worktable Speed : 200 mm/s,

Moving Worktable Stroke : ±1850 mm,

Motor Power : 1125 kW,

Above Ground Height : 11,000 mm,

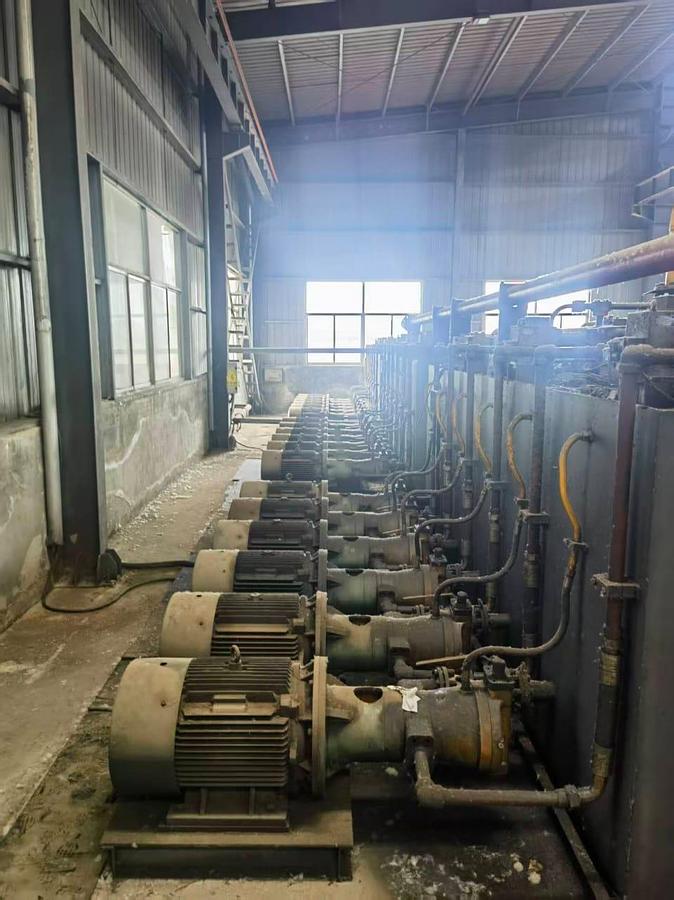

Hydraulic System : CNC-controlled hydraulic system,

Hydraulic Medium : Anti-wear hydraulic oil YB-N46,

Structural Description,

Three-beam and four-column downward pressing structure,

Main Components

Main Frame

Main Working Cylinder

Return/Lifting Cylinder

Guide Sleeve

Moving Worktable

Hydraulic CNC Control System

Electrical CNC Control System

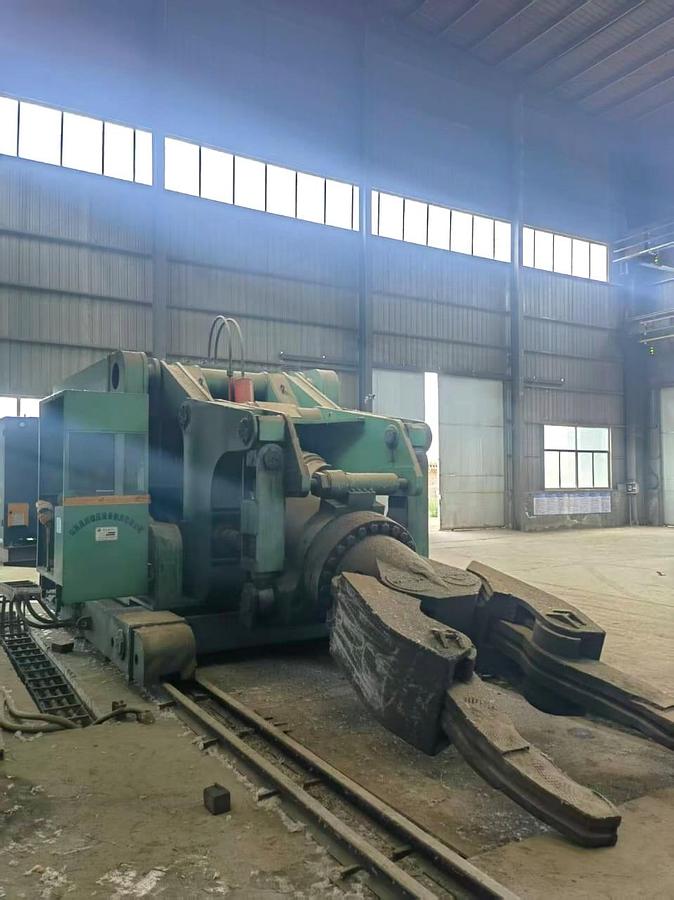

With Rain Bound Forging Manipulator.

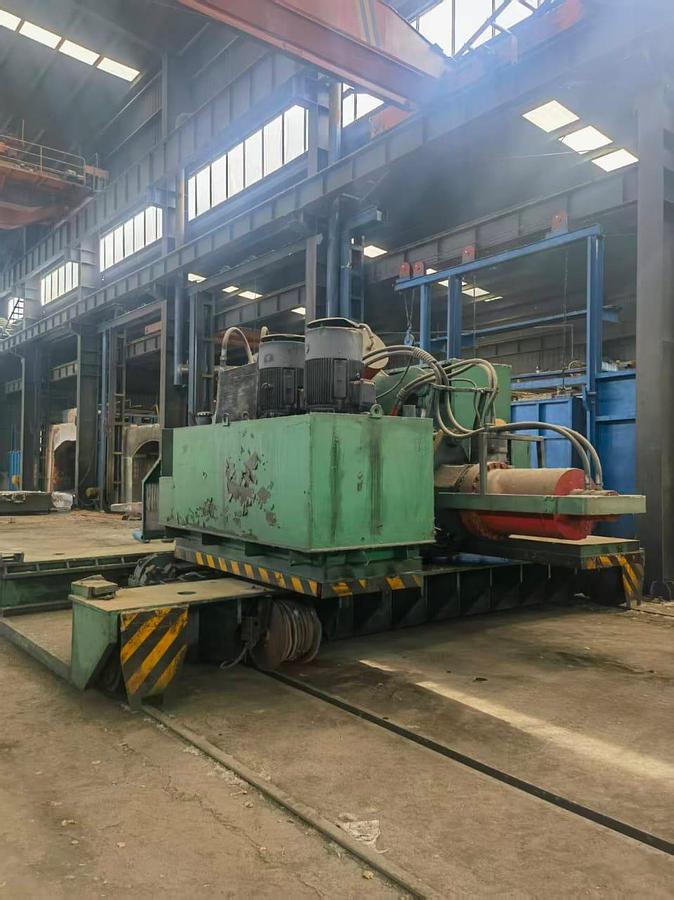

Manipulator and loader (included) is 15 tons each.
