Robot ABB

The ABB IRB 6400 is a robust 6-axis industrial robot designed for heavy-duty manufacturing.

Across its variants (Floor, Shelf, and Foundry), it provides payloads between 100 kg and 200 kg, reaches of 2.4 m to 3.0 m, and a path repeatability of ±0.1 mm to ±0.2 mm.

Key Technical Specifications Axes : 6 degrees of freedom Payload Capacity : 100 kg up to 200 kg (depending on the specific arm/reach variant) Maximum Reach : 2.4 m to 3.0 m

Position Repeatability : ±0.1 mm to ±0.2 mm

Controller : S4C / S4C plus system Robot

Weight : 1600 kg (PE variants) up to 2390 kg

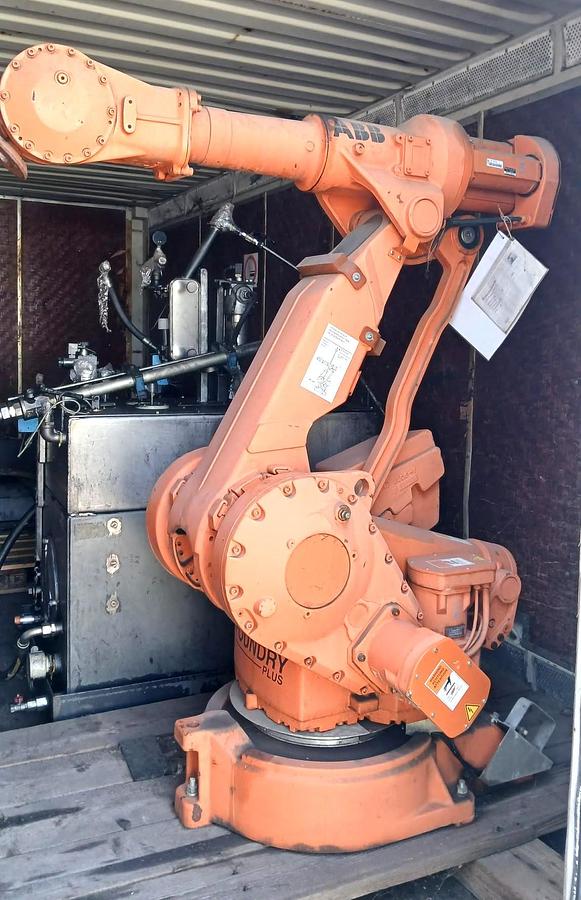

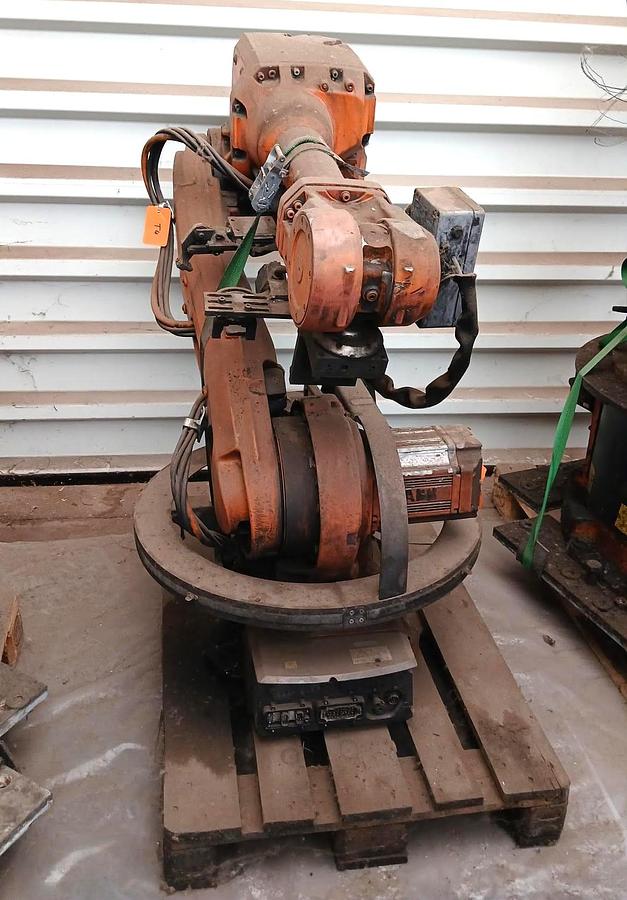

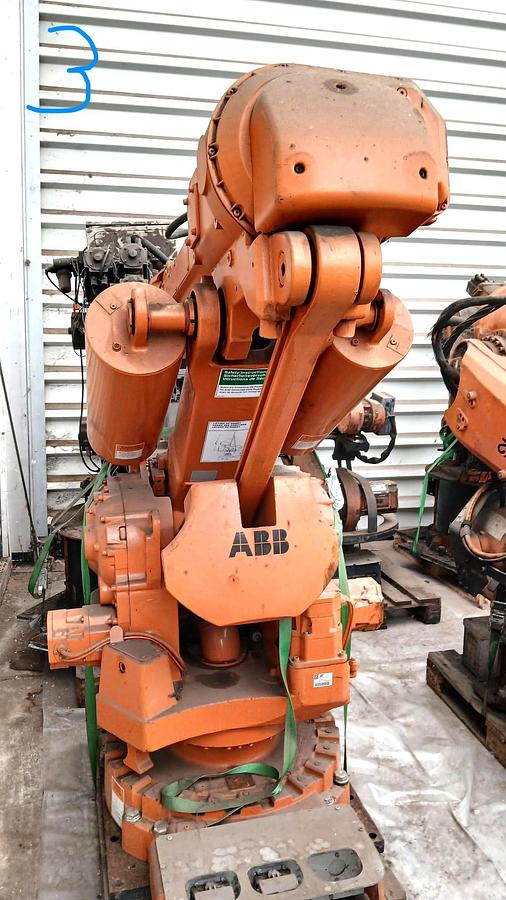

1) ABB - IRB 6400

Controller : S4C,

Handlin capacity : 120 kg,

Reach : 2400 mm,

2) ABB - IRB 6400/2.5-120

Handlin capacity : 120 kg,

3) ABB - IRB 6400/2.5-120

Handlin capacity : 120 kg,

4) ABB - IRB 6400-180/2.55

5) ABB - IRB 4600-60/2.03

Handlin capacity : 160 kg.
