1400 tons Press Transfer Mechanical SIMPAC

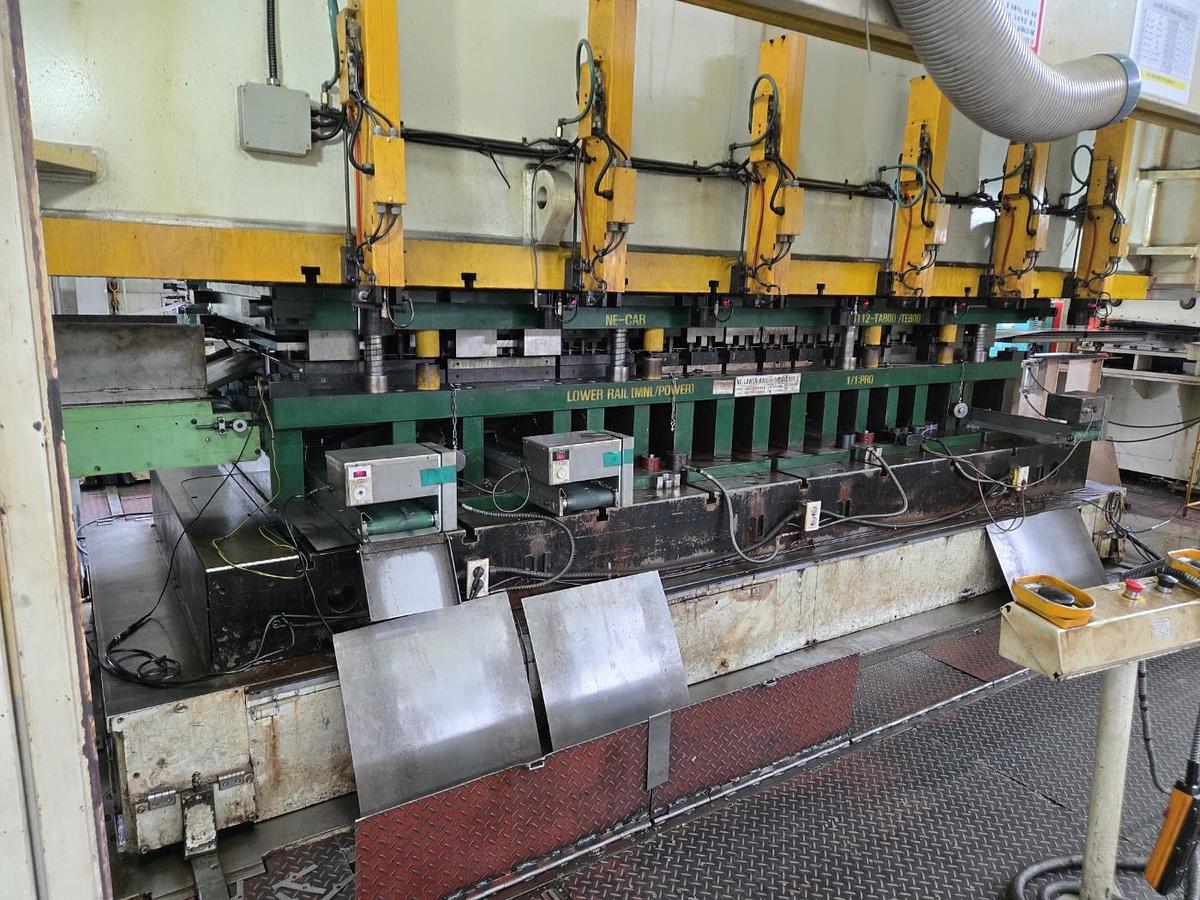

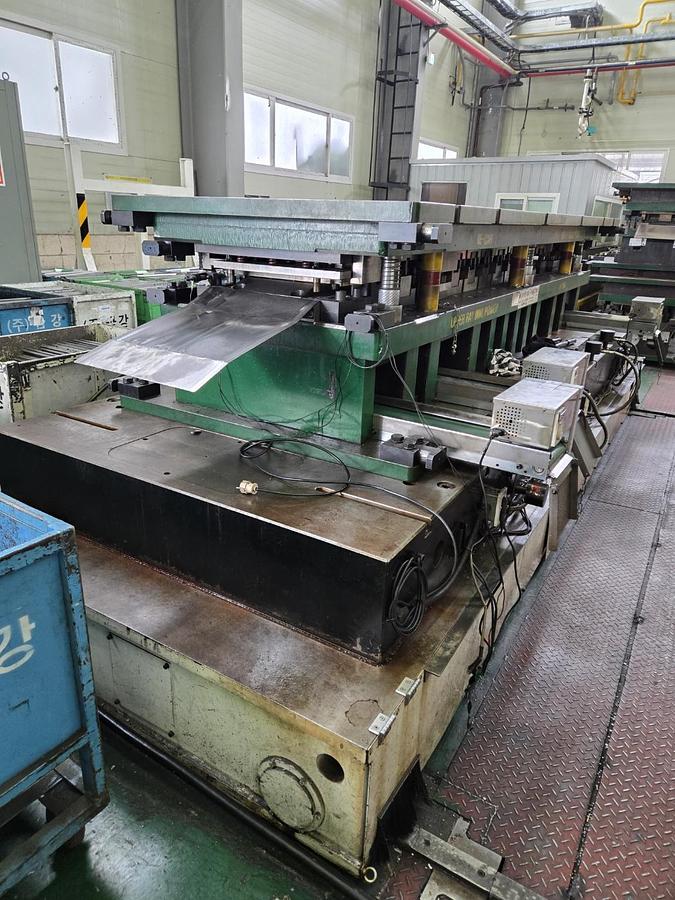

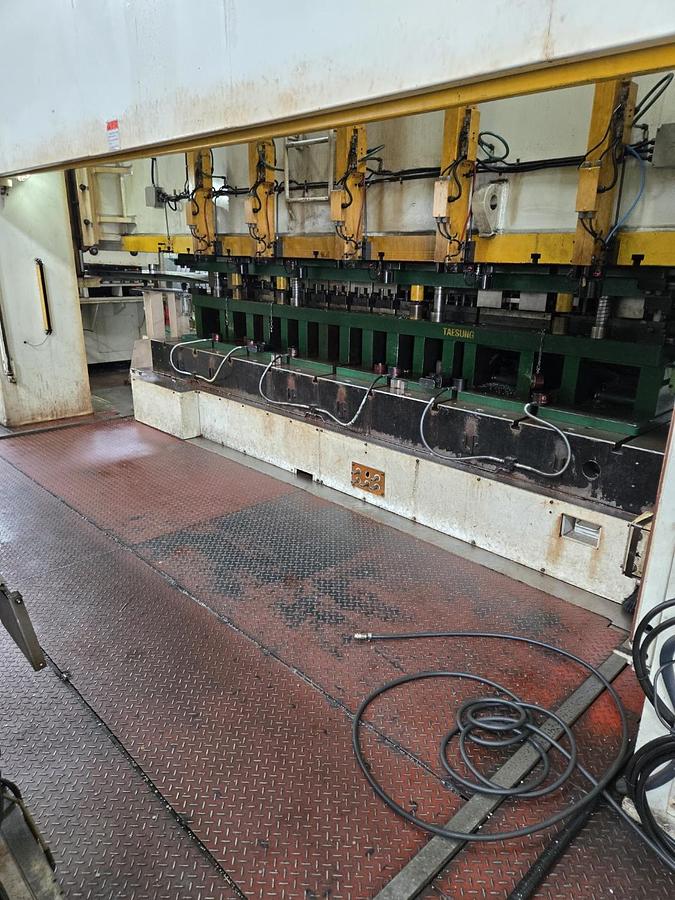

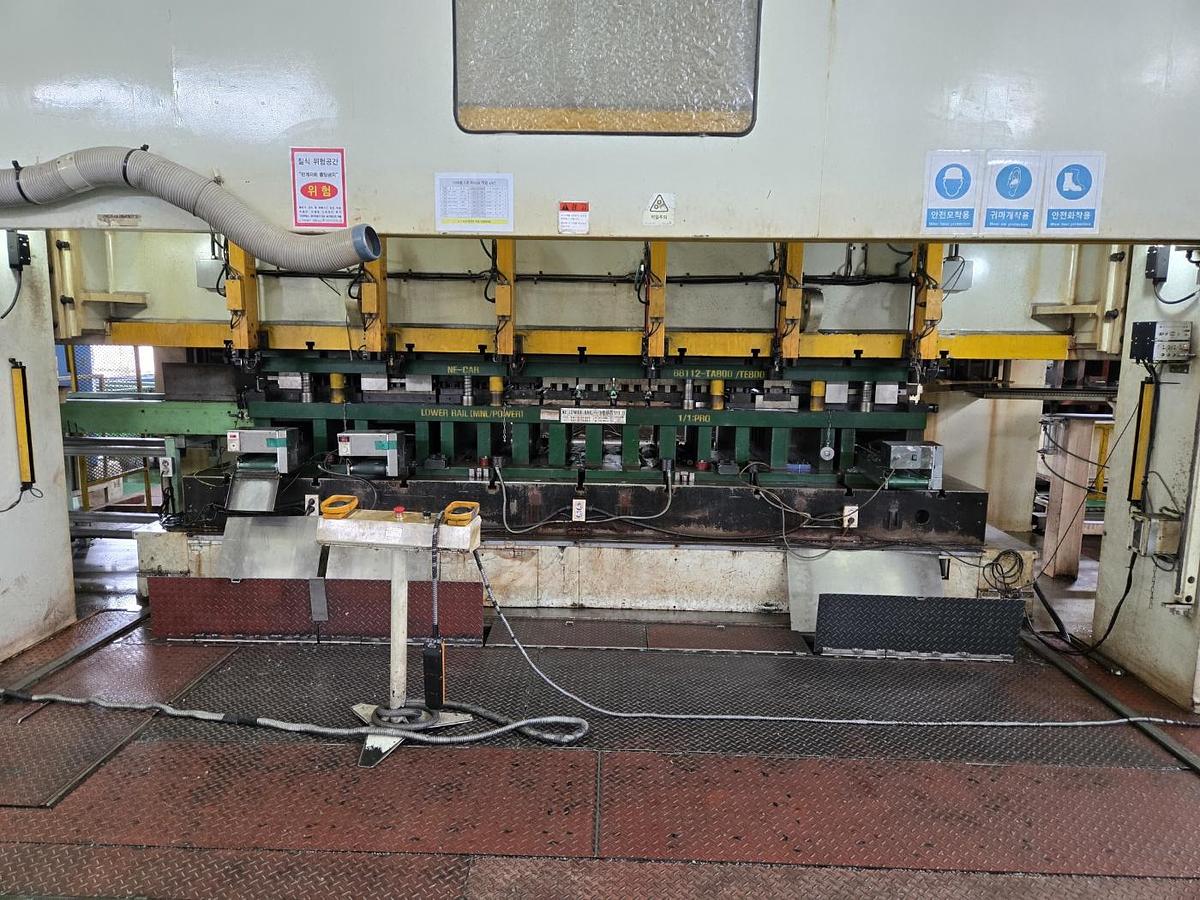

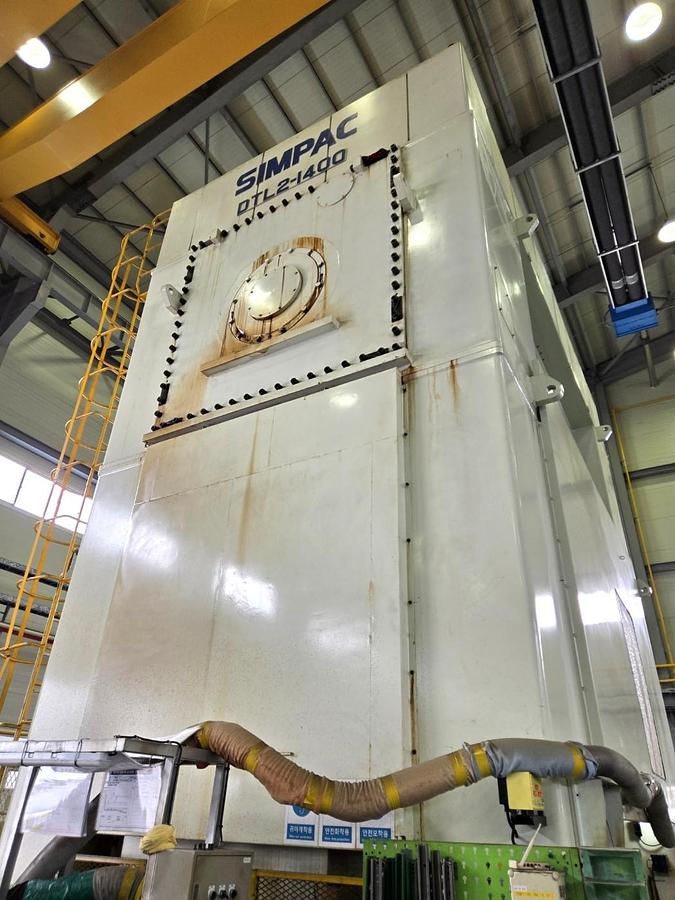

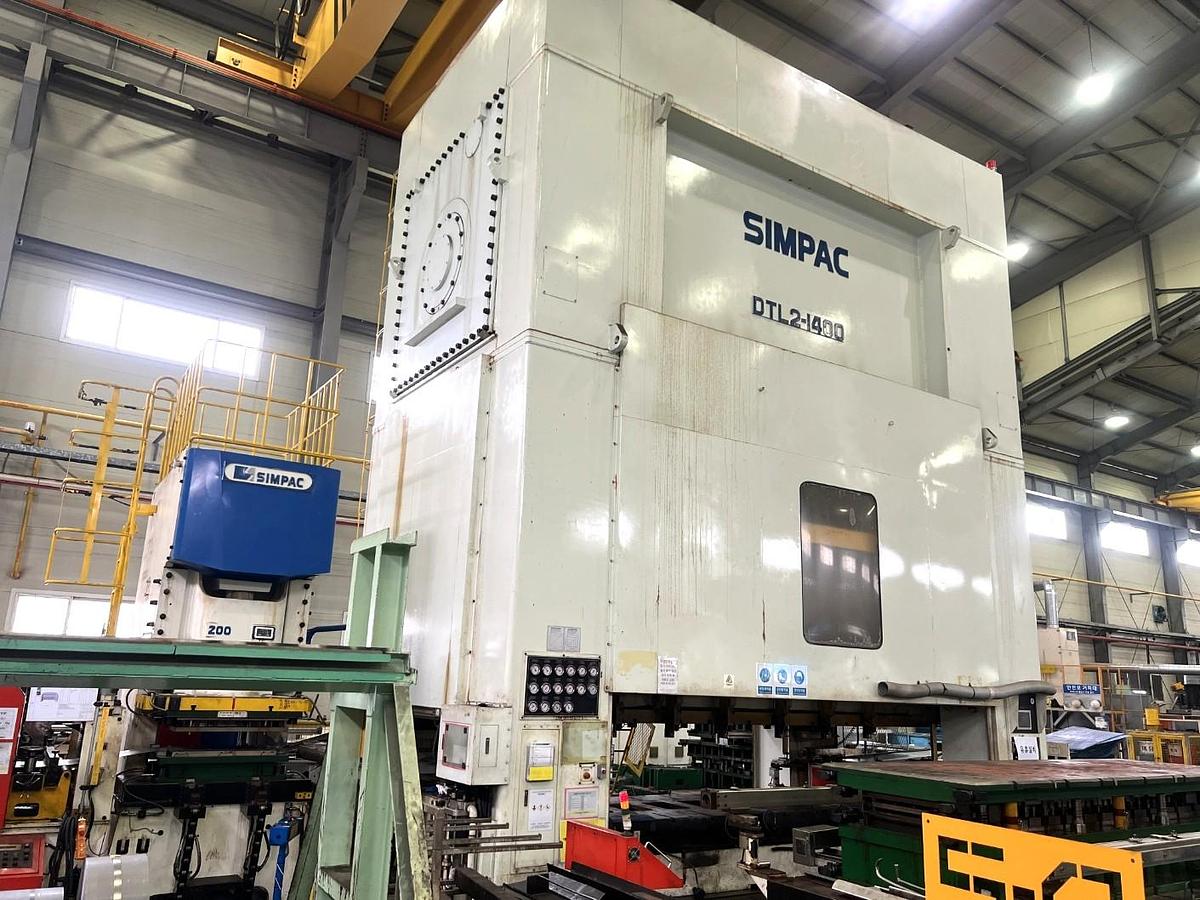

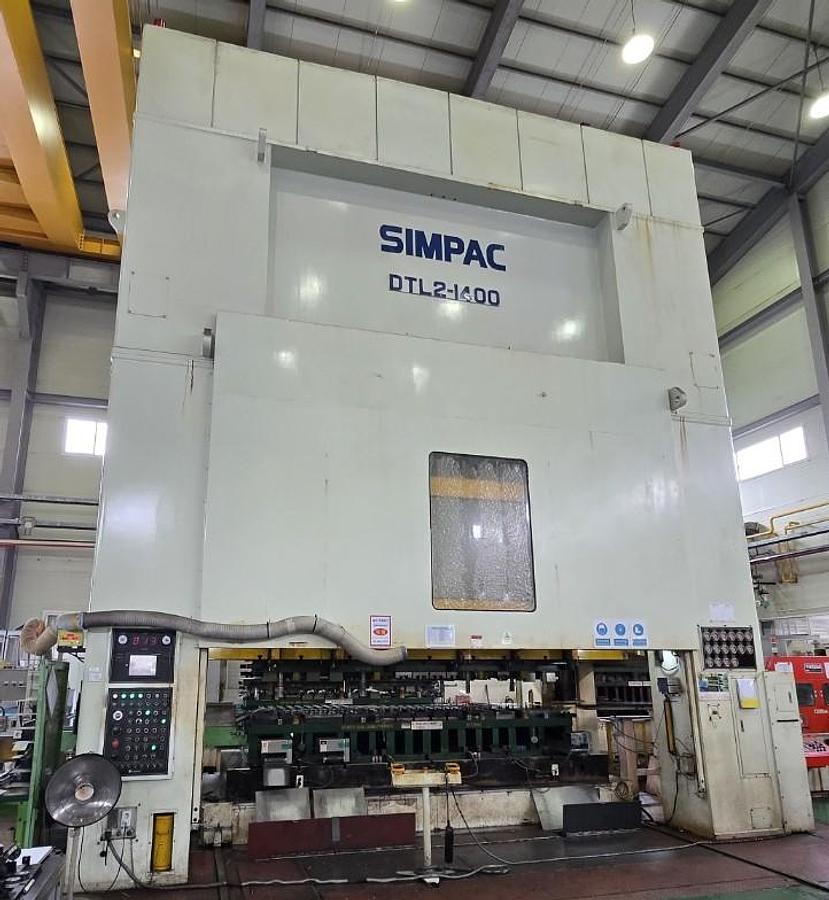

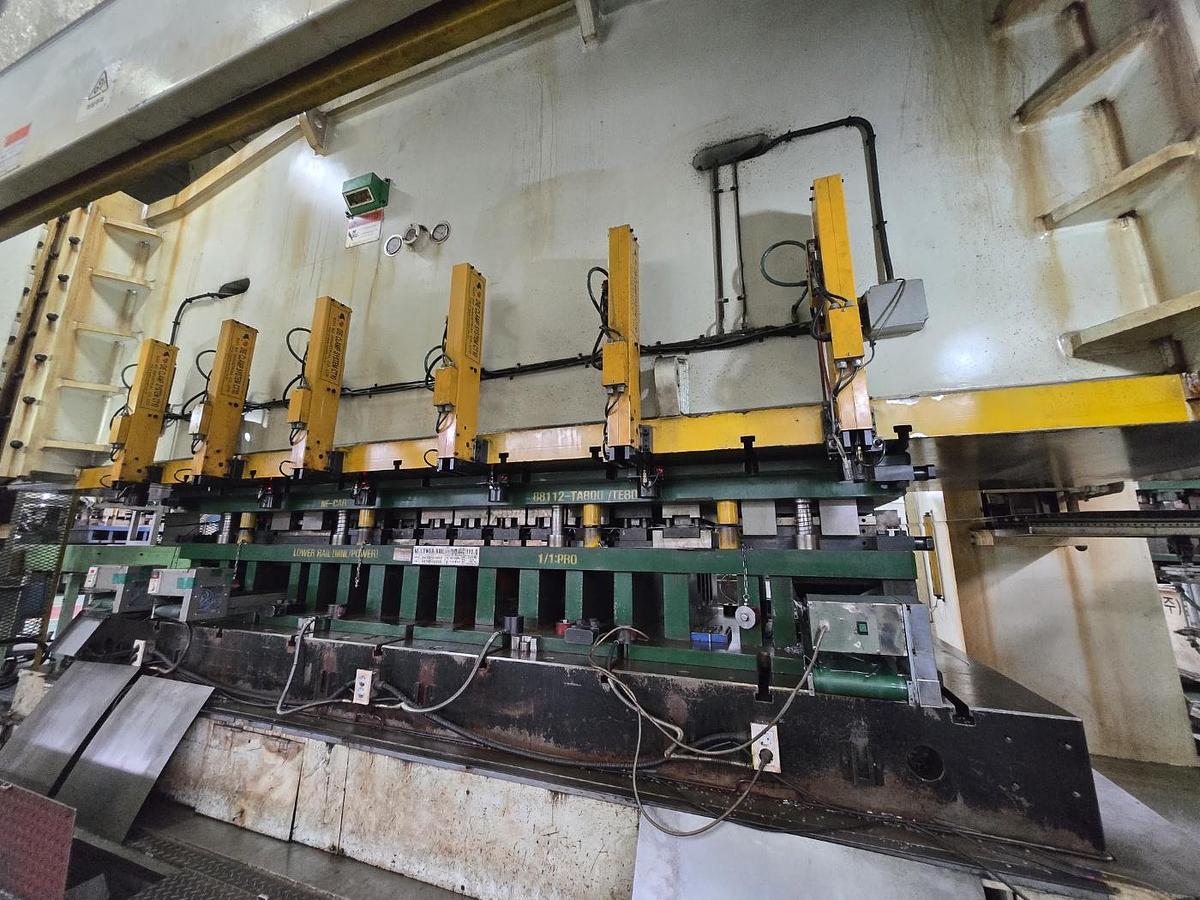

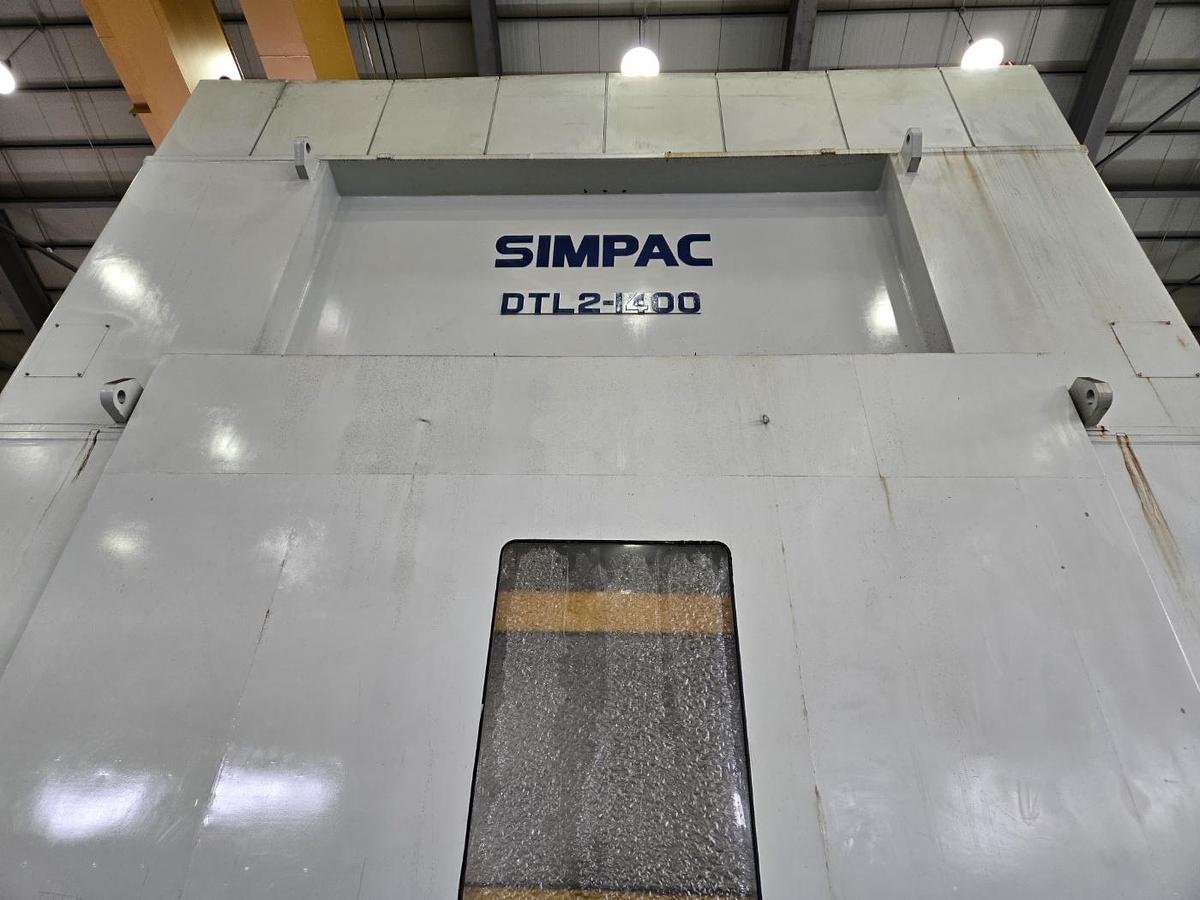

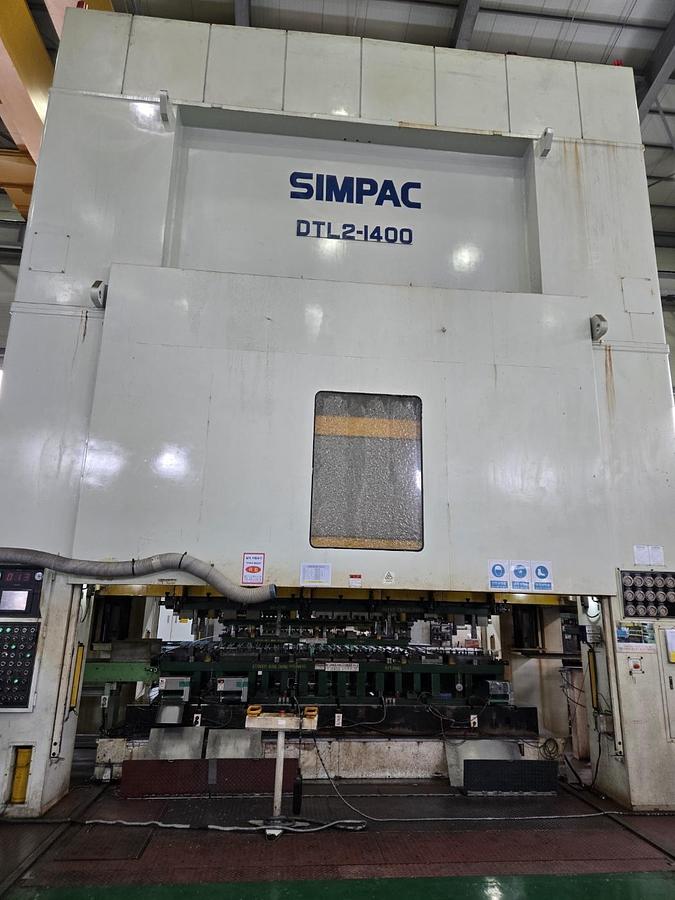

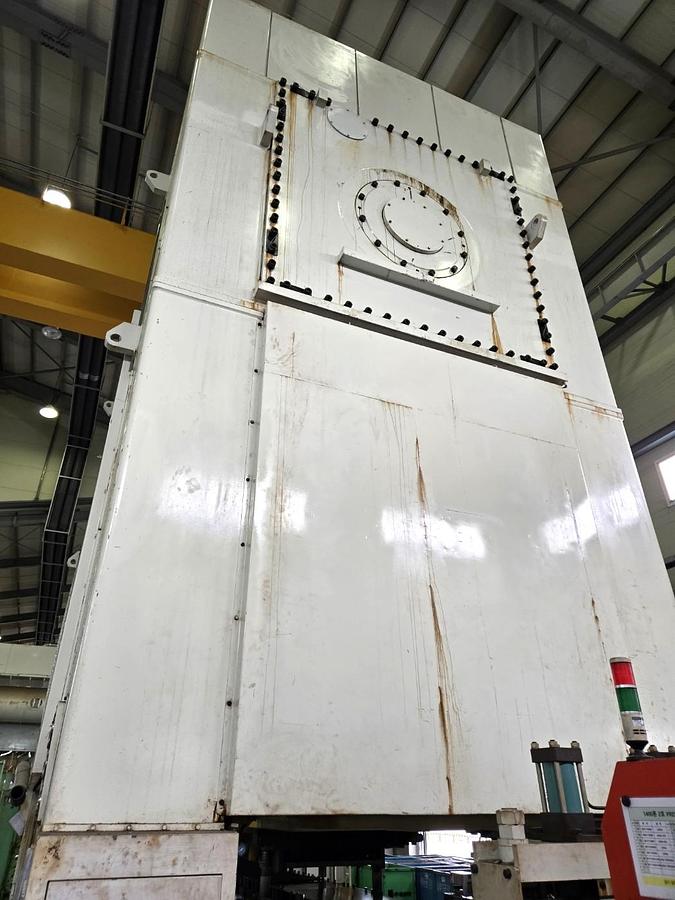

1) SIMPAC 1400 Ton Transfer Press with KDM NC Feeder

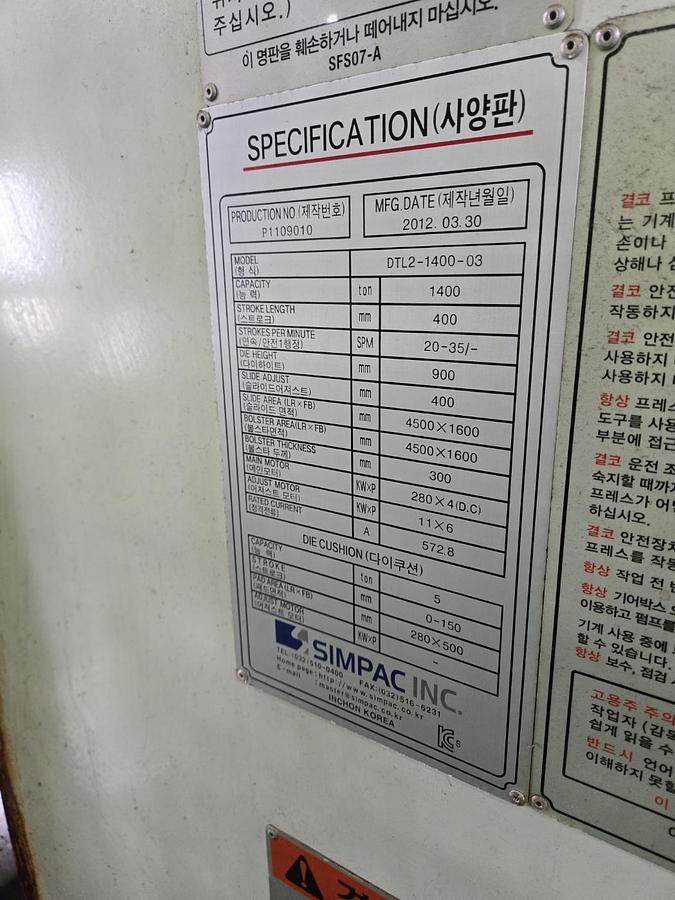

Capacity : 1400 tons,

Stroke : 400 mm,

Stroke per minutes : 20-35 SPM,

Die height : 900 mm,

Slide adjust : 400 mm,

Slide area (LR x FB) : 4500 x 1600 mm,

Bolster area (LR x FB) : 4500 x 1600 mm,

Bolster thickness : 300 mm,

Main motor : 280 x 4(DC) KWXp,

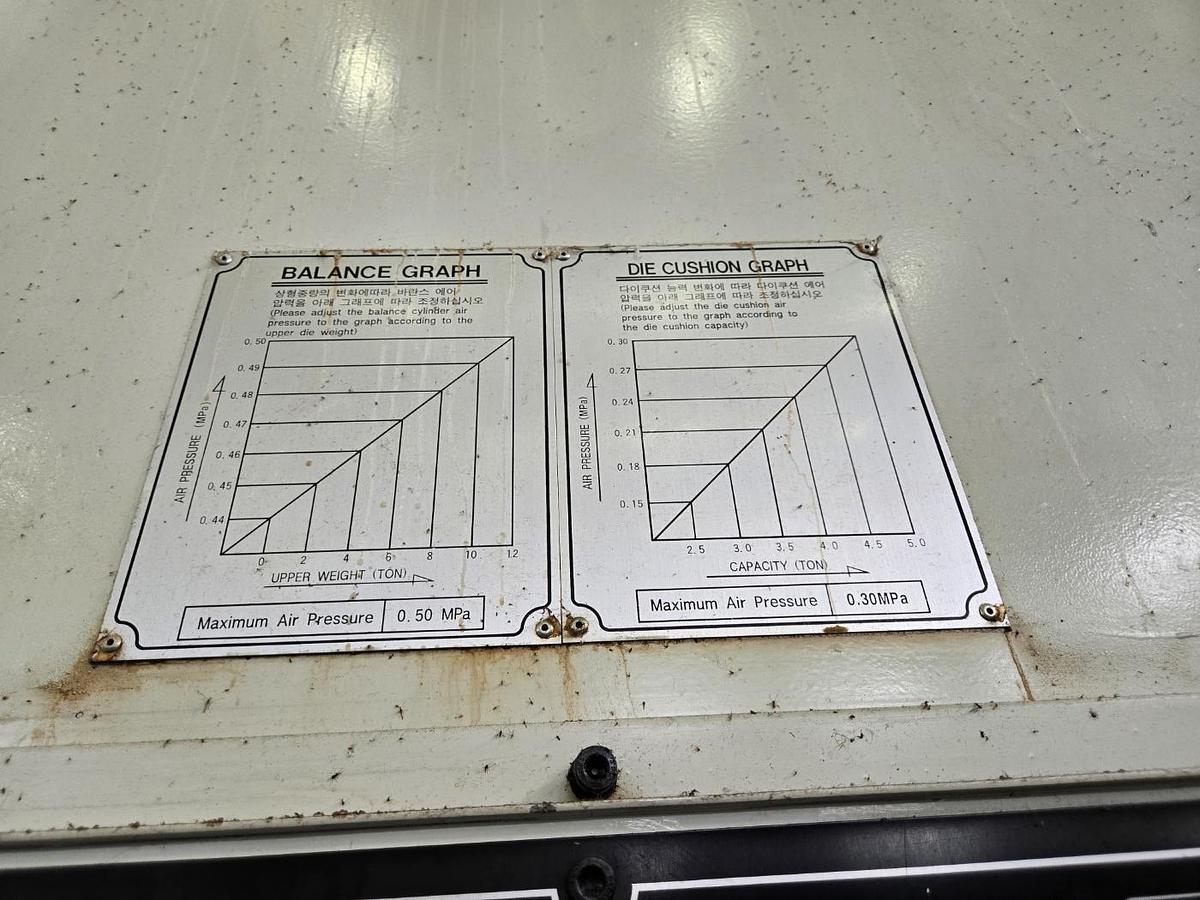

Die cushion ,YOM 2012 / 1 set

Capacity : 5 tons,

Stroke : 0 - 150 mm,

Pad area ( LR x FB) : 280 x 500 mm,

Technical manuals available.

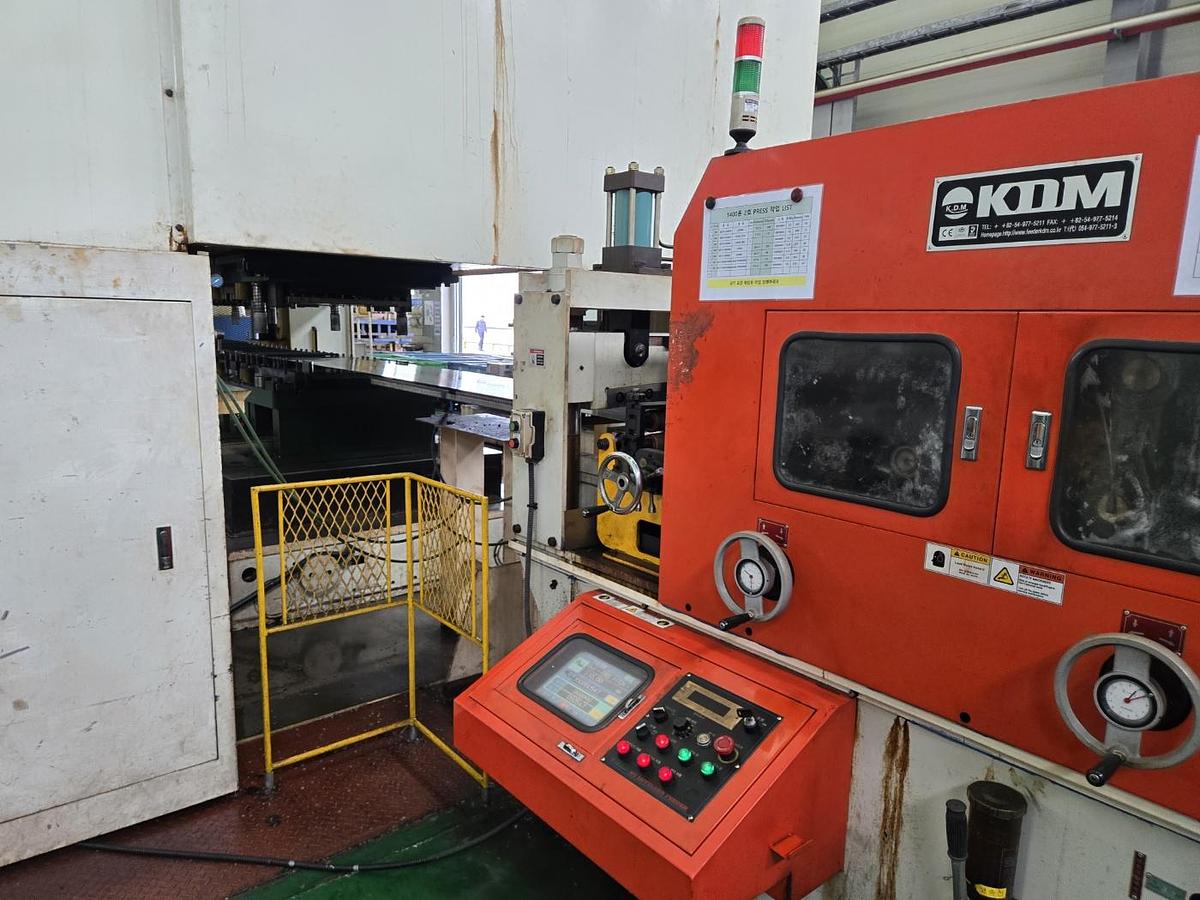

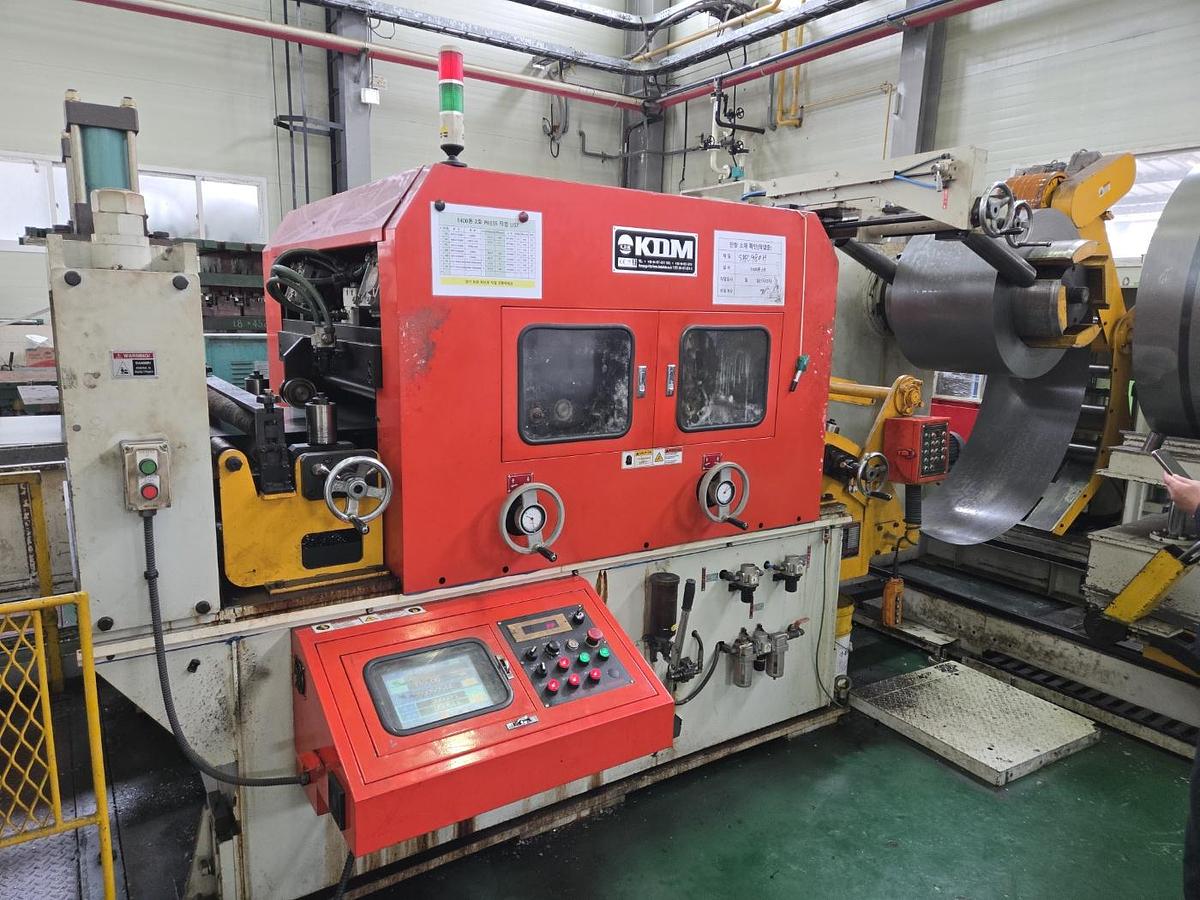

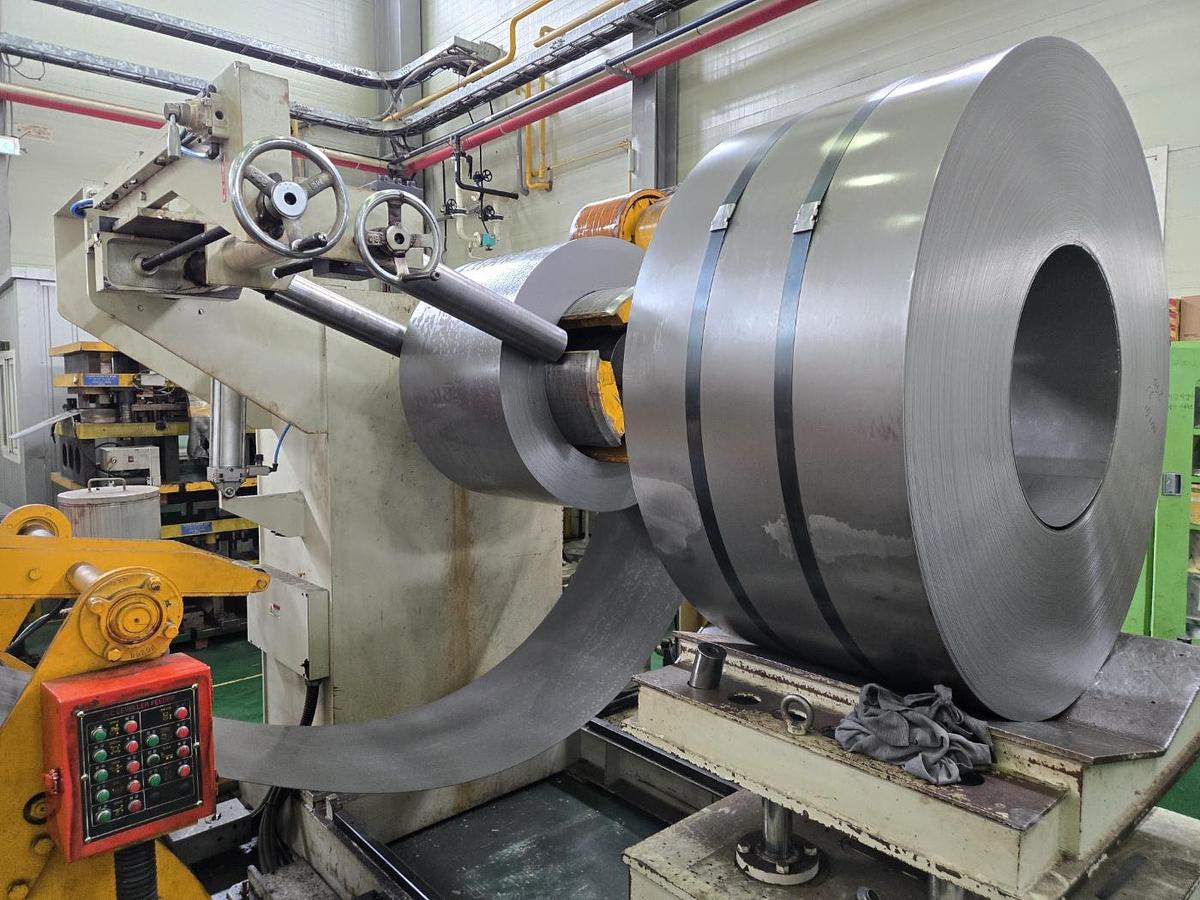

With KDM NC Feeder YOM 2012./ 1 set with Leveller

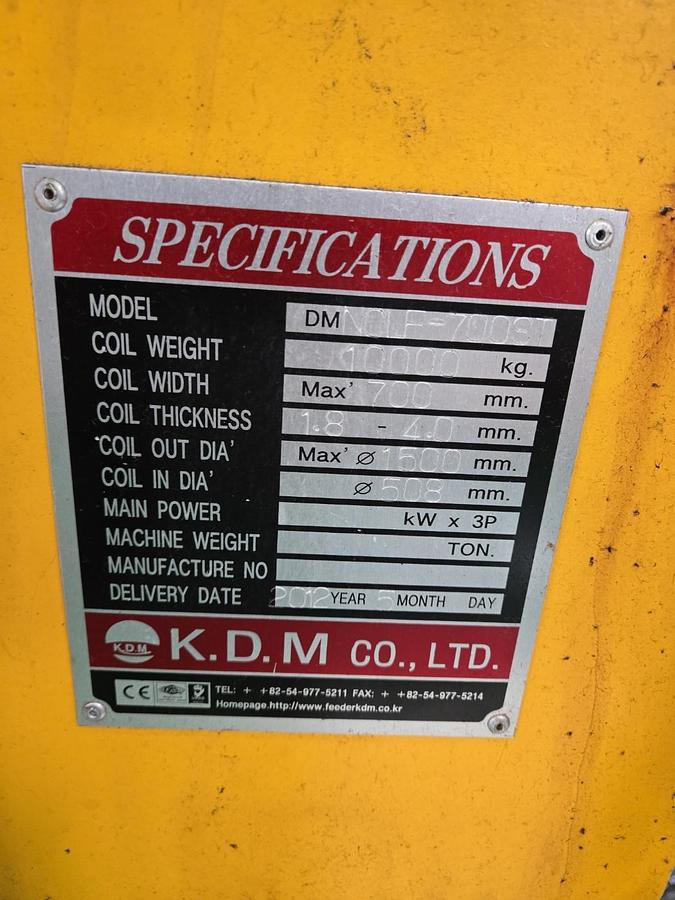

Model : DMNCLF-700ST ,

Coil thickness : 1.8~4.0 mm,

Coil width : 700 mm,

Coil in dia : 508 mm,

Coil weight : 10 ton.
