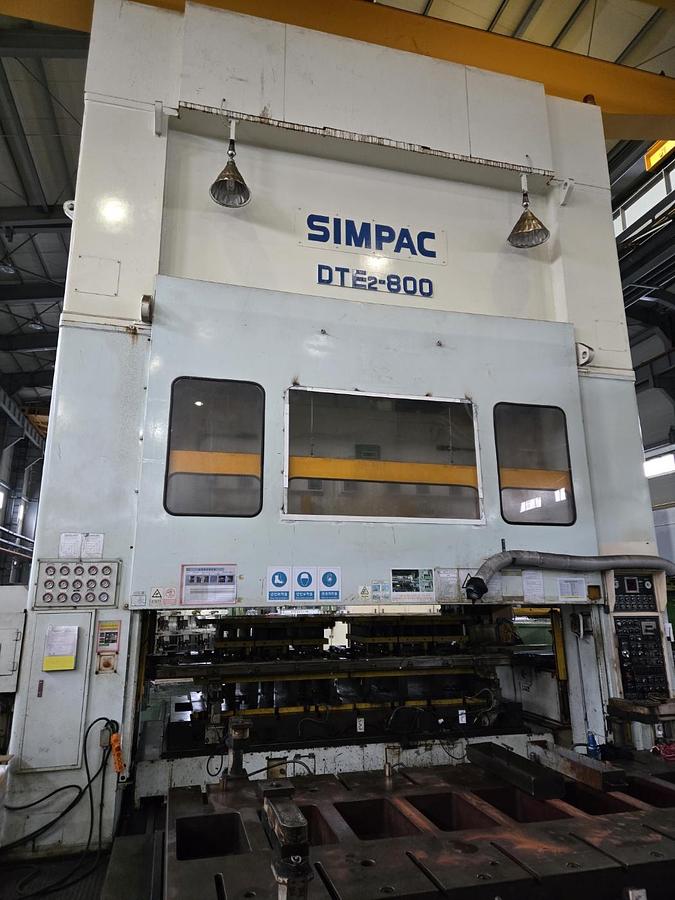

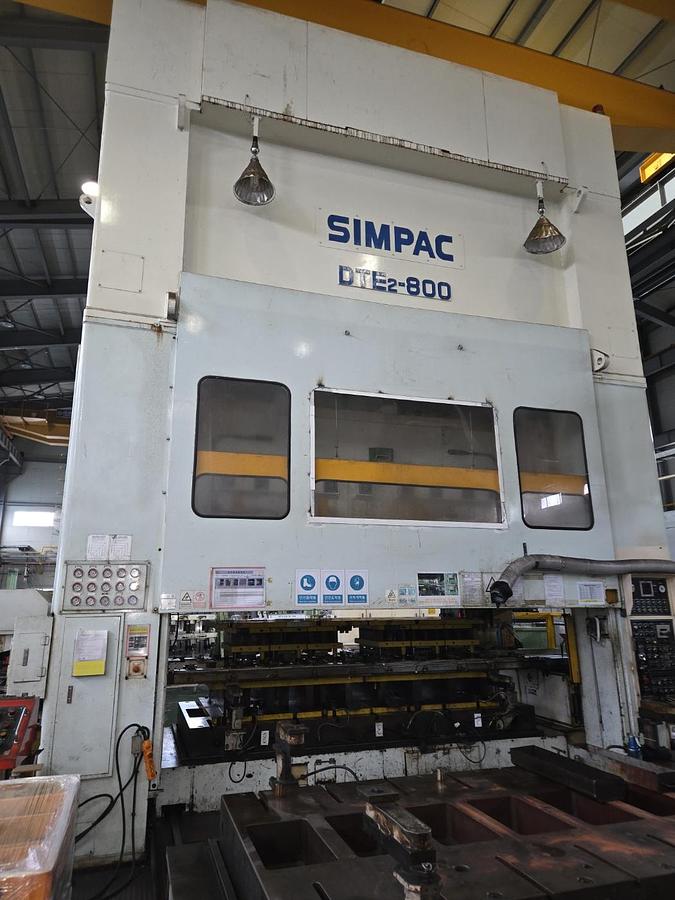

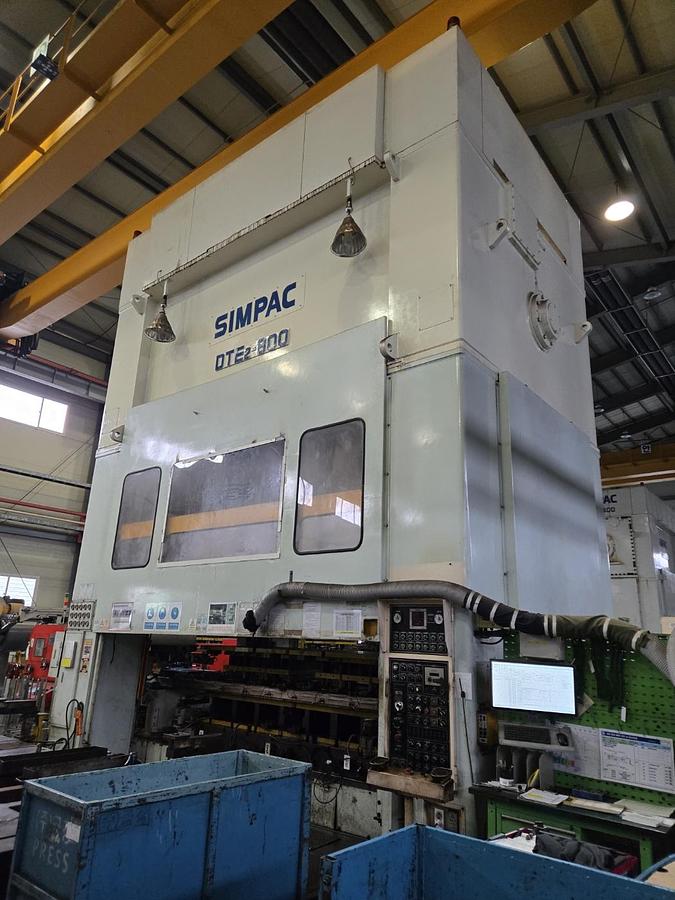

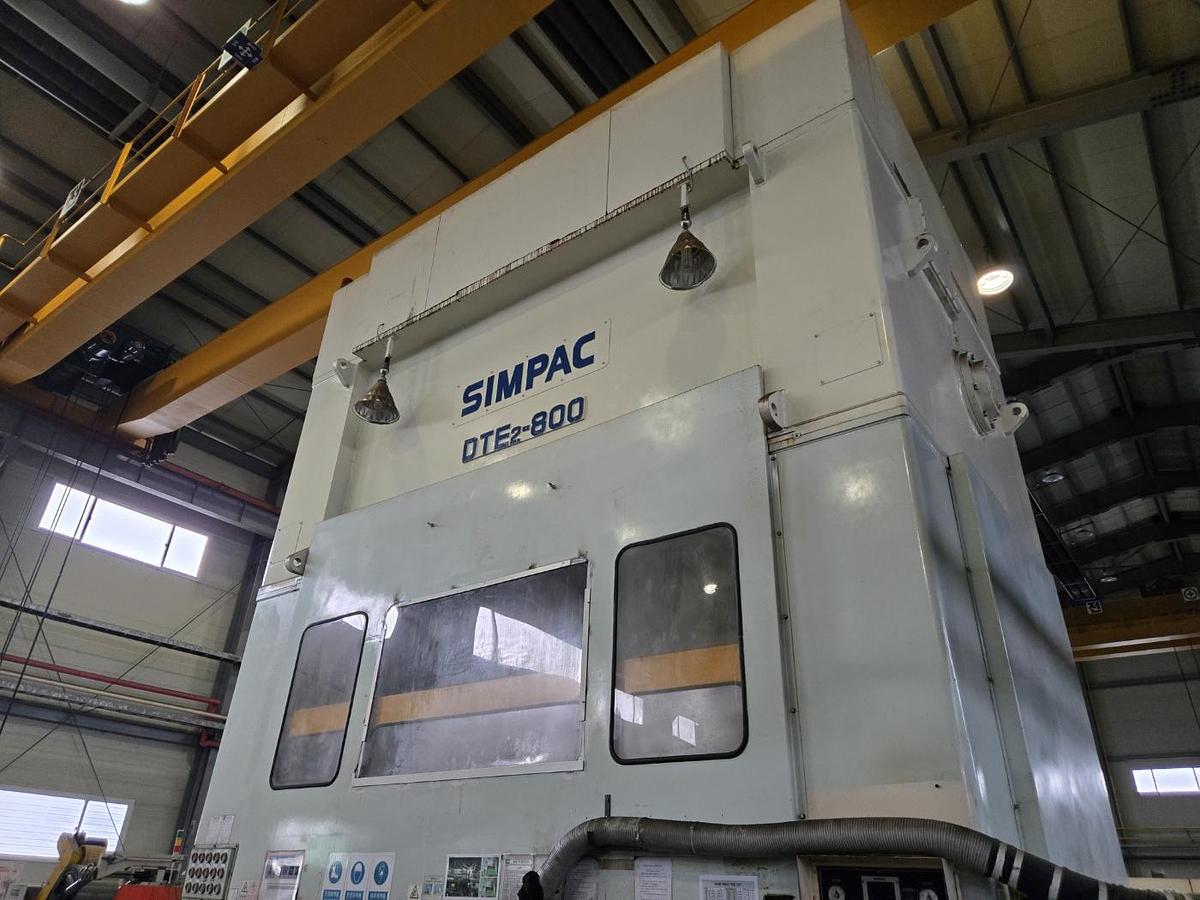

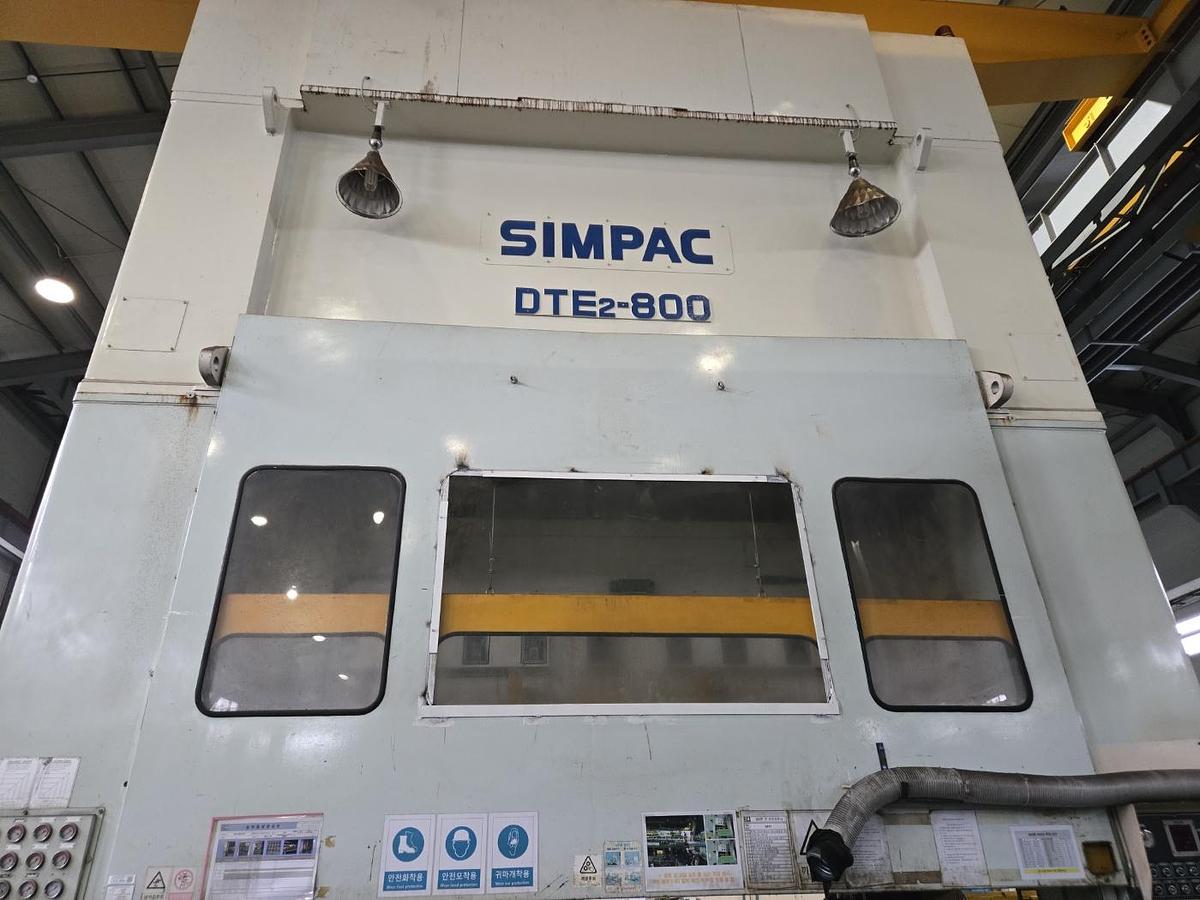

800 tons Press Transfer Mechanical SIMPAC DTE2-800

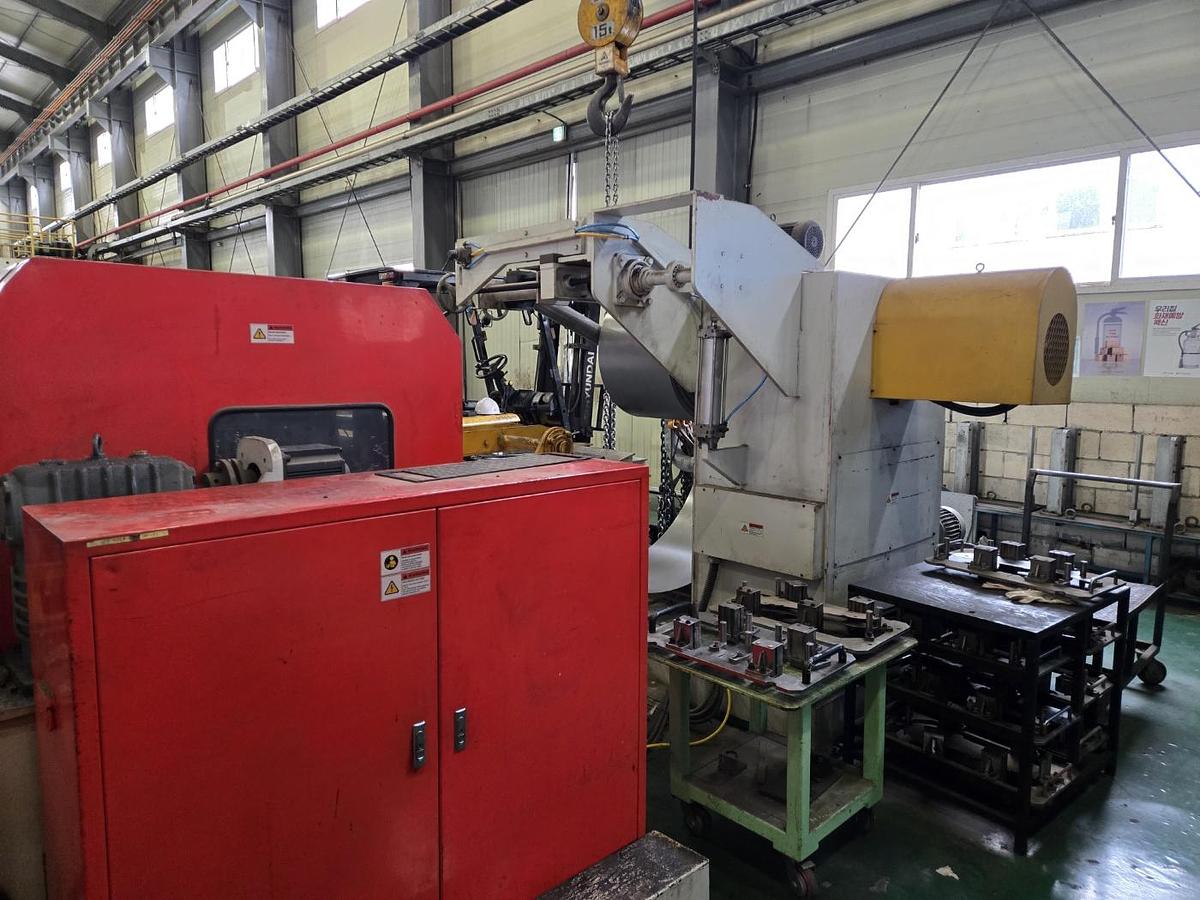

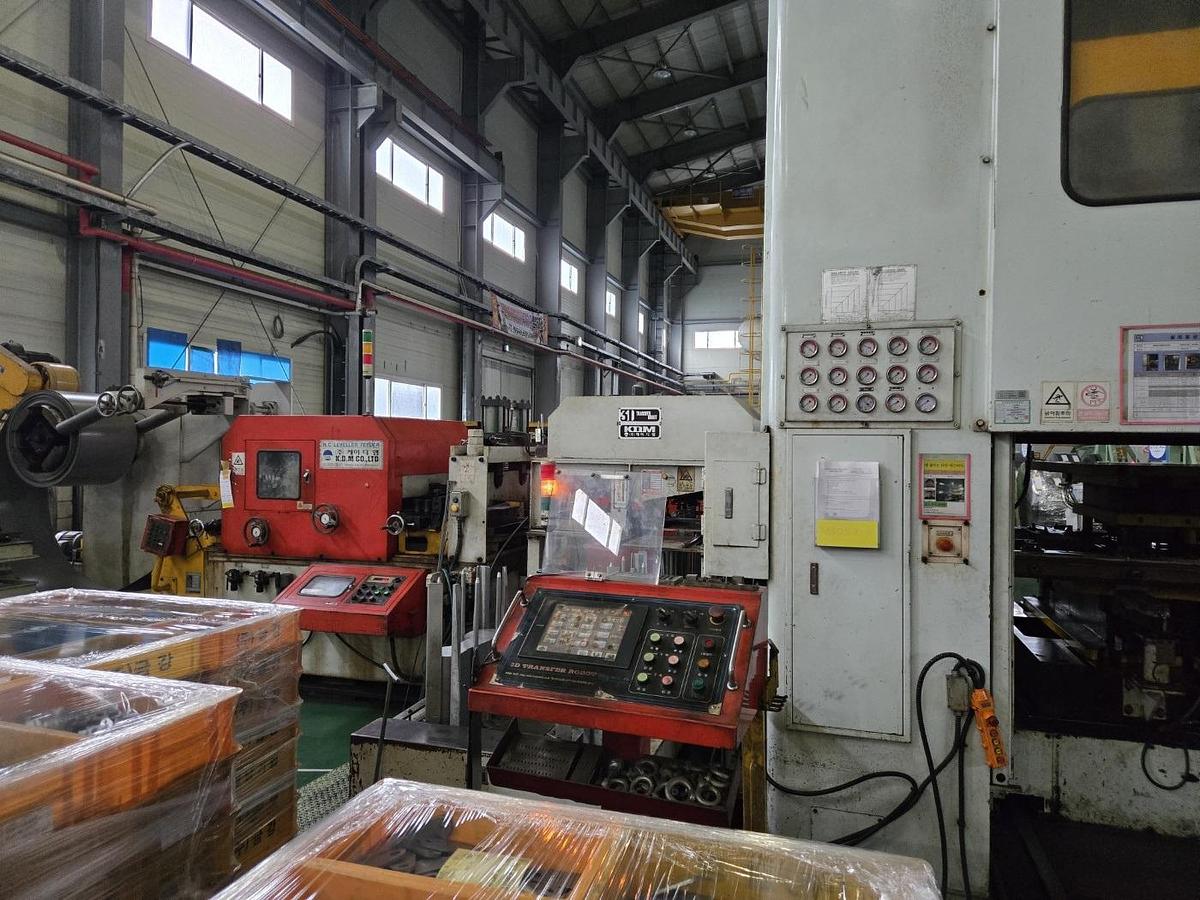

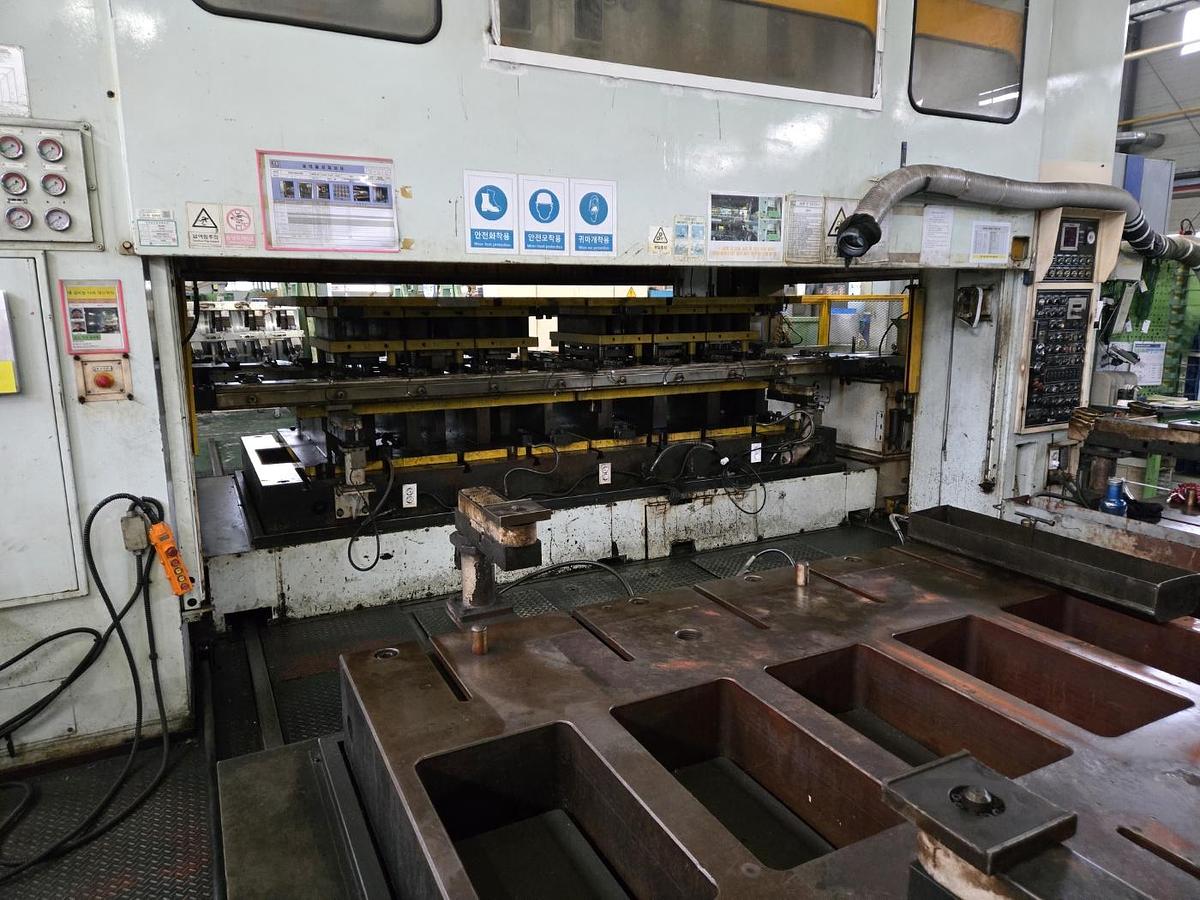

1) SIMPAC 800 Ton Transfer Press with KDM NC Feeder with Leveller

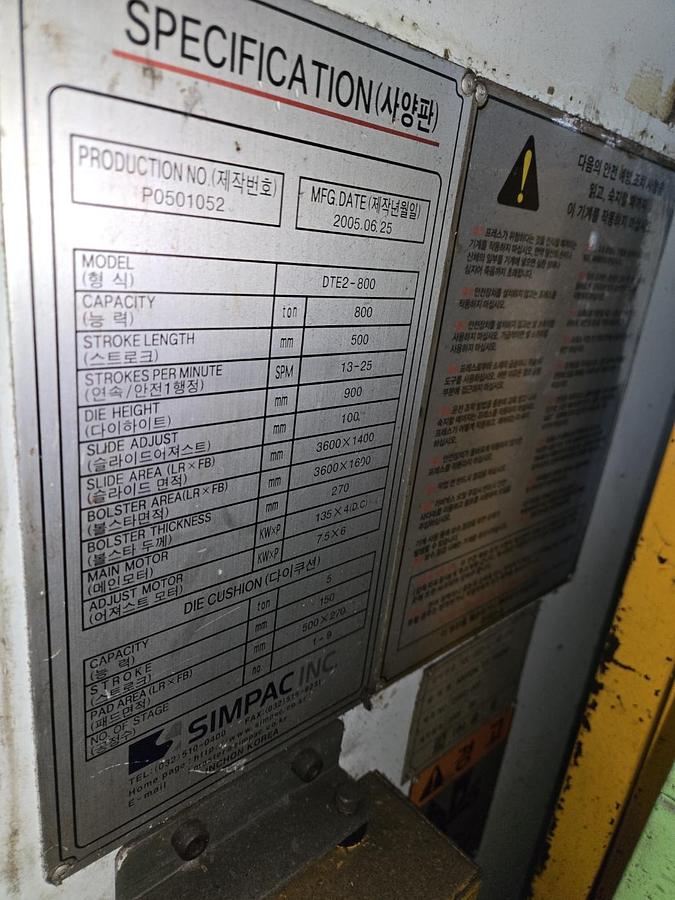

Capacity : 800 tons,

Stroke : 500 mm,

Stroke per minutes : 13-25 SPM,

Die height : 900 mm,

Slide adjust : 100 mm,

Slide area (LR x FB) : 3600 x 1400 mm,

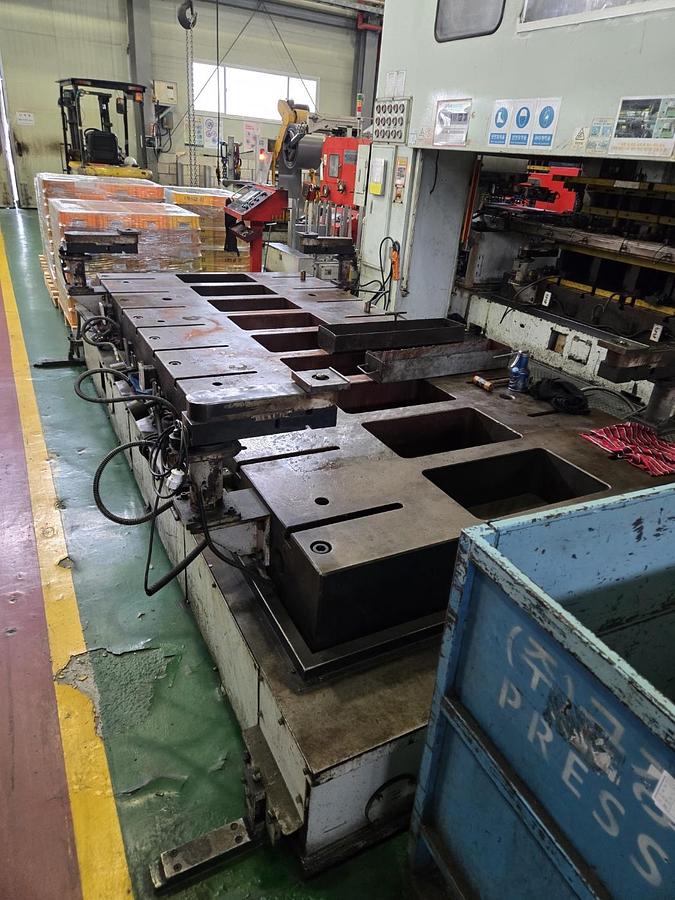

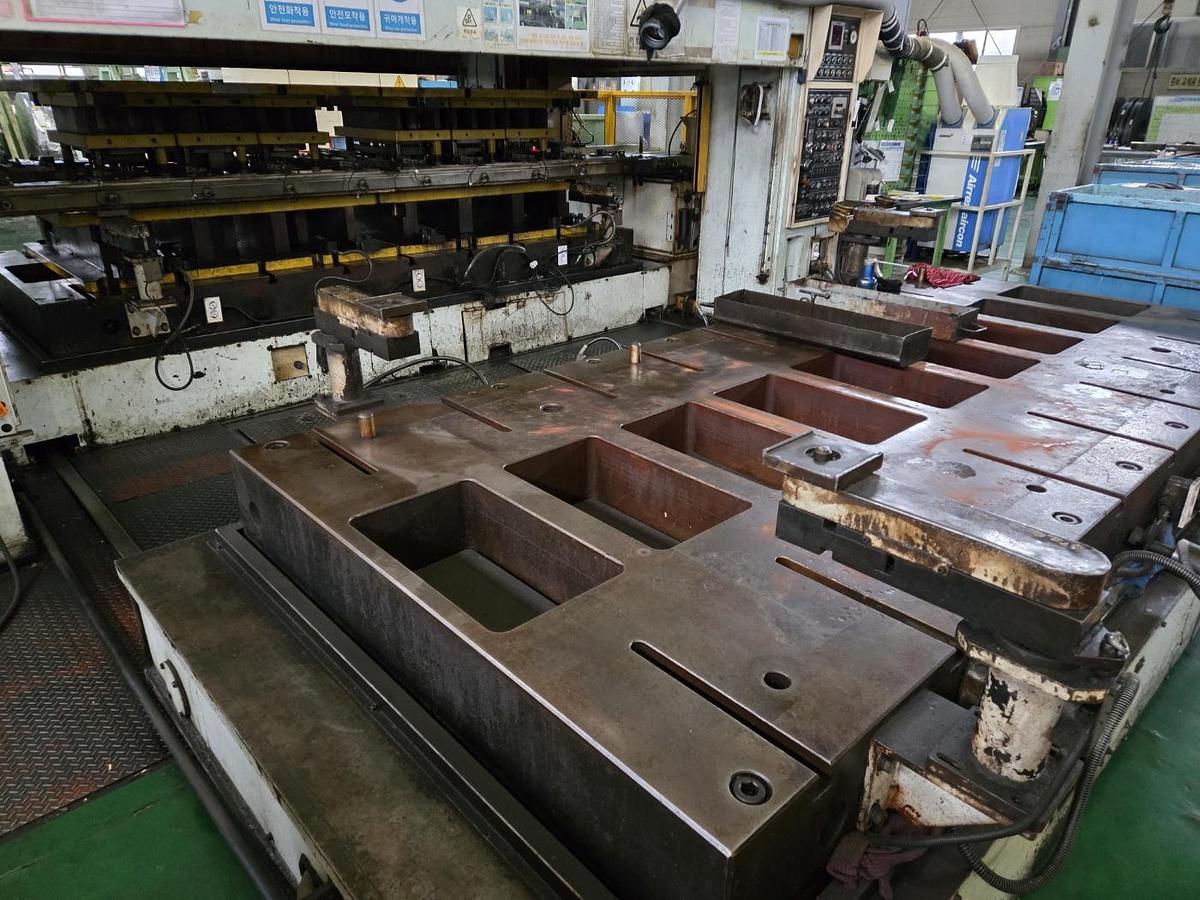

Bolster area (LR x FB) : 3600 x 1400 mm,

Bolster thickness : 270 mm,

Main motor : 135 x 4 (DC) KW x p,

Adjust motor : 7.5 x 6 KW x p,

Die cushion :

Capacity : 5 tons,

Stroke : 150 mm,

Pad area (LR x FB) : 500 x 270 mm,

No. of stage : 1-9 No,

Technical manuals available.
