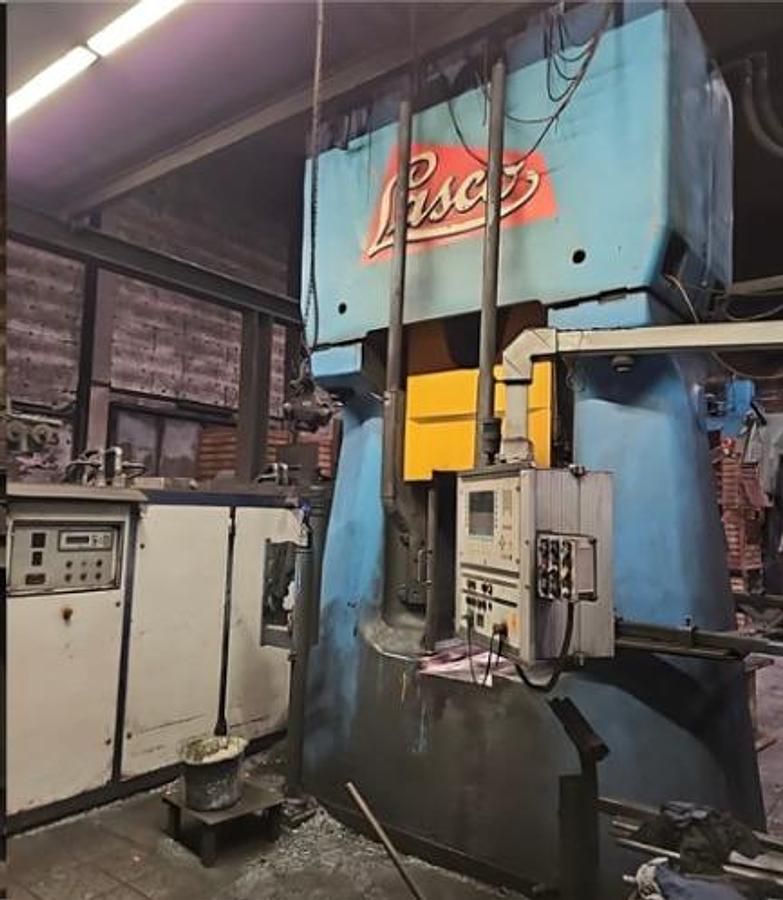

Hammer Forging Hydraulic Lasco HO-U400

Stroke Energy Max. : 40/50 kJ,

Stroke Frequency : approx. 90/min.,

Ram speed : 4.8 / 5.8 m/s,

Stroke (Max.) : approx. 710 mm,

Stroke (Min.) : approx. 500 mm,

Ram weight : approx. 3 tons,

Ram depth : approx. 700 mm,

Total tool height incl. Swallows (Max / Min) : 430/220 mm,

Width between guides : approx. 700 mm,

Footprint width : approx. 2800 mm,

Footprint depth : approx. 1400 mm,

Height above floor level : approx. 4960 mm,

Height above below level : approx. 890 mm,

Anvil weight : approx. 55 tons,

Total weight : approx. 75 tons,

Hydraulic head oil volume : approx. 1800 L,

Nitrogen reservoir pressure : 130 bar,

Main electric drive power : 2 x 45 kw,

Coolant & Filter drive power : 2.2 kw,

Air cooler ventilator power : 0.5 kw,

Lubrication pump drive power : 0.18 kw,

Drive system voltage : 400 V / 50 Hz,

Control system voltage : 230 V / 50 Hz,

Valve voltage : 24 V,

Electrical protection rating : IP 54,

Display screen panel : 14" color
