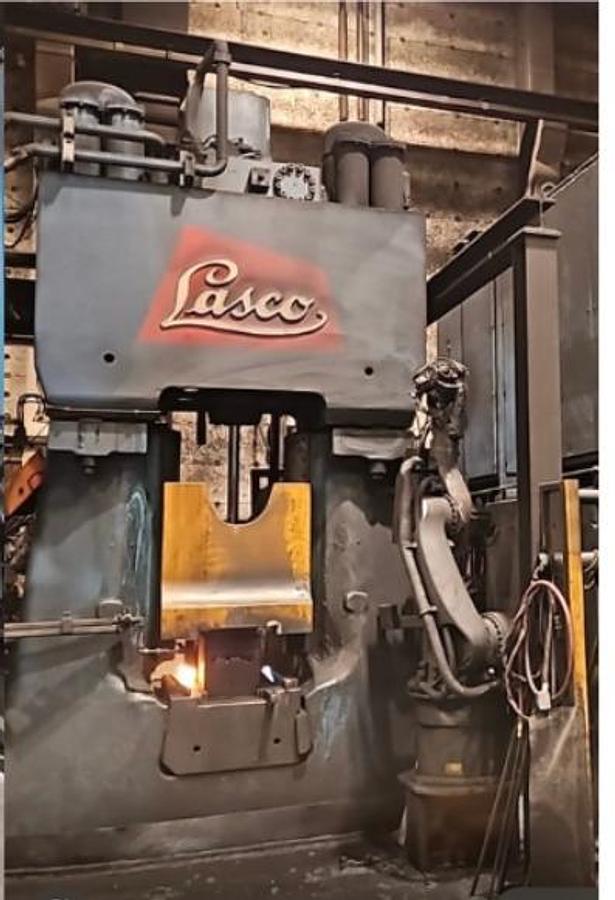

Hammer Forging Hydraulic Lasco HO-U630

Stroke Energy Max. : 63 kJ,

Stroke Frequency : approx. 85/min.,

Ram speed : 5 m/s,

Stroke (Max.) : 820 mm,

Stroke (Min.) : 520 mm,

Ram weight : 4 tons,

Ram depth : 900 mm,

Total tool height (Max / Min) : 550/250 mm,

Width between guides : approx. 800 mm,

Height above floor level : approx. 5230 mm,

Height above below level : approx. 1530 mm,

Anvil weight : approx. 85 tons,

Total weight : approx. 105 tons,

Hydraulic head oil volume : approx. 2200 L,

Nitrogen reservoir pressure : 130 bar,

Main electric drive power : 2 x 75 kw,

Coolant & Filter drive power : 5.5 kw,

Lubrication pump drive power : 0.18 kw,

Drive system voltage : 400 V / 50 Hz,

Control system voltage : 230 V / 50 Hz,

Valve voltage : 24 V,

Electrical protection rating : IP 54,

Display screen panel : 10,4" color
