1.5 tons Hammer Forging Hydraulic Beche KGH3.15

Capacity : 1.5 tons,

Stroke Energy Max. : 31.5 kJ,

Stroke Frequency : approx. 100/min.,

Ram speed : 5.5 m/s,

Stroke (Max.) : 755 mm,

Stroke (Min.) : 490 mm,

Total tool height (Max / Min) : 420/155 mm,

Width between guides : approx. 664 mm,

Ram depth : 595 mm,

Ram weight : approx. 2150 kg,

Anvil weight : approx. 36 tons,

Total weight : approx. 46.3 tons,

Hydraulic head oil volume : approx. 1100 L,

Main electric drive power : 1 x 75 kw,

Coolant & Filter drive power : 4 kw,

Supply voltage : 400 V / 50 Hz,

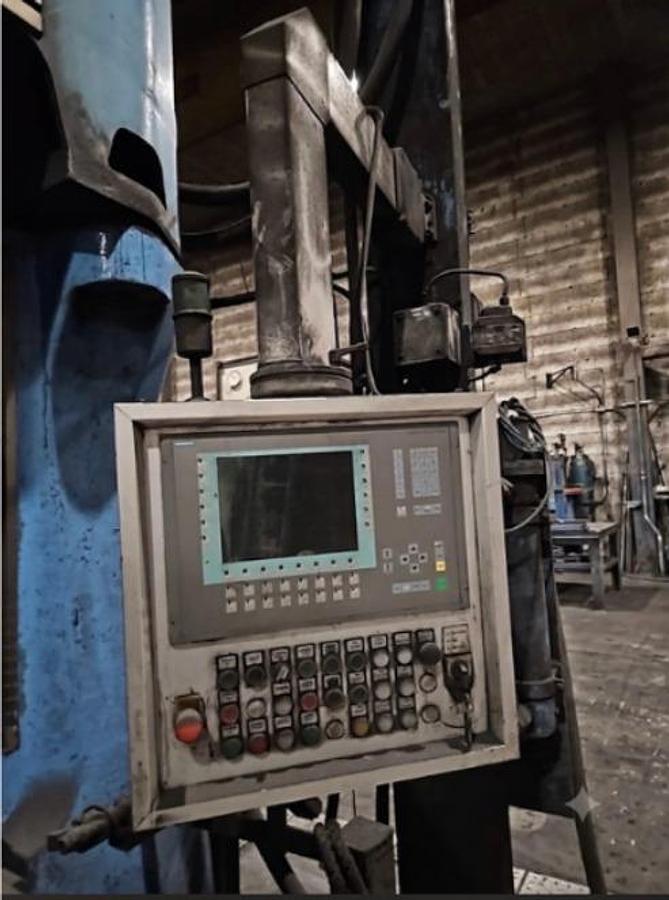

Control display : 12" color screen.
