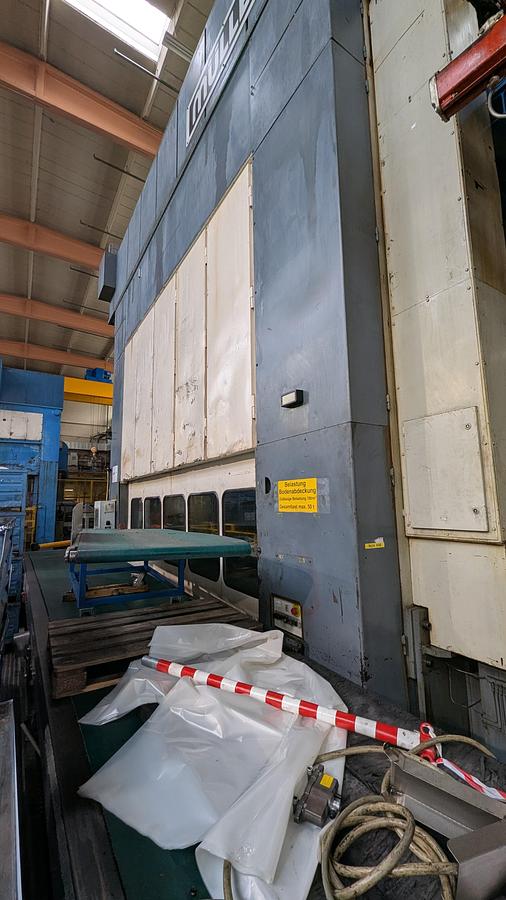

800 tons Press Transfer Mechanical Muller Weingarten SZE800.Z.60

Capacity : 800 tons,

Press force per stage : 150 tons,

Number of stages : 7,

Drawing cushion force :

Stage 1 : 1000 kN,

Stages 2–6 : 400 kN,

Ram stroke : 800 mm,

Parallelism control range : 200 mm,

Damping stroke : 15 mm,

Drawing cushion stroke, stages 1–6 : 200 mm,

Table-to-ram distance :

Stroke up : 1400 mm,

Stroke down : 600 mm,

Table size : 4200 × 1250 mm,

Drawing ram size : 4200 × 1250 mm,

Drawing cushion size, stages 1–6 : 450 × 700 mm,

Tool clearance : 600 mm,

Table height above floor : 800 mm,

Installed power : approx. 600 kW,

Compressed air consumption at 5 bar : approx. 8000 Nm³/h,

Compressed air requirement for tool change : max. 3000 Nl,

Water consumption : max. 15 m³/h,

Transfer System :

Transfer step : 600 mm,

Closing travel per rail : 0–150 mm,

Transfer rail inner width : 400–740 mm,

Lifting stroke : 0–50 mm,

Transfer rail height during tool change : 1620 mm,

Inner rail width in tool-change program : 1040 mm,

Blank size :

Max. : 500 × 500 mm,

Min. : 120 × 120 mm,

Sheet thickness : 0.5–3.0 mm.
