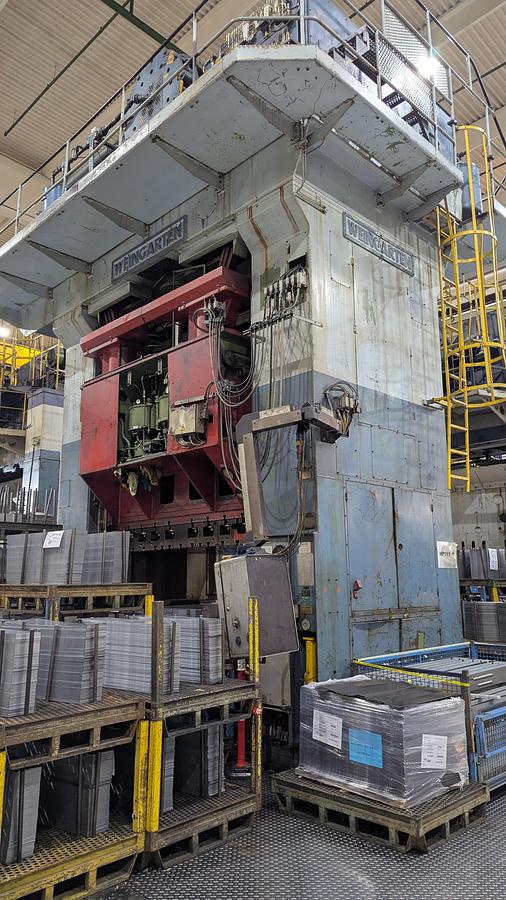

1600 tons Press Sheet Stamping Mechanical Double Action Weingarten

Capacity : 1600 tons,

Drawing ram force : 1000 tons,

Blank holder force : 600 tons,

Drawing depth : 320 mm,

Clear distance between uprights : 2800 × 1700 mm,

Table surface : 2000 × 1100 mm,

Ram surface : 3050 × 1850 mm,

Blank holder surface : 3050 × 1850 mm,

Ram stroke : 950 mm,

Blank holder stroke : 800 mm,

Ram adjustment : 500 mm,

Blank holder adjustment : 500 mm,

Stroke rate : 10–16 strokes/min,

Main motor : 100–160 kW,

Total weigh t: 275 tons,

Pneumatic drawing cushion :

Force at 6 atm : 200 tons,

Adjustable stroke : 0–250 mm.
