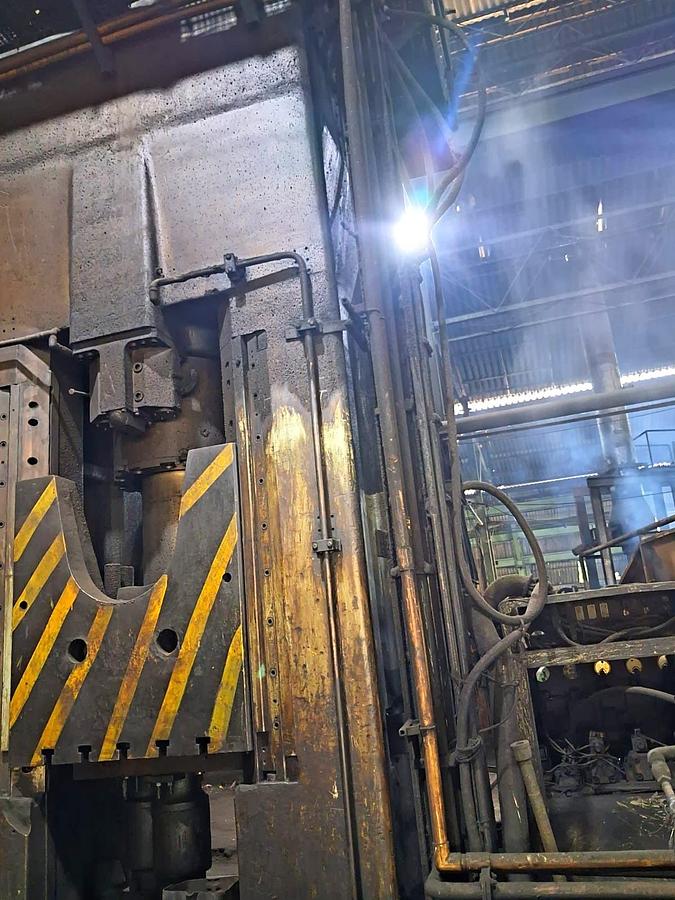

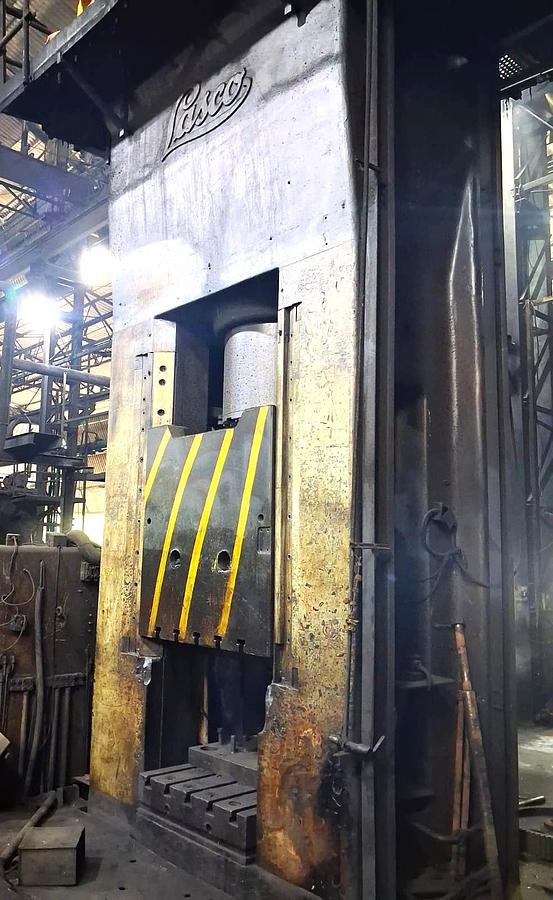

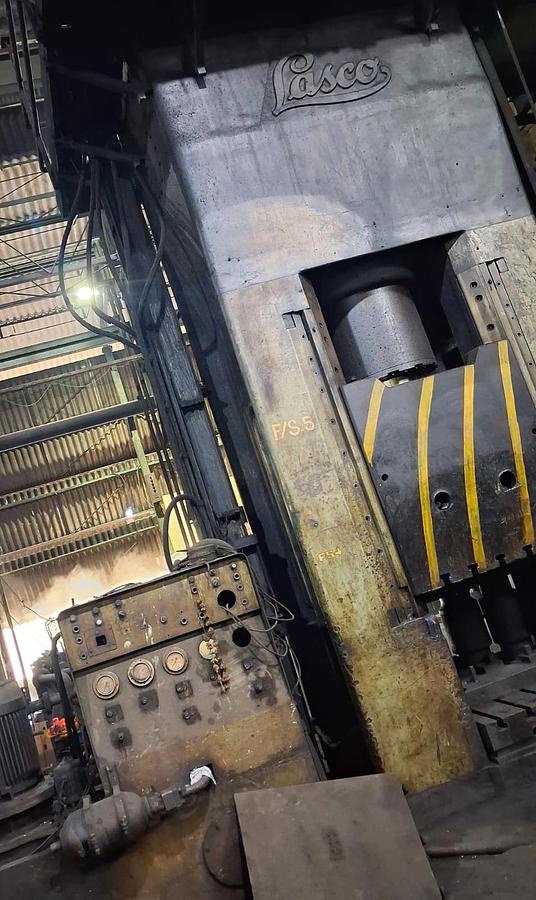

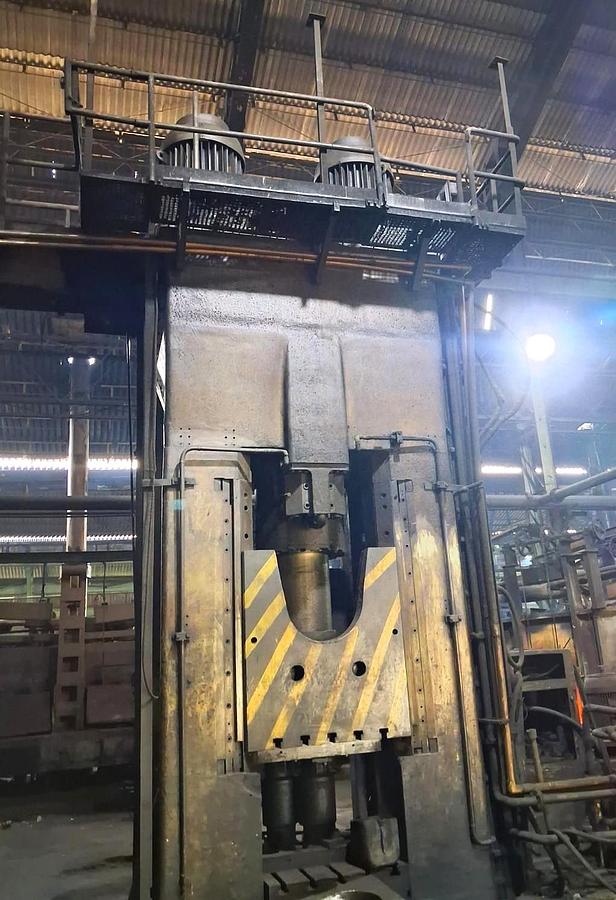

500 tons Press Extrusion Hydraulic Lasco

Capacity : 500 tons,

Force of the bottom ejector : 20/200 tons,

Force of the top ejector : 24 tons,

Return force of the ram : 45 tons,

Ram stroke : 800 mm,

Energy of blow : 5000 mkgs,

Drop weight : 12000 kgs,

Area of the ram : 1000 x 1350 mm,

Stroke of the bottom ejector : 450 mm,

Stroke of the top ejector : 100 mm,

Press bed : 1000 x 1400 mm,

Motor power : 2 x 90 /10/22 KW,

Machine height above floor : 6650 mm,

Overall weight of the machine with control desk : 143 tons.
