1200 tons Press Die Spotting Hydraulic SMG Schuler HZPU1200

Hydraulic Die Spotting/ Try Out press

Capacity : 1200 tons,

Stroke : 1225 mm,

Distance table to ram top : 1500 mm,

Clearance between columns : 3210 mm,

Table and ram surface area (width x depth) : 3200 x 2200 mm,

Cushion :

Capacity : 500 ton,

Stroke : 425 mm,

Draw cushion surface area (width x depth) : 2950 x 1700 mm.

Max. off center laod per draw cushion in each axial direction : 60 Mt.

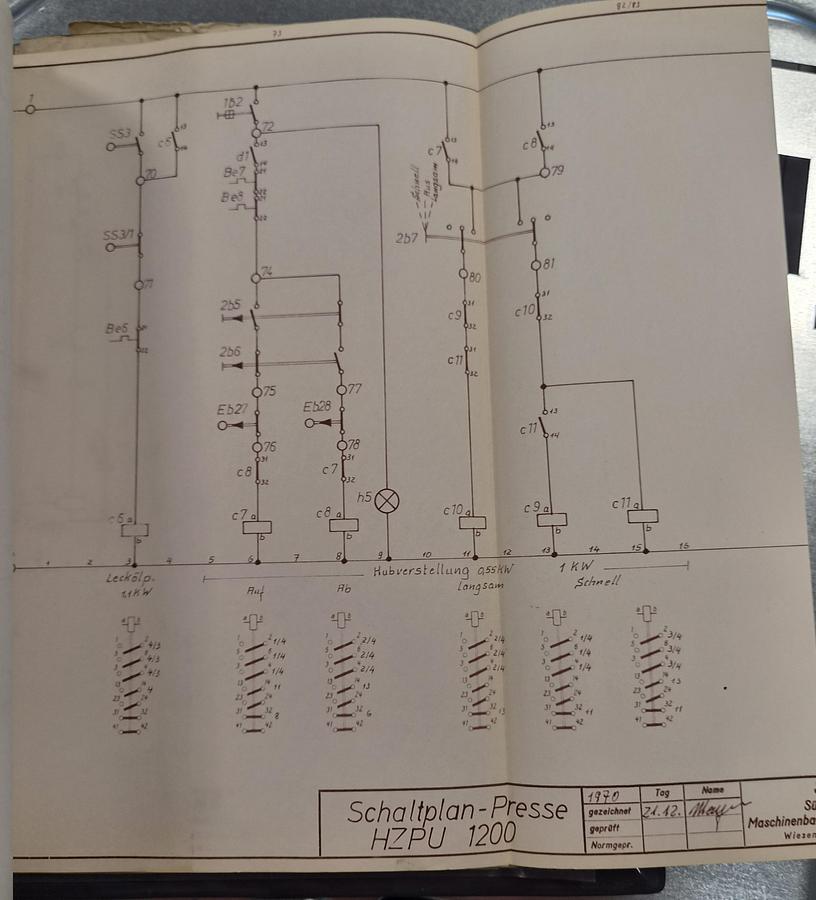

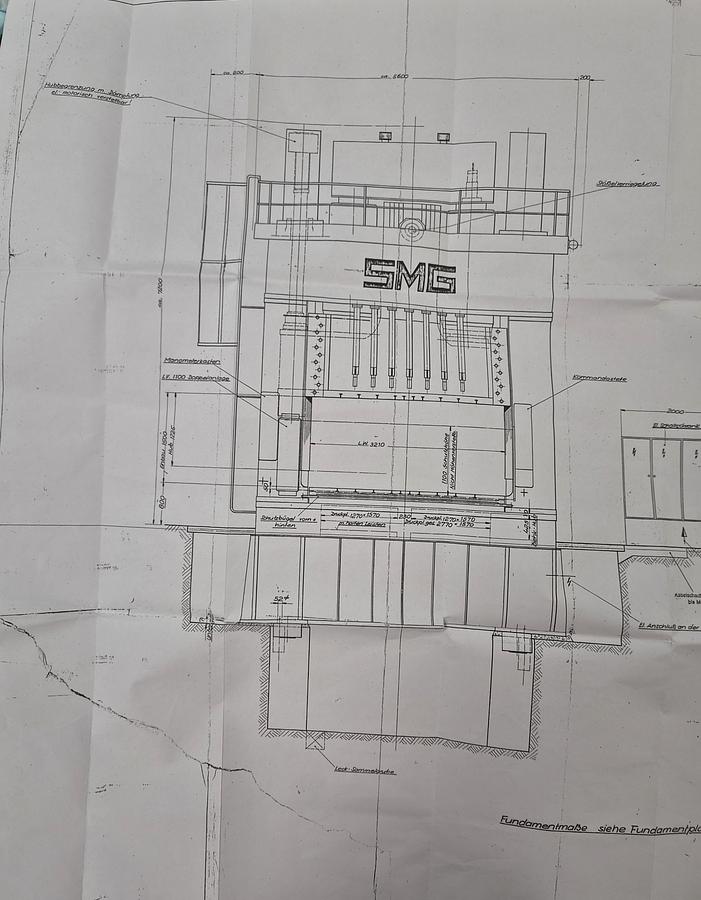

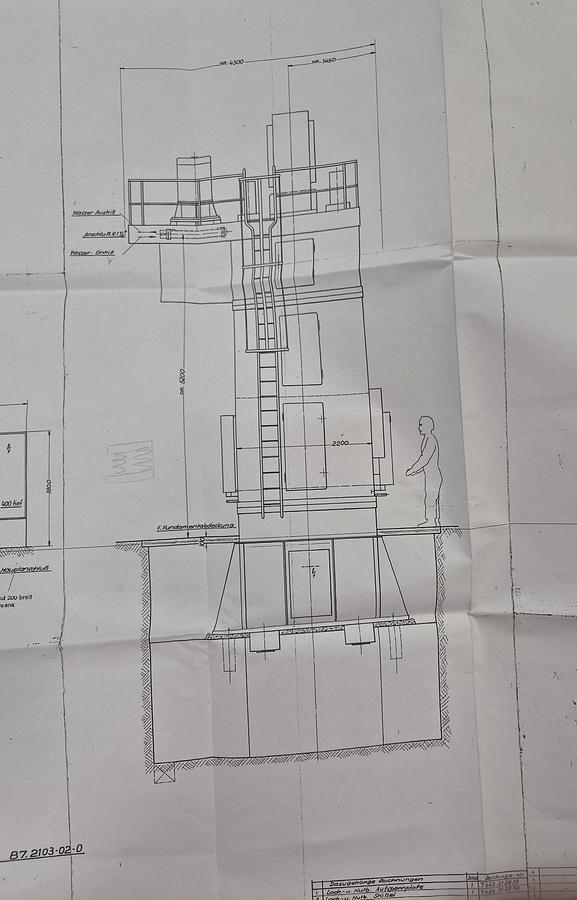

Good mechanical condition , complete of documentation ( foundation drawings, hydraulic diagram , electric diagram ect.)  but it's  without electrical part.
