2300 tons Press Link Drive Mechanical Hyundai
Specifications
| Manufacturer | Hyundai |
| Condition | Used |
| Stock Number | MA3498 |
| Item condition | Good condition |
| Capacity tons | 2300 |
Description

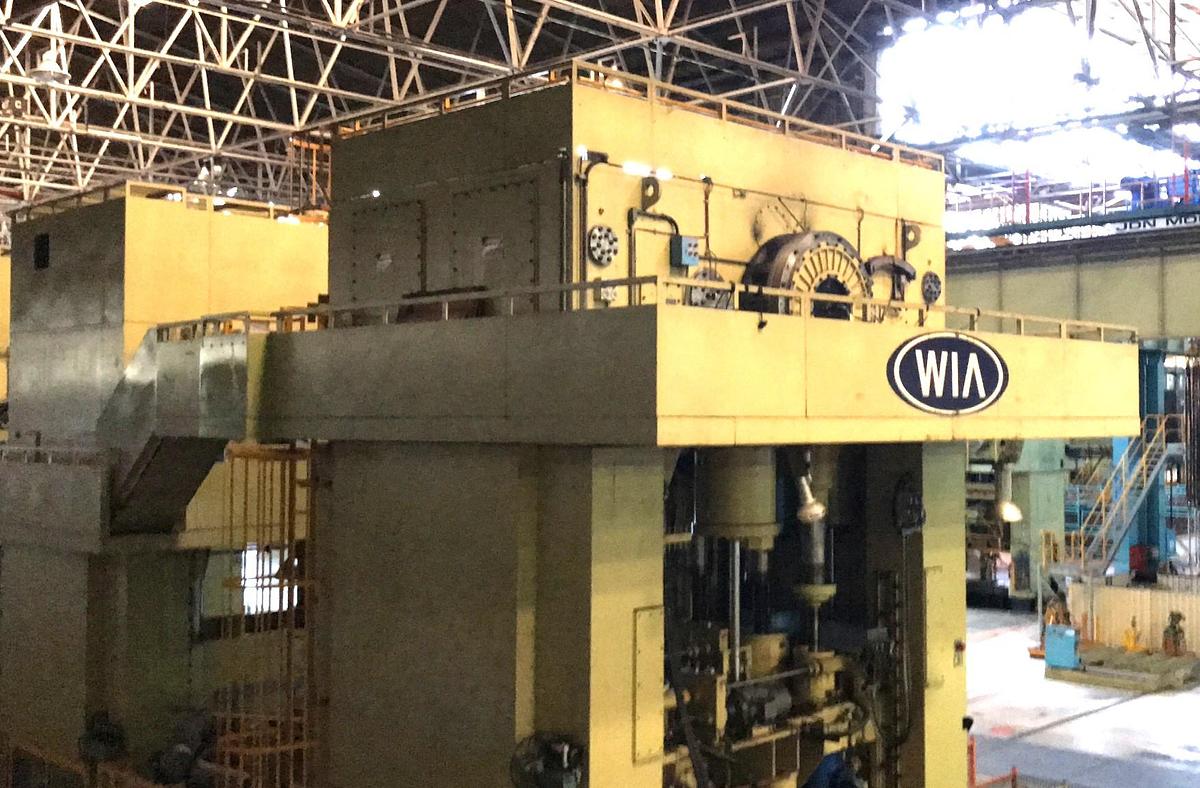

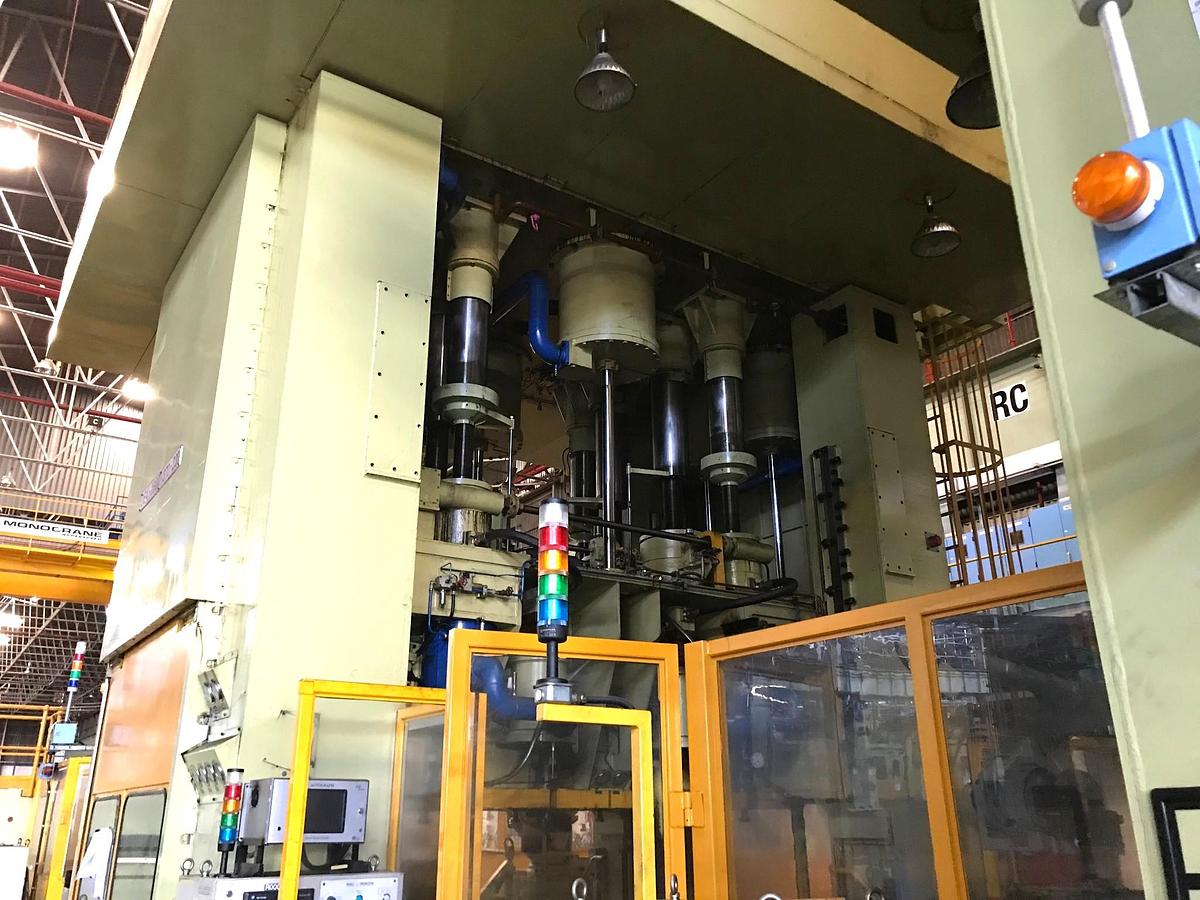

Hyundai Link Drive 5-Press Mechanical Line.
MODEL AND TYPE Link Drive Double Action Mechanical Press
Capacity : 2300 tons,
Inner slide capacity : 1500 tons,
Blank holder capacity : 800 tons,
Inner slide stroke : 990 mm,
Speeds : 10-20 spm,
Blank holder stroke : 835 mm,
Bed area : 3700 x 2200 mm,
Inner slide area : 3200 x 1676 mm,
Blank holder area : 3700 x 2200 mm,
Shut height (max) : 1930 mm,
Shut height (min) : 1655 mm,
Slide adjustment (both) : 500 mm,
Pneumatic die cushion capacity : 360 tons,
Pneumatic die cushion stroke : 260 mm,
Quantity (1)
MANUFACTURER Hyundai
MODEL AND TYPE Link Drive Double Action Mechanical Press
Capacity : 700 tons
Inner slide capacity : 100 tons,
Blank holder capacity : 600 tons,
Inner slide stroke : 990 mm,
Speeds : 10-20 spm,
Blank holder stroke : 835 mm,
Bed area : 3700 x 2200 mm,
Inner slide area : 3200 x 1676 mm,
Blank holder area : 3700 x 2200 mm,
Shut height (max) : 1930 mm,
Shut height (min) : 1655 mm,
Pneumatic die cushion capacity : 134 tons,
Pneumatic die cushion stroke : 305 mm,
Quantity (3)
MANUFACTURER Hyundai

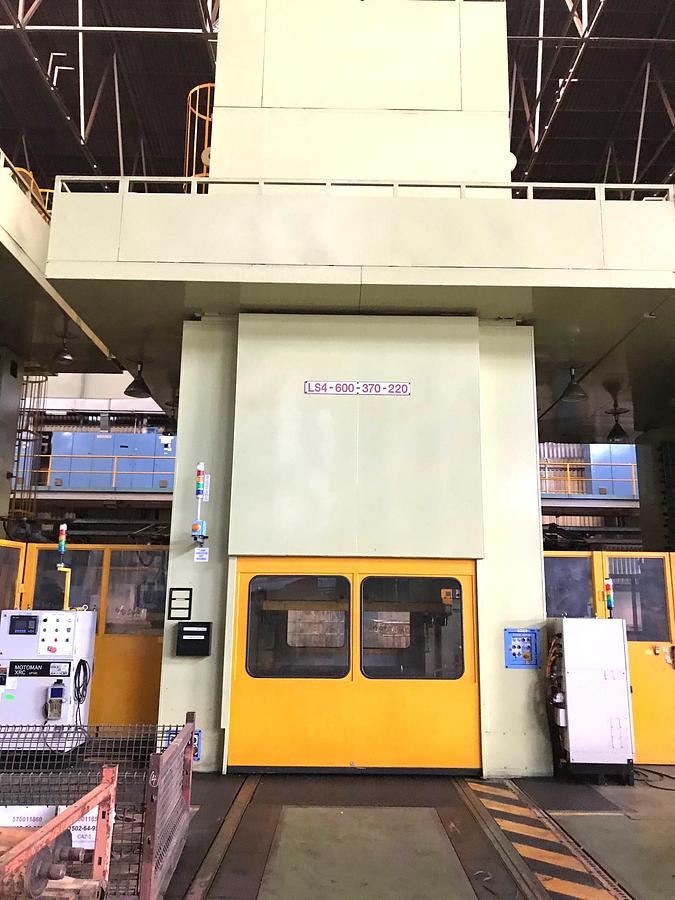

MODEL AND TYPE Link Drive Single Action Mechanical Press
Capacity : 600 tons,
Slide area : 3700 x 2200 mm,
Bed area : 3700 x 2200 mm,
Slide stroke : 800 mm,
Speeds : 10-20 spm,
Shut height (max) : 1225 mm,
Shut height (min) : 895 mm,
Slide adjustment : 330 mm,
