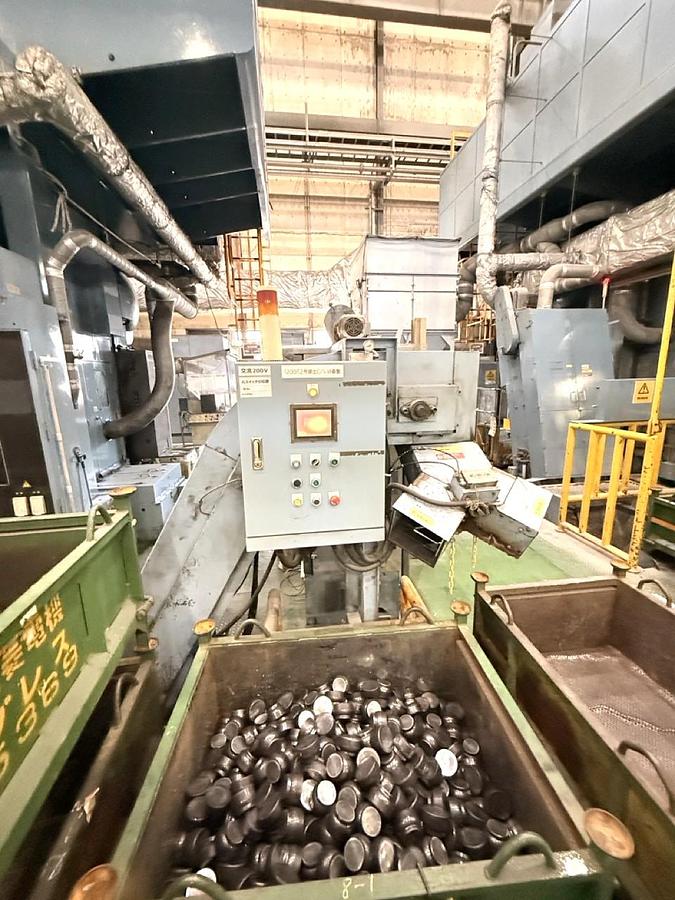

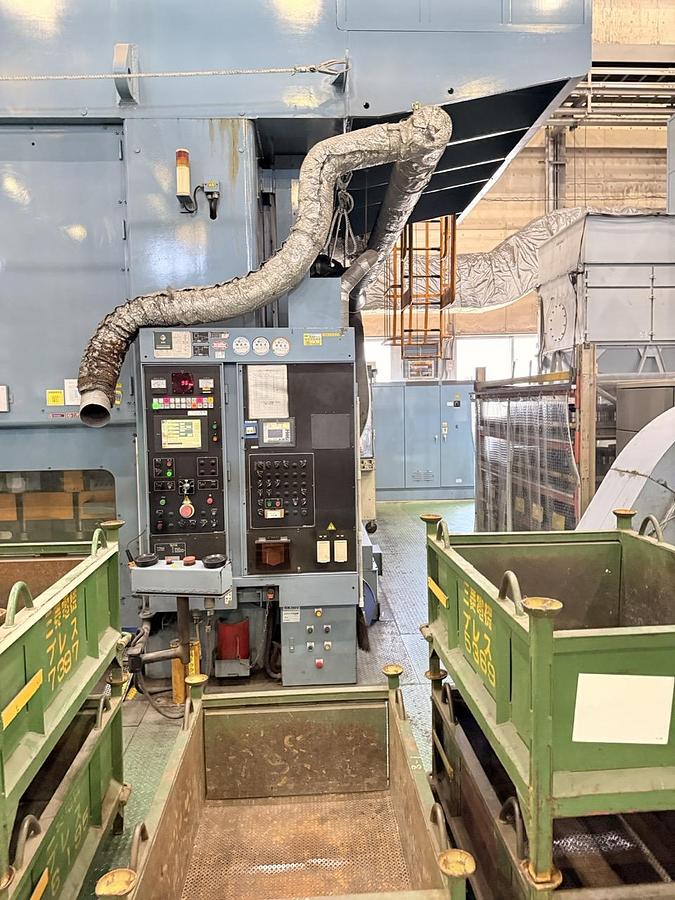

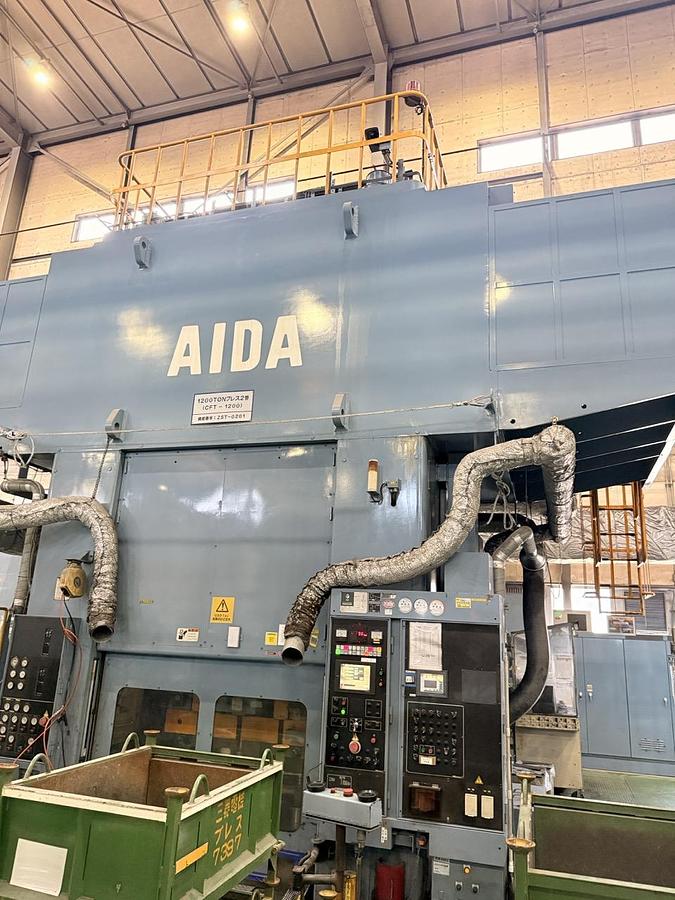

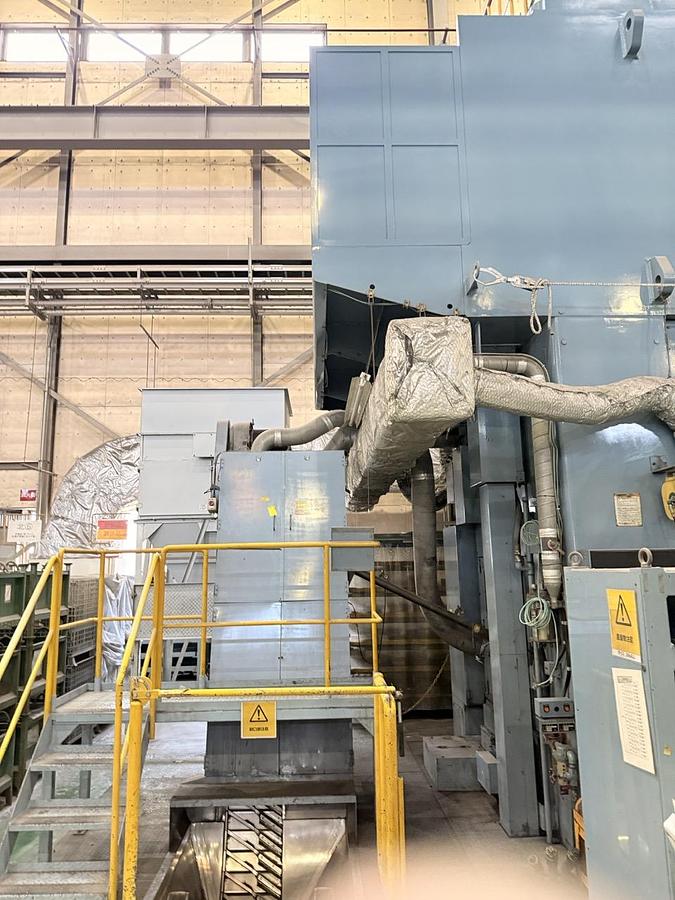

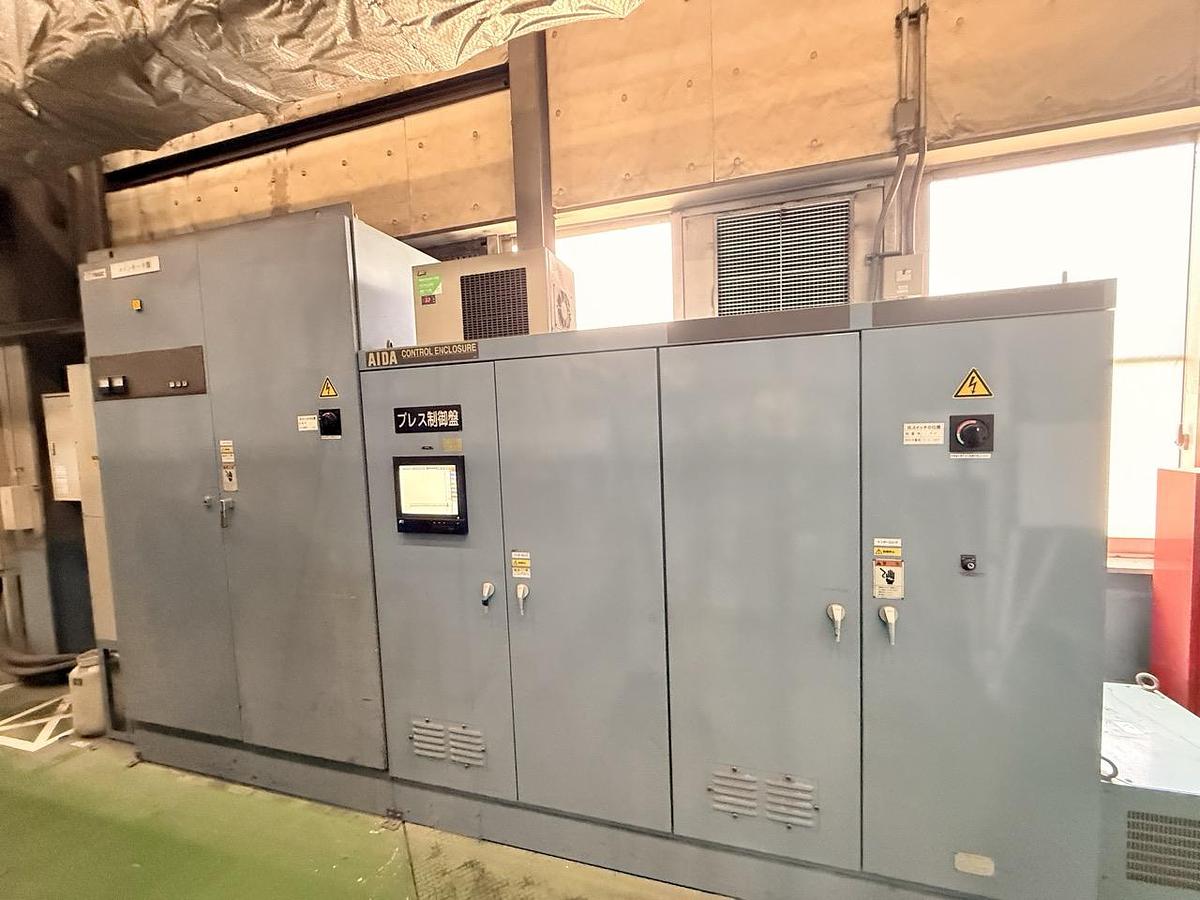

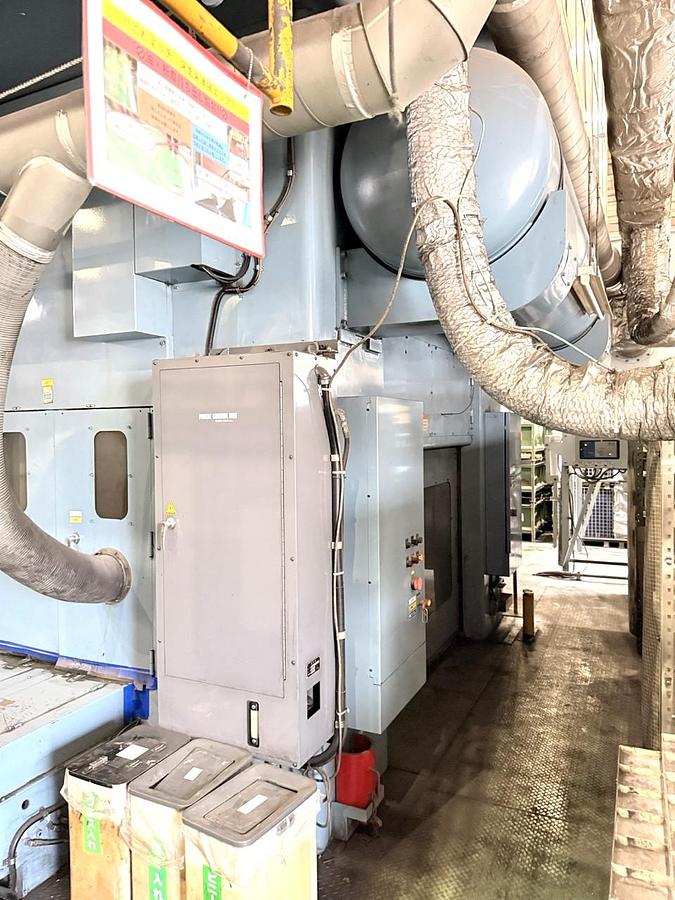

1200 tons Press Cold Forging Aida CFT-1200

Cold Forging Transfer Press

Capacity : 1200 tons,

Number of Suspension Points : 2 Points (2-Point Straight-Side Frame),

Rated Tonnage Point Above : 7 mm,

Stroke : 250 mm,

Speed : 20 - 30 spm,

Die height : 650 mm,

Adjustment : 30 mm

Slide size : 1500 x 1000 mm,

Bolster size : 1500 x 1100 x 180 mm,

Bed Knockout Capacity : 60 tons,

Slide Knockout Stroke : 150 mm.

Dimensions :

Total floor area of at least 8000 × 5000 mm,

Height of : 8.5 to 9.5 meters,

Main motor power : 130 kW (approx. 175 HP),

Weight of press : 160 to 180 metric tons,

Technical manuals available.

Machines have ejector.

They have 5 stations.
