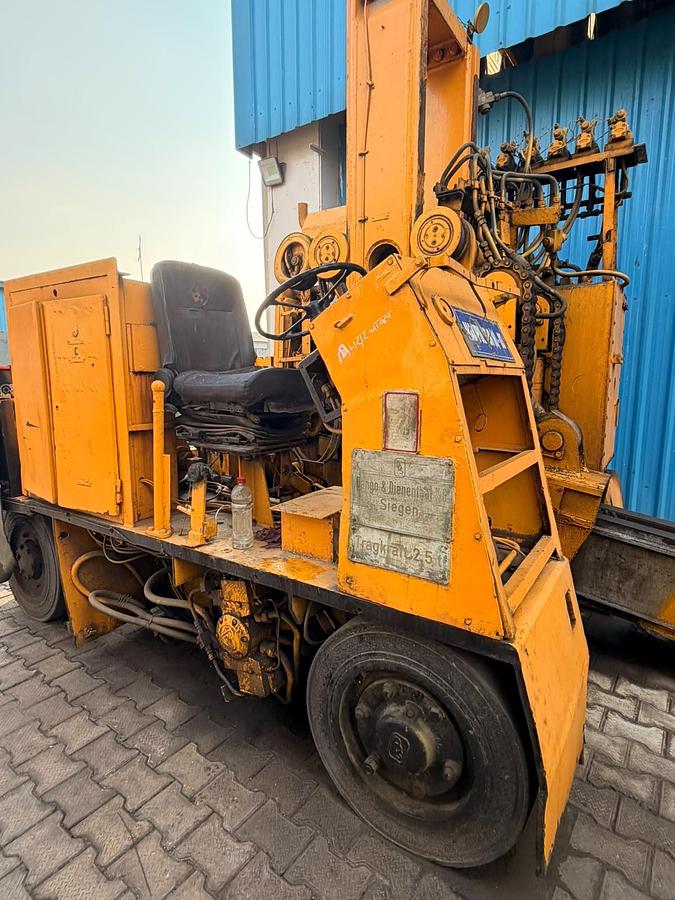

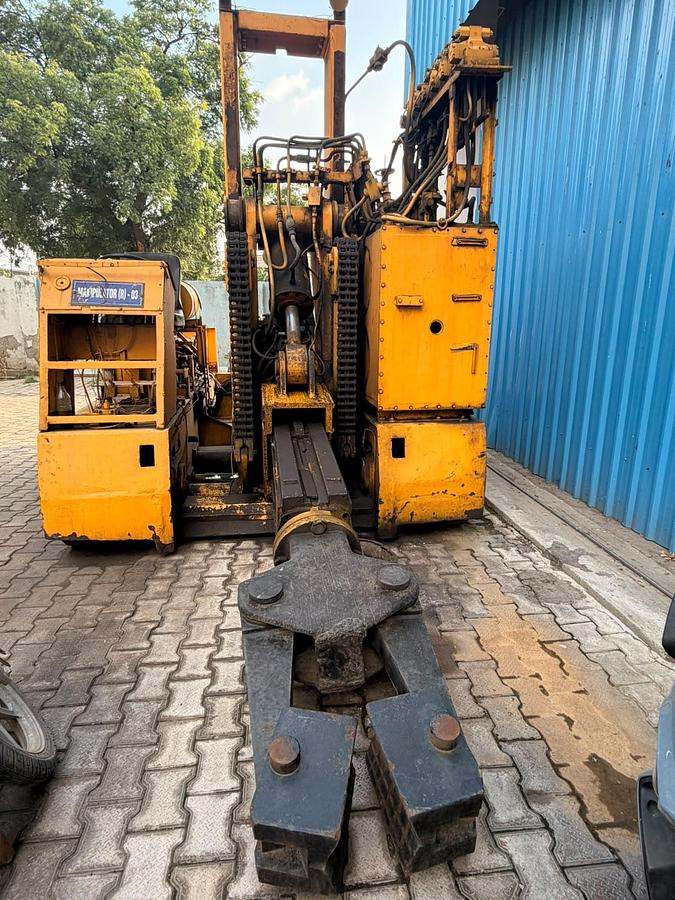

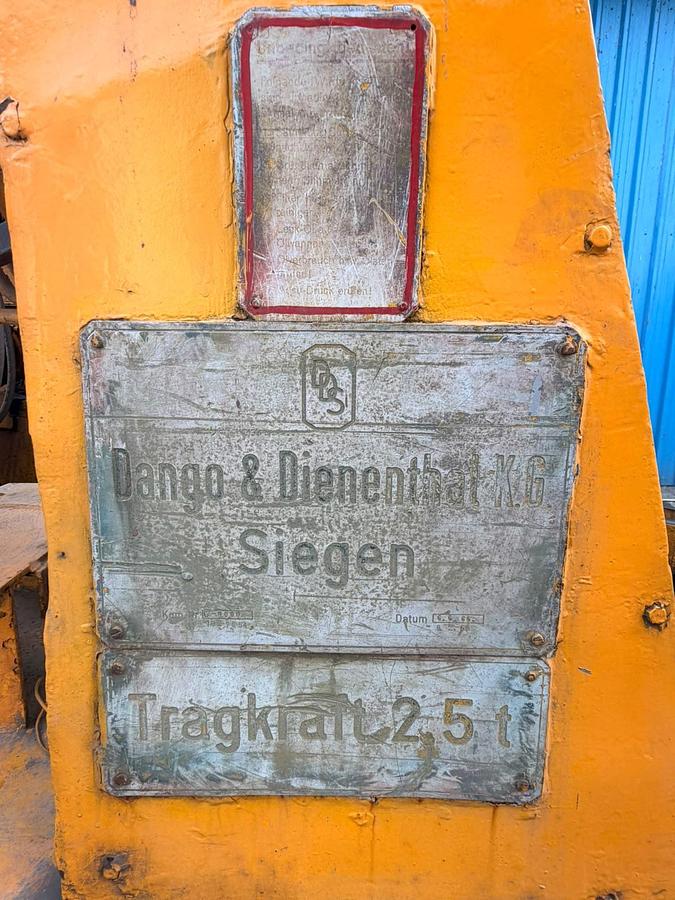

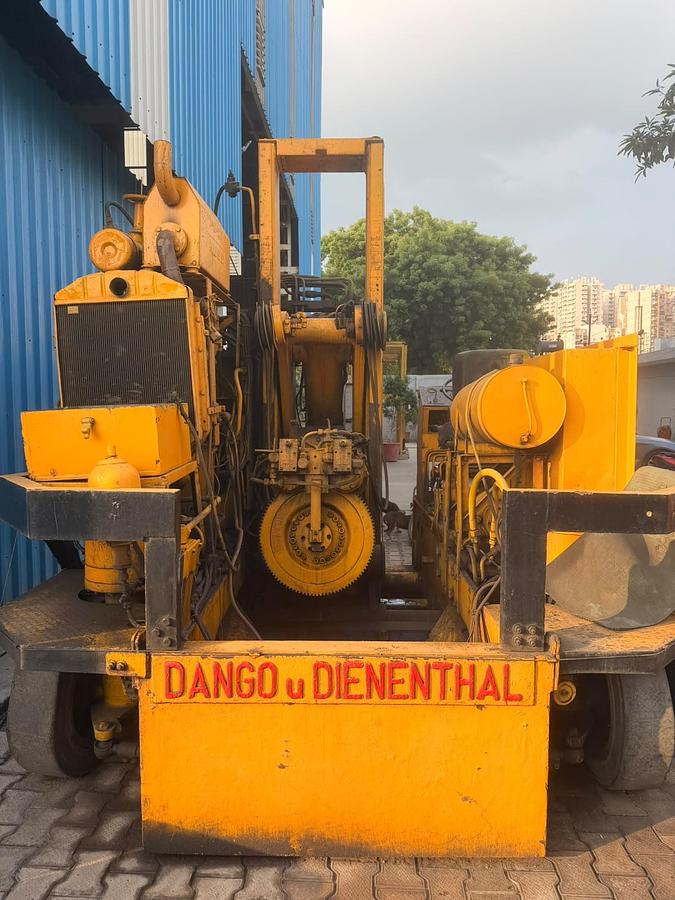

2.5 tons Manipulator Dango & Dienenthal

Mobile Forging Manipulator

Capacity : 2.5 tons,

Overall Length : ~5500 to 5700 mm,

Overall Width : ~2300 to 2450 mm,

Overall Height : ~2300 to 2600 mm,

Dead Weight : ~10 to 13 tons,

Maximum Load Moment : ~50.0 to 60.0 kNm,

Tongs Opening Range :

Without Inserts : Up to 900 to 1100 mm,

With Inserts : Down to 100 mm,

Lowest Parallel Position : ~550 mm,

Highest Stroke Position : 1500 to 1800 mm,

Hydraulic Pump Drive Power : 37 to 55 kW,

Travel Speed : Up to 60 to 90 m/min.
