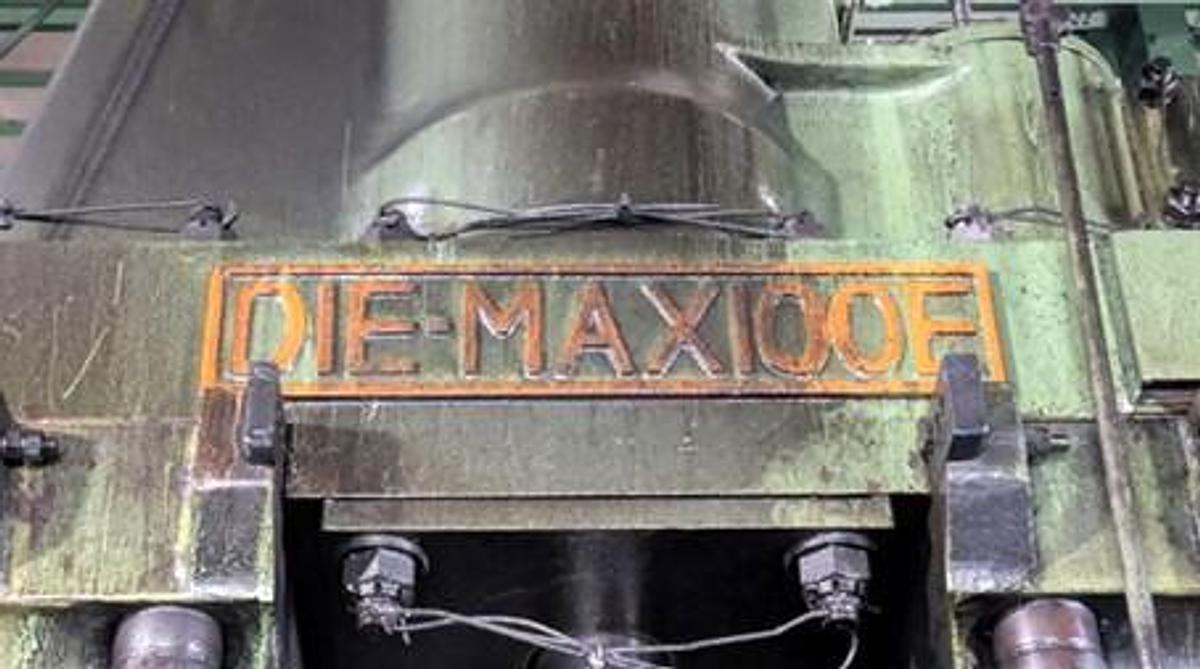

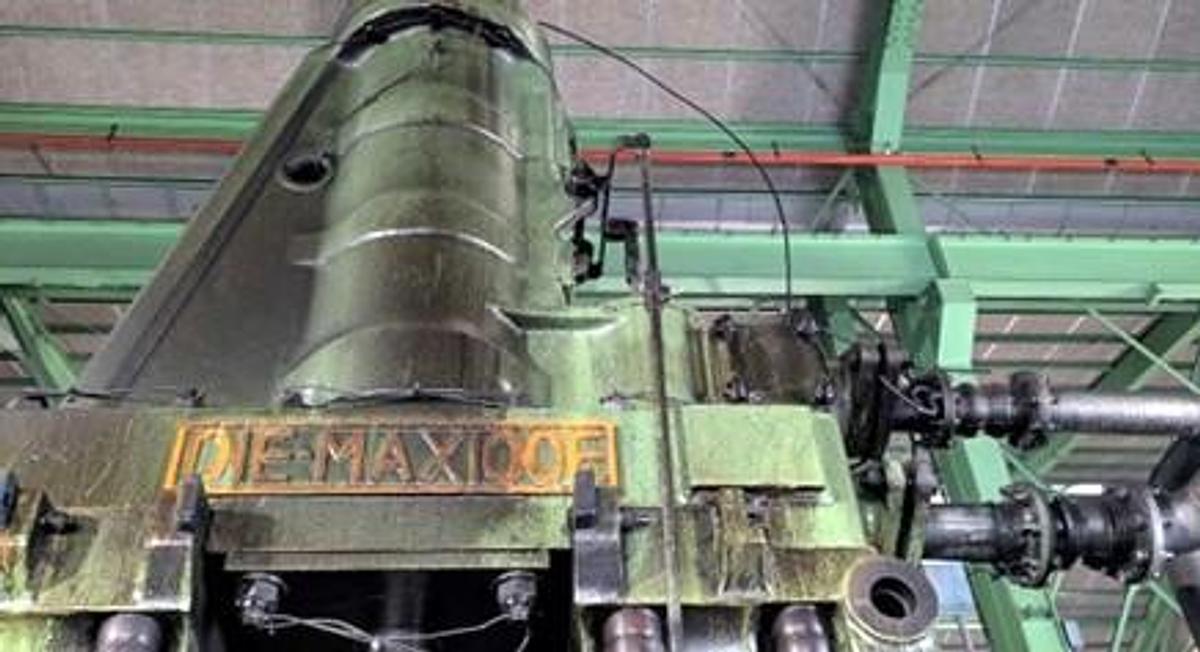

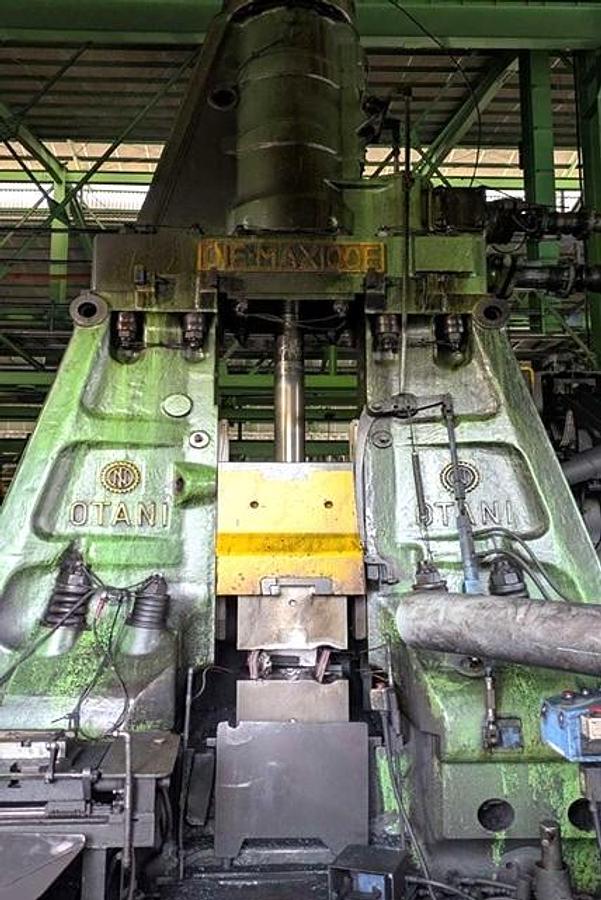

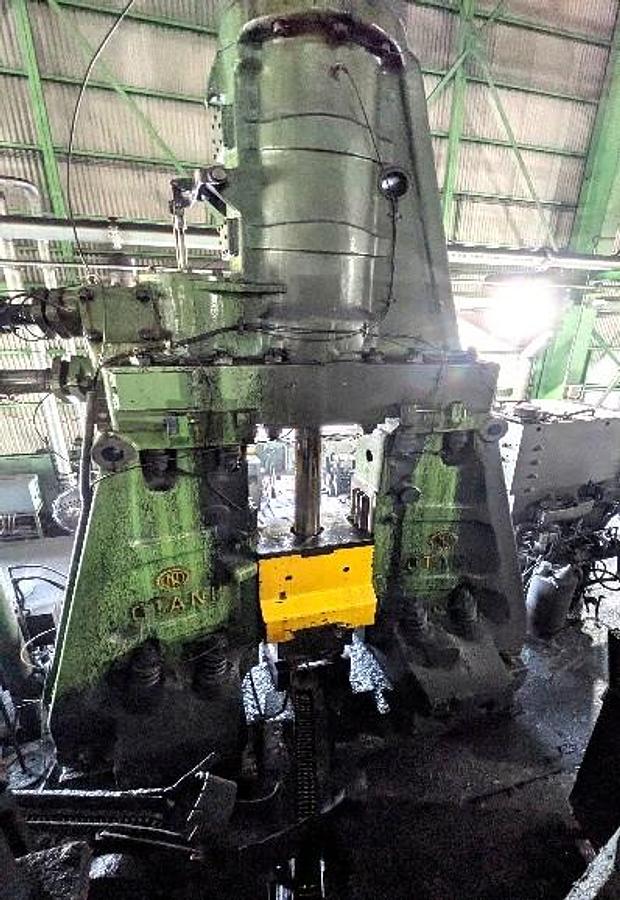

2 tons Hammer Forging Pneumatic Otani DIE-MAX100E

Capacity : 2 tons,

Standard lower die weight : 2690 kg,

Standard upper die weight : 600 kg,

Minimum safe die height : 350 mm,

Maximum stroke : 1200 mm,

Guide clearance : 630 mm,

Cylinder bore diameter : 430 mm,

Piston rod diameter : 160 mm,

Ram bottom size (W x L) : 630 × 650 mm,

Sow block top surface size (W x L) : 700 × 750 mm,

Impact energy : 9900 kg·m,

Air inlet connection : 125A (5B),

Air exhaust connection : 125A (5B),

Height from floor level (F.L.) : approx. 5435 mm,

Overall machine height : 6445 mm,

Height to remove piston rod (from F.L.) : 7850 mm,

Required air compressor capacity : over 150 kW,

Maximum operating pressure : 0.69 MPa (7 kg/cm²).

Anvil: approx. 43 tons,

Frame: 8.3 tons x 2 = 16.6 tons,,

Cylinder: approx. 6 tons,

Ram + guide + piston + sow block + other accessories

Total hammer weight: 73–75 tons.

No spare parts are included.

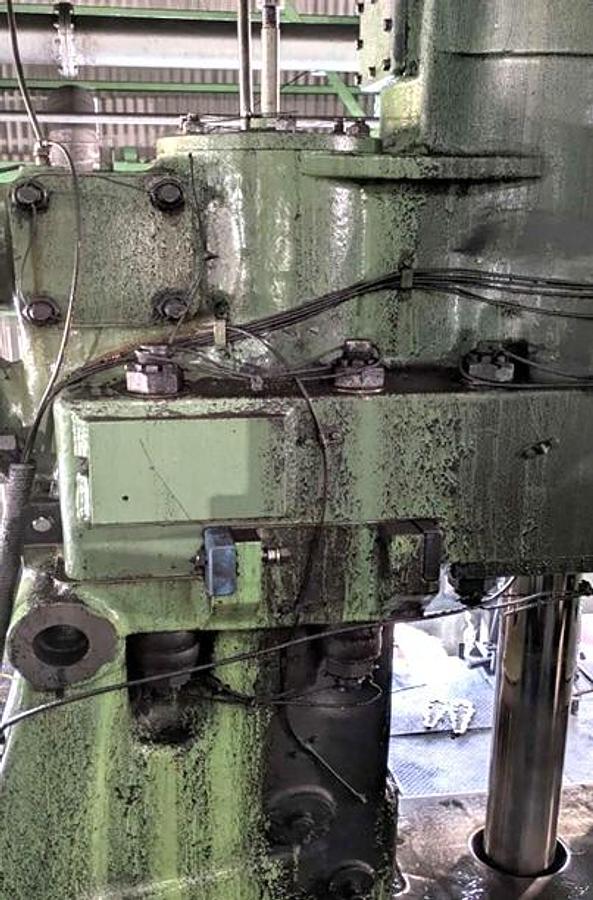

There is a crack in the cylinder (see photo).

No compressor is included.
