3150 tons Press Friction Screw Vaccari PVE560
or
Call +919920651051
Specifications
| Manufacturer | Vaccari |
| Model | PVE560 |
| Year | 2010 |
| Condition | Used |
| Stock Number | MA3509 |
| Item condition | Very good condition |
| Capacity tons | 3150 |
Description

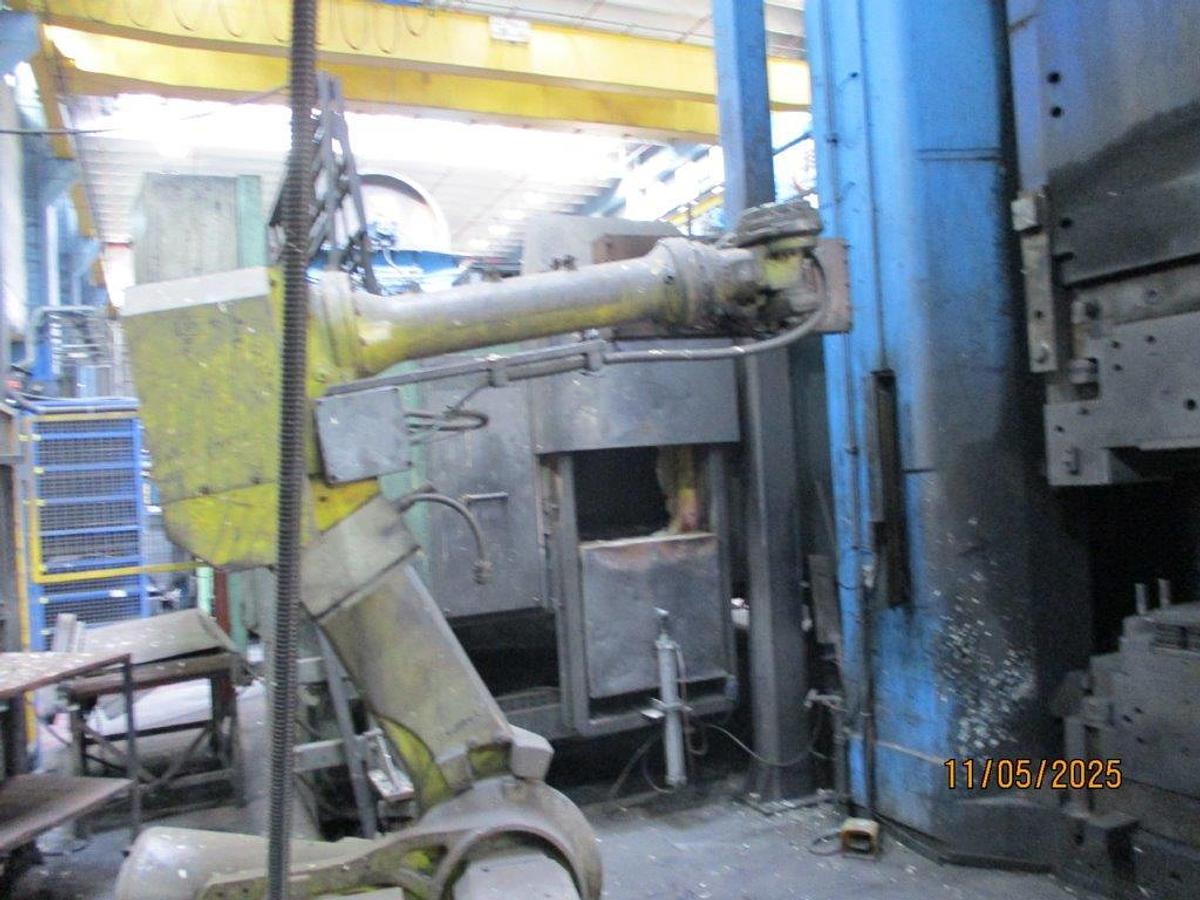

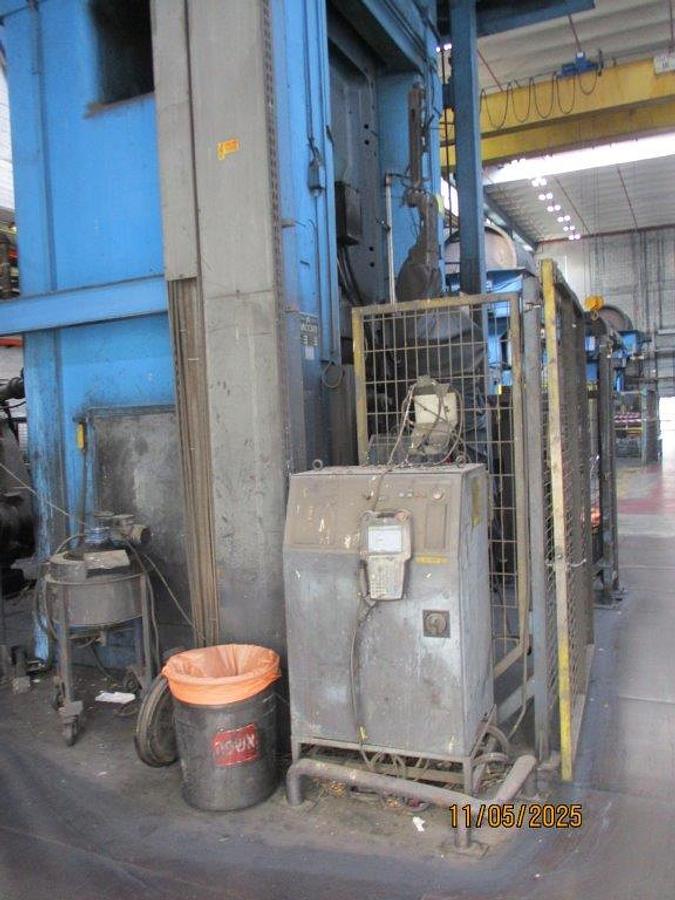

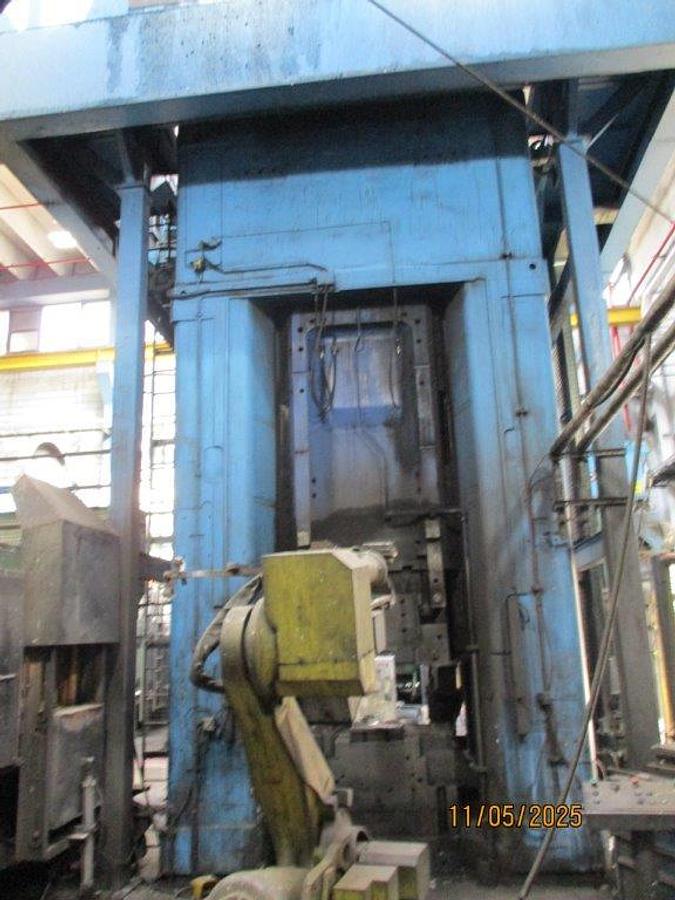

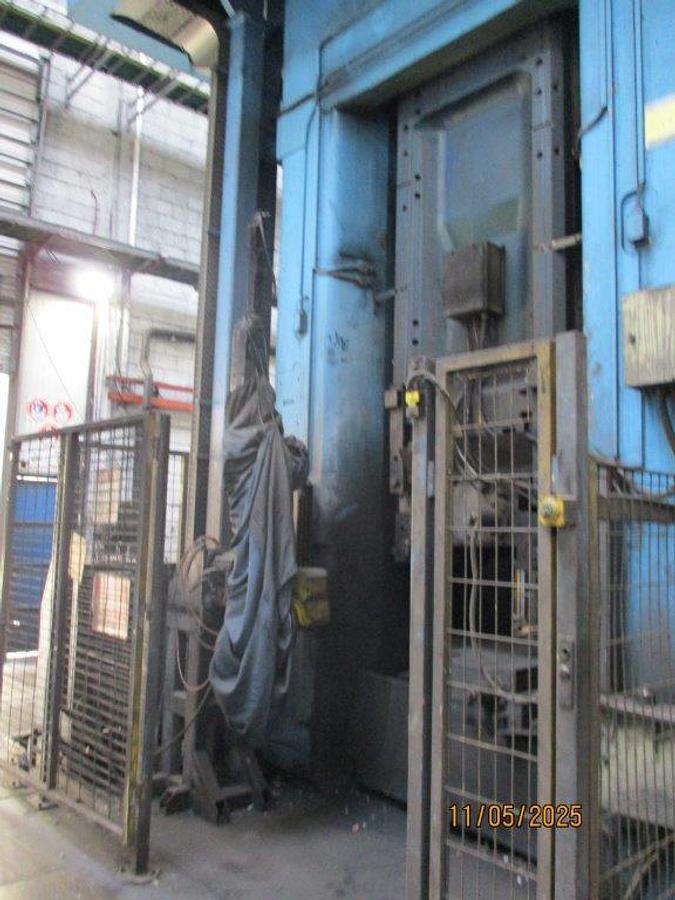

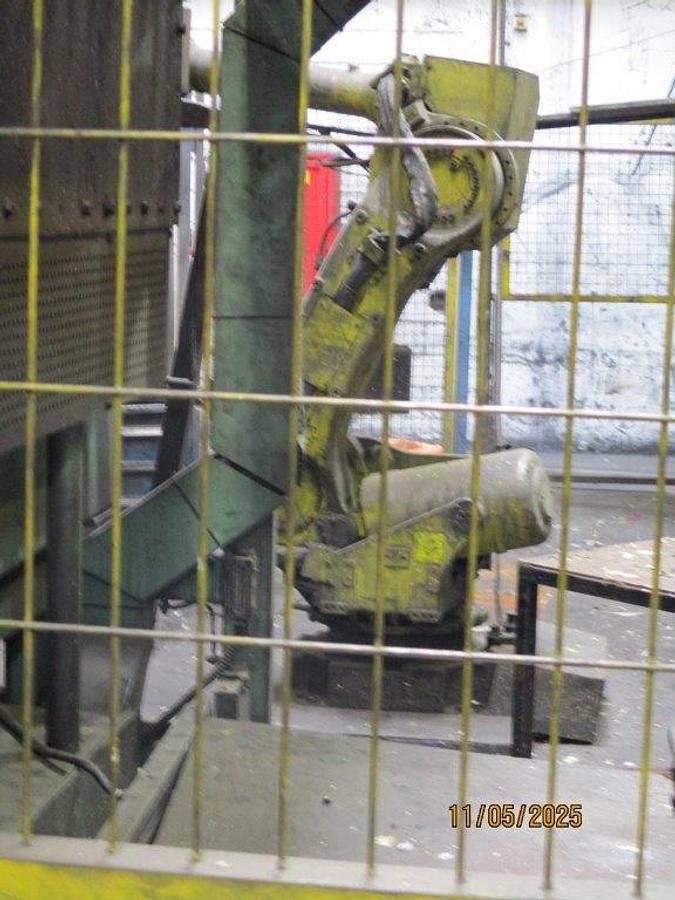

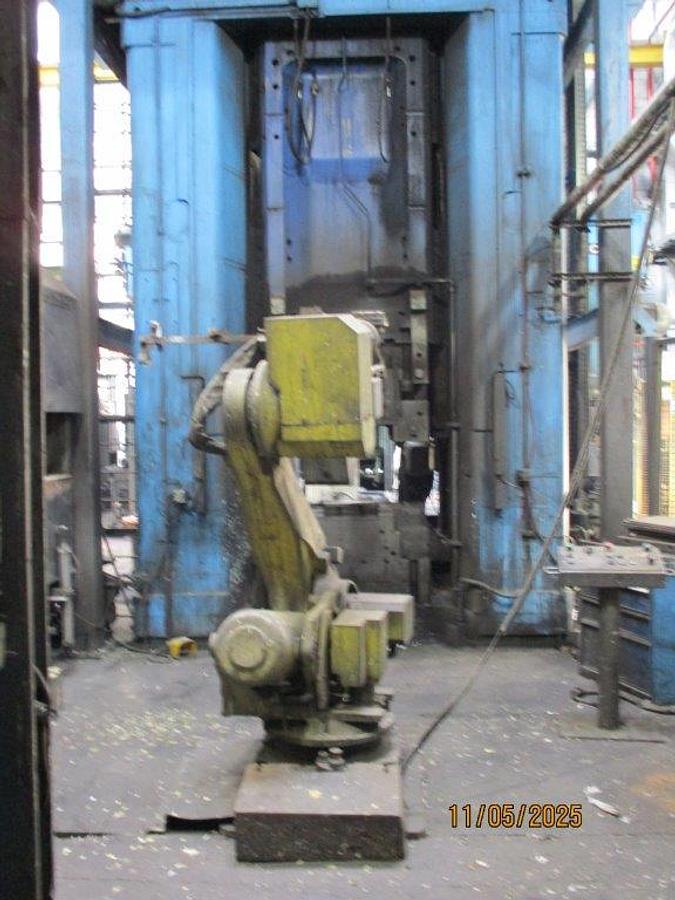

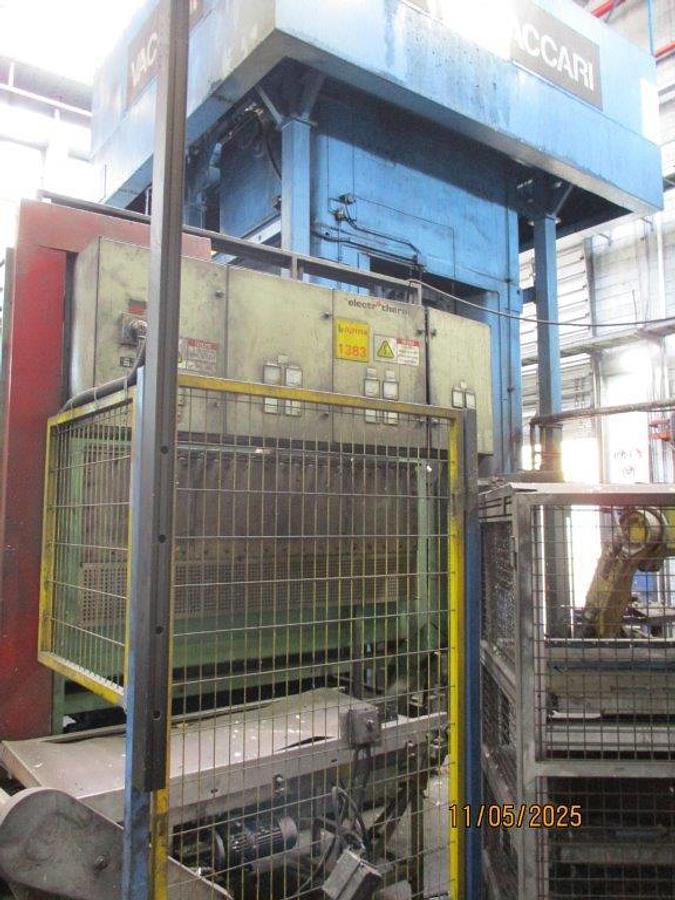

Complete and fully operational forging cell, including a 2010 Vaccari PVE 560 screw press (3150 tons), an Electrotherm vacuum furnace, and two handling robots.
Capacity : 3150 tons,
Nominal force : 31500 kN,
Screw diameter : 560 mm,
Ram stroke : 750 mm,
Distance between columns under the guide : 1500 mm,
Distance between table and BDC : 1300 mm,
Overall dimensions : 4500 x 5500 x 9700 mm,
Total press weight : approx. 2647 kN.
