Lathe Vertical Turning Stanko 1580

Turning diameter : 8000 mm,

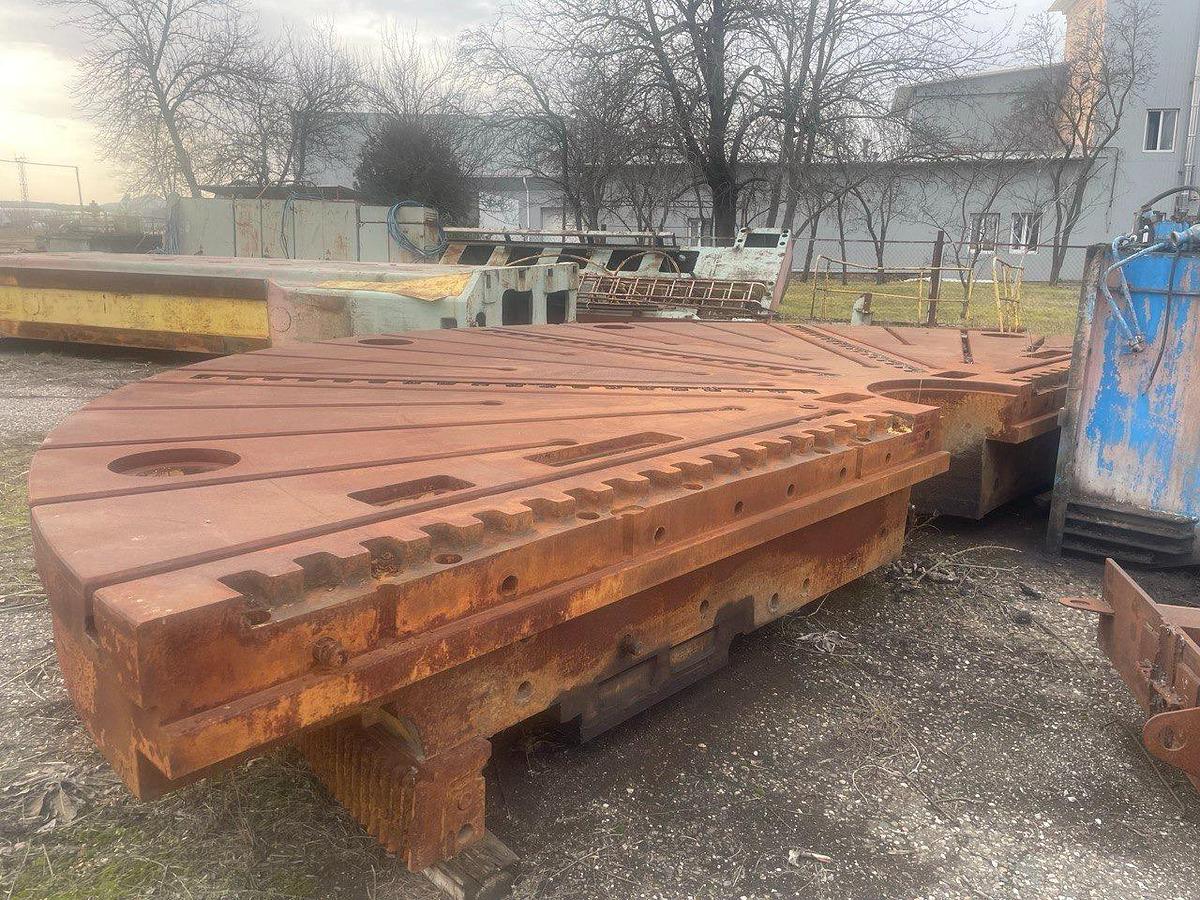

Faceplate dia. : 7100 mm,

Turning height : 3200 mm,

Max. work piece weight : 125 tons,

Vertical slide ram stroke : 2000 mm.

Faceplate : 0.22:20.1 RPM,

Feed (infinitely variable) : 0.0352:285,

Maximum cutting force : 16,000/5,000 kgf/mm,

Main drive motor power : 125 kW,

Machine dimensions :

Length : 17600 mm,

Width : 8615 mm,

Height : 8315 mm,

Machine weight without electrical equipment : 237 tons.
