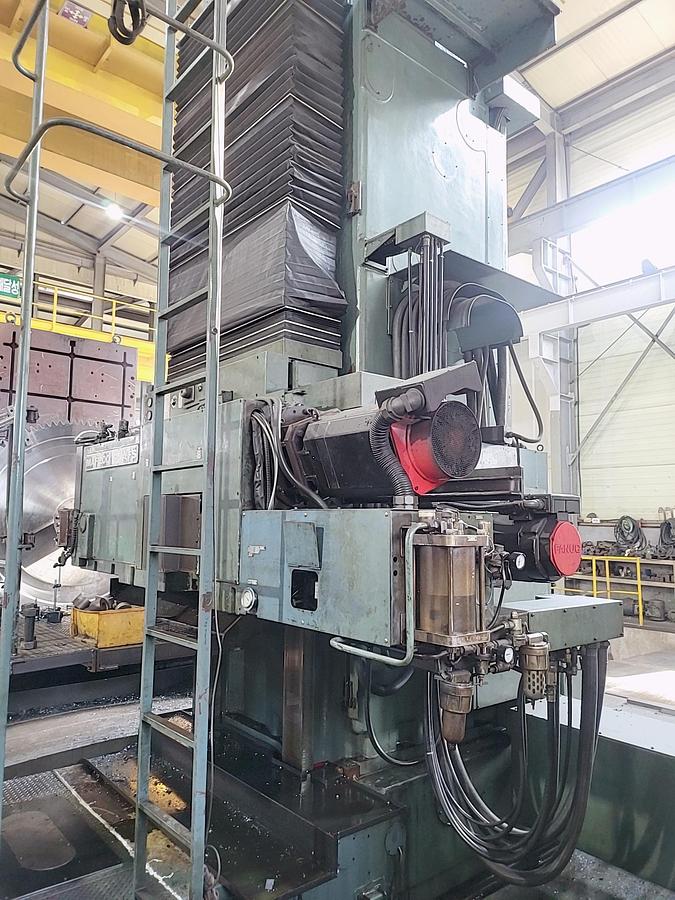

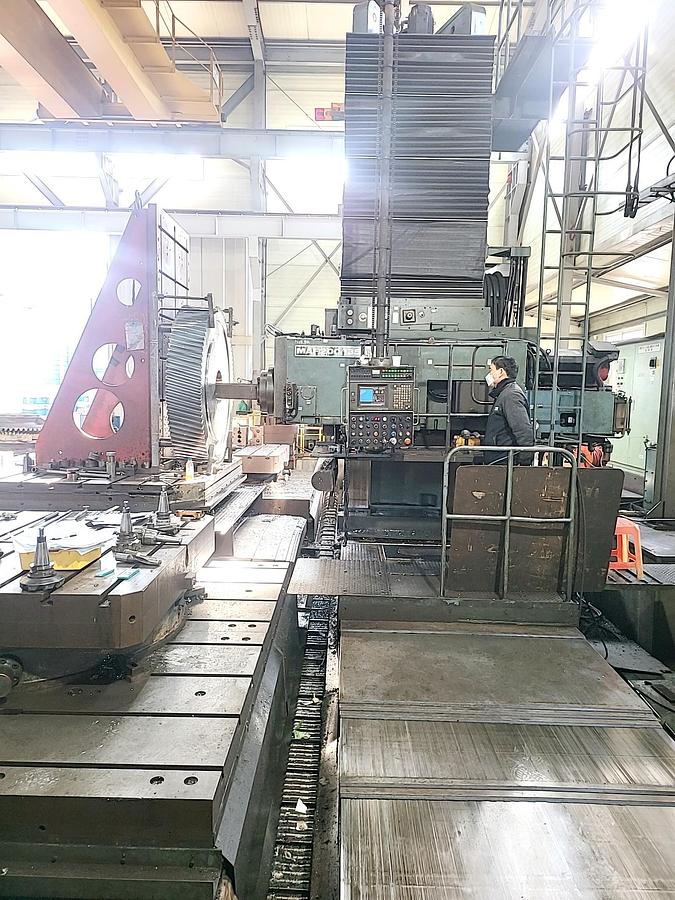

Borer Horizontal Floor Type CNC Mitsubishi MAF 200/135S-FS

Main spindle dia. : 200 mm,

Boring spindle diameter : 135 mm,

Travel X : 9000 mm

Travel Y : 3000 mm,

Travel Z : 700 mm,

Travel W : 900 mm,

Cross section dimension of the headstock (width x height) : 510 x 750 mm,

Milling spindle nose diameter : 225 mm,

Rotary Table : 2500 x 2500 mm,

Longitudinal Travel : 1500 mm,

Loading capacity on the R/Table : 30 ton,

Power capacity : AC 200 V 3-phase 50 HZ,

Overall height of the machine : 6930 mm

Machine weight : 54 tons,

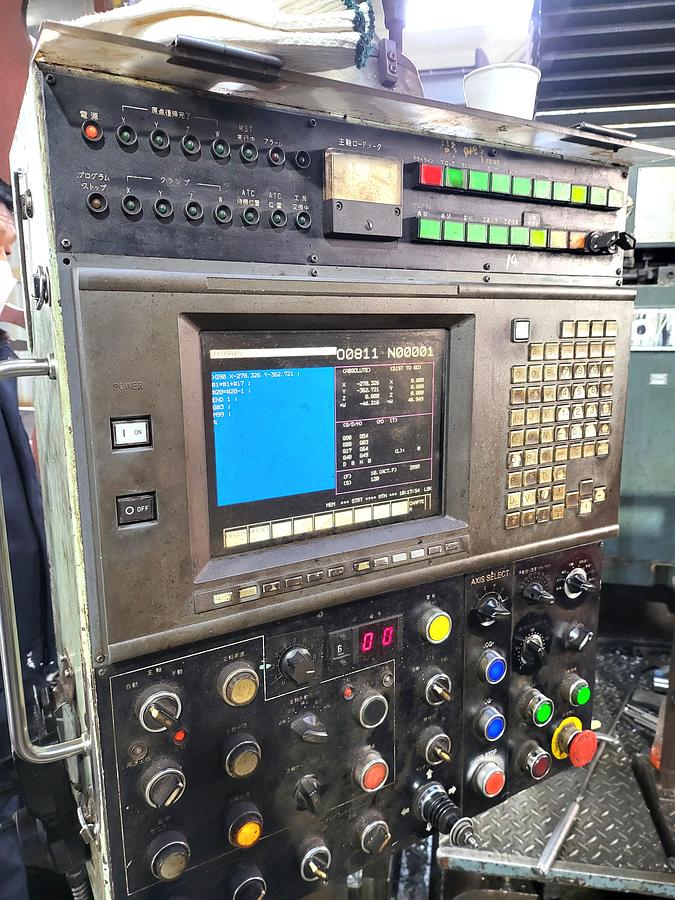

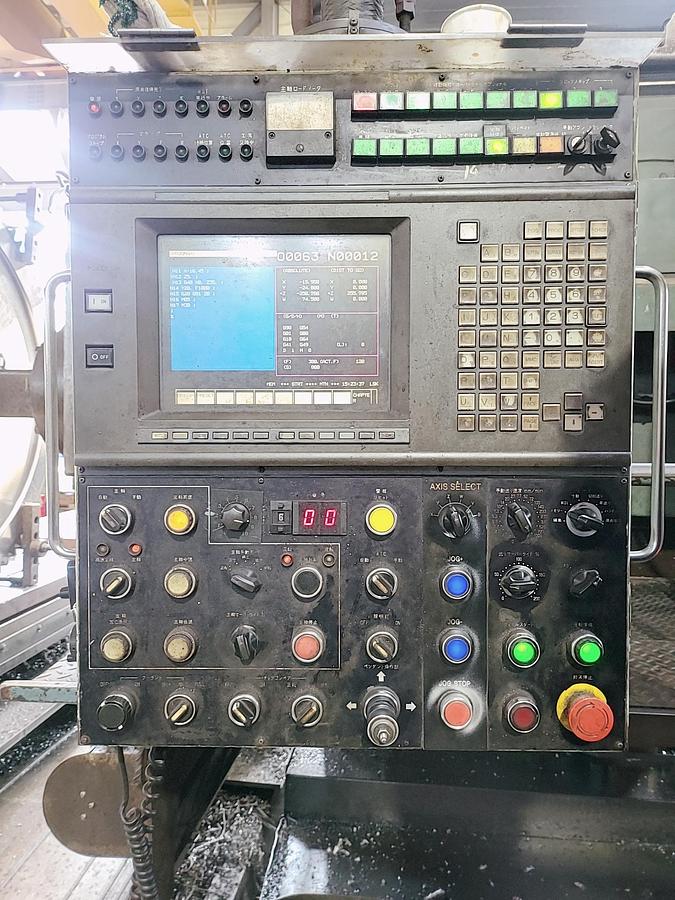

CNC- Controller : Fanuc 15M

With Fixed Floor Plate - 3ea

Angle head - 1 ea
