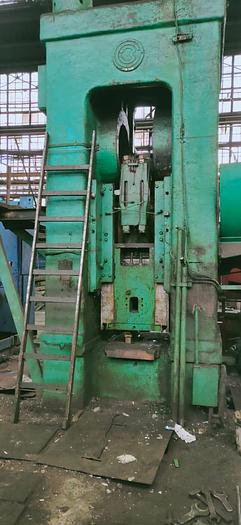

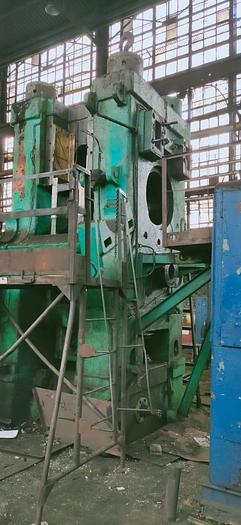

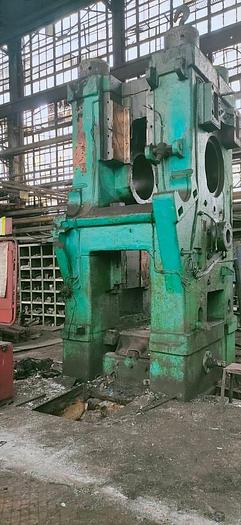

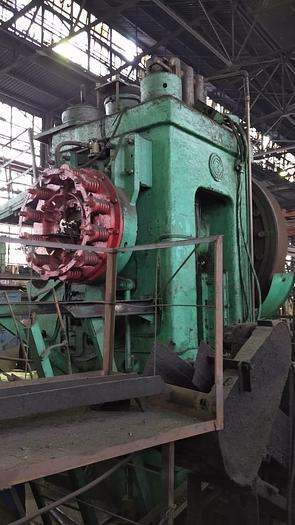

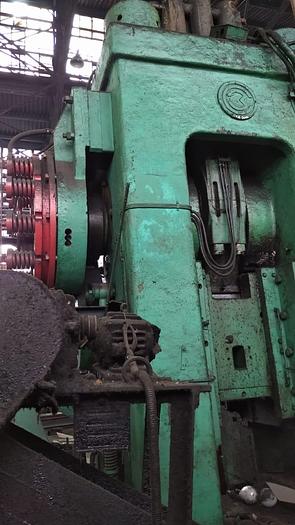

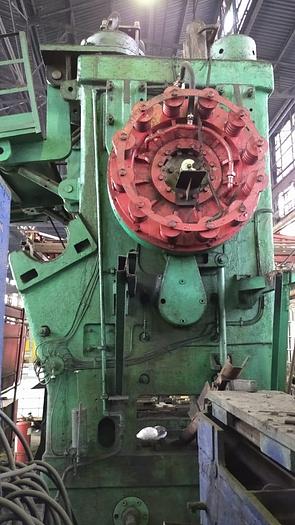

Press Hot Forging KB8542

Price

Contact us for price

orCall +919920651051

Specifications

ManufacturerTMP Voronezh Russia
ModelKB8542
Year1988
ConditionRefurbished
Stock NumberMA1579
ConditionExcellent condition
Capacity tons1600

Description

Capacity : 1600 tons,

Slide stoke : 300 mm,

Number of slide continuous stroke per minute : 85,

Minimum distance between bed and slide when in down position : 660 mm,

Size of adjustment of distance between a table and slider : 10 mm,

Slide dimensions :-

Left to right : 860 mm,

front to back : 910 mm,

Height above bed level : 450 mm,

Bed dimensions :-

left to right : 940 mm,

front to back : 1200 mm,

Course of the top ejector : 50 mm,

Force of a top ejector : 63 kN,

Course of the bottom ejector : 50 mm,

Force of a bottom ejector : 100 kN,

Main electric motor power : 90 kW,

Press overall dimensions mm

- length 4850

- width 3515

- height 5570

Weight of machine : 120 tons.

Original year : 1968

Modification : 1988


This press was modified from old edition (with backshaft) to modern edition (direct drive).

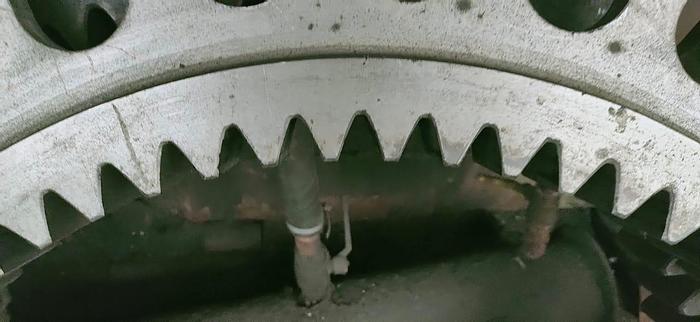

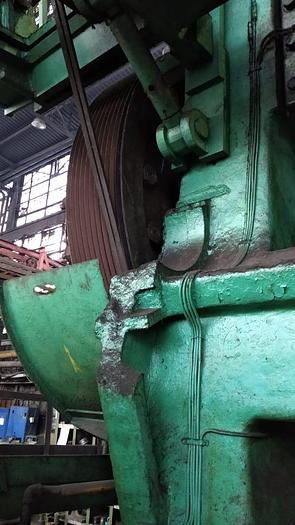

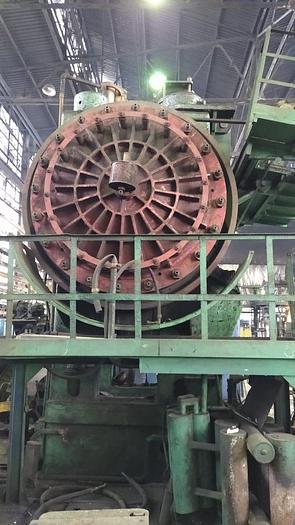

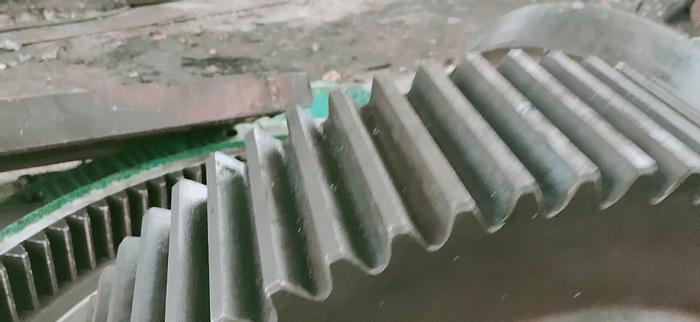

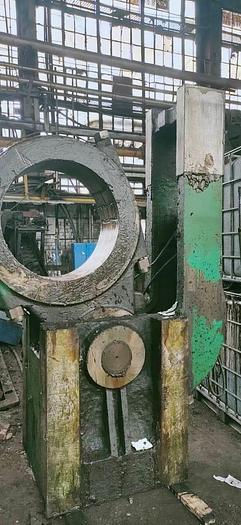

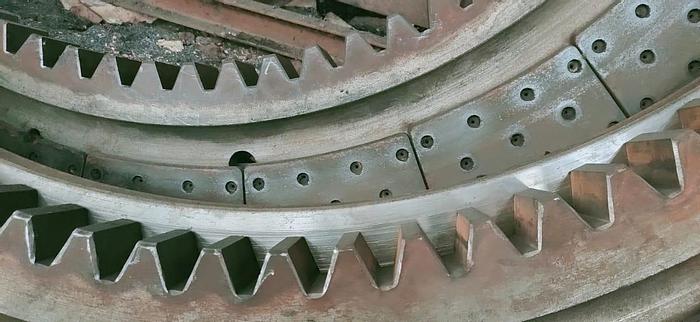

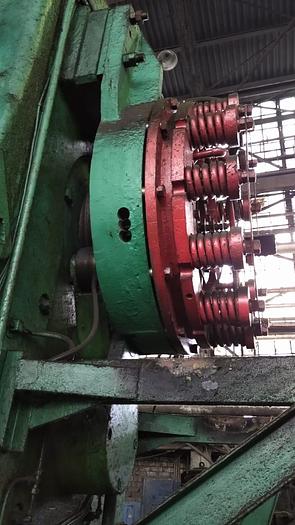

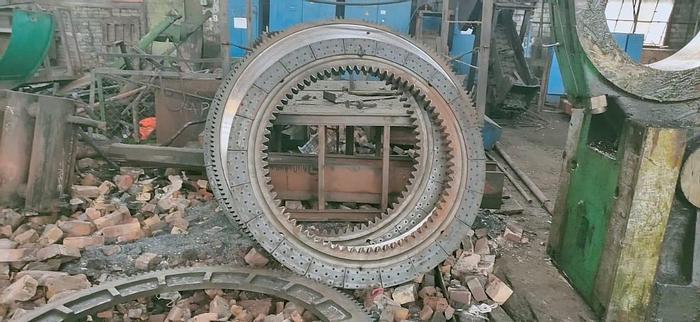

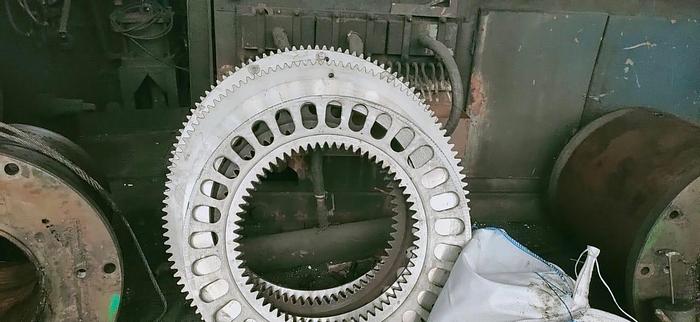

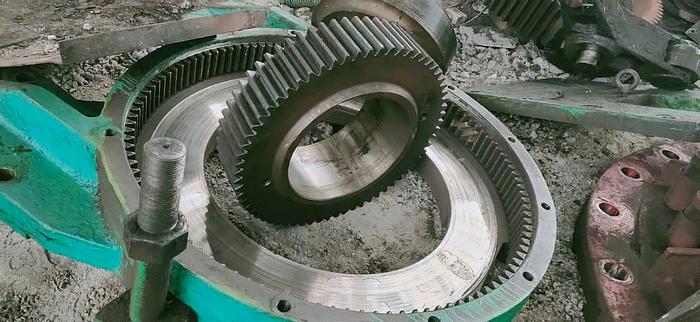

The frame and bed are made of cast iron. All other parts are new like brake, clutch, hub, flywheel, bronze bushes etc.

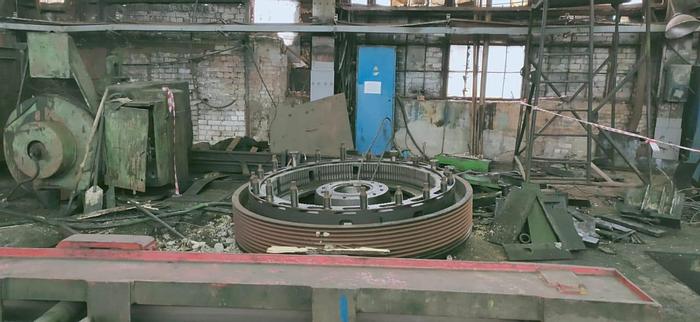

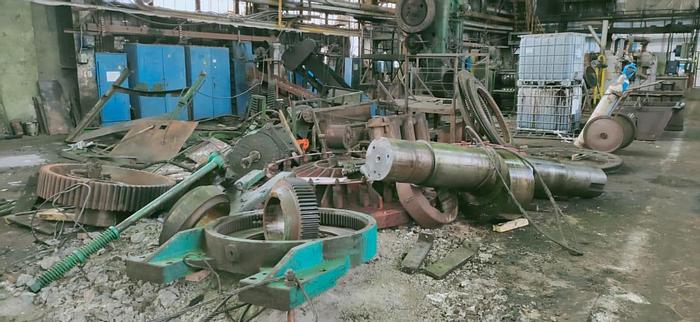

Dismantled and ready at St. Petersburg port for shipment.
