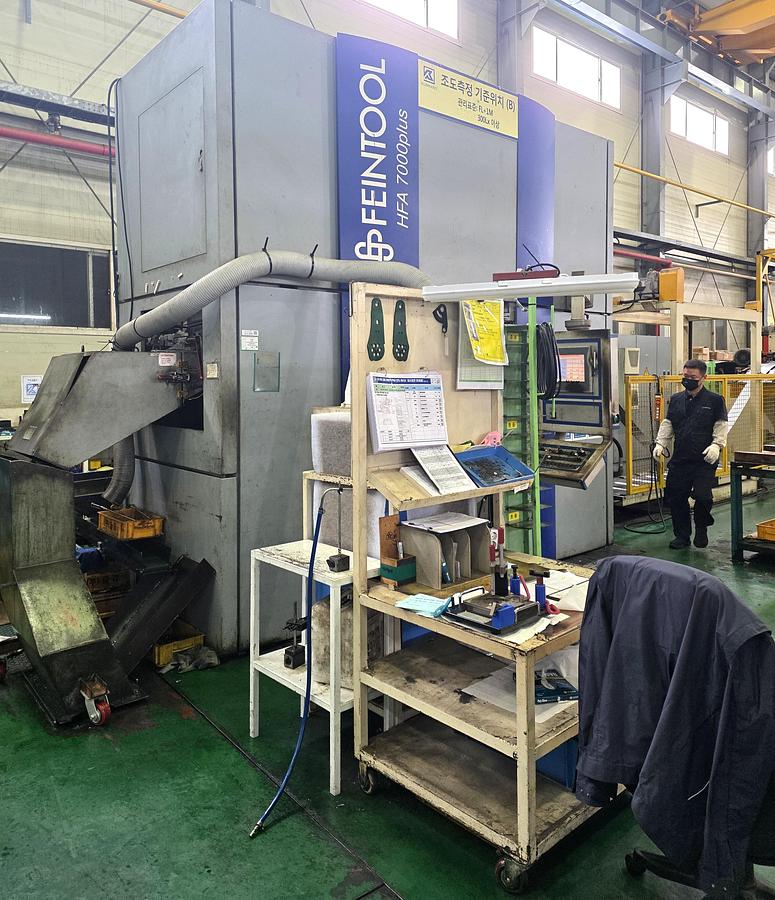

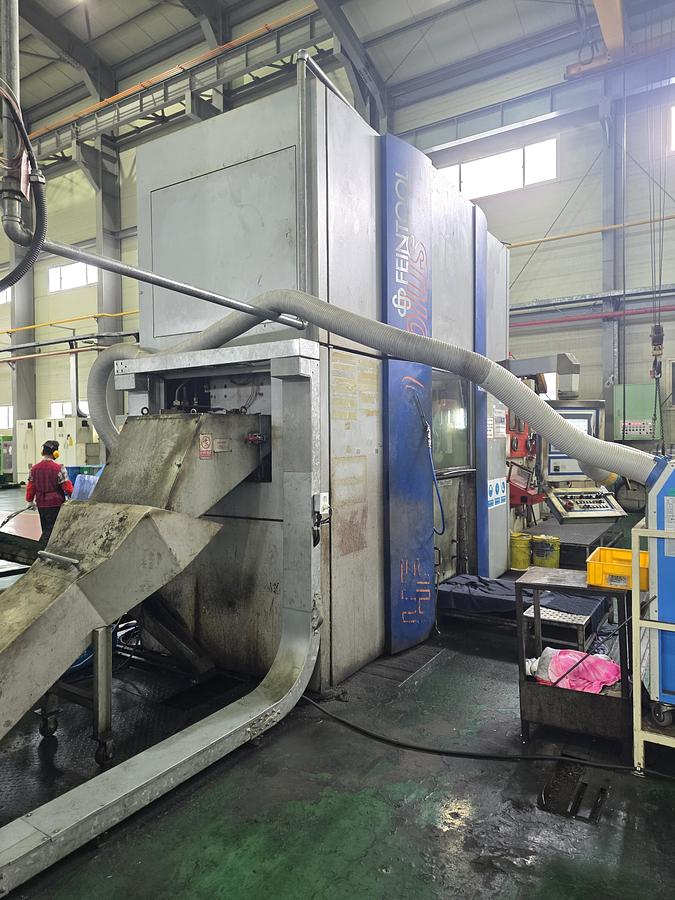

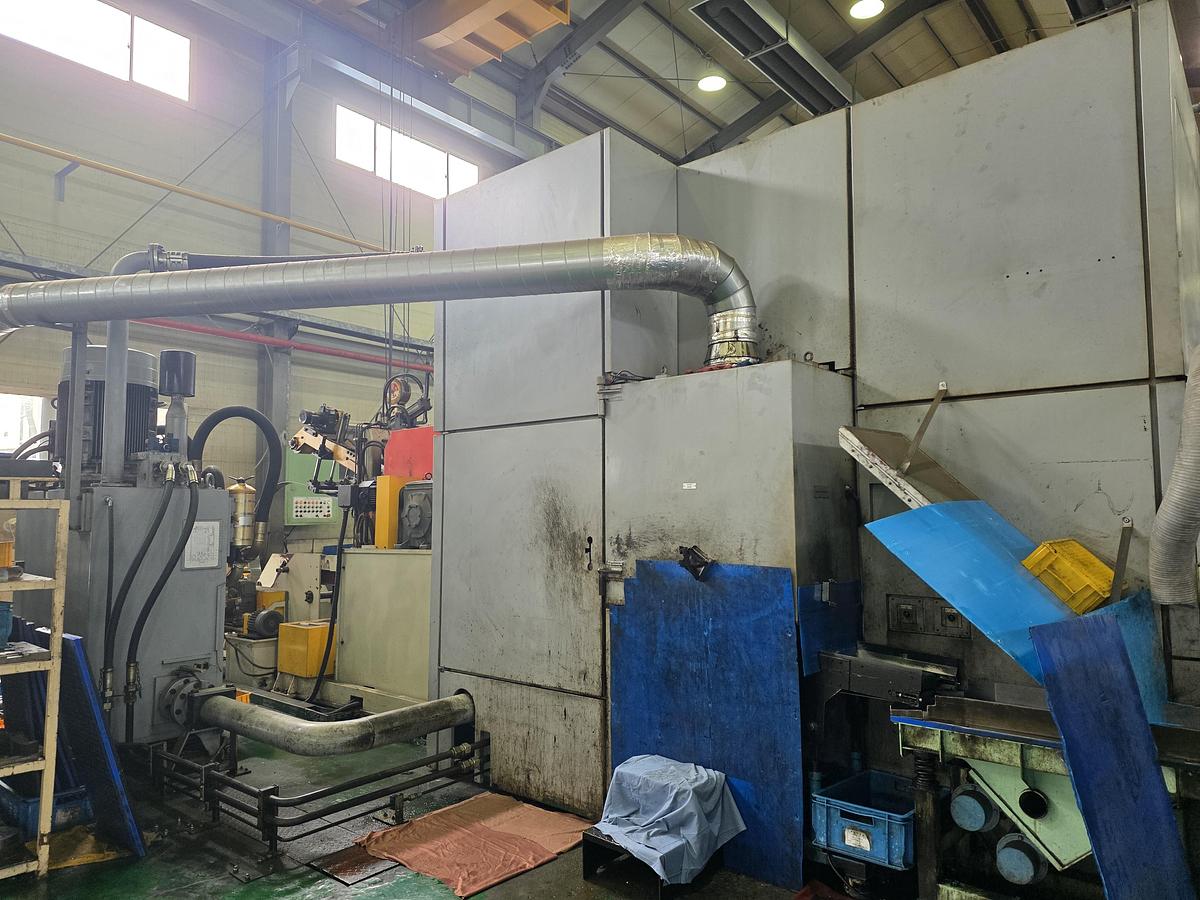

700 tons Press Fineblanking Mechanical Schuler HFA7000Plus

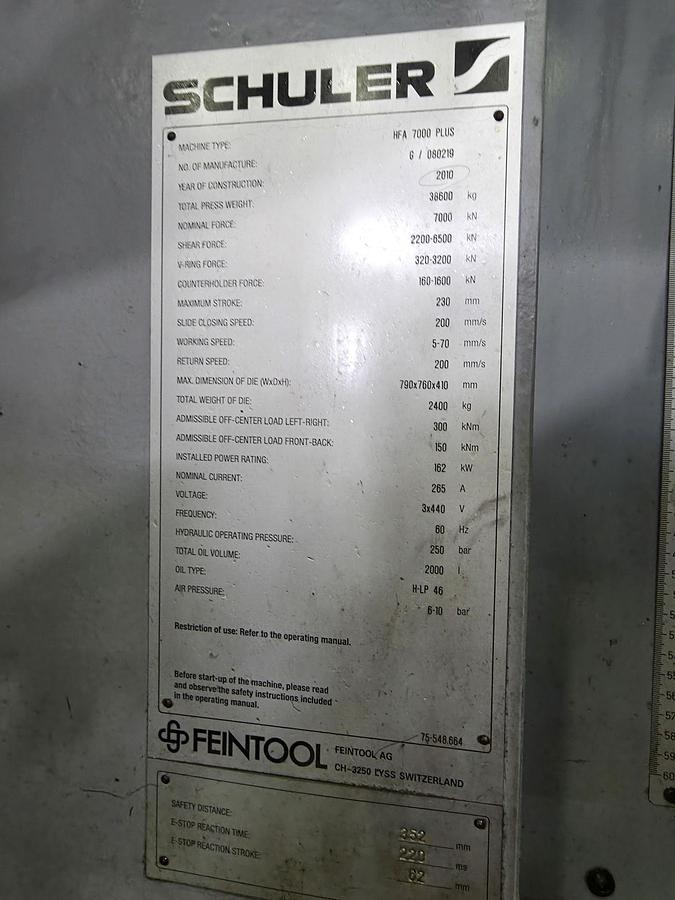

SCHULER FINETOOL 700Ton Fine Blanking Press Model HFA 7000 PLUS S/N G/080219  new 2010 with KDM - Brand

Capacity : 700 tons,

Shear force : 2200 - 6500 KN,

V Ring force : 320 - 3200 kN,

Stroke : 230 mm,

Slide closing speed : 200 mm/s,

Working speed : 5-70 mm/s,

Return speed : 200 mm/s,

Max. dimension of die (W x D x H) : 790 x 760 x 410 mm,

Total weight of die : 2400 kg,

Admissible off center load (left - right) : 300 kNm,

Admissible off center load (front - back) : 150 kNm,

Installed power rating : 162 kW,

Nominal current : 265 A,

Voltage : 3 x 440 V,

Frequency : 60 Hz,

Hydraulic operating pressure : 250 bar,

Total oil volume : 2000 L,

Oil type : H-LP 46,

Air pressure : 6-10 bar,

Weight of the press : 38.6 tons.

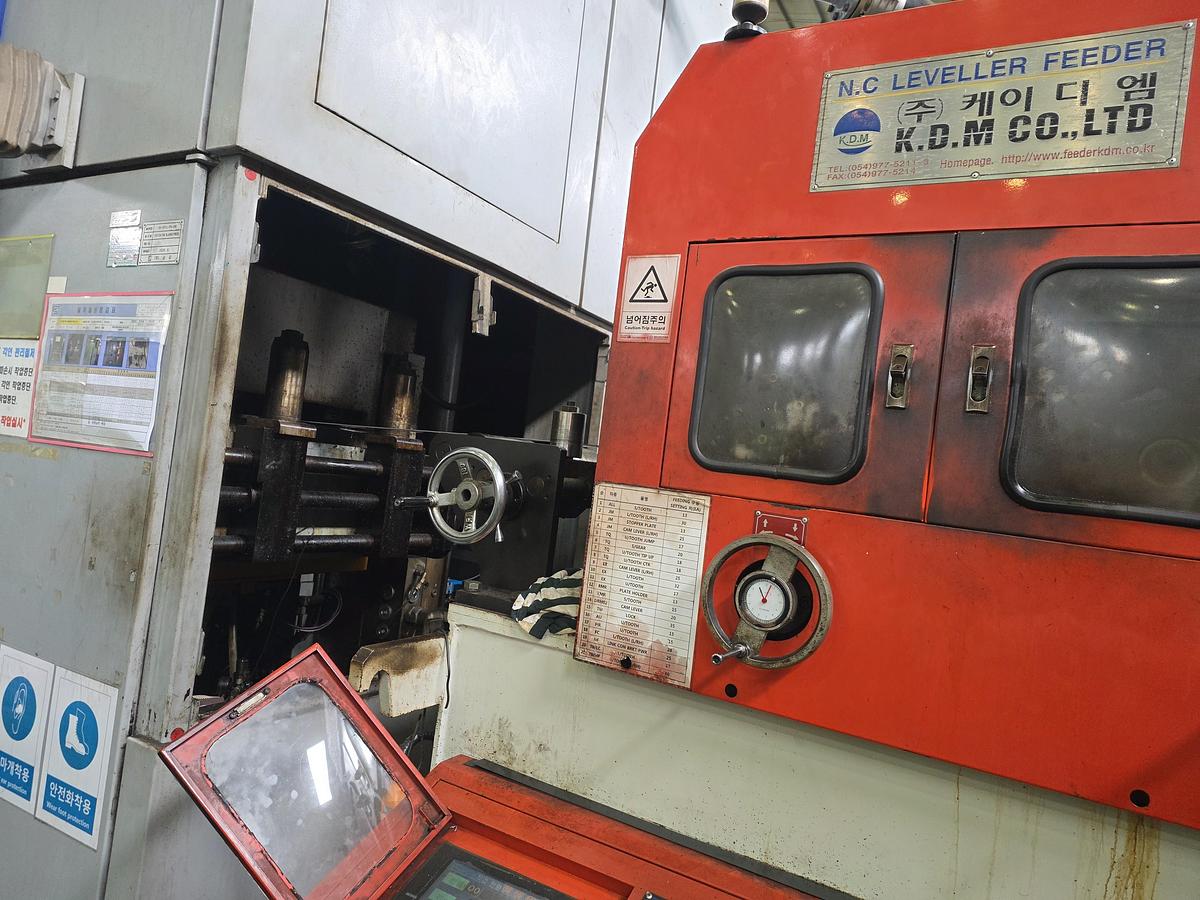

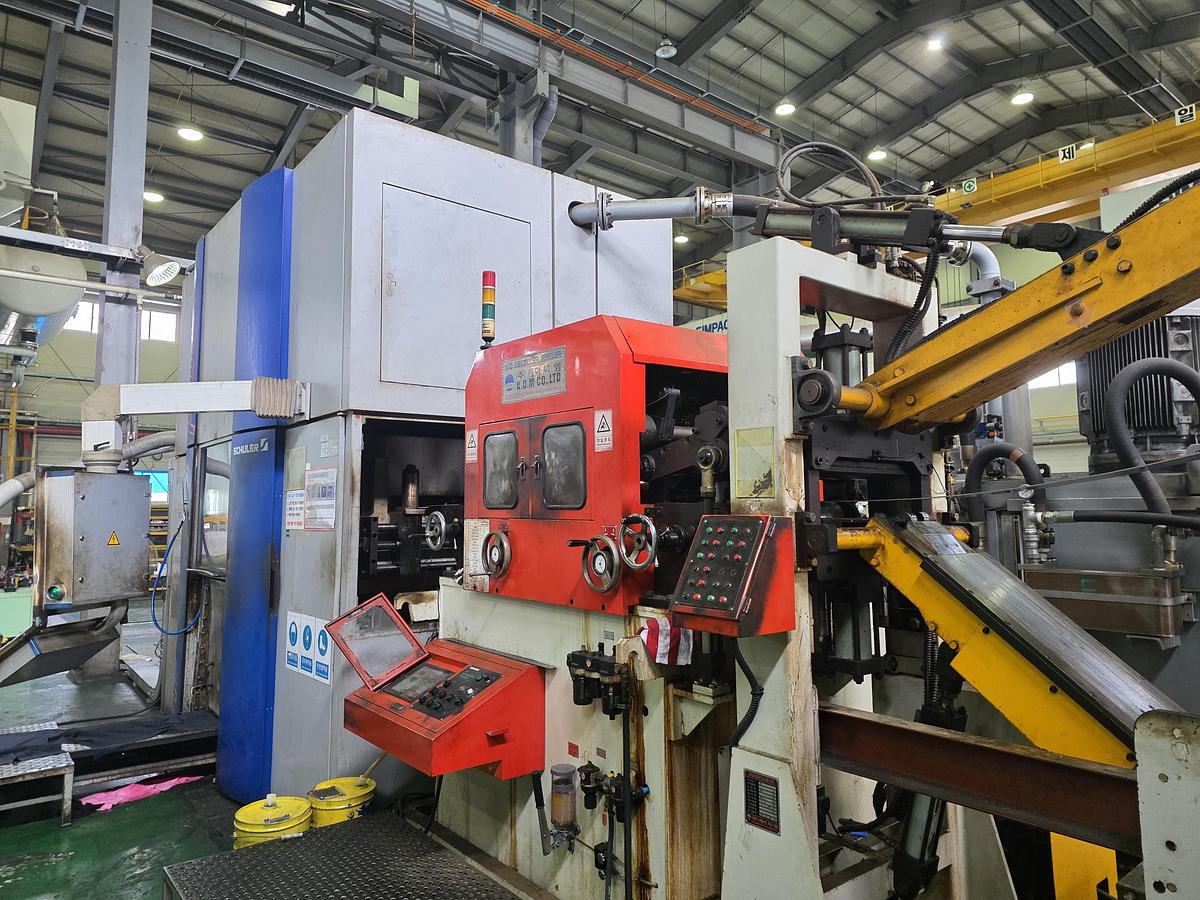

Feeding System ( Uncoiler , Leveller & Feeder ) .

Total force : 7000 KN,

V-Ring force : 320-3200 KN,

Counter holder force : 160- 1600 KN,

Gross Weight : 38,600 kgs

SPM : 5 - 70

Stroke : 230 mm,

Max mold size : 790 x 760 x 410 mm,

Technical manuals available

They may be suitable for manufacturers producing precision blanked components such as:

1. Automotive transmission parts
2. Seat and safety-system components
3. Gear and drivetrain components
4. Brake components
5. Precision metal parts
6. Other fine-blanked automotive and industrial components
