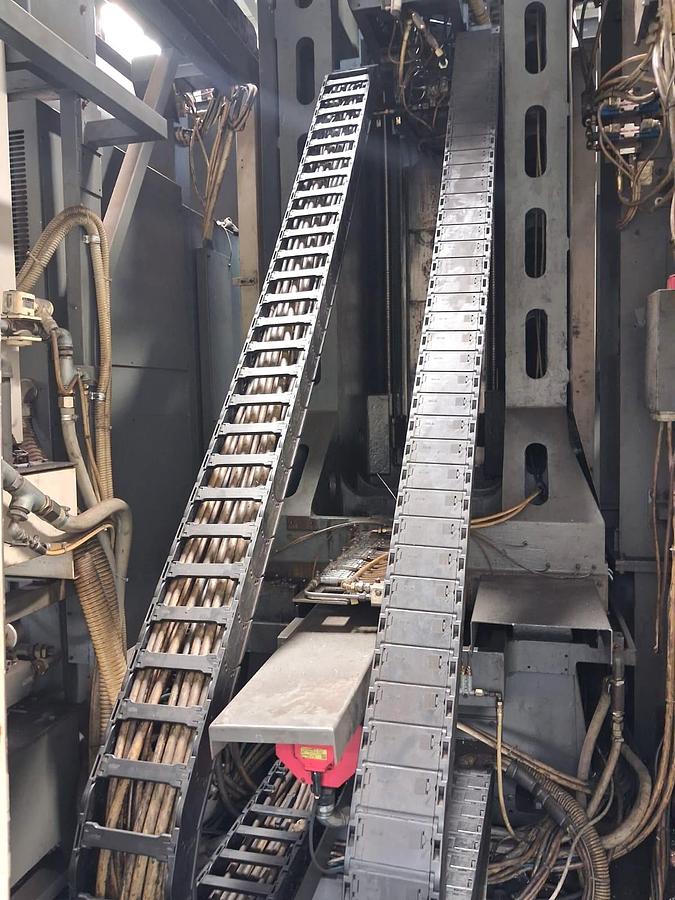

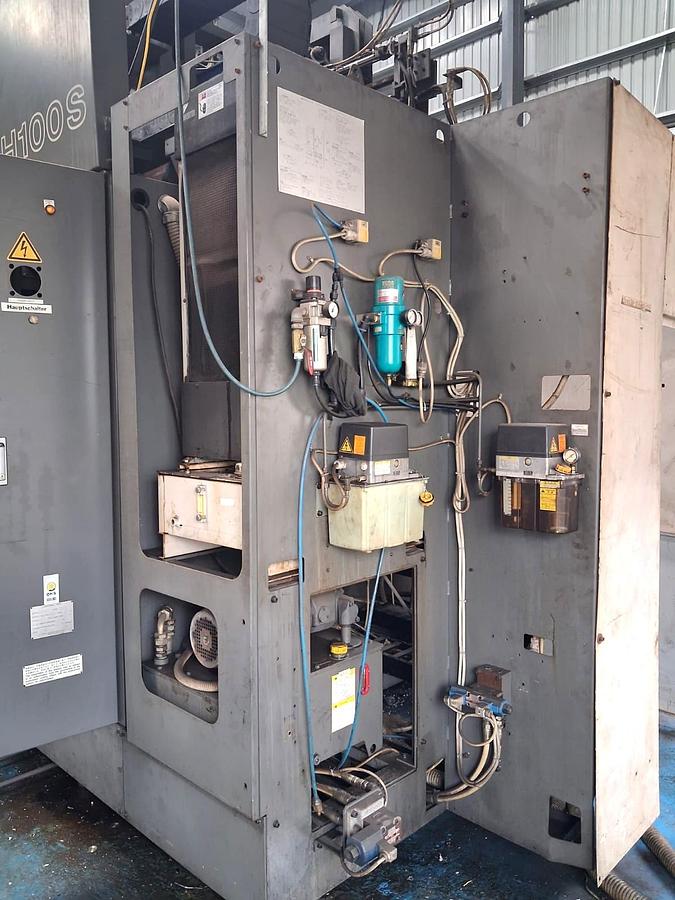

Horizontal Machining Center Toyoda FH-100S

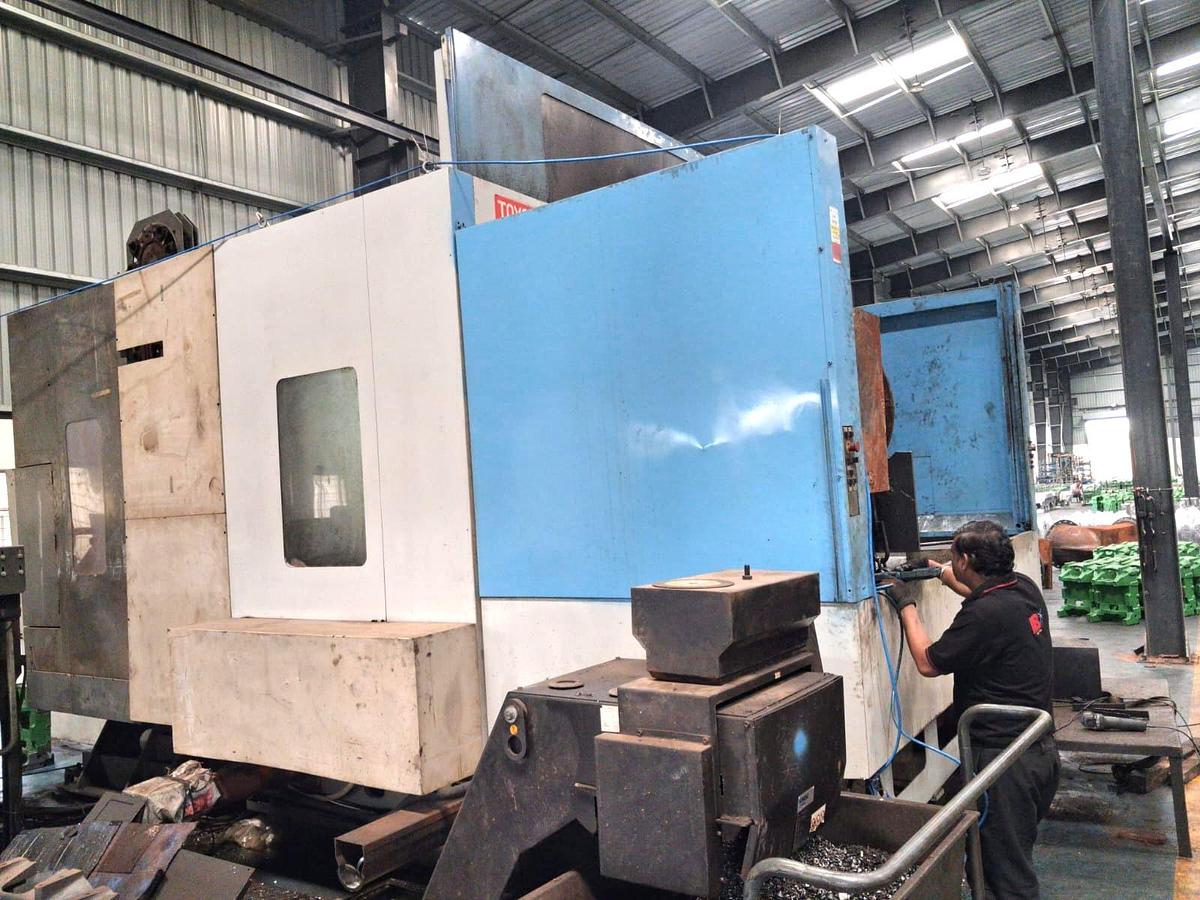

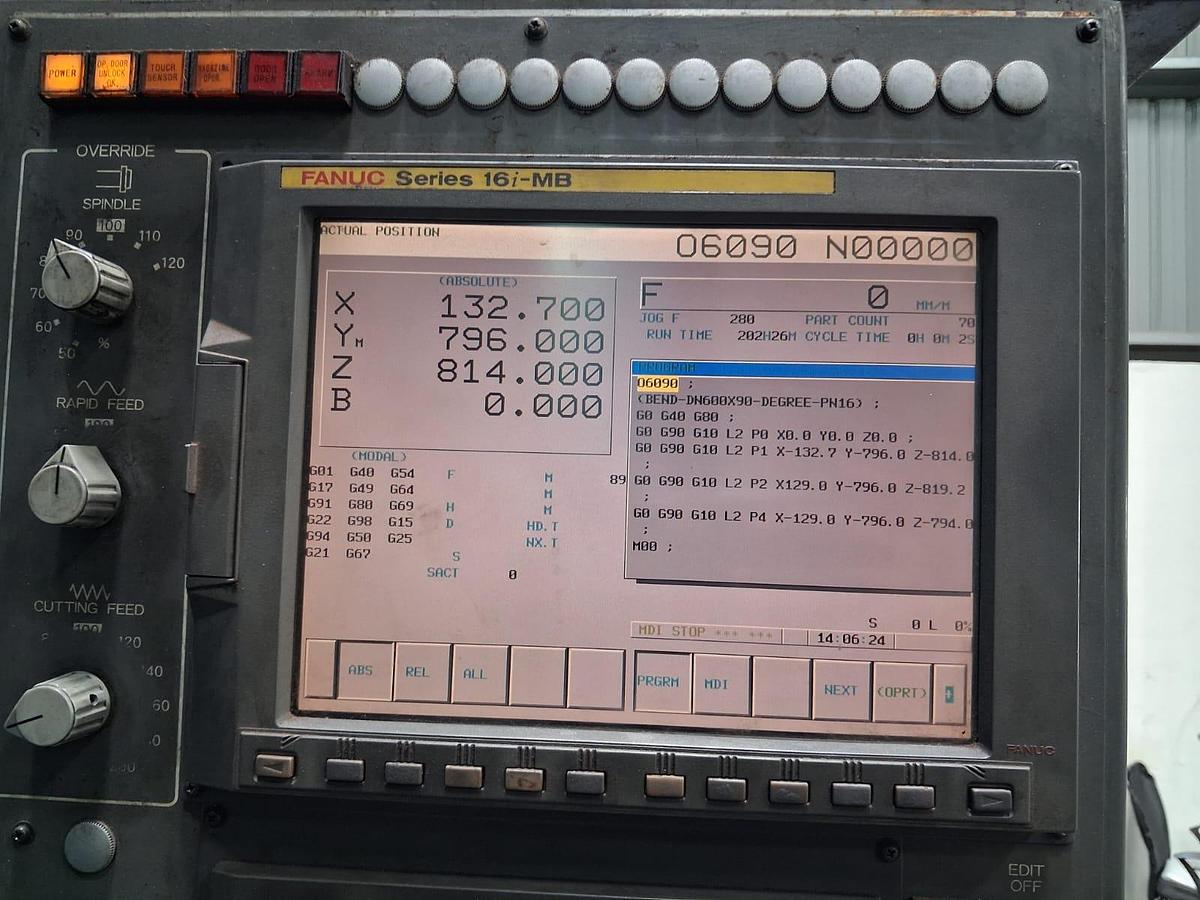

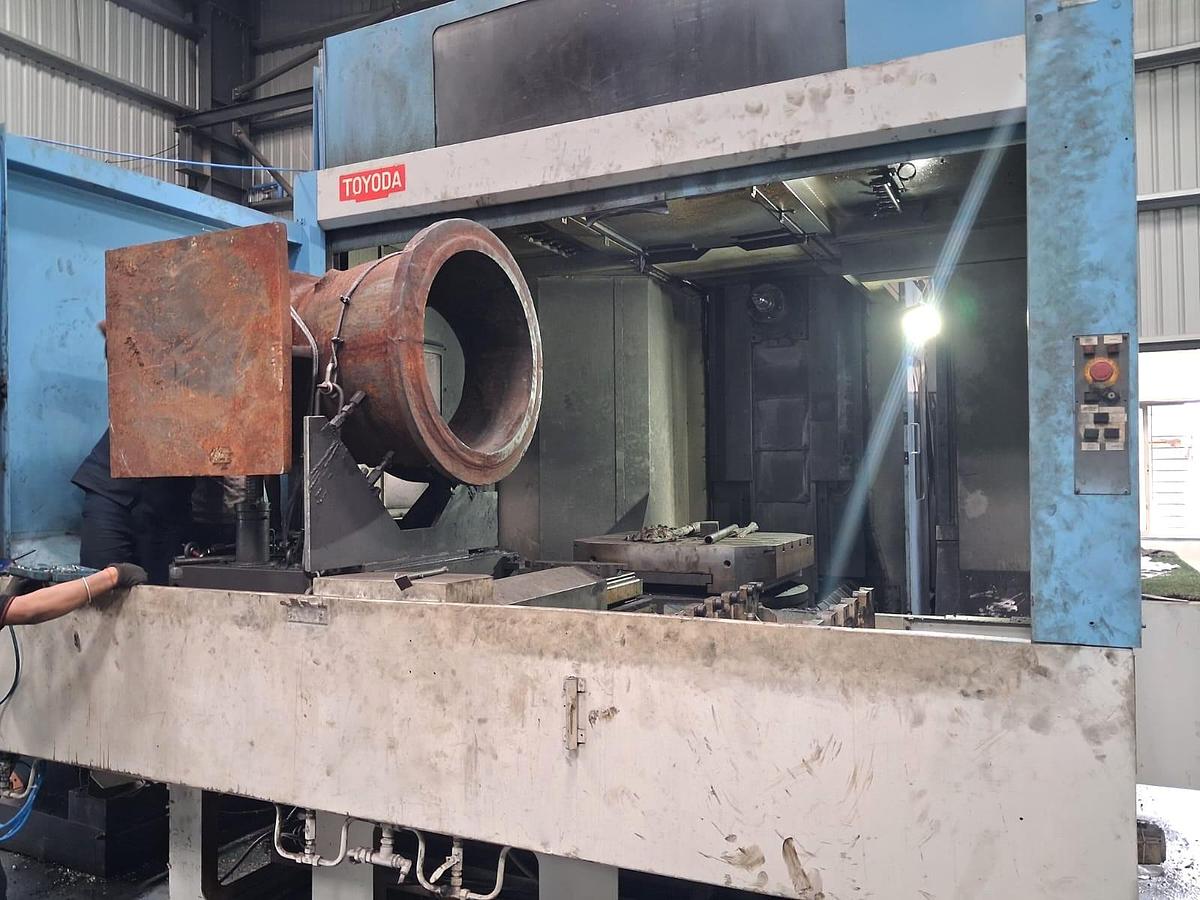

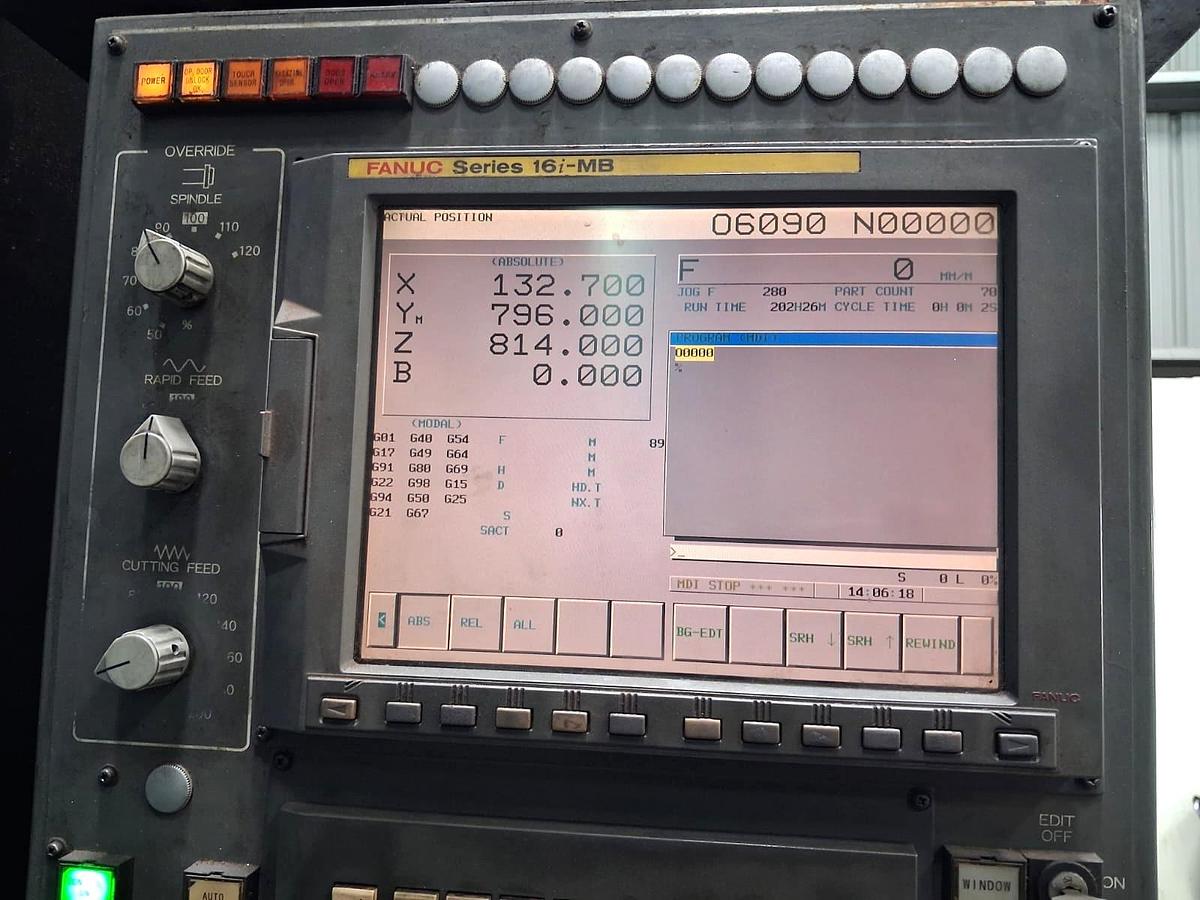

CNC control : Fanuc series 16i-MB,

Machine weight : 30 tons,

Machine dimensions :

Length : 8331 mm,

Width : 7100 mm,

Height : 4160 mm,

Spindle (Gear Box) :

Cone dimensions : ISO-50,

Spindle speed : 6000 RPM,

Spindle motor torque (cont./30min.) : 1070 / 1267 Nm,

Spindle motor power (cont./30min.) : 22/26 kW,

Work capacity :

X - Axis : 1600 mm,

Y - Axis : 1400 mm,

Z - Axis : 1150 mm,

B - axis : 360 positions (Min. Angle1),

Distance between spindle center - table surface : 50÷1450 mm,

Distance between spindle nose - table center : 250 ÷1400 mm,

Max. workpiece dimensions (Dia. x Height) : 1800 x 1600 mm,

Table :

Table dimension : 1050 x 1050 mm,

Number of stations for pallets : 2 stations with 2 pallets,

Table max. load : 3000 Kg,

Table rotation indexed : 360 positions,

Feedrates :

X/Y/Z axes rapid feedrates : 24000 mm/min,

X/Y/Z axes working feedrates : 1÷ 24000 mm/min,

ATC :

Tool type : BT-50,

ATC capacity : 40 ststions,

Maximum tool diameter : 120 / 245 mm,

Max tool length : 600 mm,

Max tool weight : 35 Kg,

Other

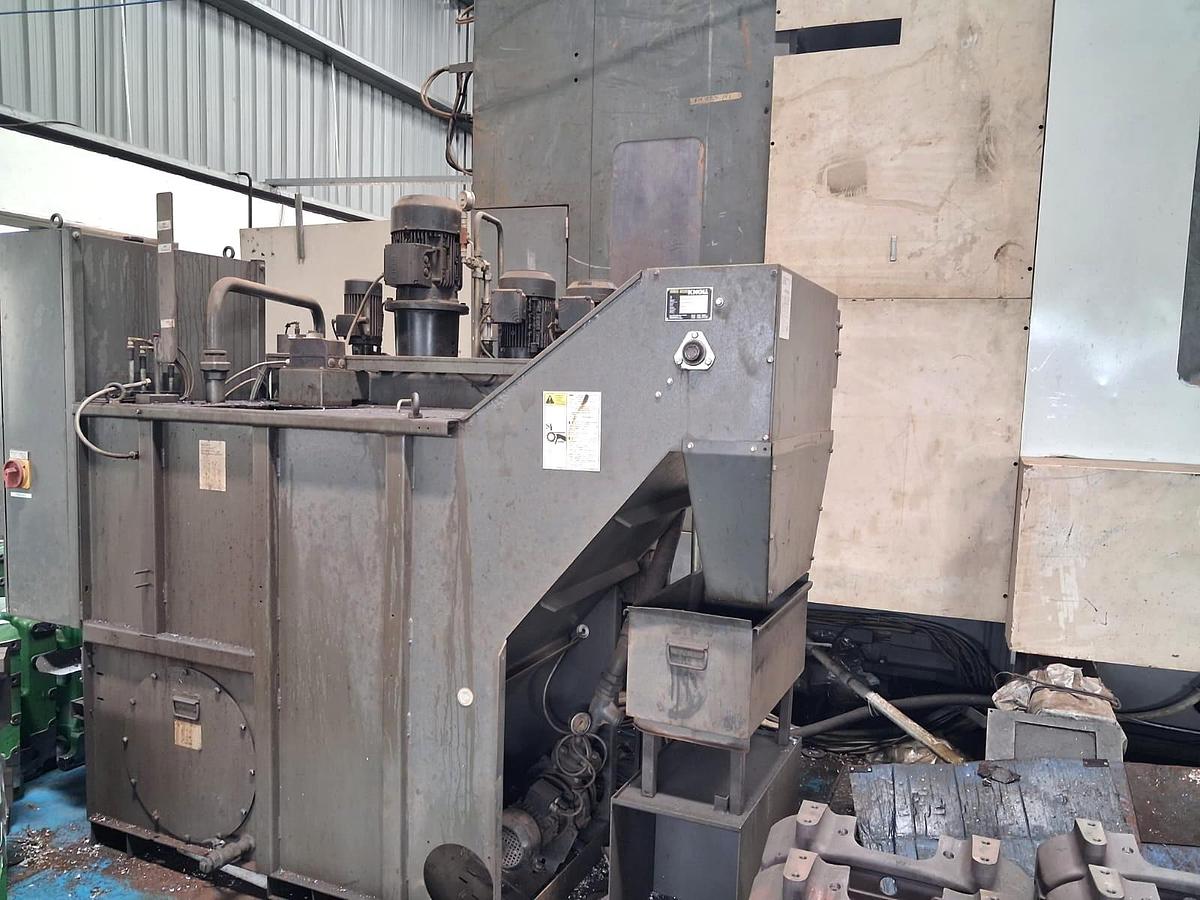

Chip conveyor,

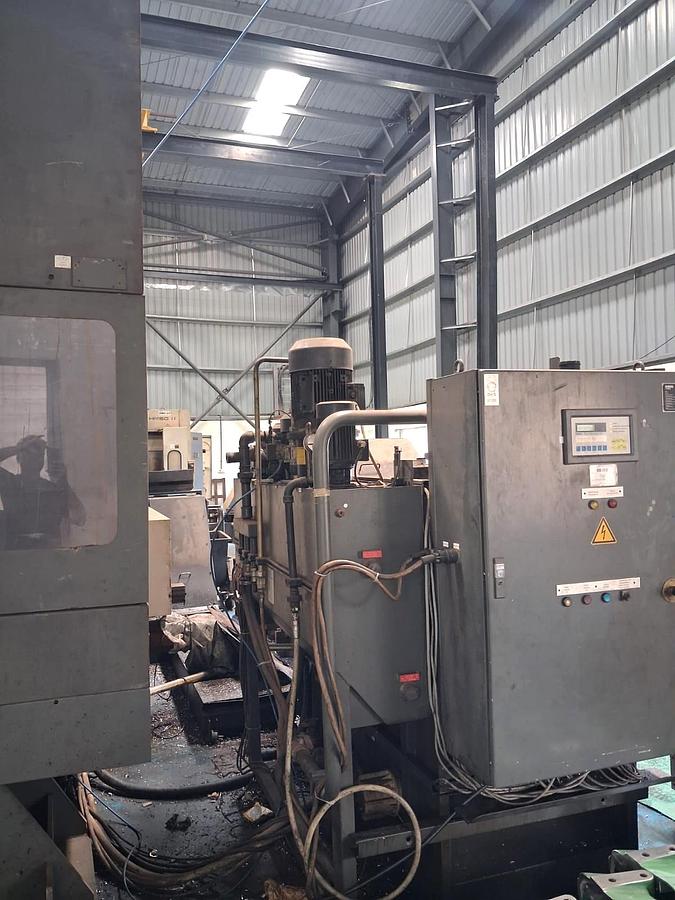

Coolant tank with pumps

High pressure pump for coolant through spindle

Chiller for spindle head and transformer

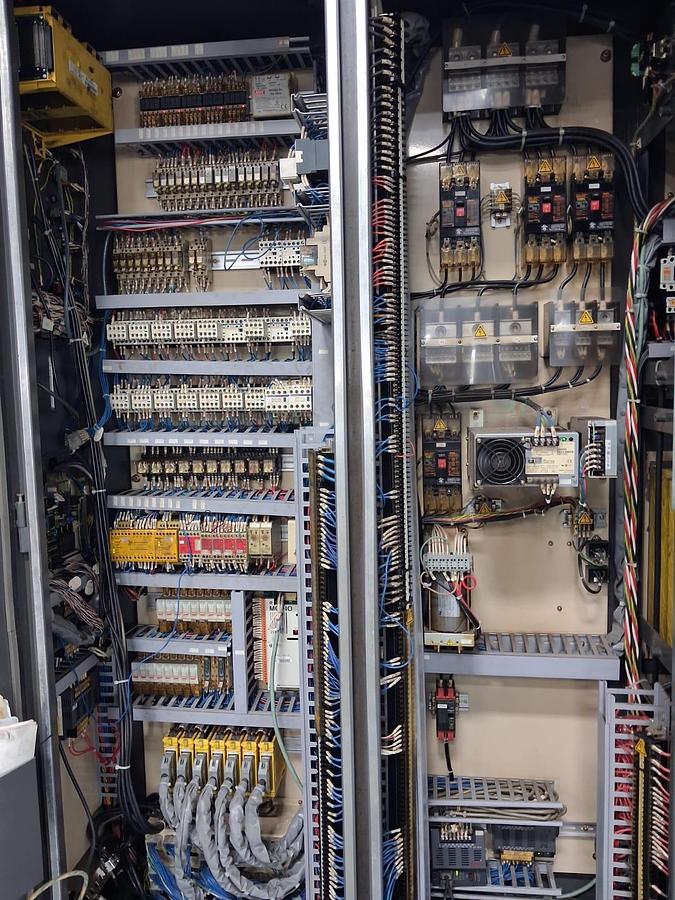

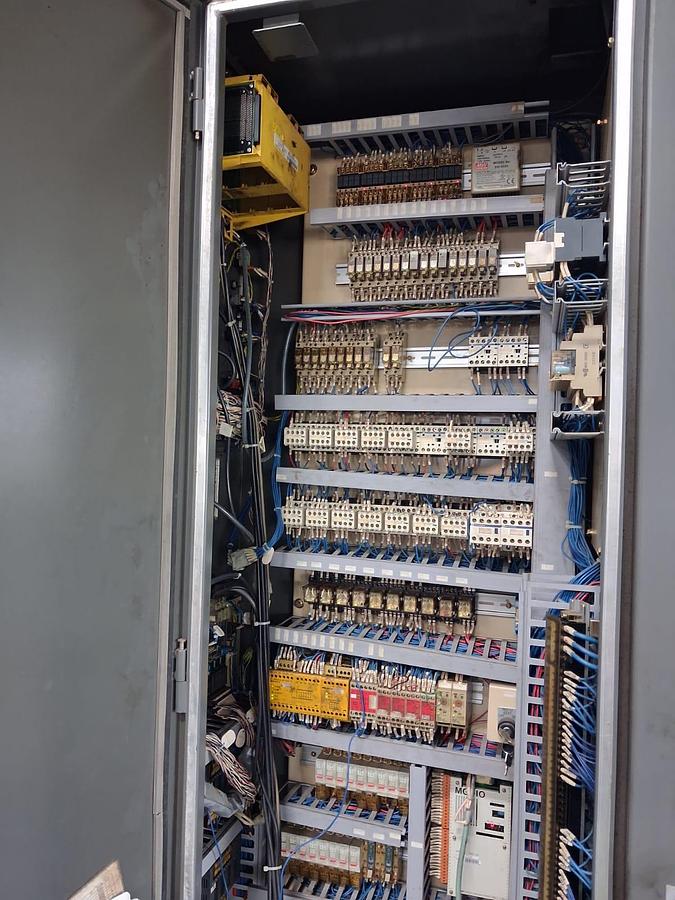

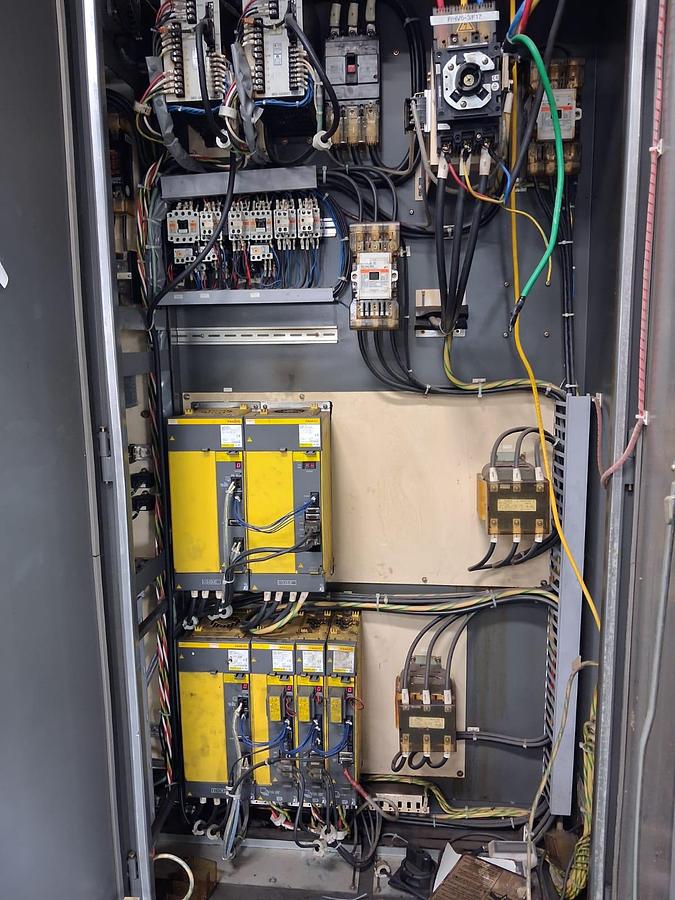

Manuals, Electrical Diagrams and CE Declaration
