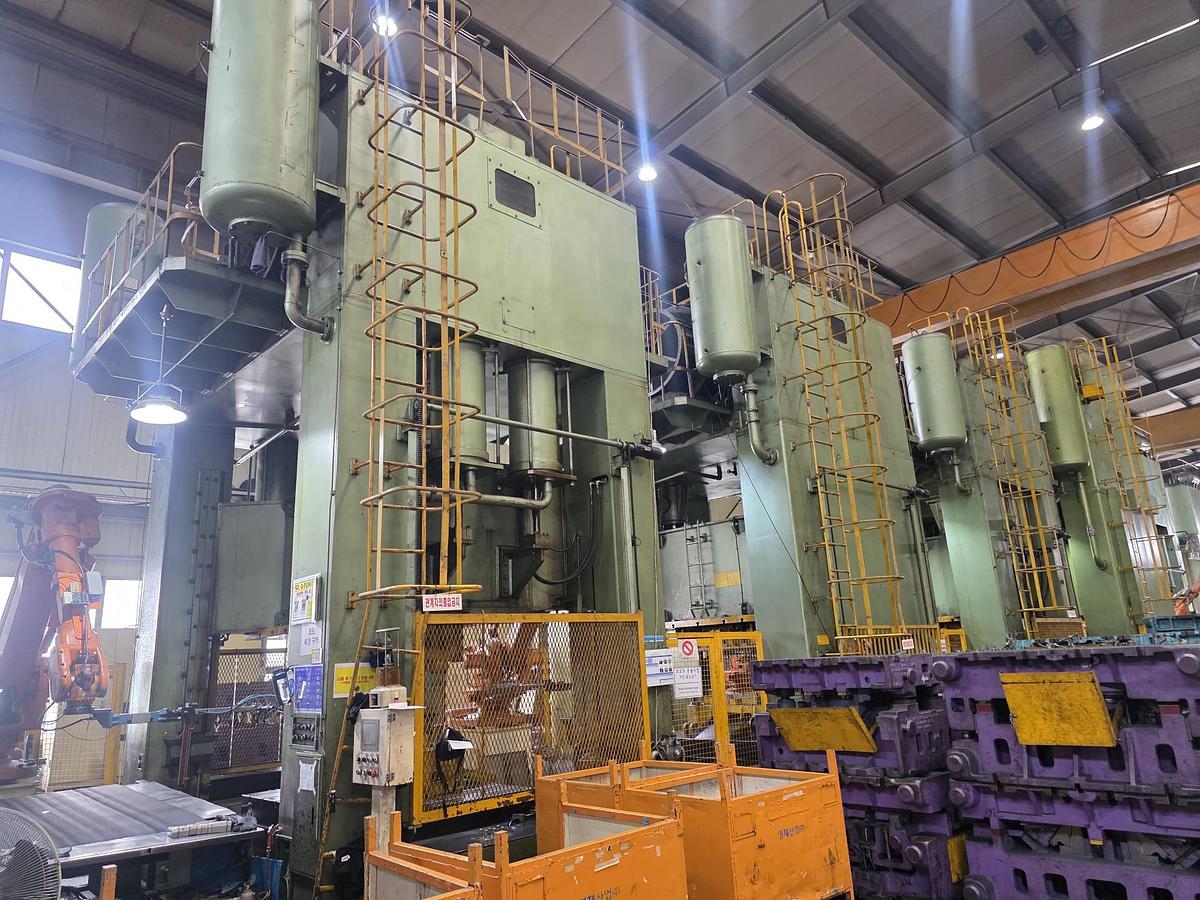

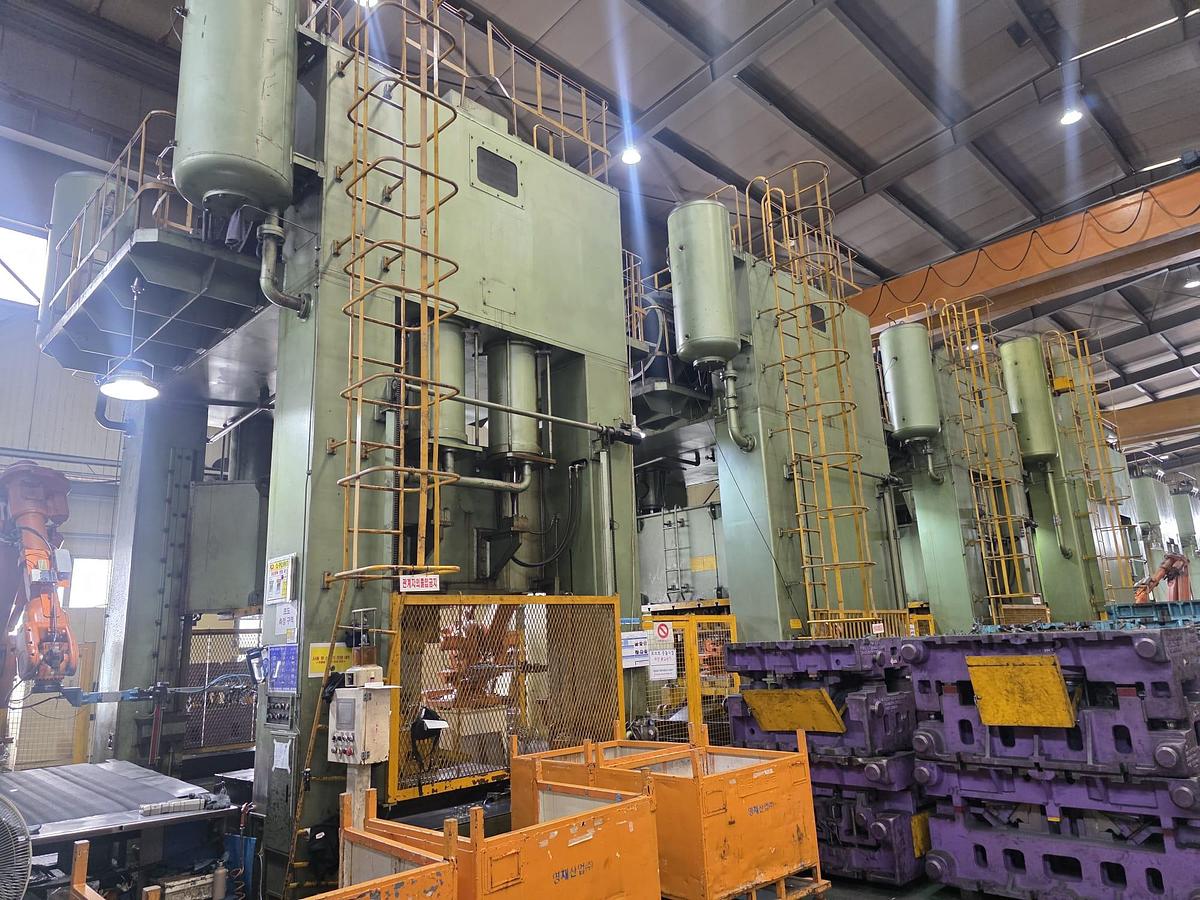

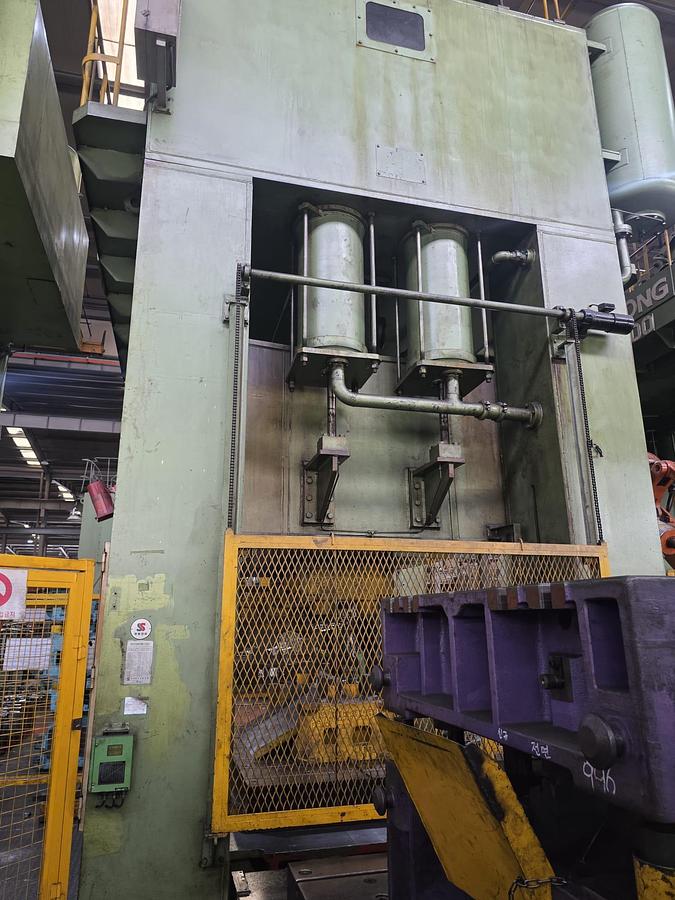

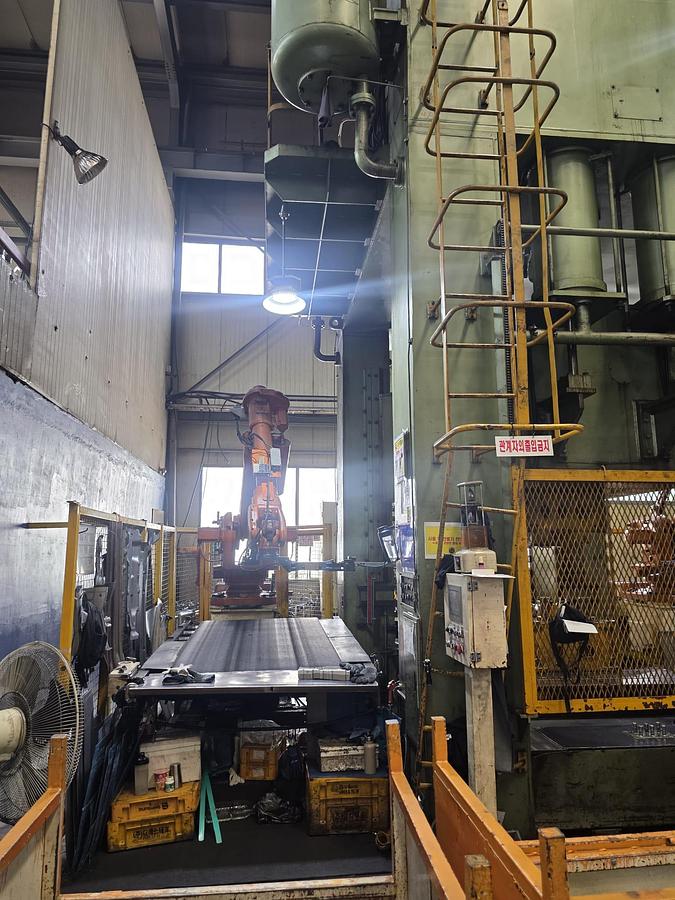

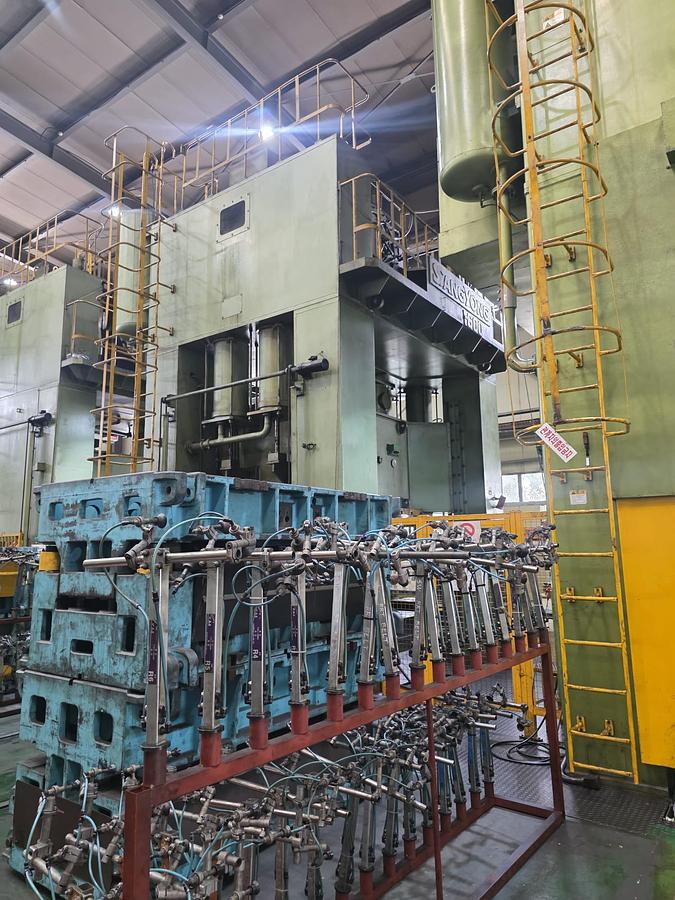

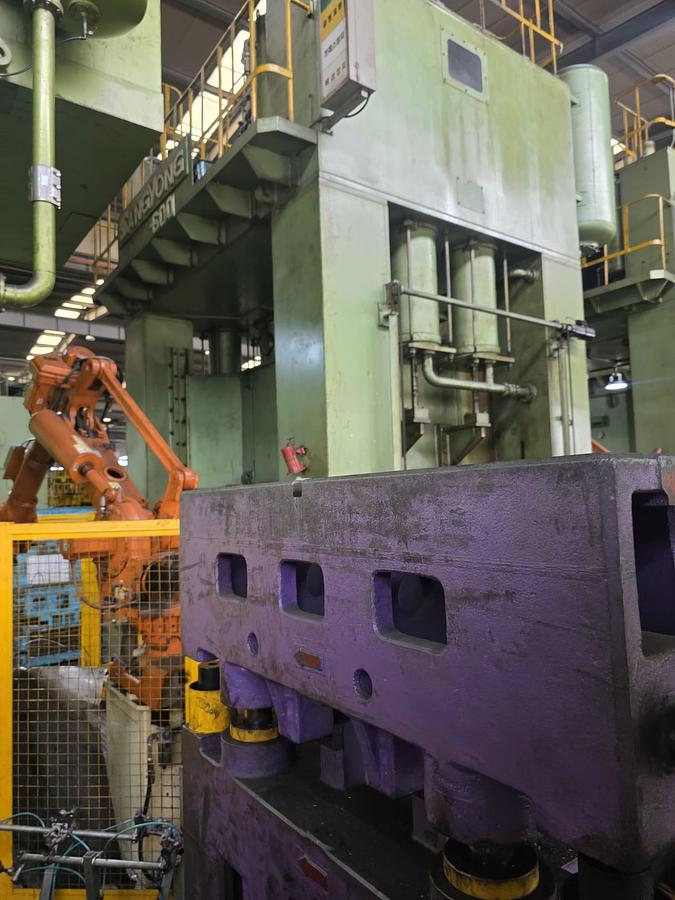

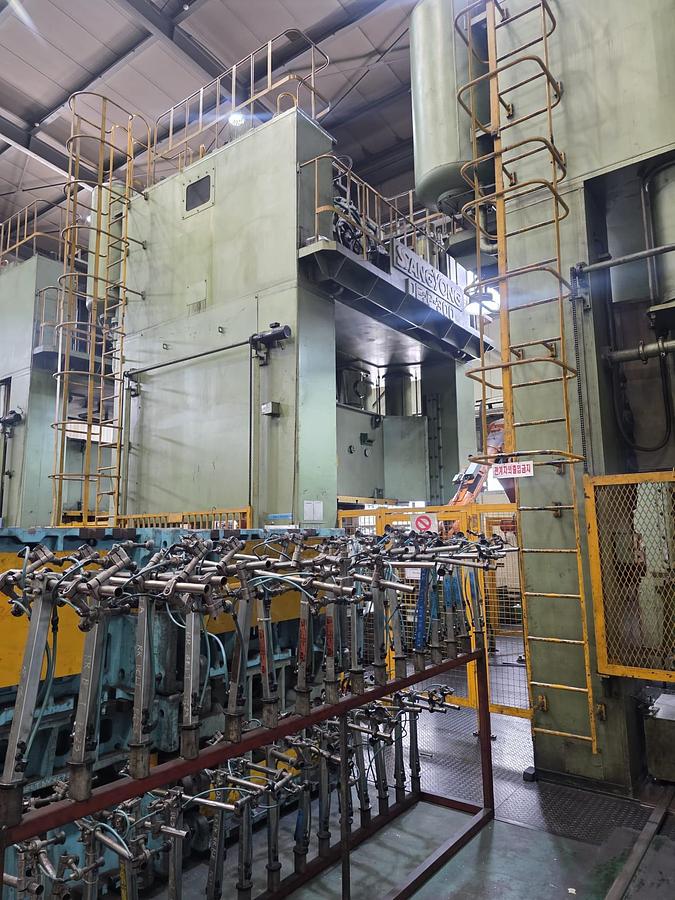

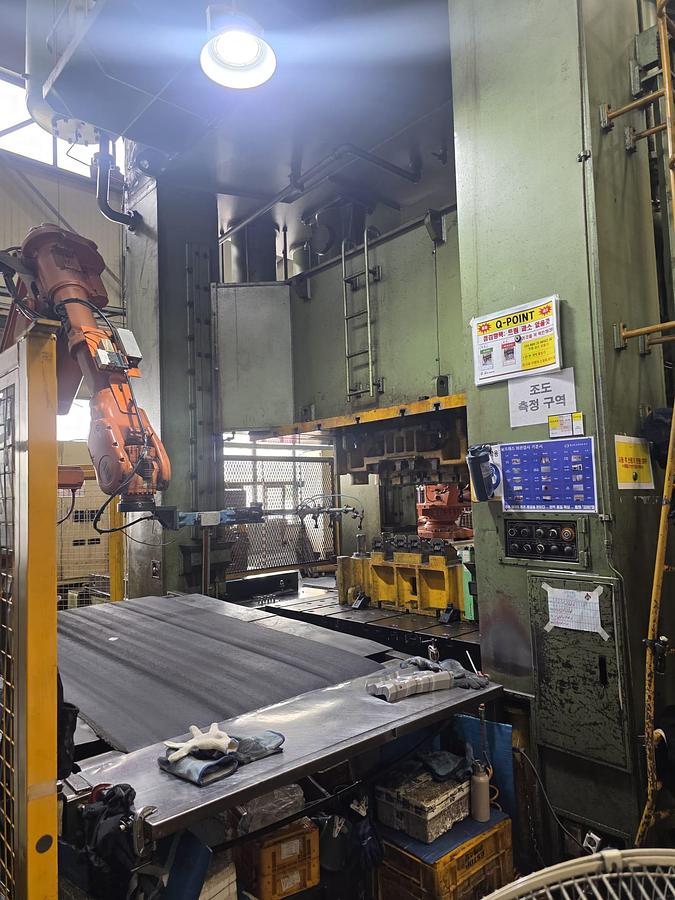

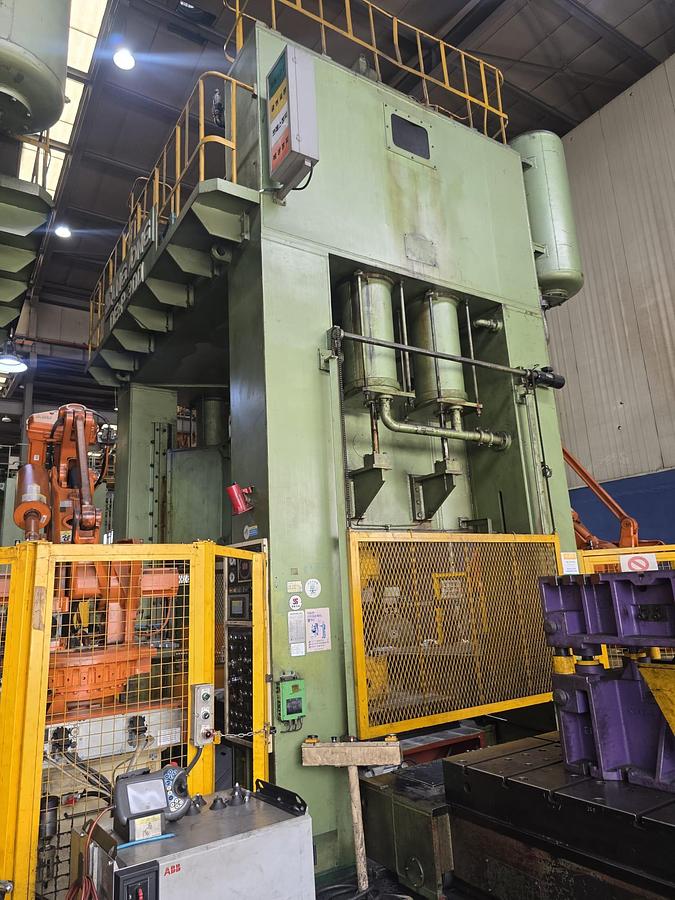

Sheet Stamping Line Mechanical 1200-300-600-300
Specifications
| Manufacturer | SIMPAC |
| Model | DE2P-1200 |
| Year | 2011 |
| Condition | Used |
| Stock Number | MA3536 |
| Item condition | Good working condition |
| Capacity tons | 1200 |
Description

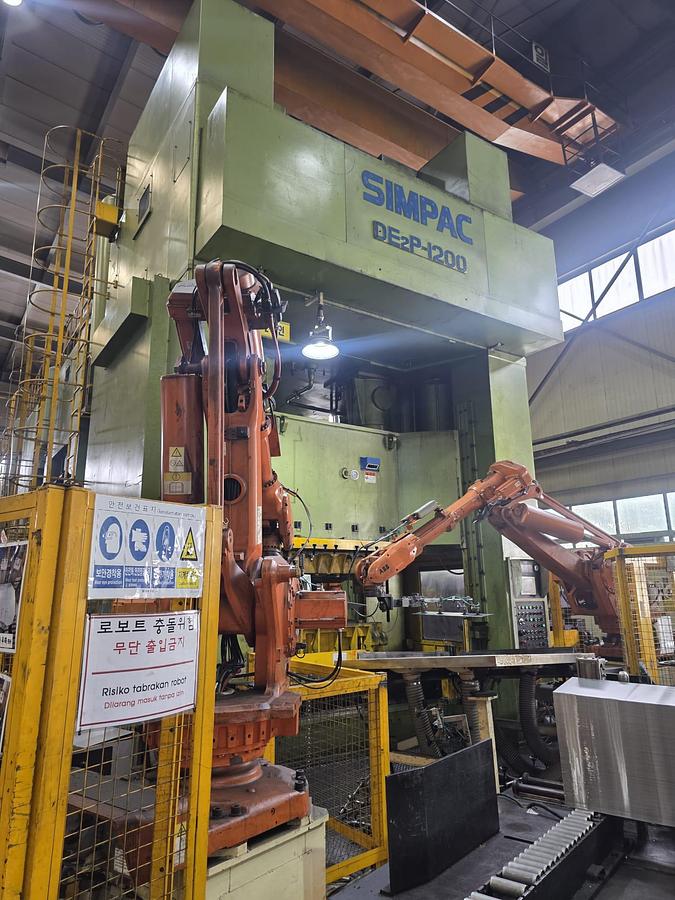

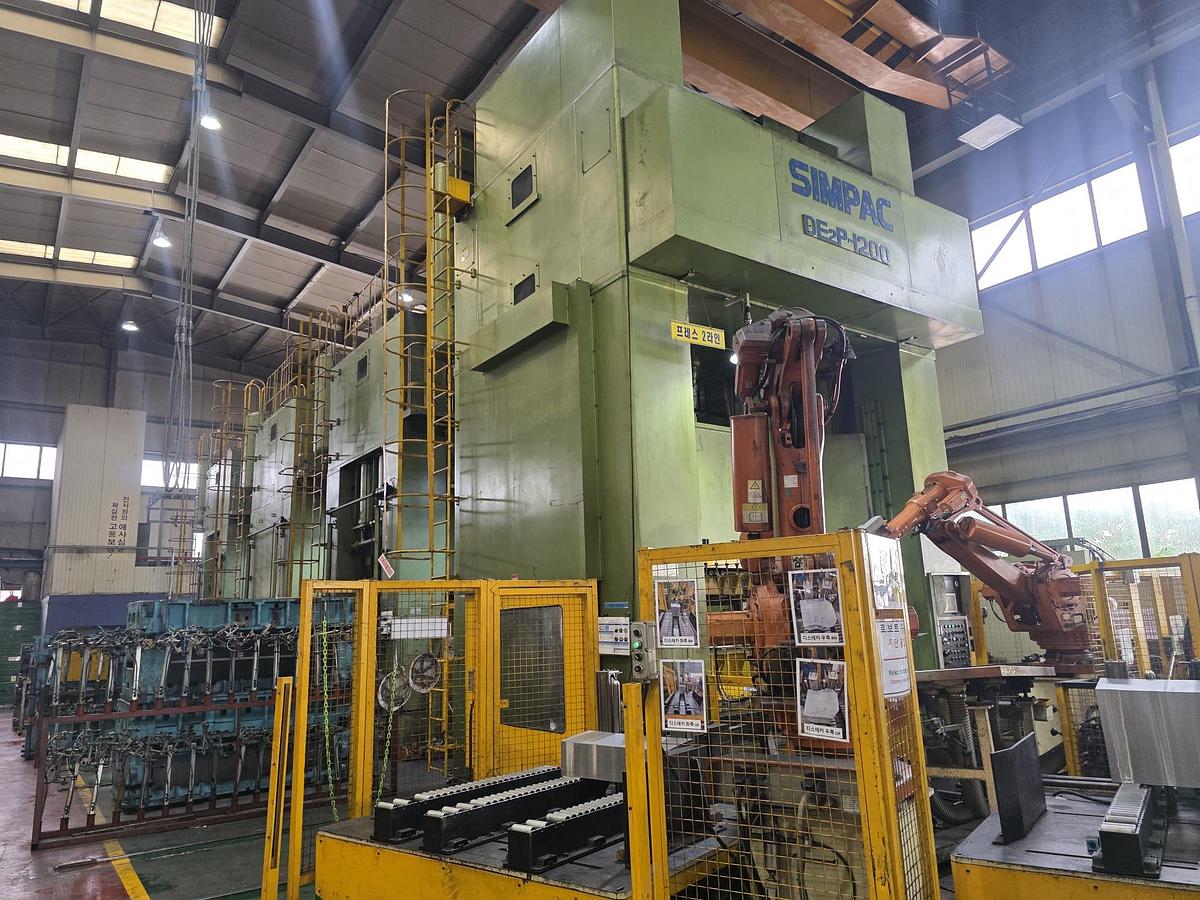

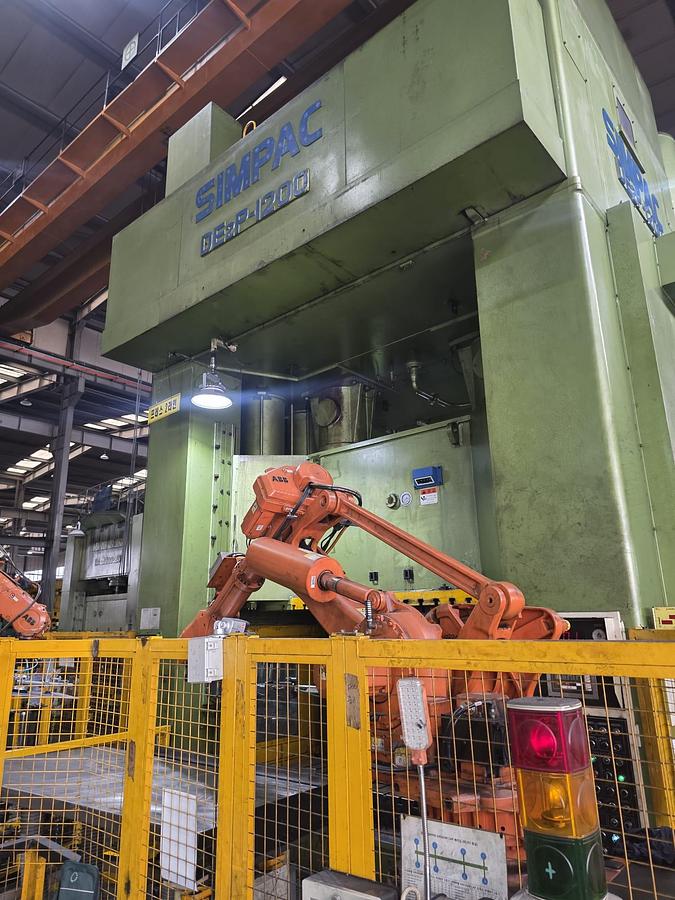

Line (1200-300-600-300 Ton)

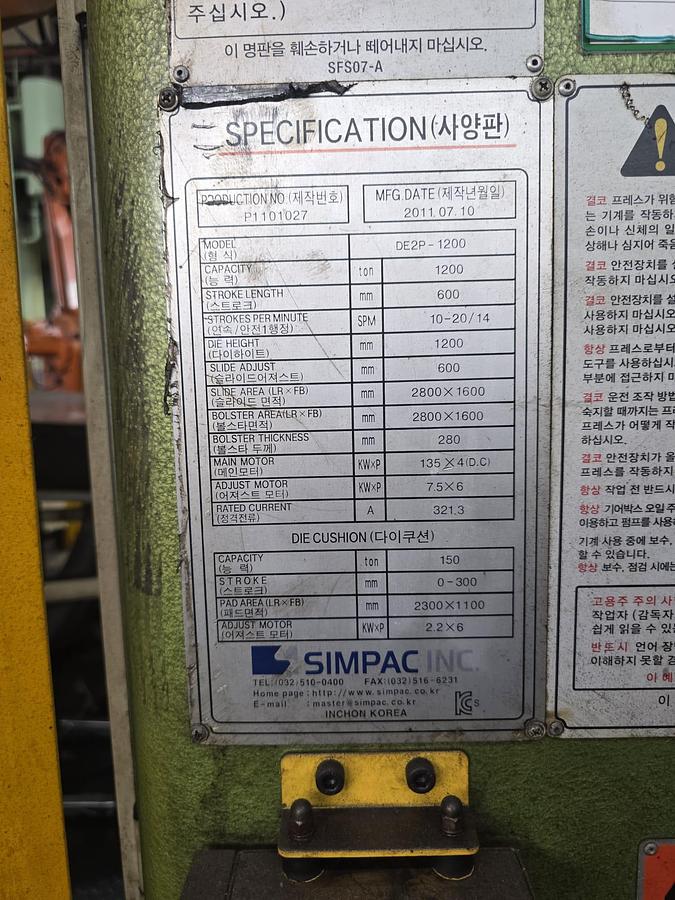

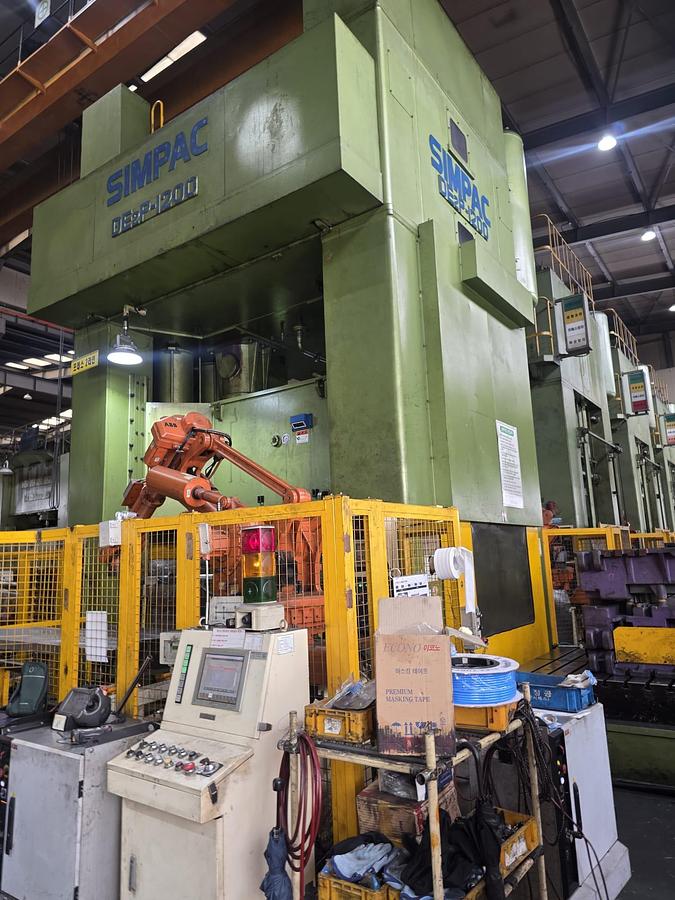

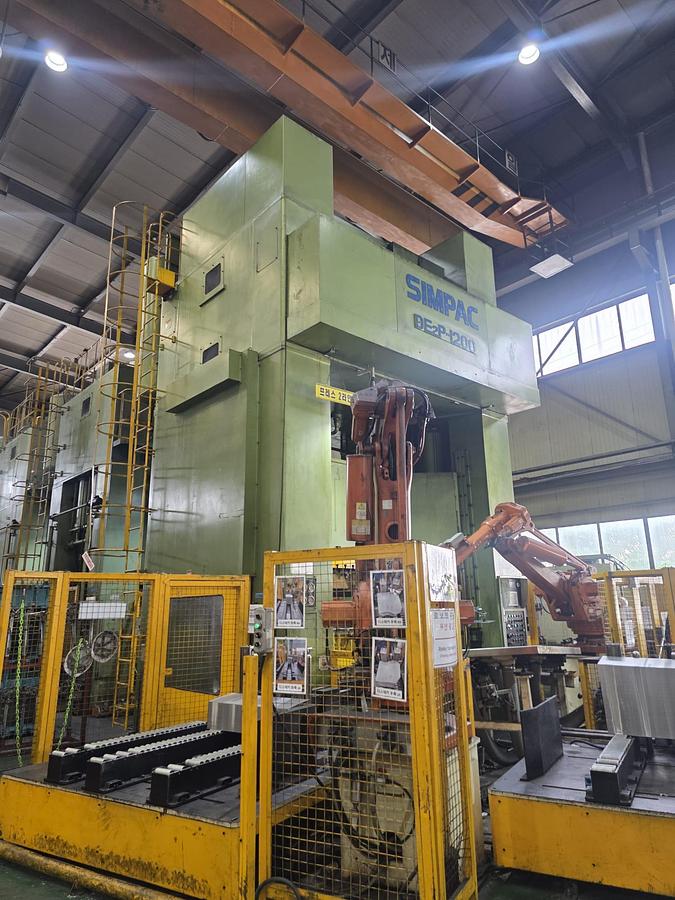

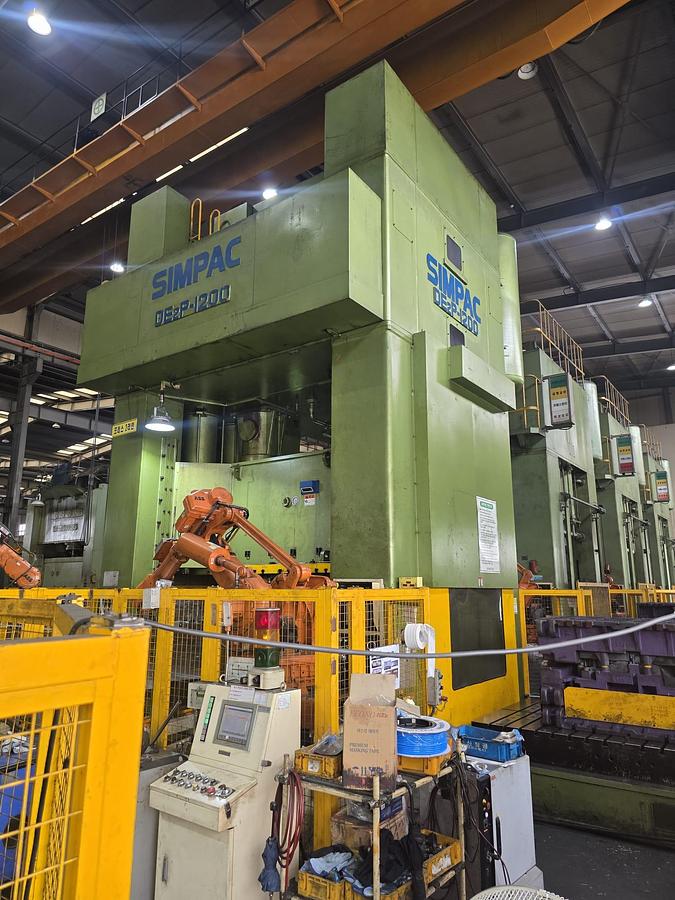

1. Capacity : 1200 tons,
Model : DE2P-1200,
Yom : 2011,
Slide stroke : 600 mm,
Die height : 1200 mm,
No. of stroke (SPM) : 10-20/14,
Slide adjustment : 600 mm,
Slide area : 2800 x 1600 mm,
Bolster area : 2800 x 1600 mm,
Bolster thickness : 280 mm,
Main motor : 135 x 4 (D.C) Kw x P,
Adjust motor : 7.5 x 6 Kw x P,
Rated current : 321.3 A
Die cushion
Capacity : 150 tons,
Stroke : 300 mm,
Pad area (LR x FB) : 2300 x 1100 mm,
Adjust motor : 2.2 x 6 KW x P.

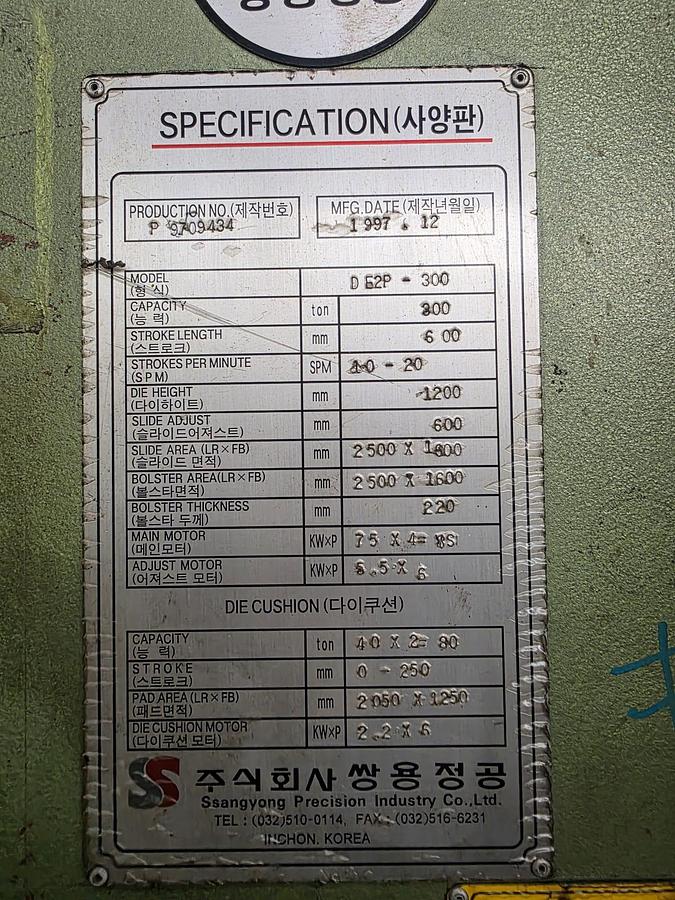

2. Capacity : 300 tons,
Model : DE2P-300,
Yom : 1997,
Slide stroke : 600 mm,
Die height : 1200 mm,
No. of stroke (SPM) : 10-20,
Slide adjustment : 600 mm,
Slide area : 2500 x 1600 mm,
Bolster area : 2500 x 1600 mm,
Bolster thickness : 220 mm,
Main motor : 75 x 4 Kw x P,
Adjust motor : 5.5 x 6 Kw x P,
Die cushion
Capacity : 40 x 2 = 80 tons,
Stroke : 250 mm,
Pad area (LR x FB) : 2050 x 1250 mm,
Adjust motor : 2.2 x 6 KW x P.

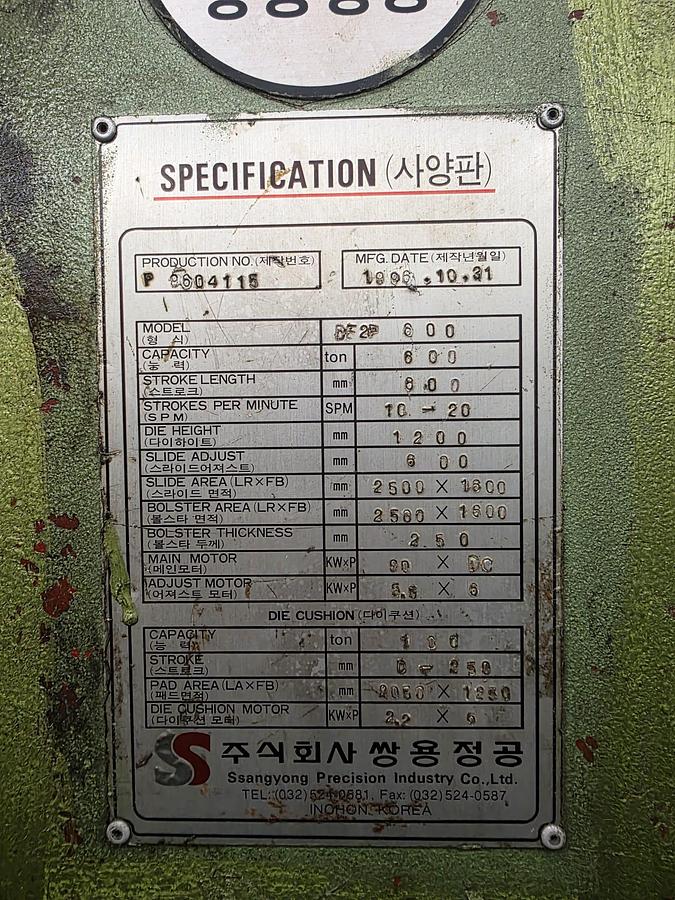

3. Capacity : 600 tons,
Model : DE2P-600,
Yom : 1996,
Slide stroke : 600 mm,
Die height : 1200 mm,
No. of stroke (SPM) : 10-20,
Slide adjustment : 600 mm,
Slide area : 2500 x 1600 mm,
Bolster area : 2500 x 1600 mm,
Bolster thickness : 250 mm,
Main motor : 90 x DC Kw x P,
Adjust motor : 5.5 x 6 Kw x P,
Die cushion
Capacity : 100 tons,
Stroke : 250 mm,
Pad area (LR x FB) : 2050 x 1250 mm,
Adjust motor : 2.2 x 6 KW x P.

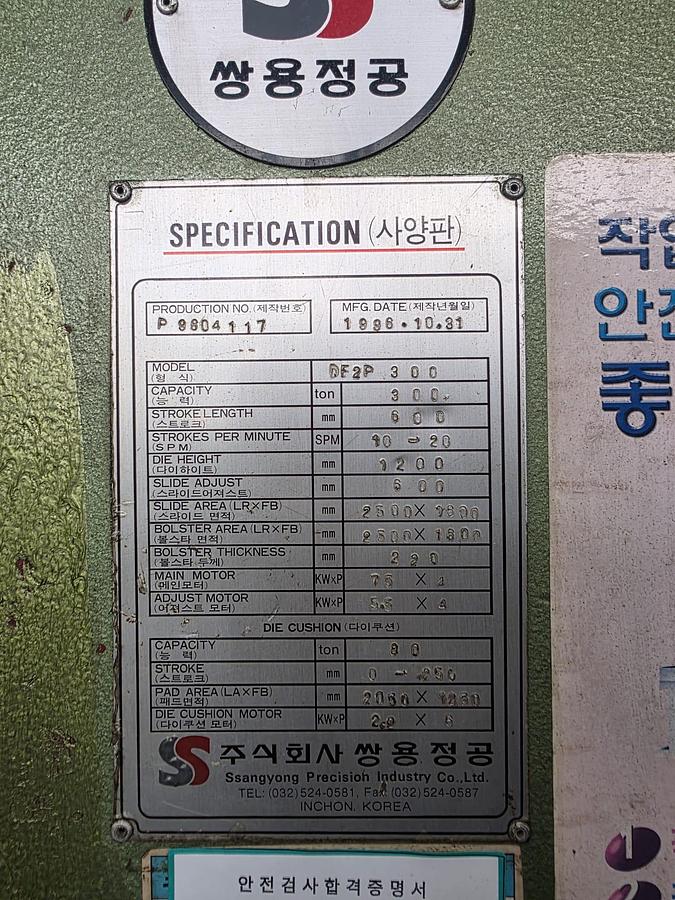

4. Capacity : 300 tons,
Model : DE2P-300,
Yom : 1996,
Slide stroke : 600 mm,
Die height : 1200 mm,
No. of stroke (SPM) : 10-20,
Slide adjustment : 600 mm,
Slide area : 2500 x 1600 mm,
Bolster area : 2500 x 1600 mm,
Bolster thickness : 220 mm,
Main motor : 75x 4 Kw x P,
Adjust motor : 5.5 x 4 Kw x P,
Die cushion
Capacity : 80 tons,
Stroke : 250 mm,
Pad area (LR x FB) : 2050 x 1250 mm,
Adjust motor : 2.2 x 6 KW x P.
