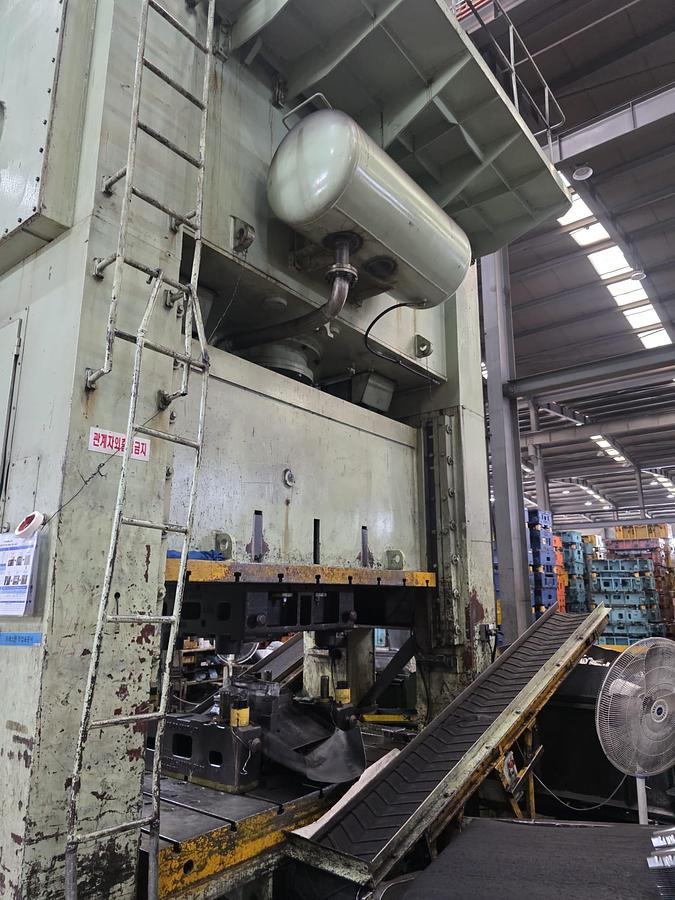

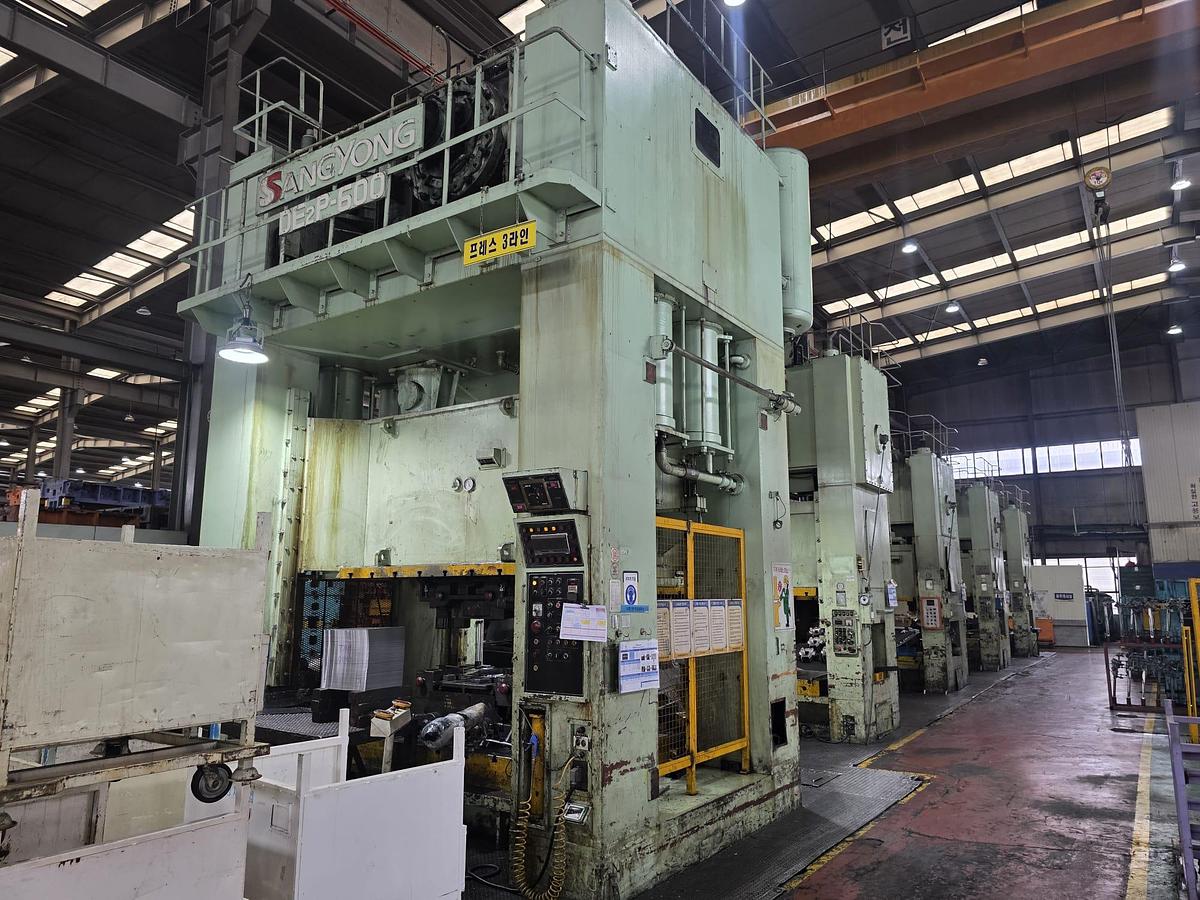

Sheet Stamping Line Mechanical DE2P-600
Specifications
| Manufacturer | Ssangyong |
| Model | DE2P-600 |
| Year | 2011 |
| Condition | Used |
| Stock Number | MA3539 |
| Item condition | Good working condition |
| Capacity tons | 600 |
Description
Line (600-500-400-400-400 Ton)

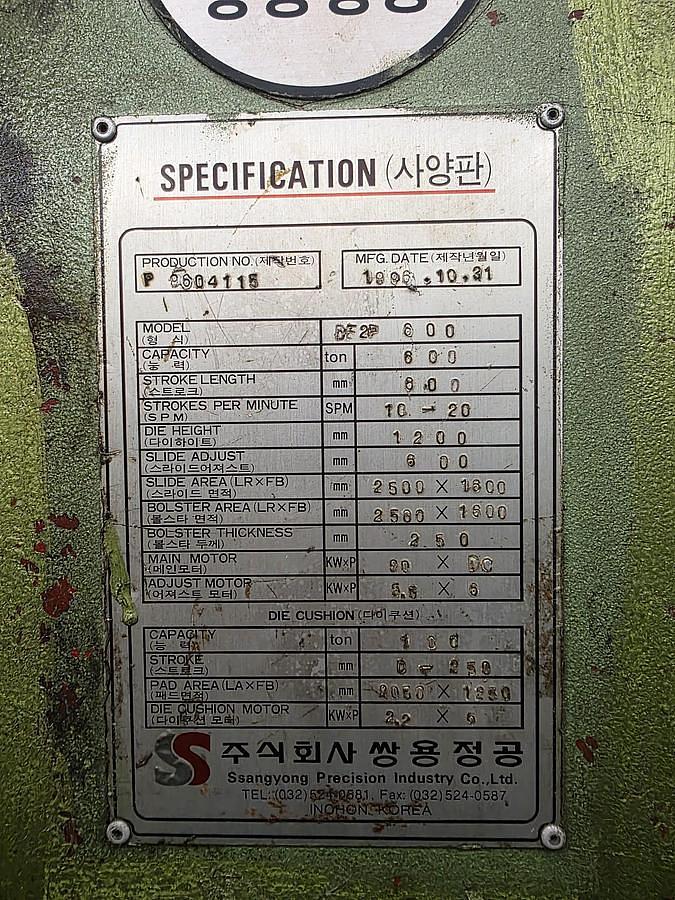

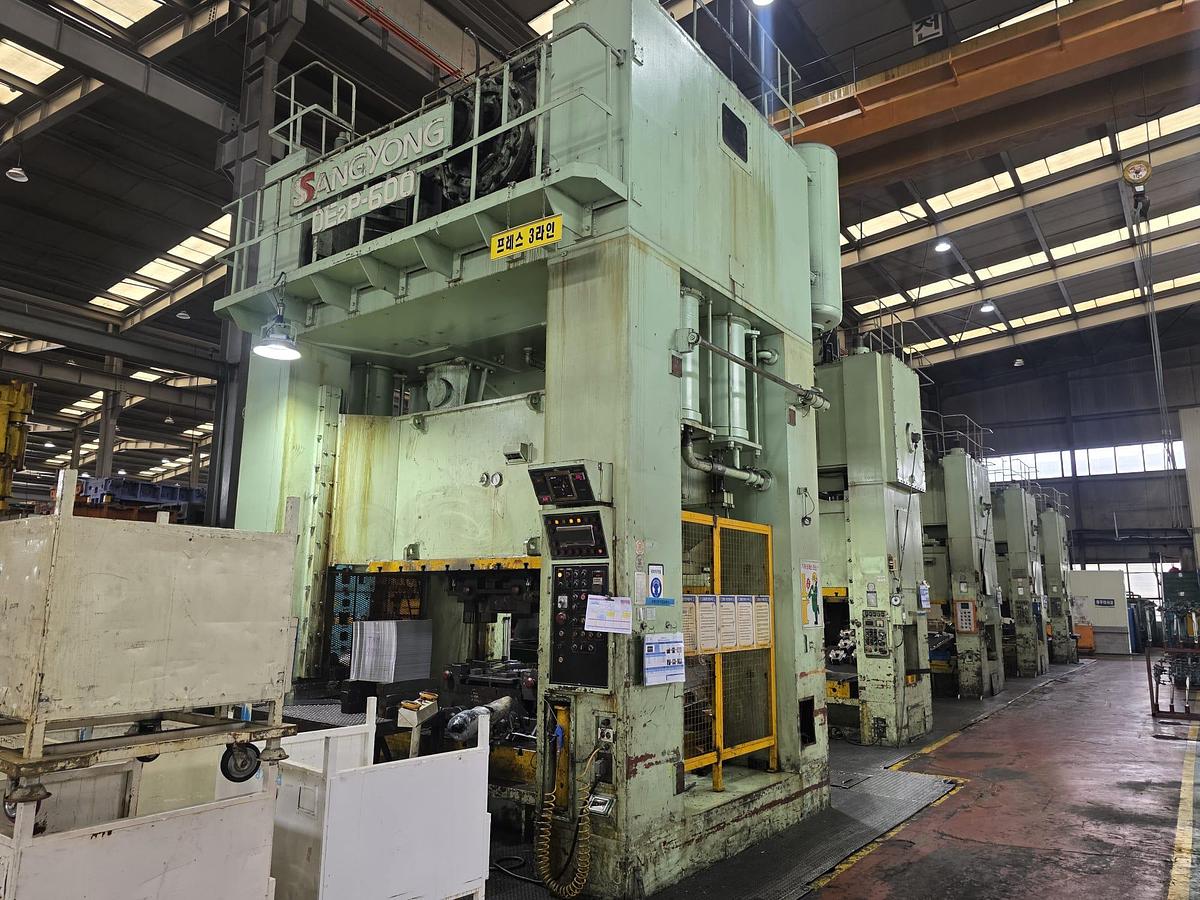

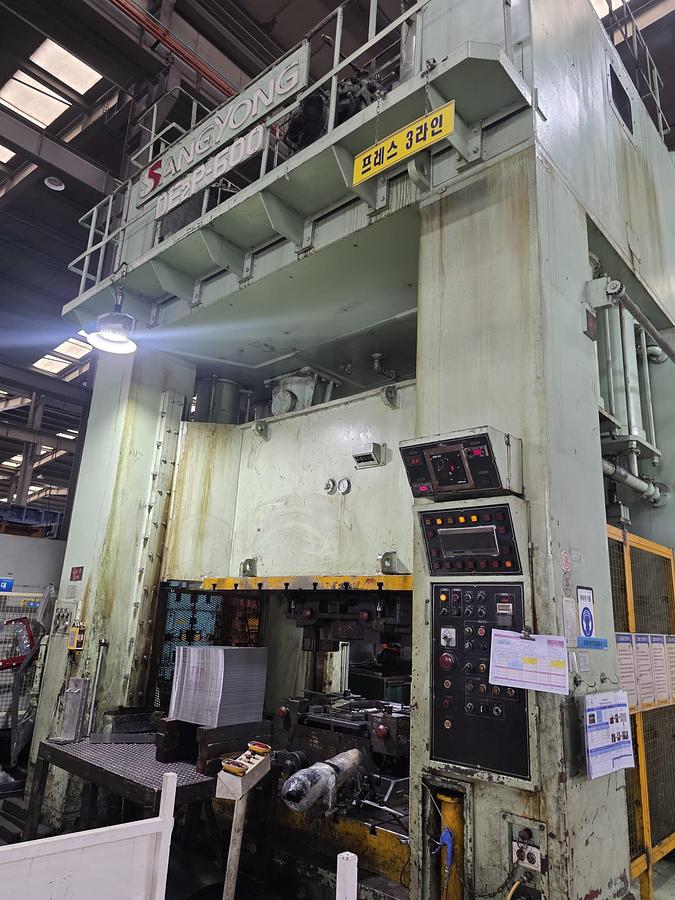

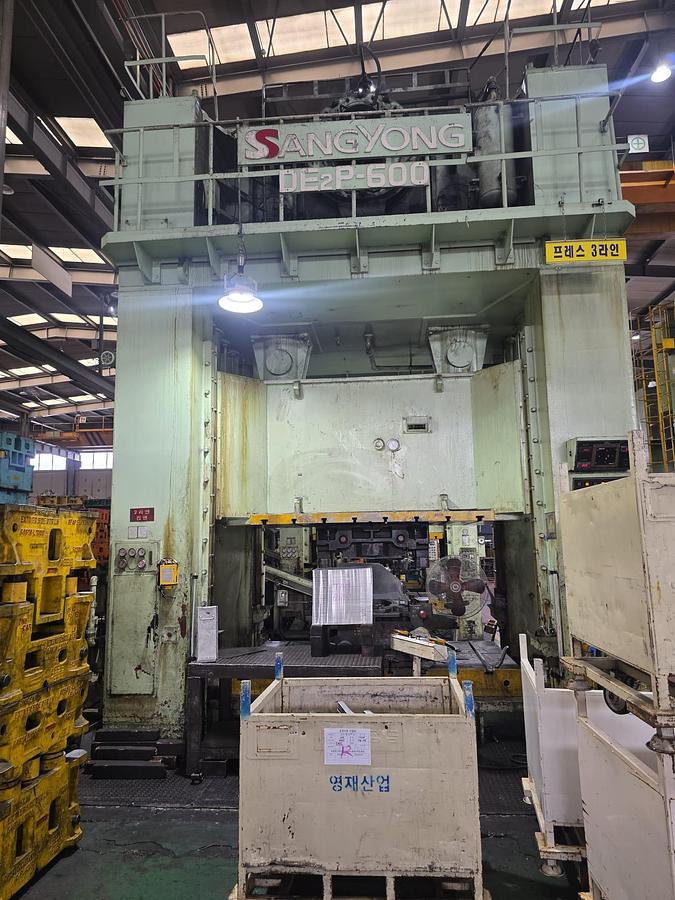

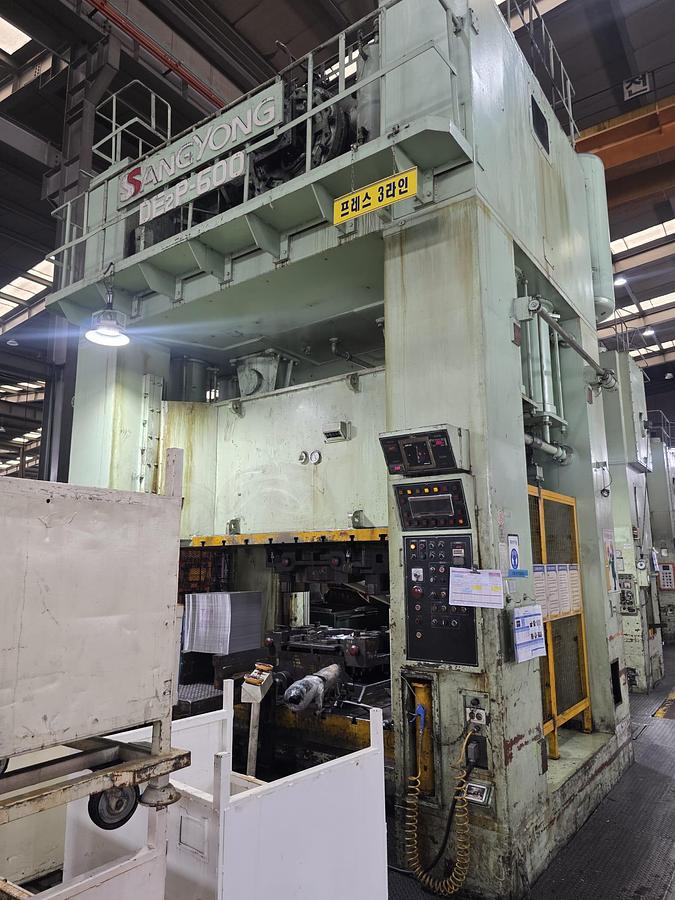

1. Capacity : 600 tons,
Model : DE2P-600,
Yom : 1996,
Slide stroke : 600 mm,
Die height : 1200 mm,
No. of stroke (SPM) : 10-20,
Slide adjustment : 600 mm,
Slide area : 2500 x 1600 mm,
Bolster area : 2500 x 1600 mm,
Bolster thickness : 250 mm,
Main motor : 90 x DC Kw x P,
Adjust motor : 5.5 x 6 Kw x P,
Die cushion
Capacity : 100 tons,
Stroke : 250 mm,
Pad area (LR x FB) : 2050 x 1250 mm,
Adjust motor : 2.2 x 6 KW x P.

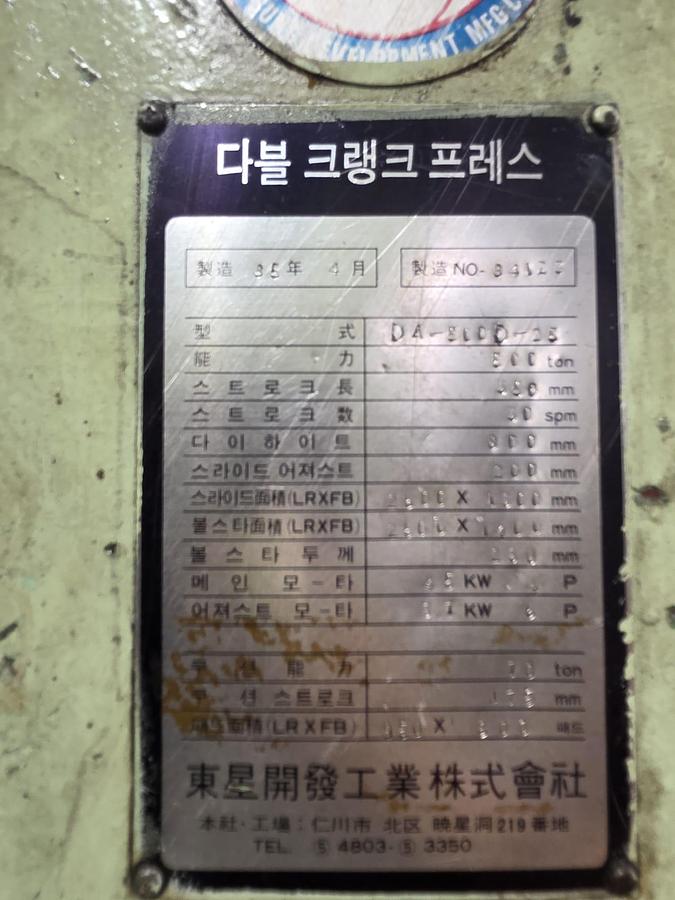

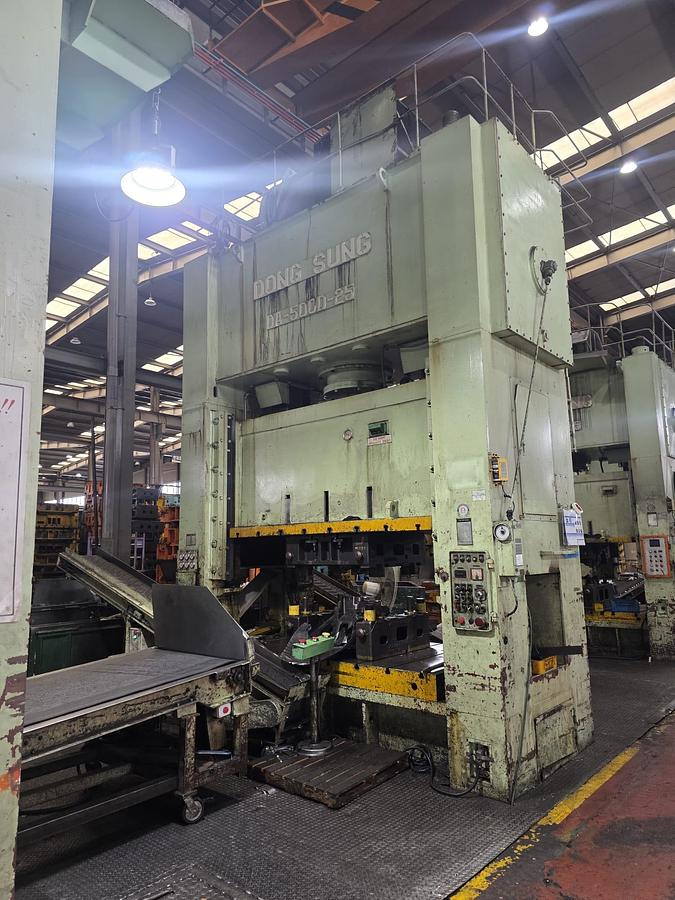

2. Capacity : 500 tons,
Model : DA-500D-25,
Slide stroke : 350 mm,
Die height : 800 mm,
No. of stroke (SPM) : 30,
Slide adjustment : 600 mm,
Slide area : 2500 x 1600 mm,
Bolster area : 2500 x 1600 mm,
Bolster thickness : 250 mm,
Main motor : 35 x 4 Kw x P,
Adjust motor : 3.7 x 6 Kw x P,
Rated current : 321.3 A
Die cushion
Capacity : 70 tons,
Stroke : 150 mm,
Pad area (LR x FB) : 350 x 300 mm,

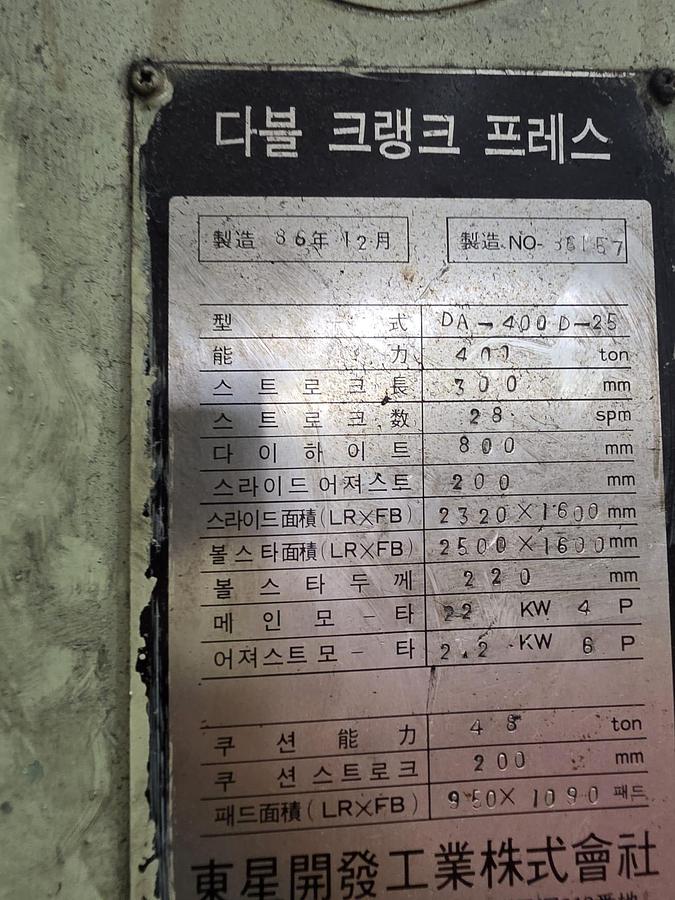

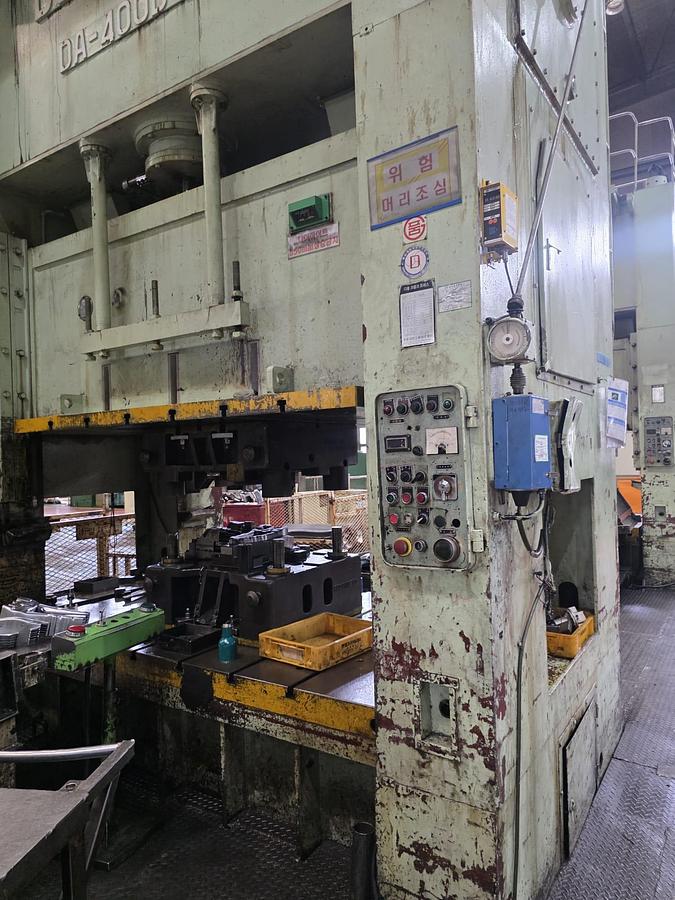

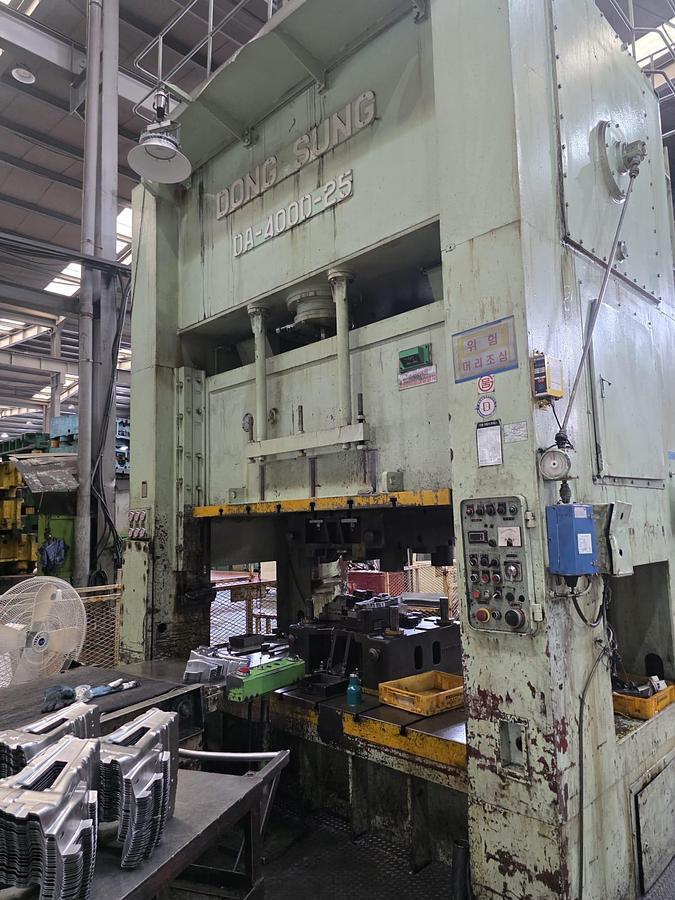

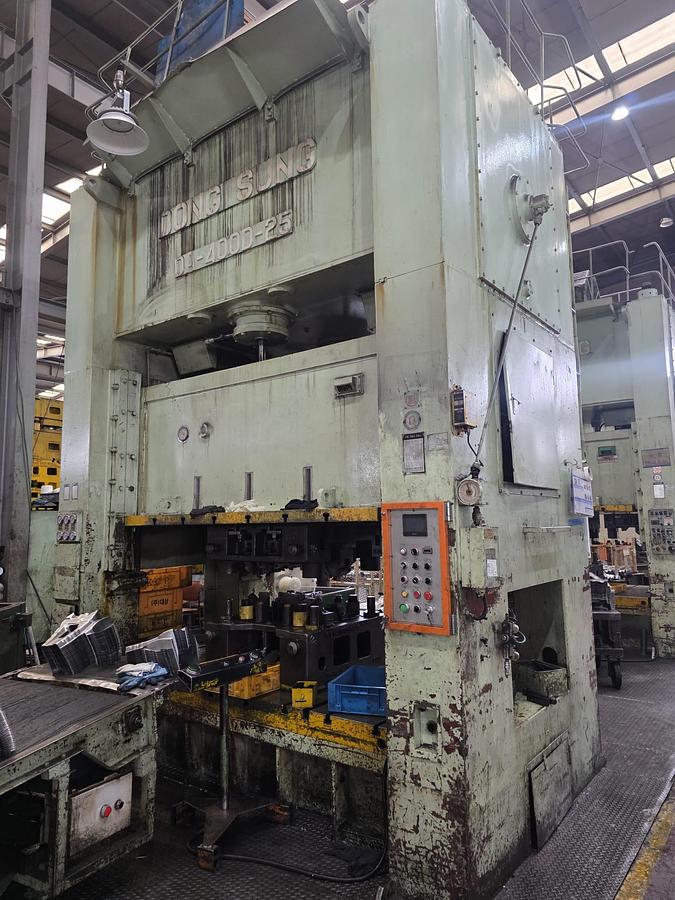

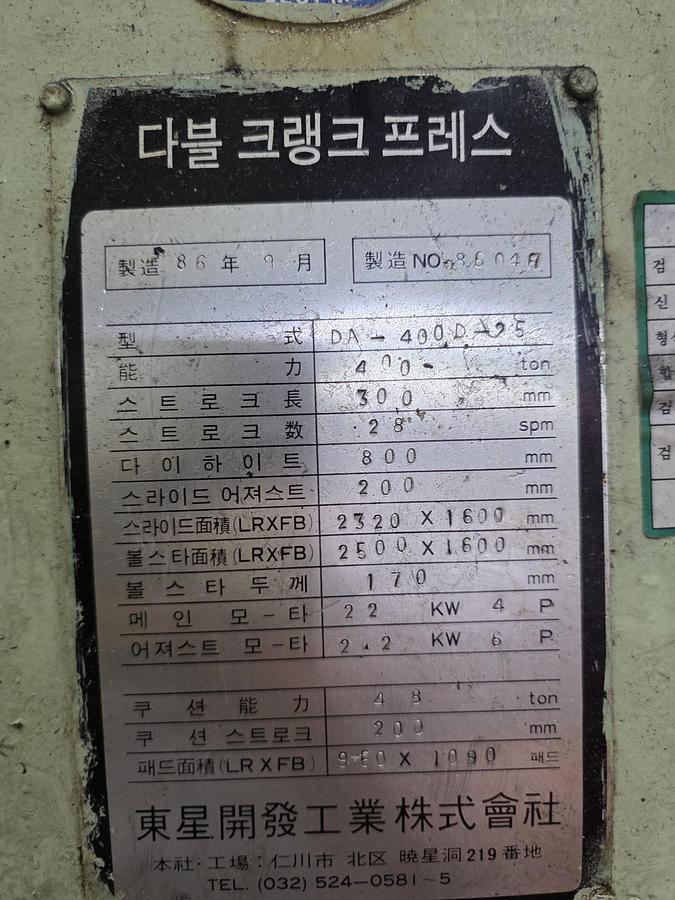

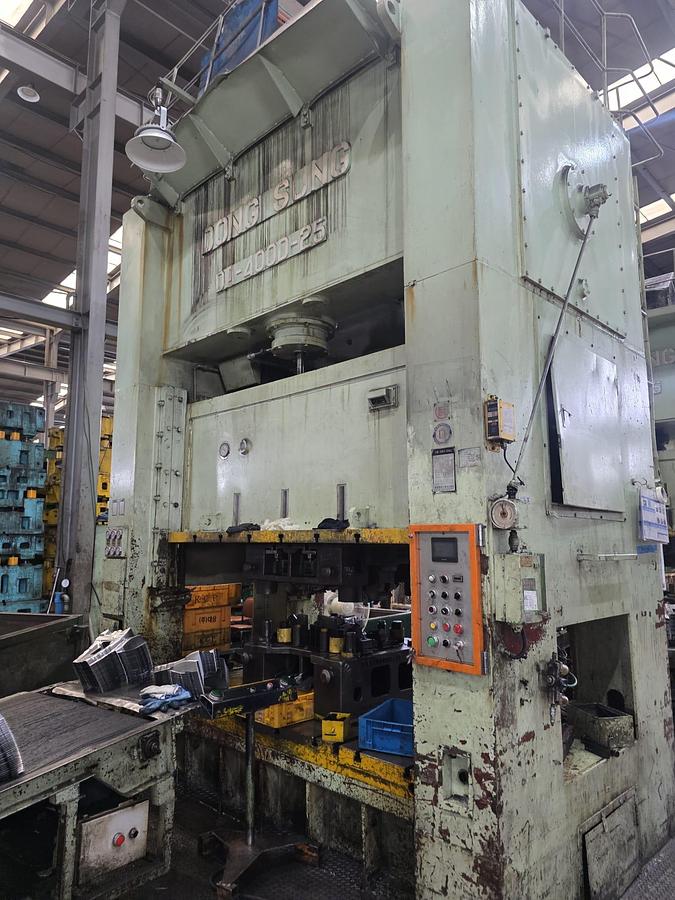

3. Capacity : 400 tons,
Model : DA-400D-25,
Slide stroke : 300 mm,
Die height : 800 mm,
No. of stroke (SPM) : 28,
Slide adjustment : 200 mm,
Slide area : 2320 x 1600 mm,
Bolster area : 2500 x 1600 mm,
Bolster thickness : 170 mm,
Main motor : 22 x 4 Kw x P,
Adjust motor : 2.2 x 6 Kw x P,
Die cushion
Capacity : 48 tons,
Stroke : 200 mm,
Pad area (LR x FB) : 950 x 1090 mm,

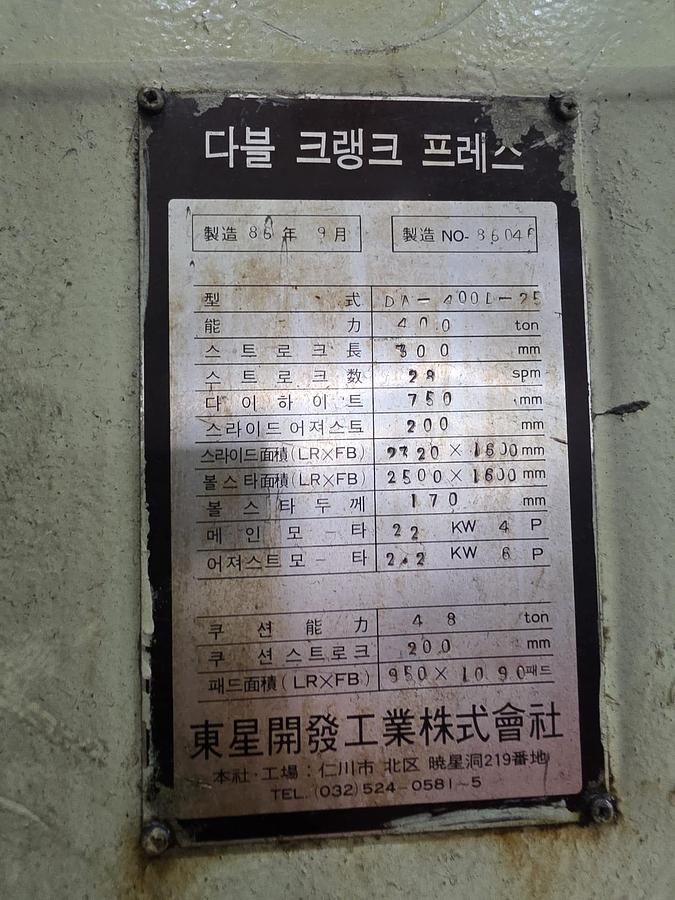

4. Capacity : 400 tons,
Model : DA-400D-25,
Slide stroke : 300 mm,
Die height : 800 mm,
No. of stroke (SPM) : 28,
Slide adjustment : 200 mm,
Slide area : 2320 x 1600 mm,
Bolster area : 2500 x 1600 mm,
Bolster thickness : 170 mm,
Main motor : 22 x 4 Kw x P,
Adjust motor : 2.2 x 6 Kw x P,
Die cushion
Capacity : 48 tons,
Stroke : 200 mm,
Pad area (LR x FB) : 950 x 1090 mm,
5. Capacity : 400 tons,
Model : DA-400D-25,
Slide stroke : 300 mm,
Die height : 800 mm,
No. of stroke (SPM) : 28,
Slide adjustment : 200 mm,
Slide area : 2320 x 1600 mm,
Bolster area : 2500 x 1600 mm,
Bolster thickness : 170 mm,
Main motor : 22 x 4 Kw x P,
Adjust motor : 2.2 x 6 Kw x P,
Die cushion
Capacity : 48 tons,
Stroke : 200 mm,
Pad area (LR x FB) : 950 x 1090 mm,
