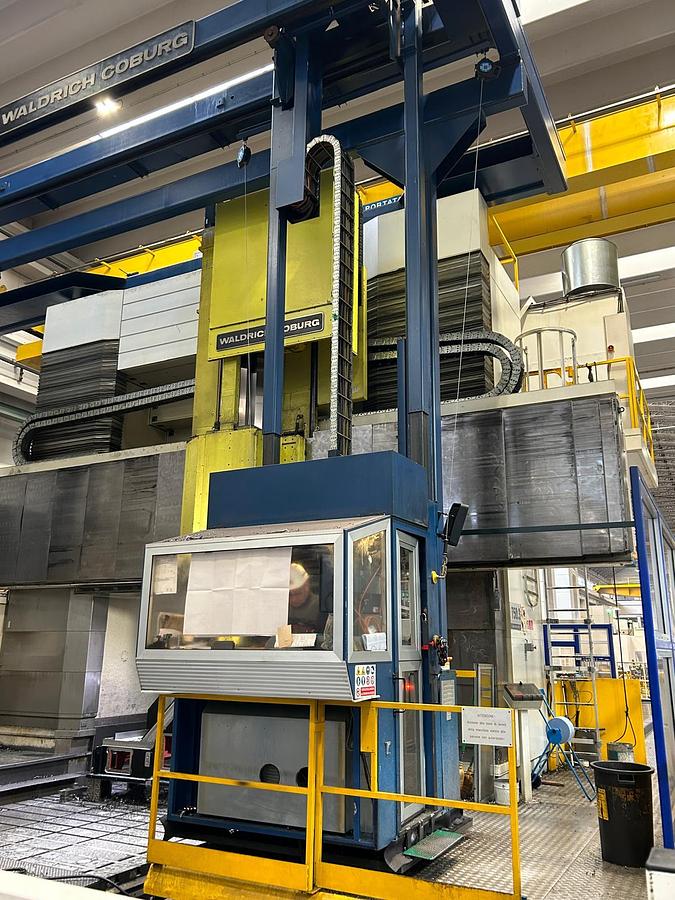

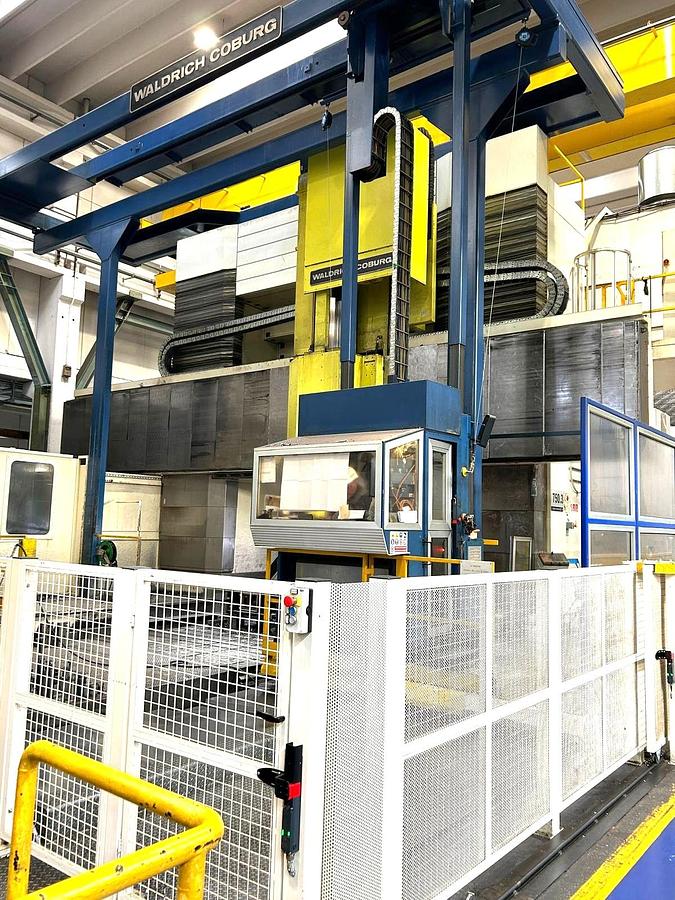

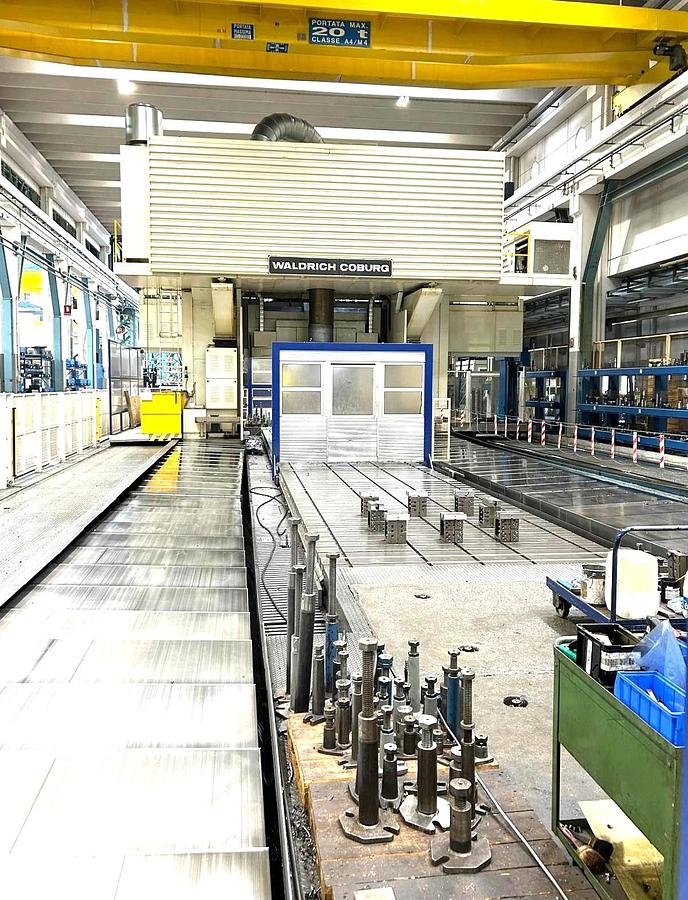

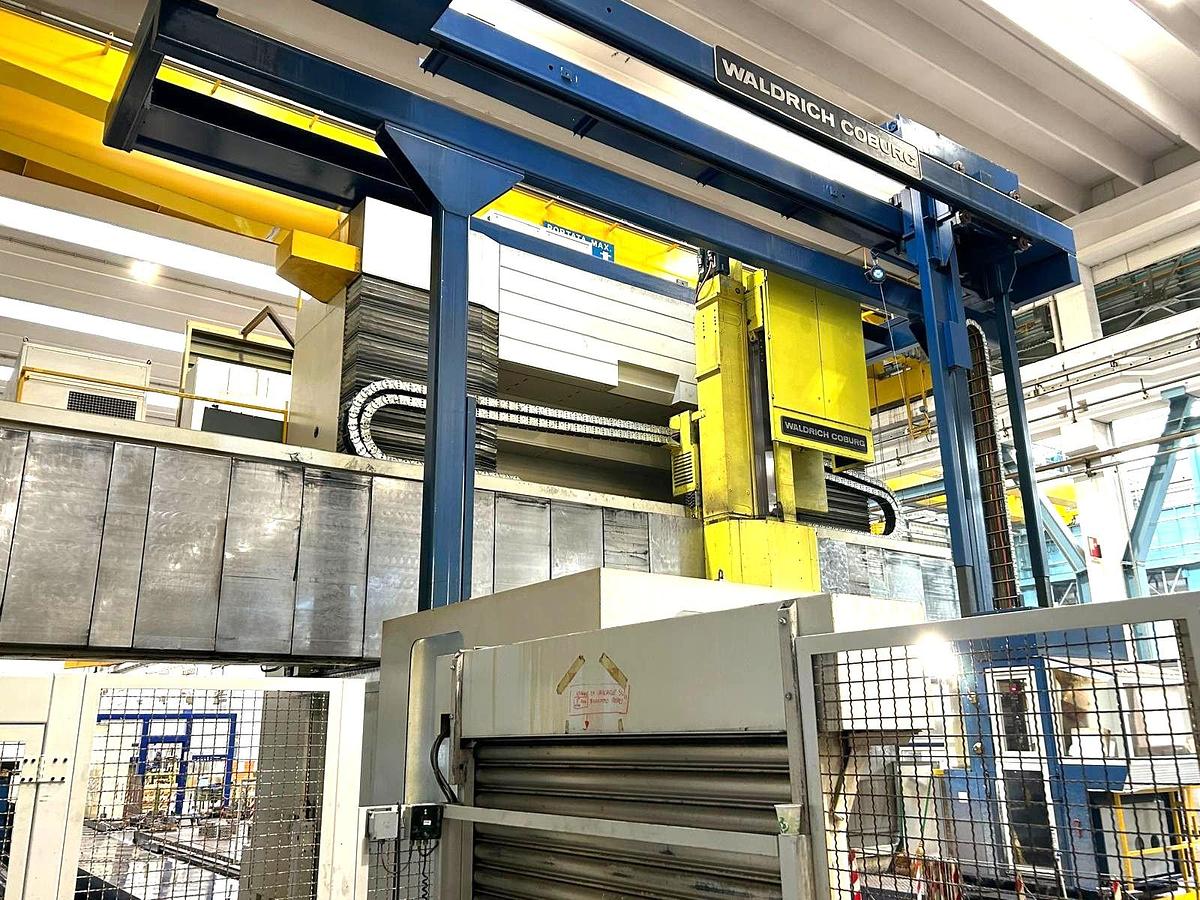

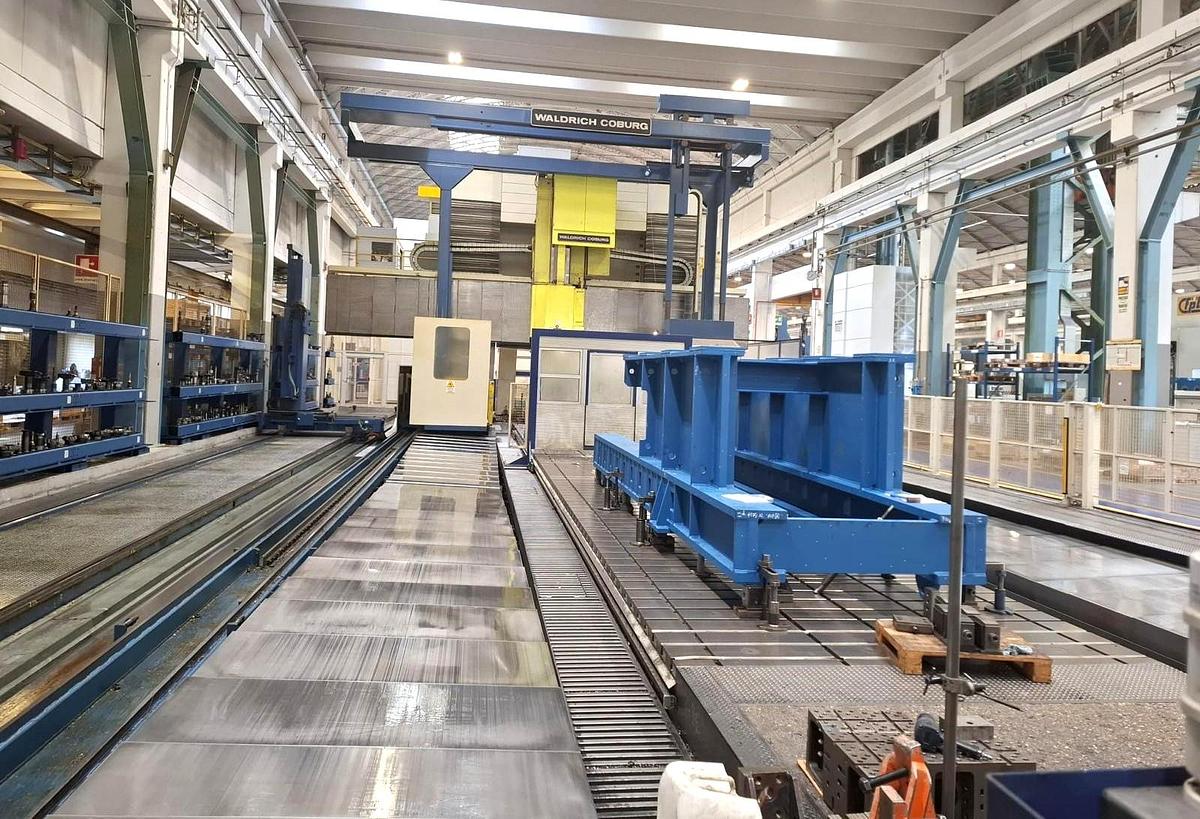

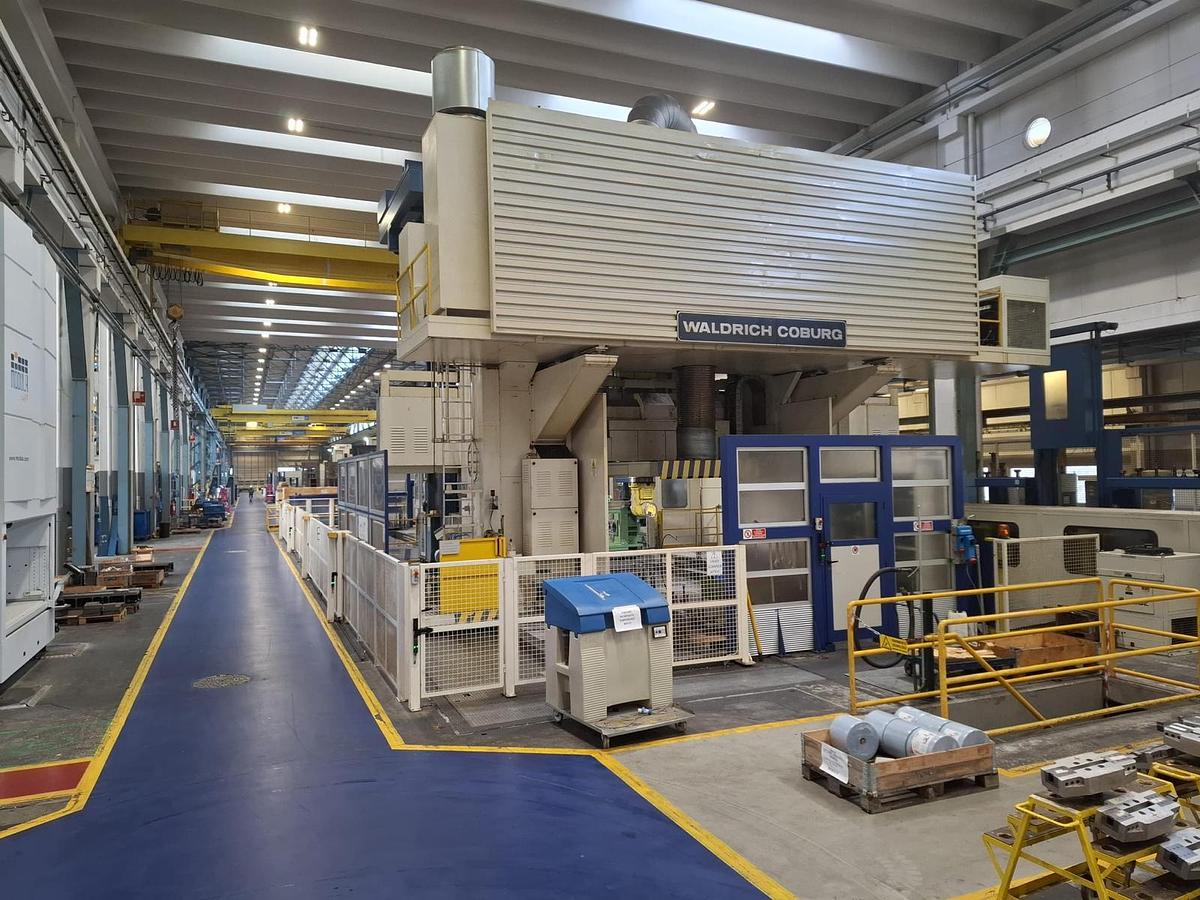

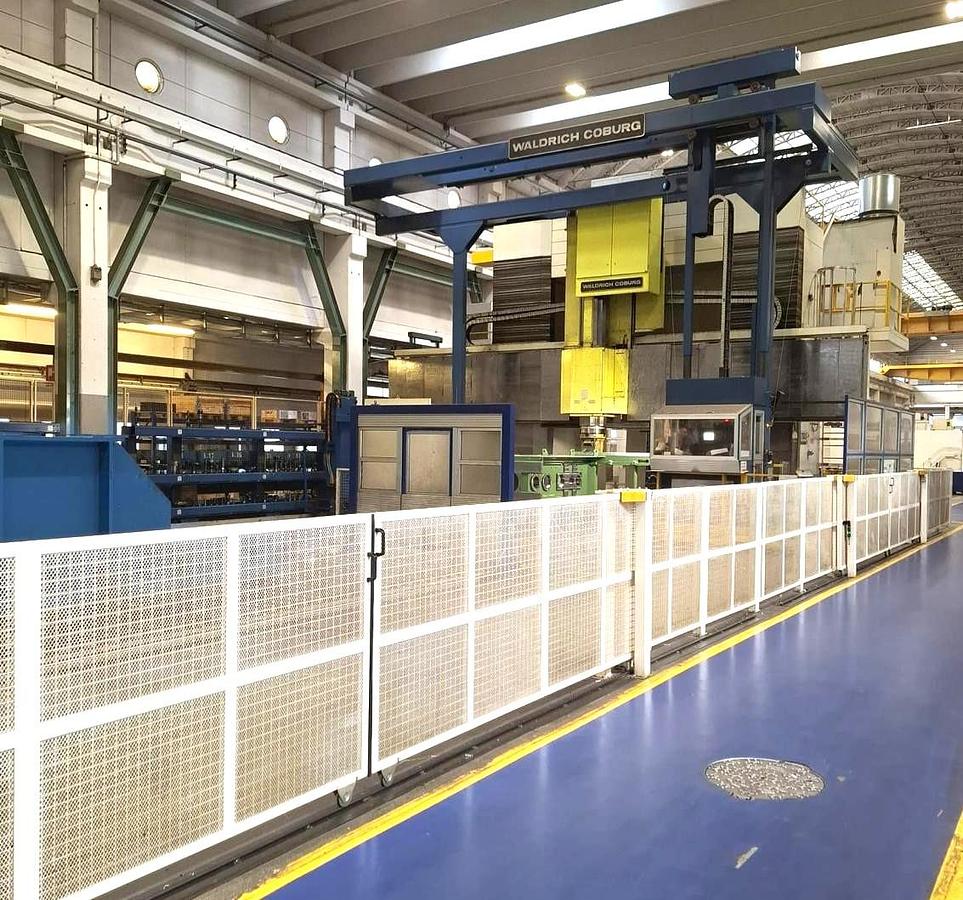

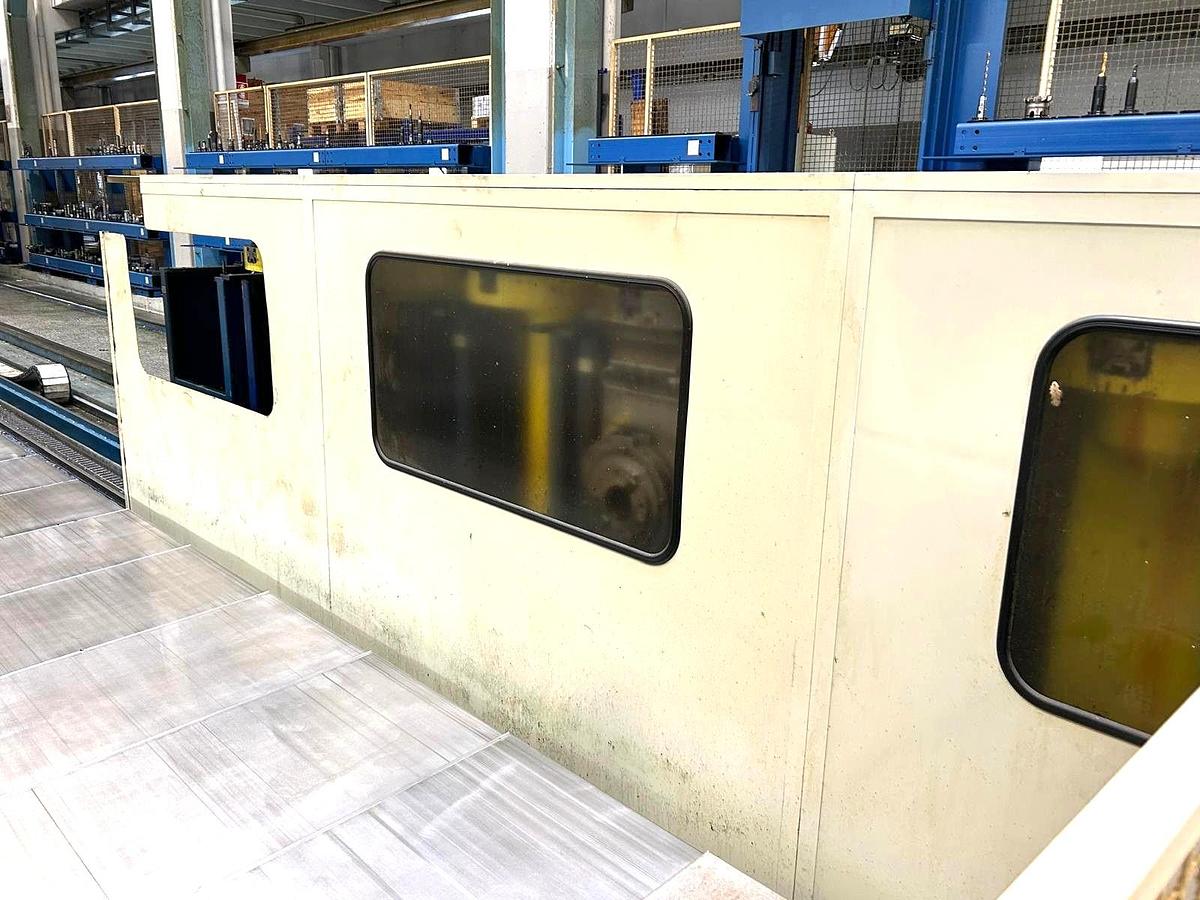

Plano Miller CNC Waldrich Coburg

CNC  Gentry Milling machine

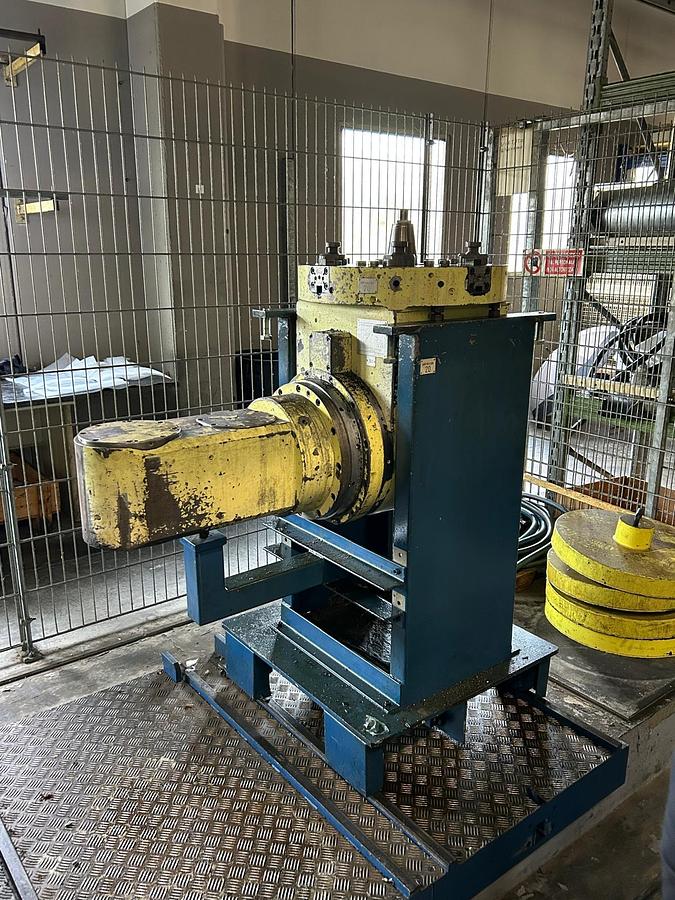

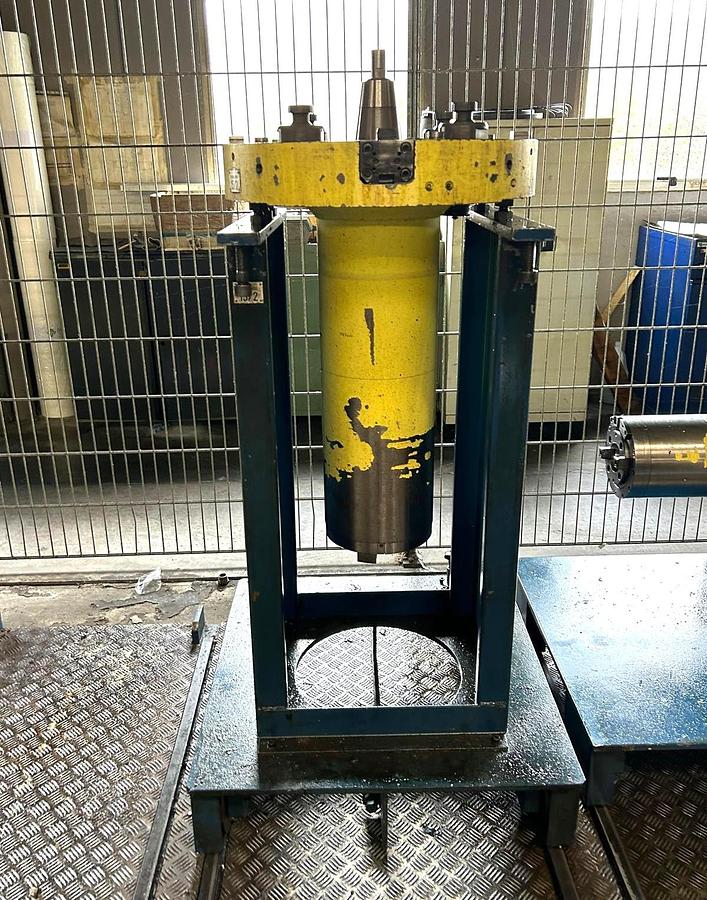

with accessories (5 milling heads ect.)

The spindle group recently  fully reconditioned

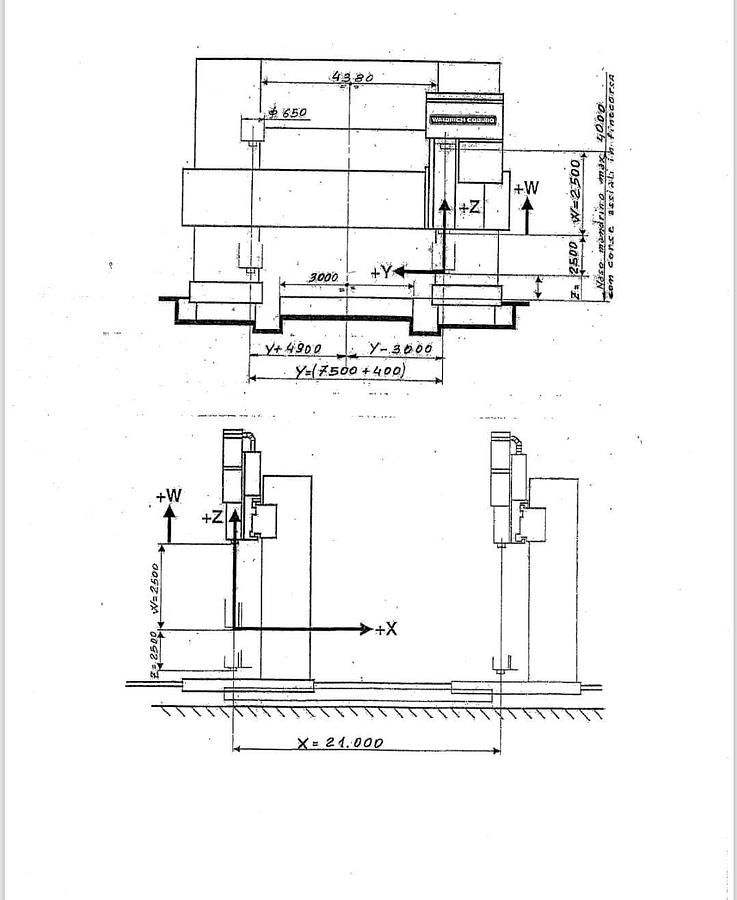

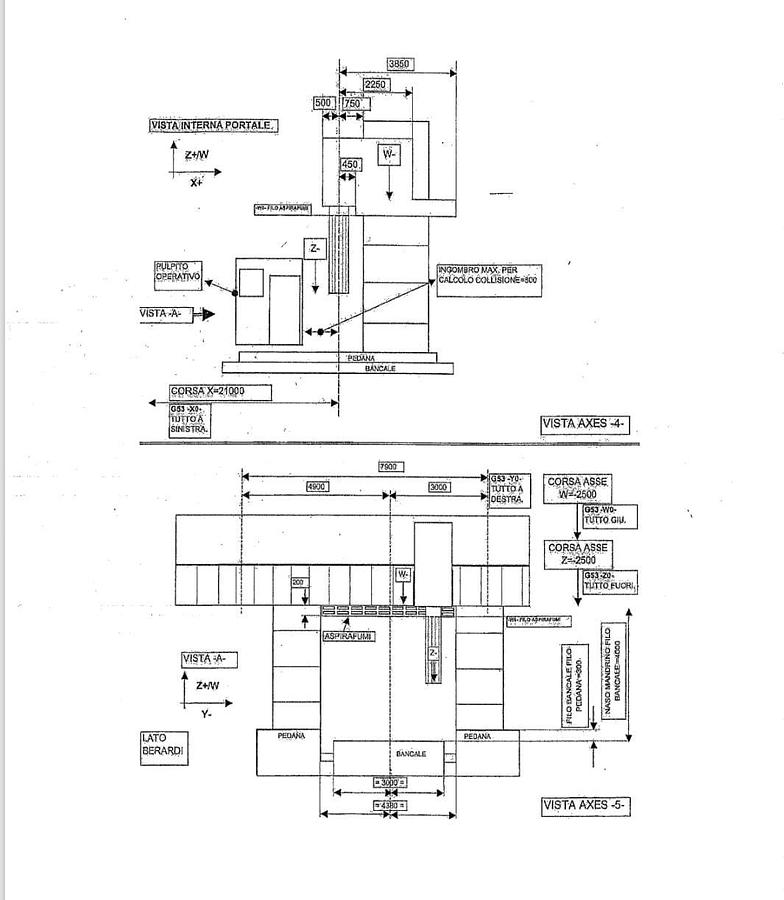

Working Range

Longitudinal gantry travel (X-axis) : 21000 mm,

Transverse head travel (Y-axis) : 4380 mm,

Transverse head travel (Y-axis) including extra travel for head and tool changes : 7900 mm,

Vertical spindle RAM travel (Z-axis) : 2500 mm,

Vertical crossbeam travel (W-axis) : 2500 mm,

Passage between columns : 4380 mm,

Max. distance between spindle nose and worktable with crossbeam and RAM all up 4000 mm,

Feed Rate

Working feed on X, Y, Z axes 10-10,000 mm/min,

Working feed on W-axis : 10-2,000 mm/min,

Rapid X-axis feed : 15000 mm/min,

Rapid Y-axis feed : 15000 mm/min,

Rapid W-axis feed : 2000 mm/min,

Rapid traverse Z-axis : 10,000 mm/min,

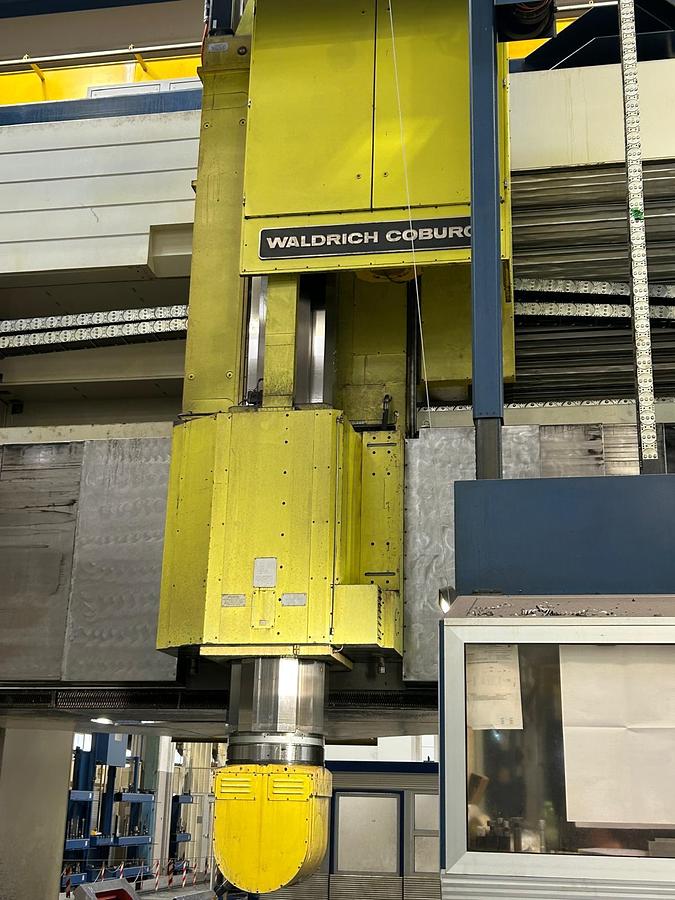

Spindle

Spindle RAM size Diameter : 635 mm,

Spindle rotation speed (2 ranges) : 2500 rpm,

Range : 1 2 – 395 rpm,

Range : 2 15 – 2,500 rpm,

Spindle power S1 105 kW

Spindle nominal torque : S1 9,000 Nm,

Boring spindle internal taper ISO 60 DIN 2079,

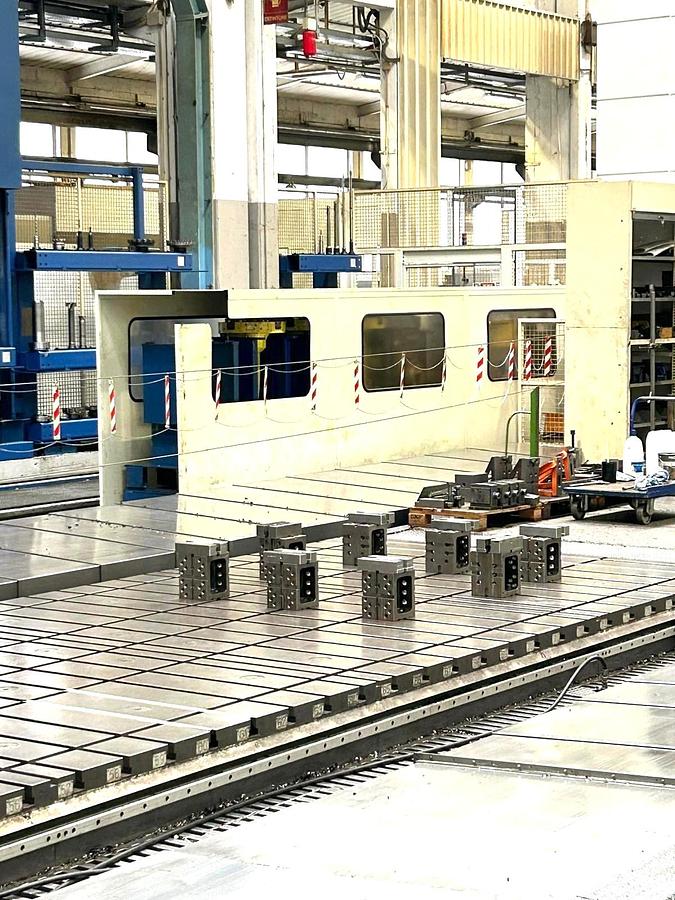

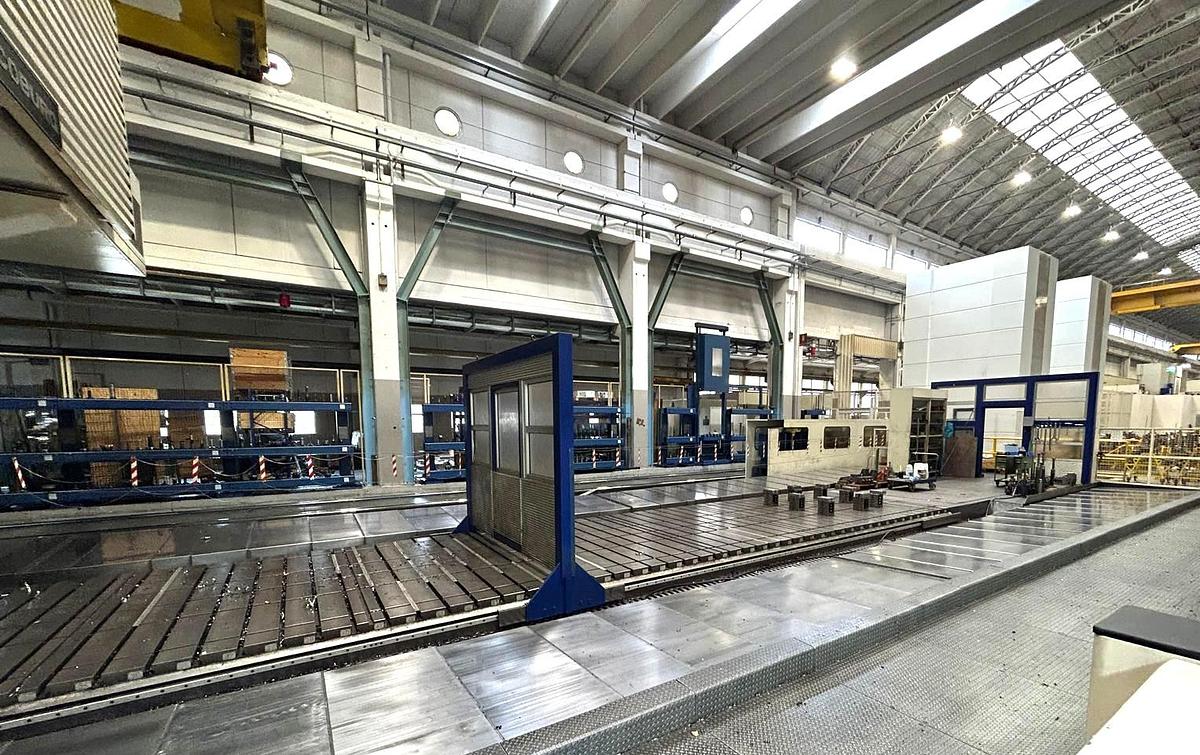

Work table

Dimensions : 20000 x 3000 mm,

Load capacity : 15,000 kg/m2,

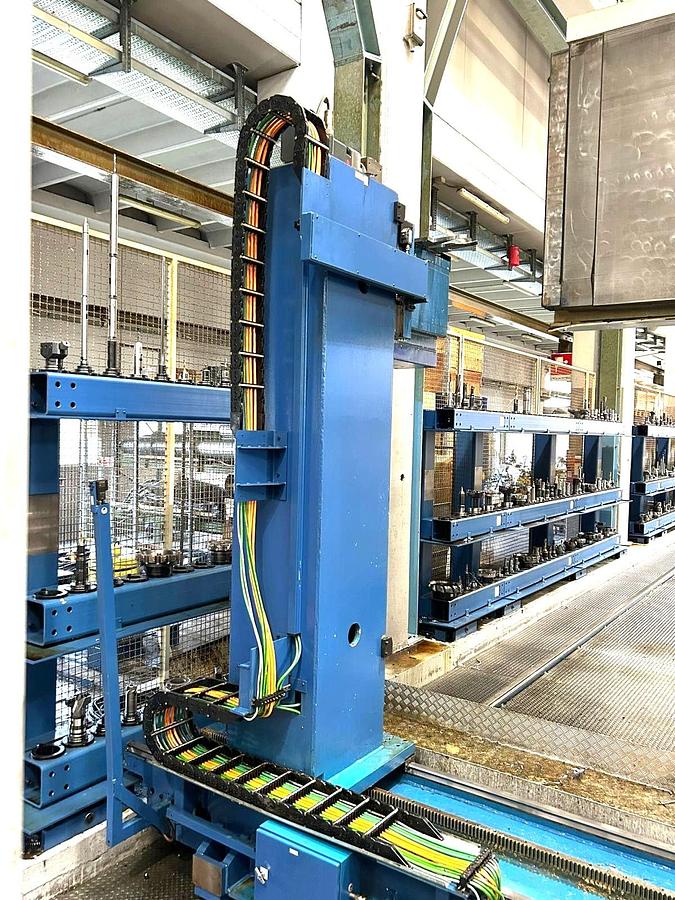

Tool magazine

Number of positions : 405 n°

Tool pitch : 165 mm,

Maximum tool diameter with adjacent occupied cells : 160 mm,

Maximum tool diameter with adjacent free cells : 360 mm,

Maximum diameter Orientated tool and adjacent free cells : 450 mm,

Tool Taper ISO 60 / ISO 50,

Maximum tool length with standard cycle : 600 mm,

Maximum tool length with special cycle : 1300 mm,

Coolant Internal / External

Coolant Flow Rate/Pressure 1 10 L/min at 40 bar

Coolant Flow Rate/Pressure 2 15 L/min at 27 bar

Coolant Flow Rate/Pressure 3 40 L/min at 10 bar

Numerical Control Siemens 840 C
