Lathe Vertical Turning Bullard 74-CutMaster

Table Diameter : 1880 mm,

Maximum Swing : 2083 mm,

Height Under Rail : 1575 mm,

Table Speeds : 2-120 RPM,

Cross Rail Vertical Travel : 1219 mm,

Ram Head Vertical Travel : 1041 mm,

Turret Head Vertical Travel : 771 mm,

Ram Head Swivel : +/- 30 Degrees,

Turret Head Swivel : +/- 30 Degrees,

Motor : 40 HP,

Approx Floor Space (L x W x H) : 4470 x 3454 x 3683 mm,

Approx. Machine Weight : 32 tons

EQUIPPED WITH:

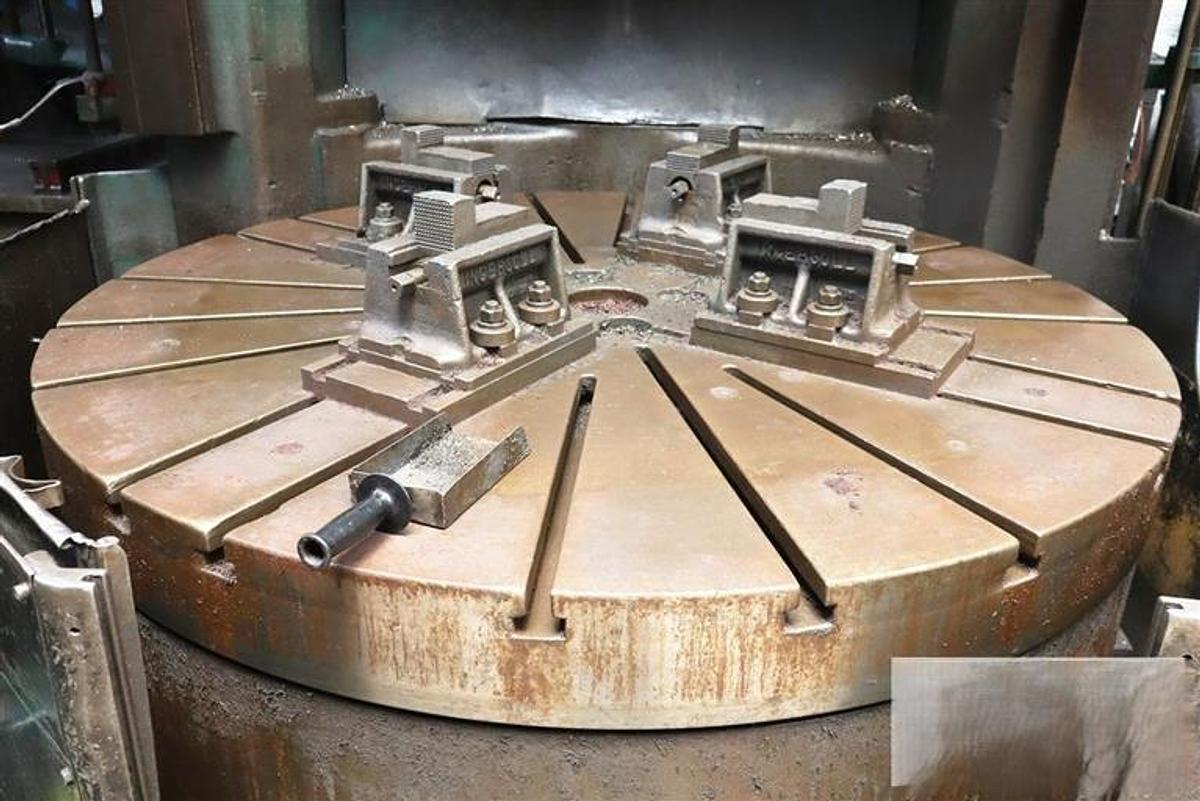

1880 MM 4-Jaw Face Plate Type Chuck

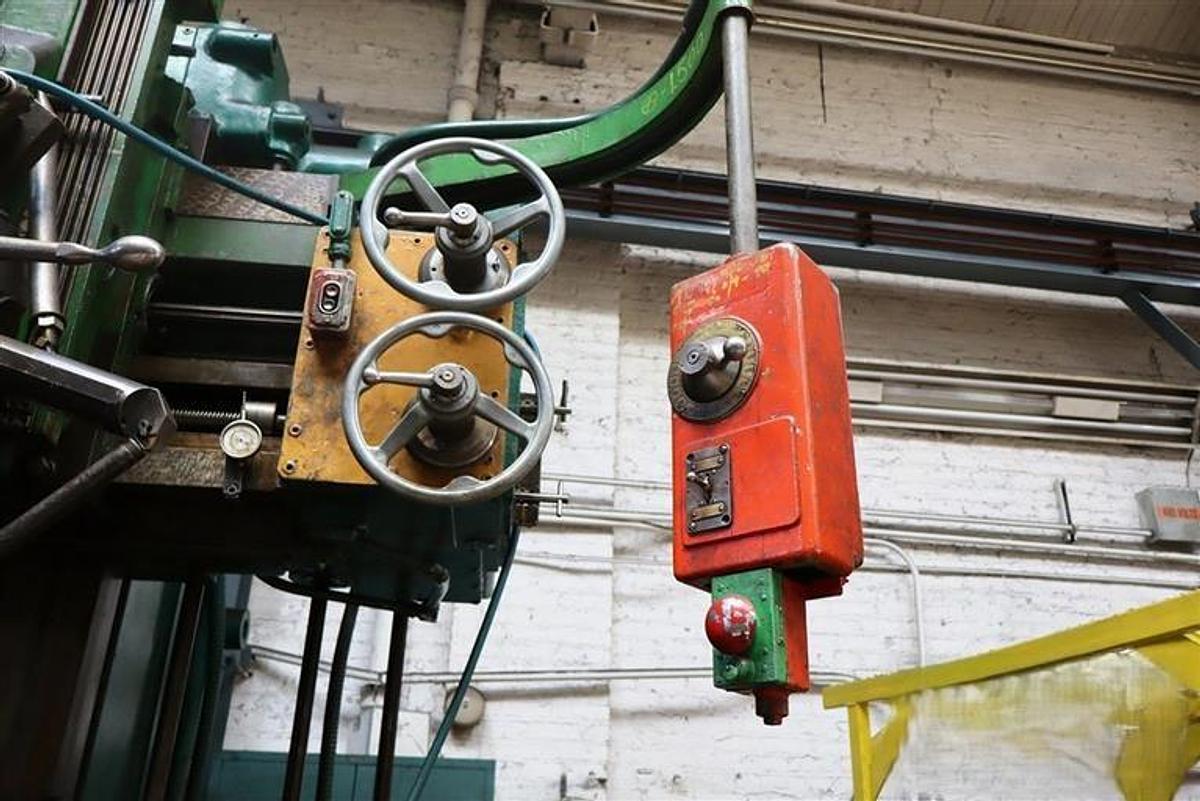

Pendant Controls

Right Hand 5-Position Turret Head

Left Hand Vertical Ram Head
