1600 tons Hot Forging Line TMP Voronezh Russia KG8042

1) Press Hot Forging

Double Conrod Press

Capacity : 1600 tons,

Connecting rod : 2,

Stroke : 300 mm,

Stroke per min : 85

Shut height : 860 mm,

Ram adjustment : 10 mm,

Top Knockout

Stroke : 15 - 50 mm,

Capacity : 5 ton,

Bottom Knockout

Stroke : 25 mm,

Capacity : 10 ton,

Bed Dimensions : 1260 x 1200 mm,

Slide Dimensions : 1120 x 1400 mm,

Main drive motor power : 90 kW,

Dimensions of press : 4850 x 3515 x 5570 mm,

Main Motor : 75 Kw,

Press weight : 120 tons.

2) Trimming Press

Make : Komatsu

Model : OBS200

Capacity : 200 ton,

Stroke : 250 mm,

Stroke per minutes : 35

Die Height : 480 mm,

Slide Adjust : 120 mm,

Table Dimensions : 1450 x 890 mm,

 Slide Dimensions : 850 x 650 mm,

 Main Motor : 15 Kw.

Technical manuals available.

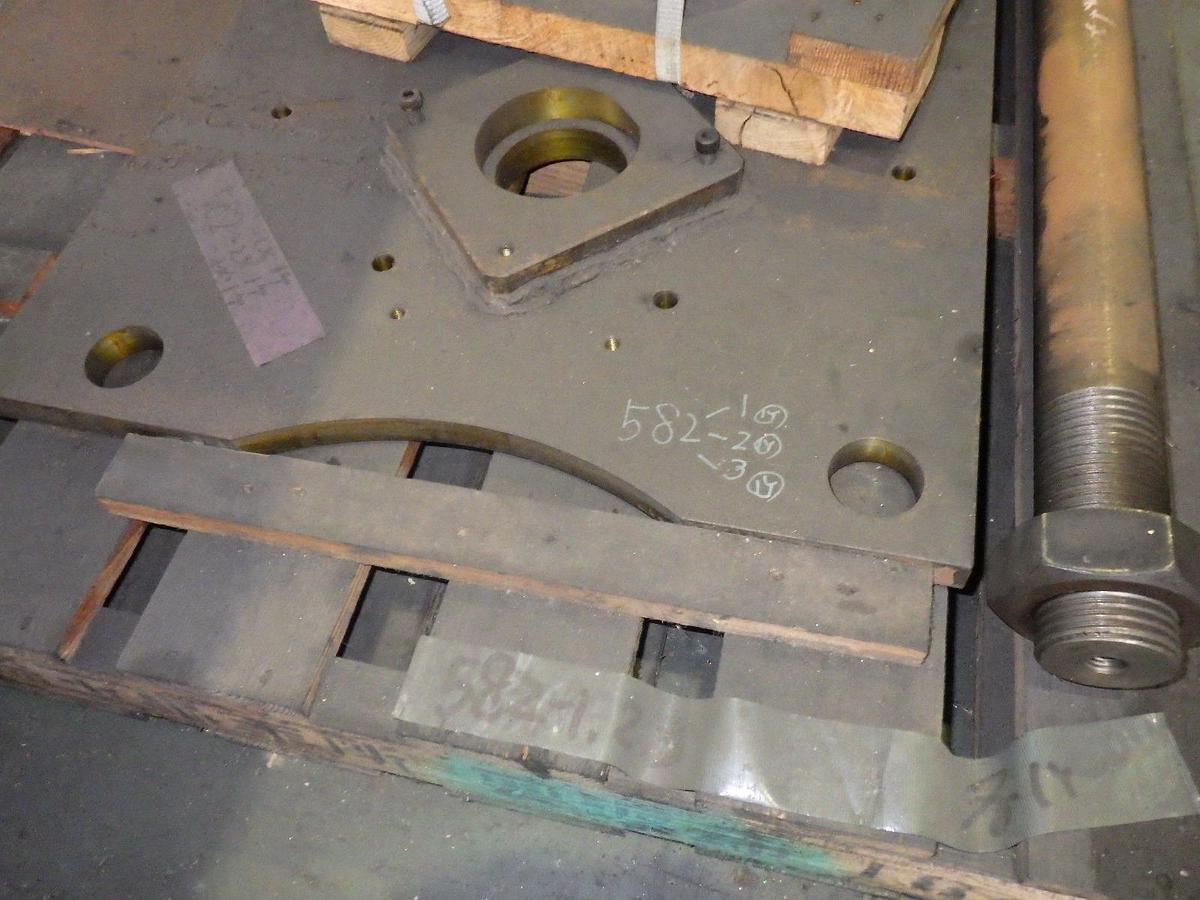

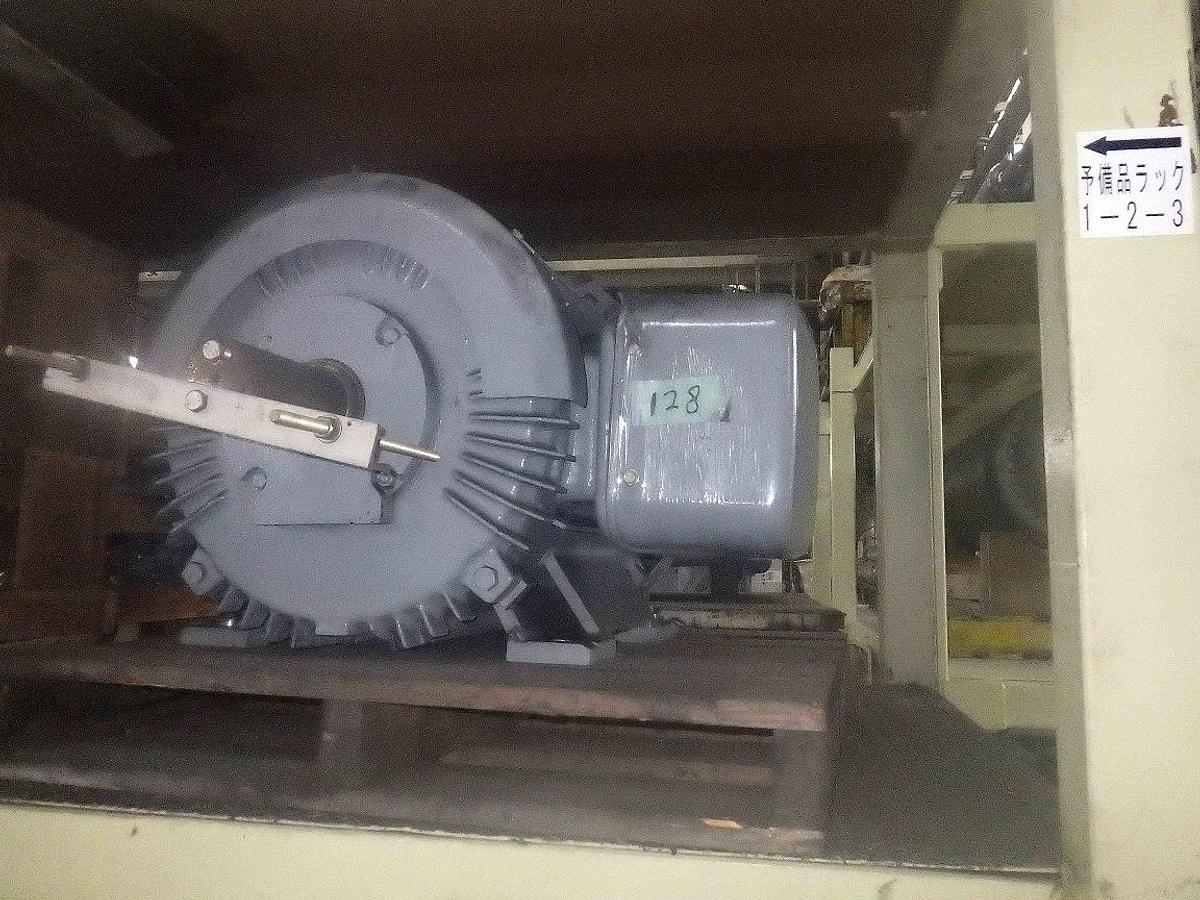

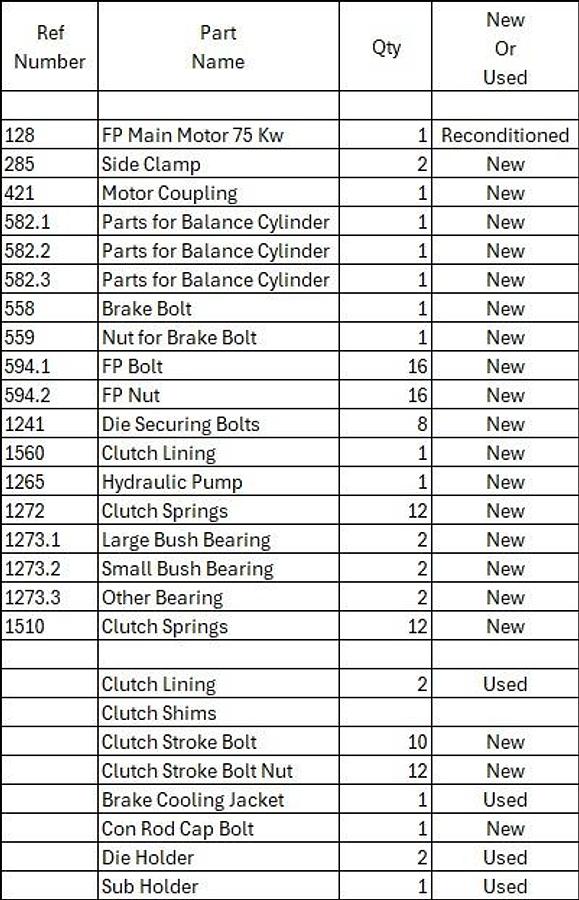

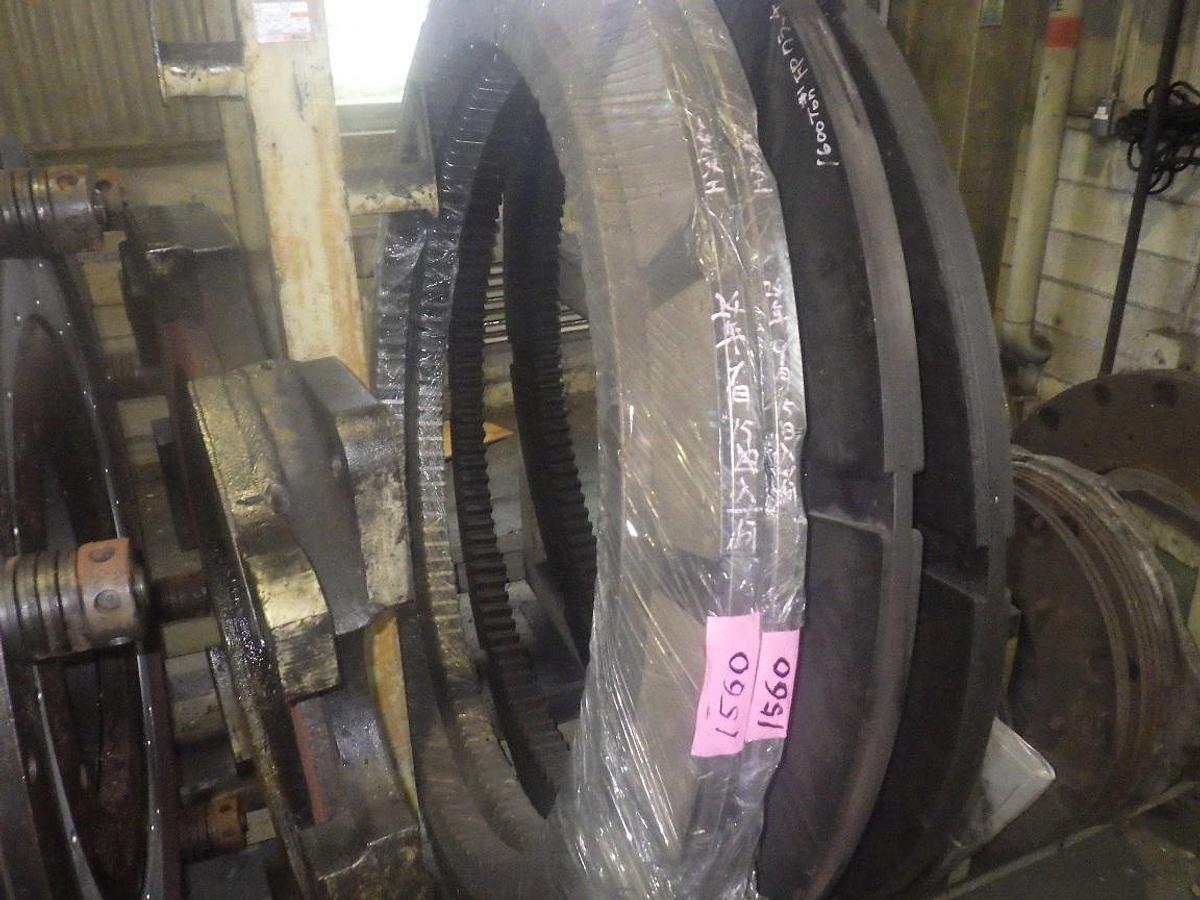

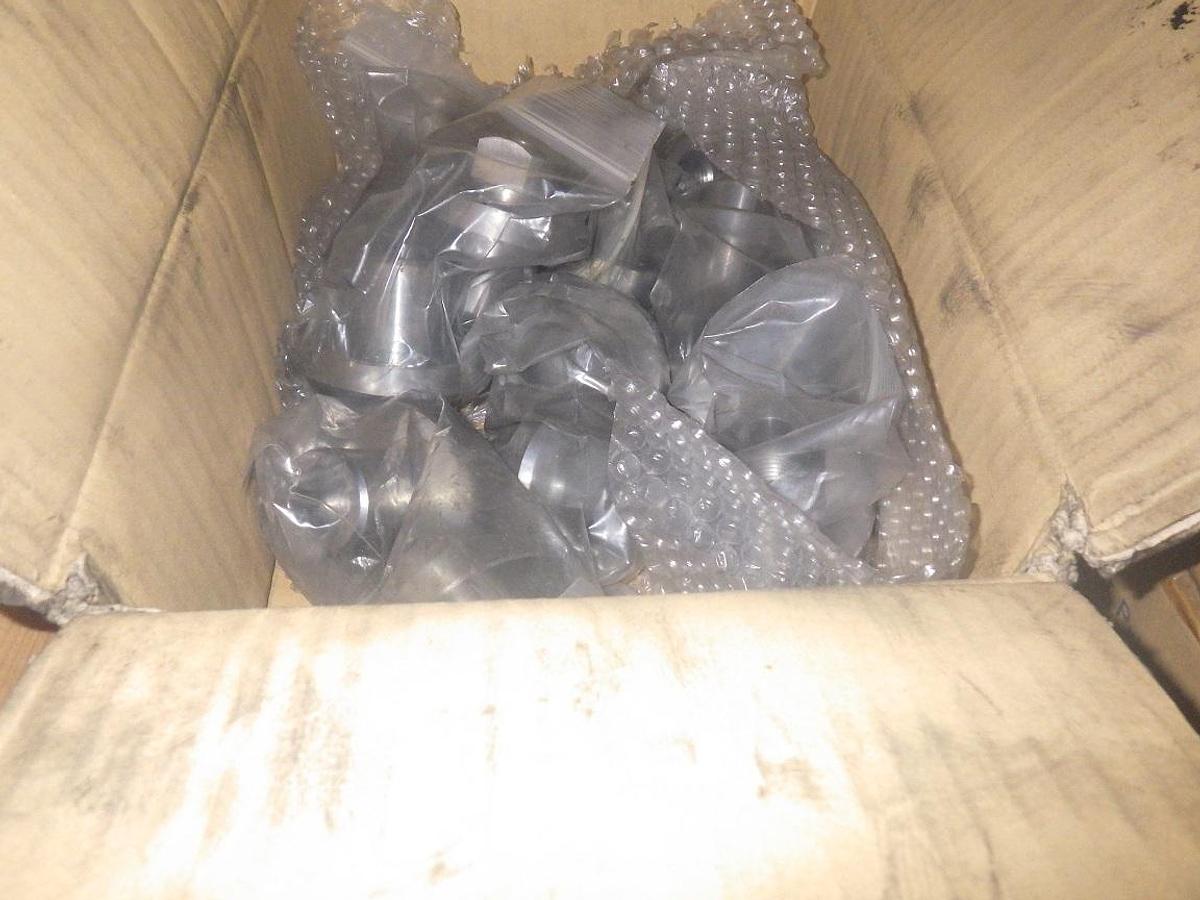

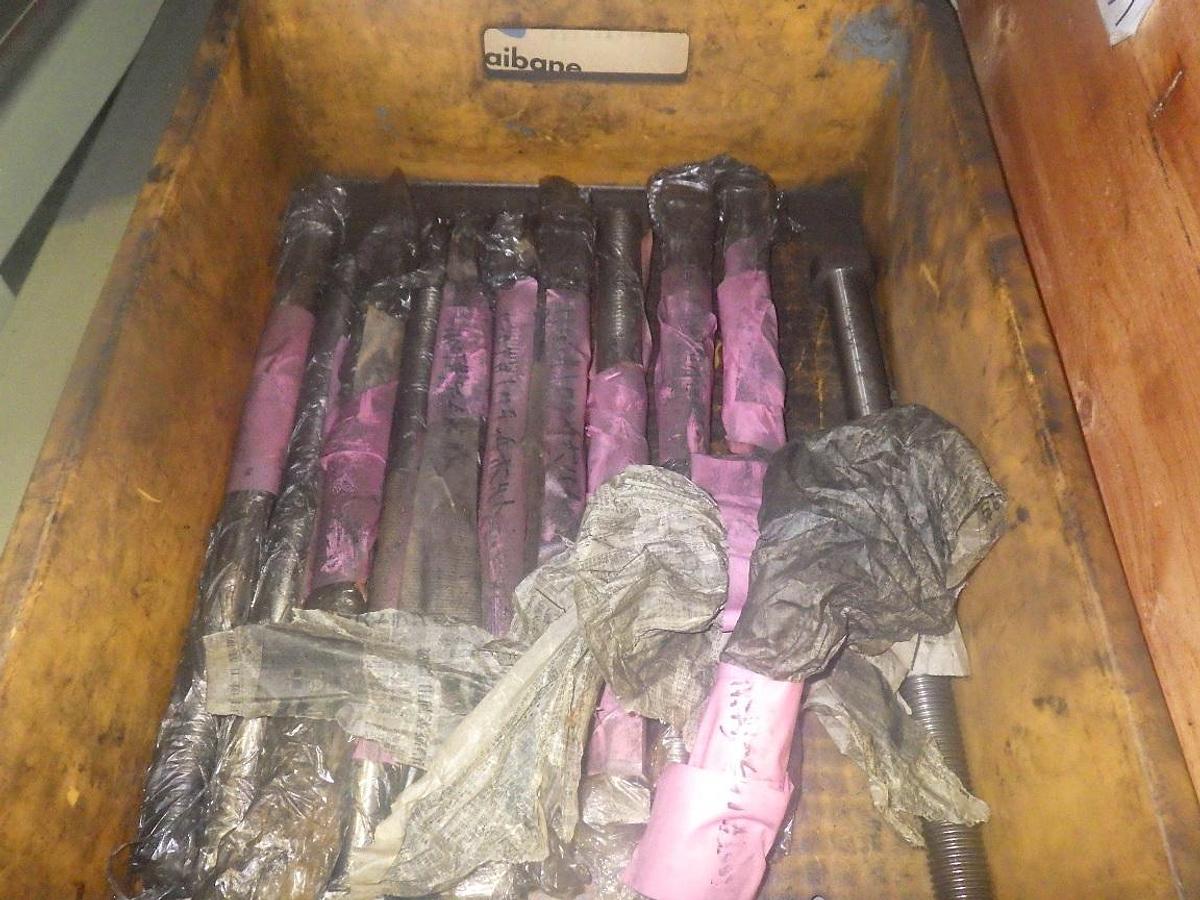

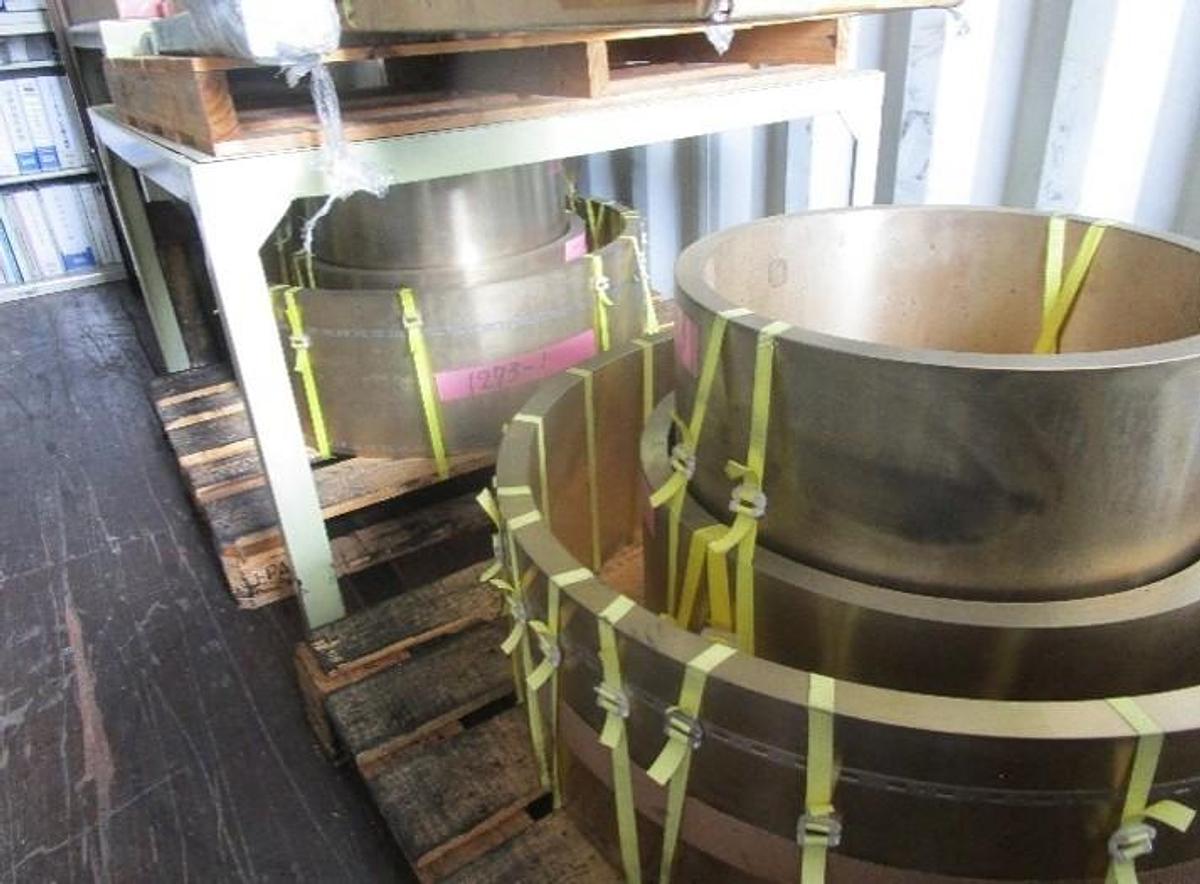

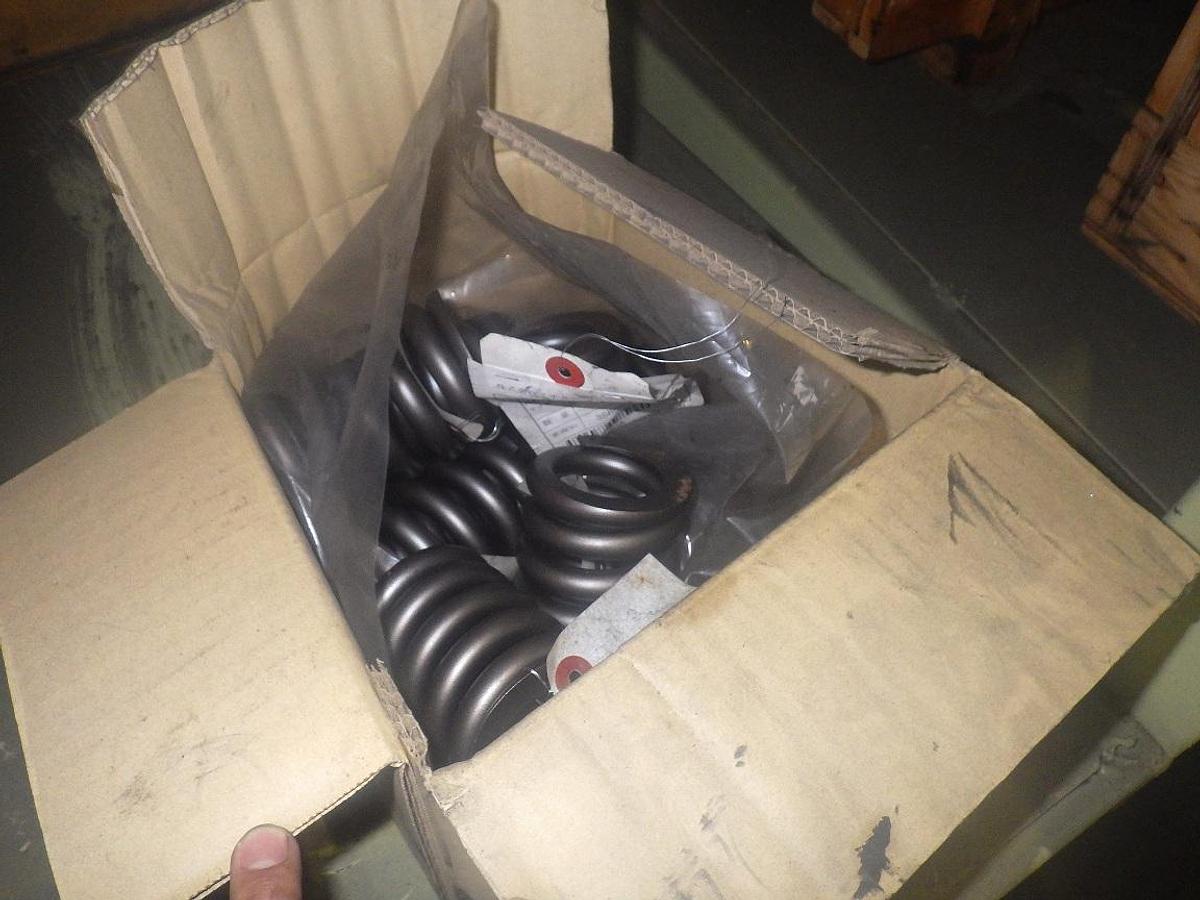

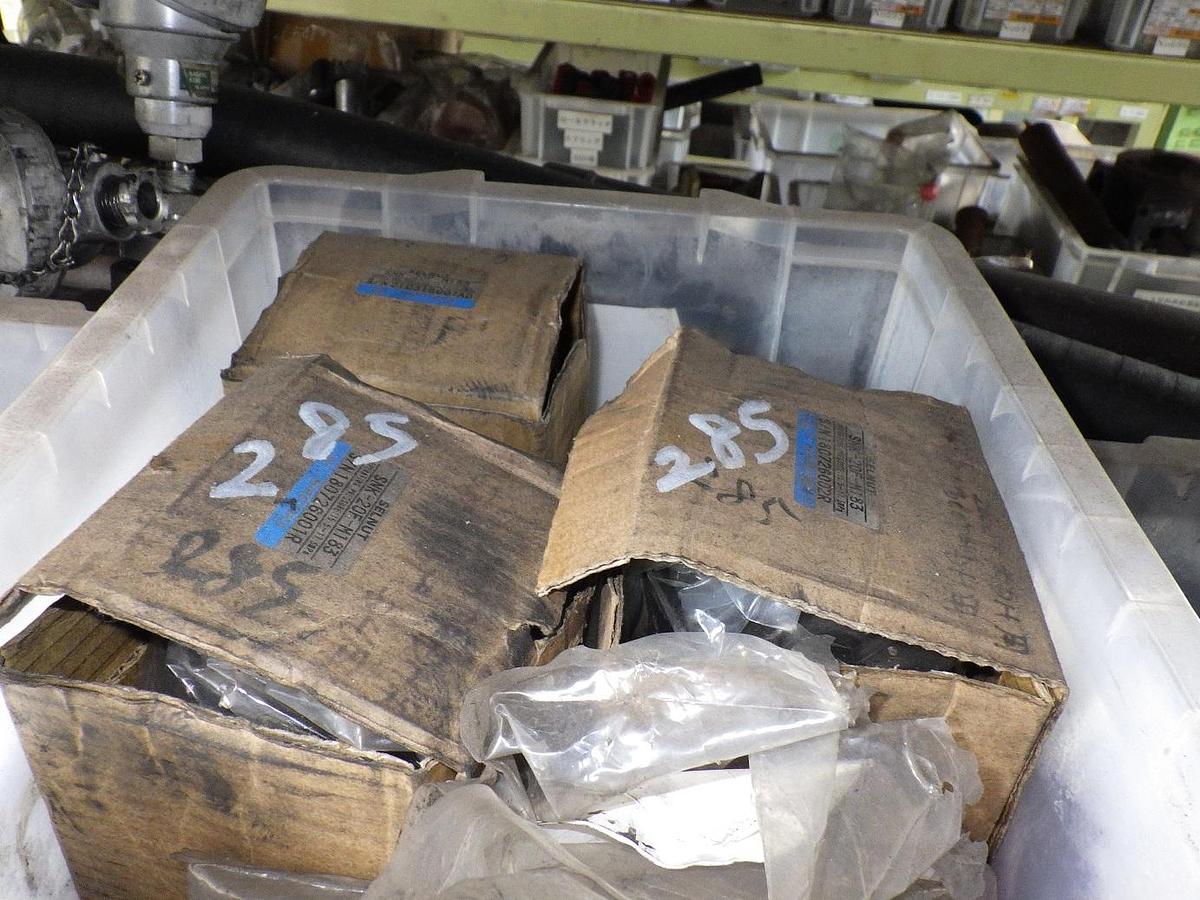

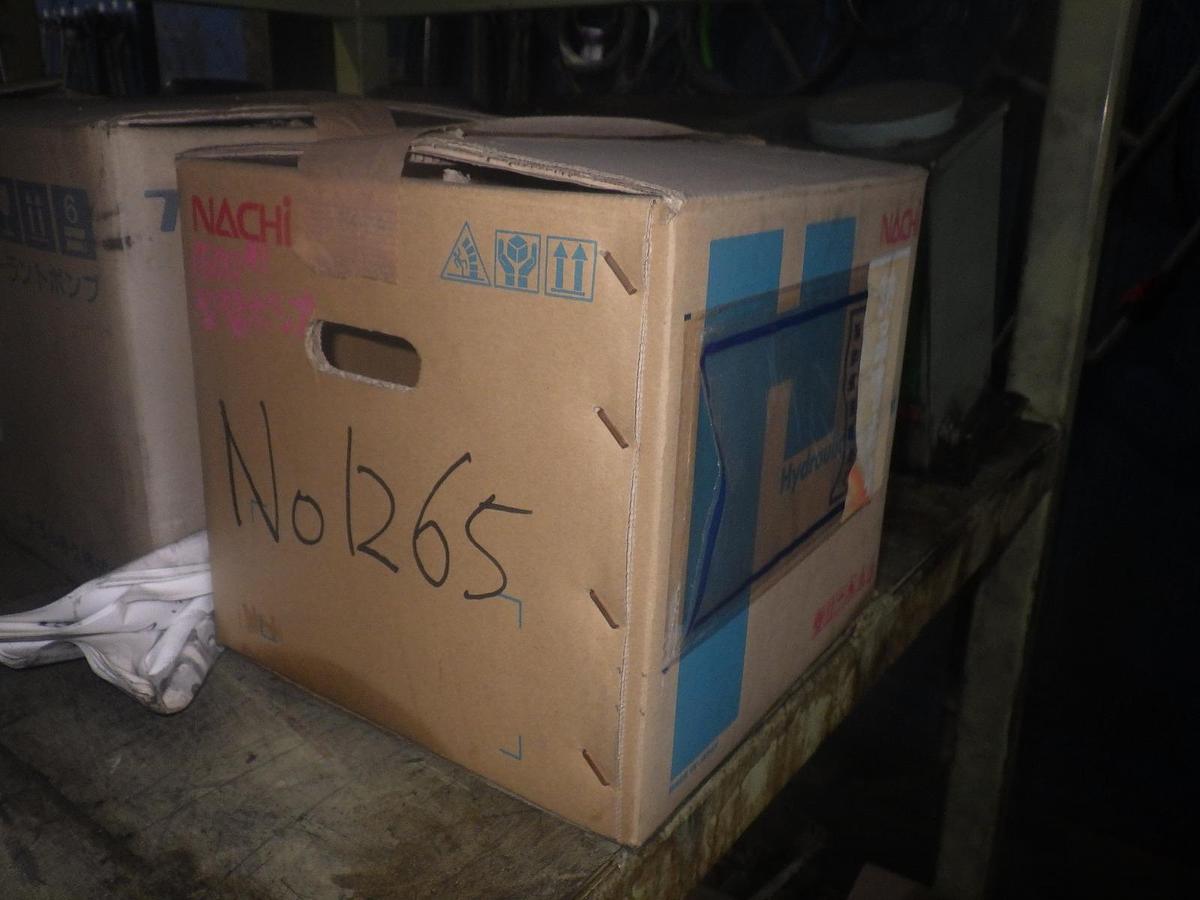

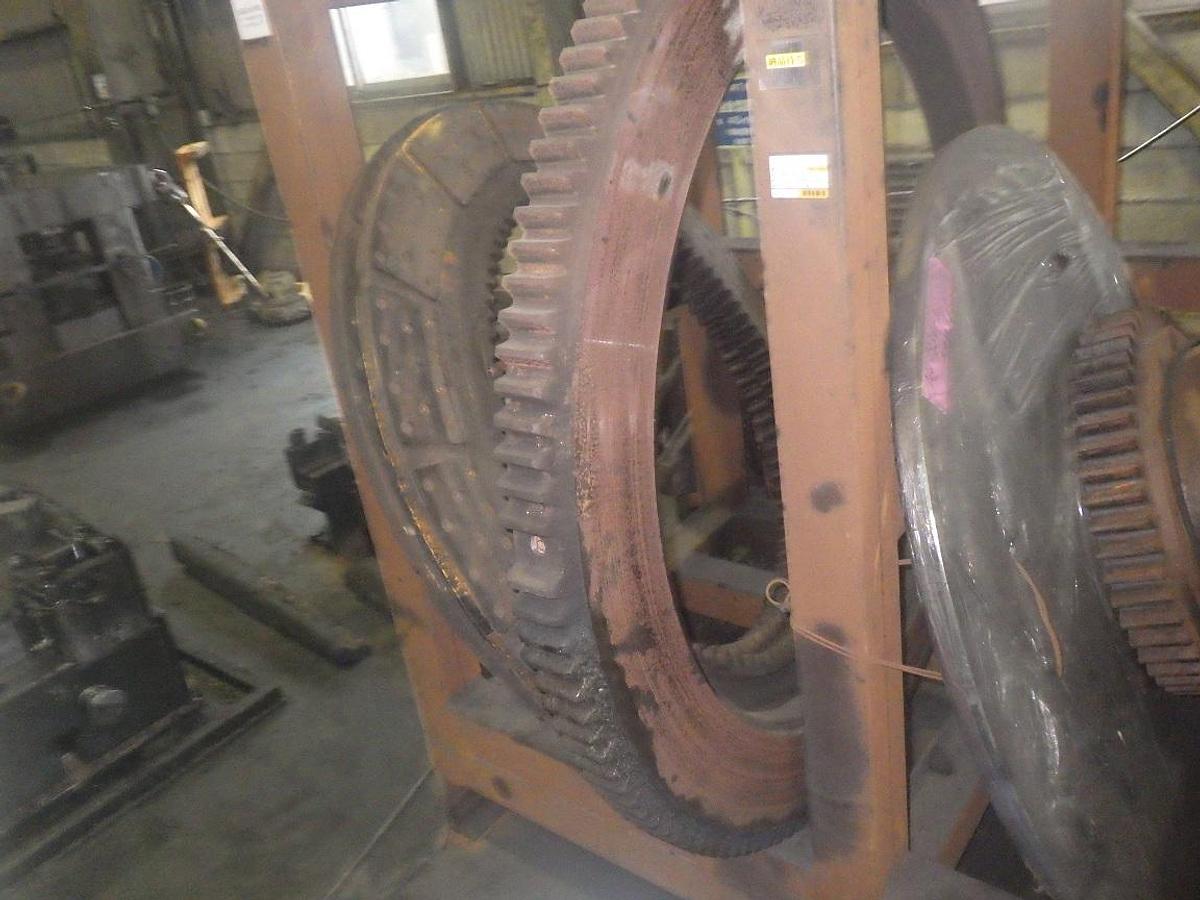

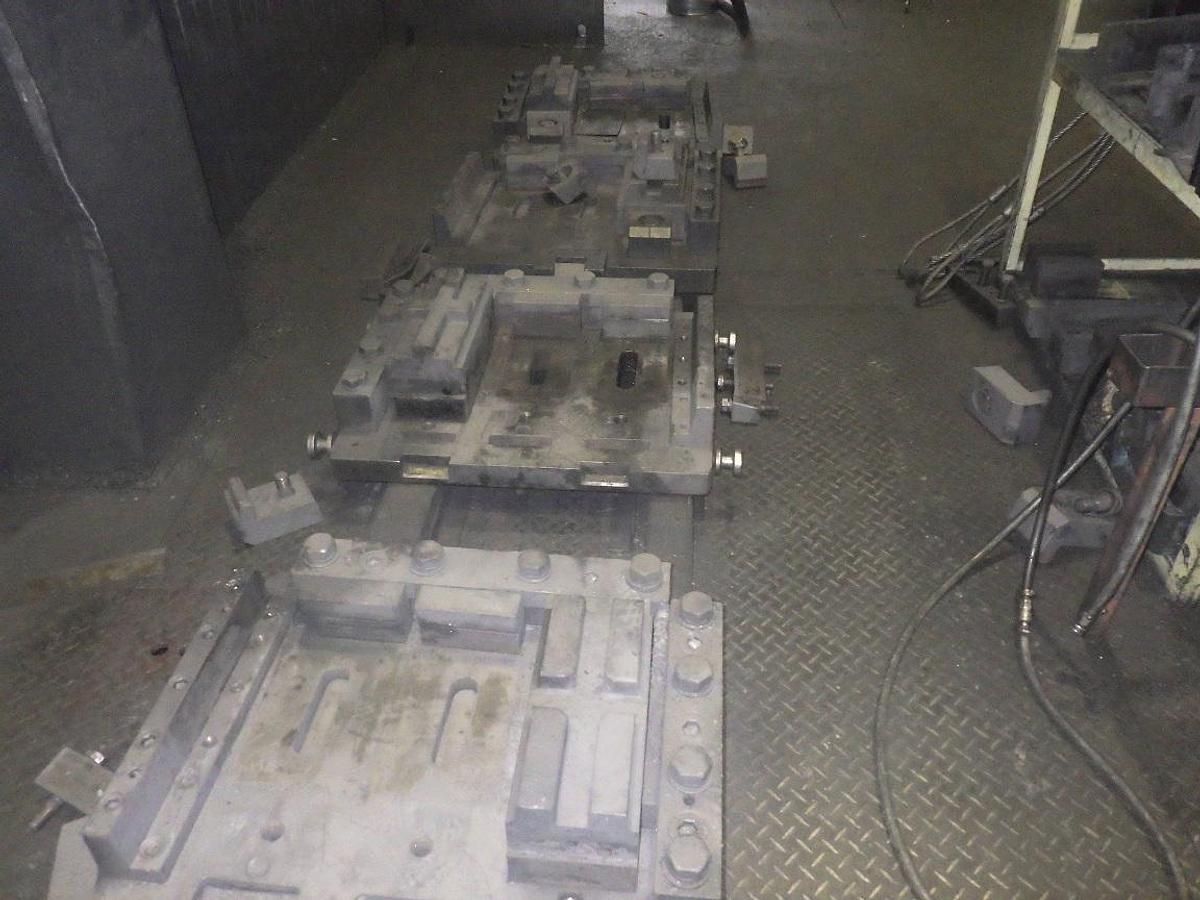

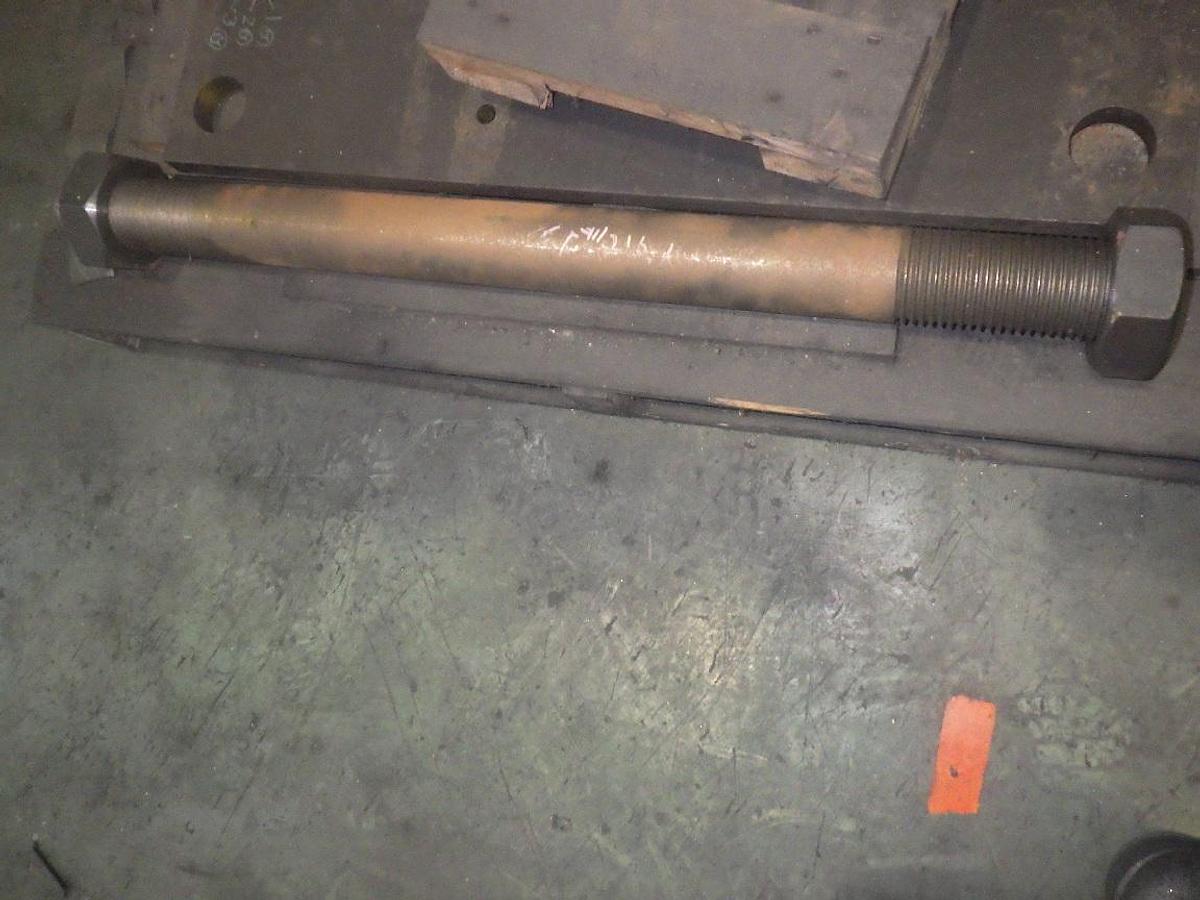

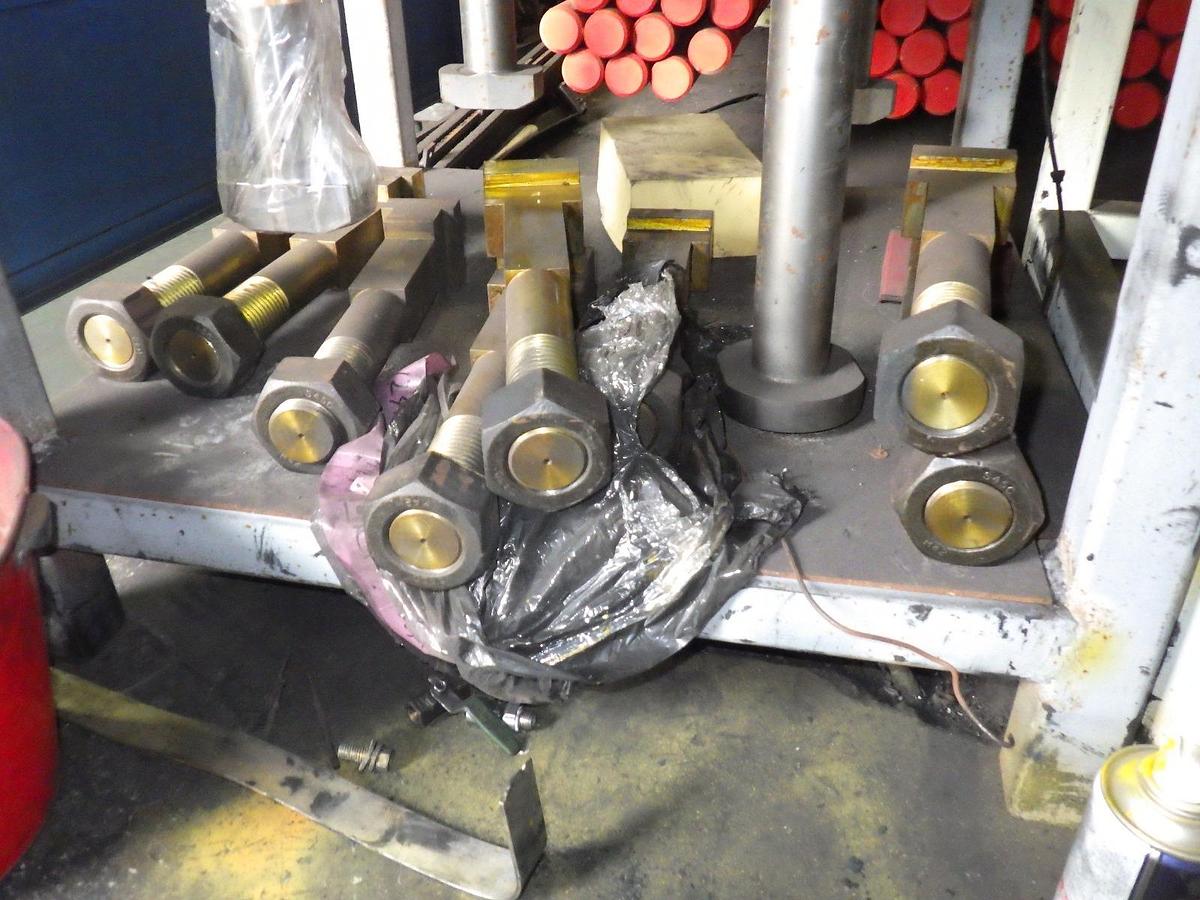

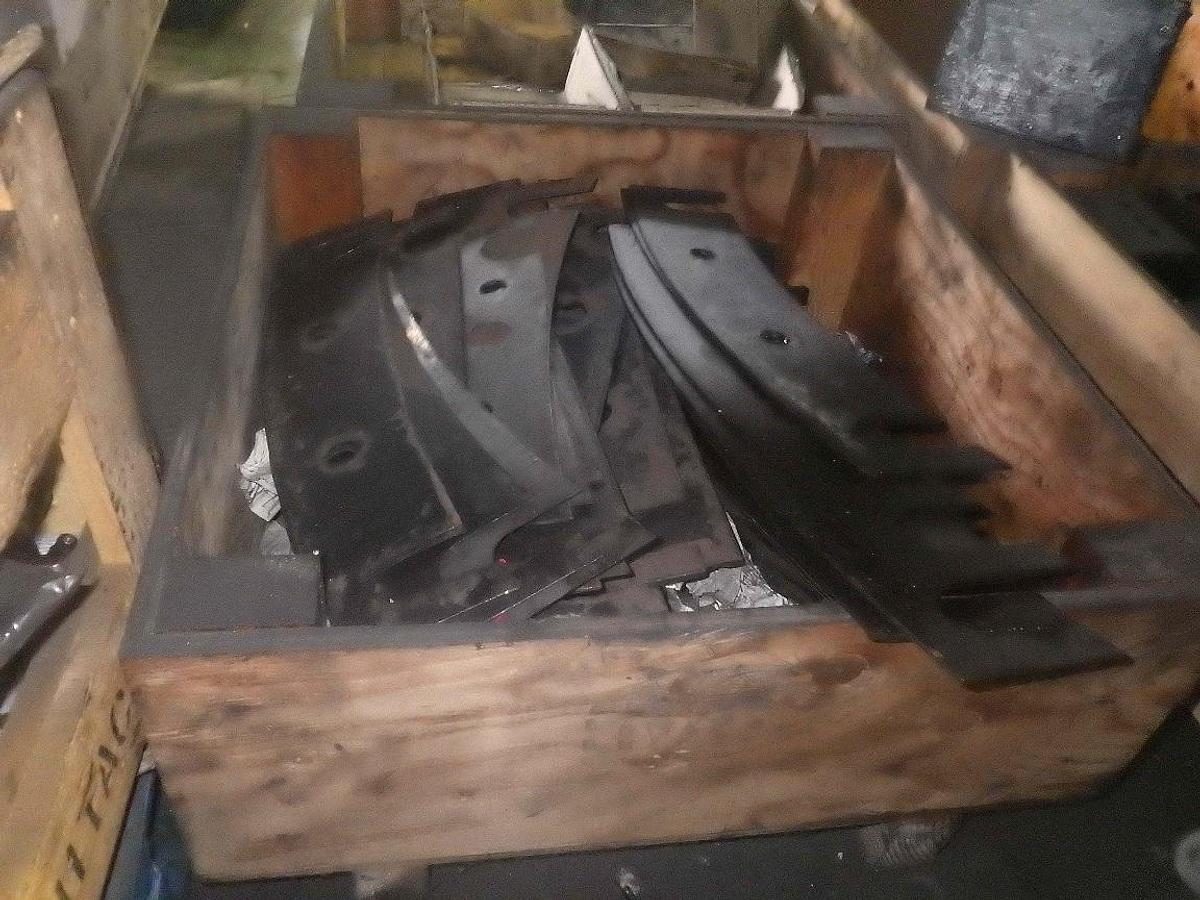

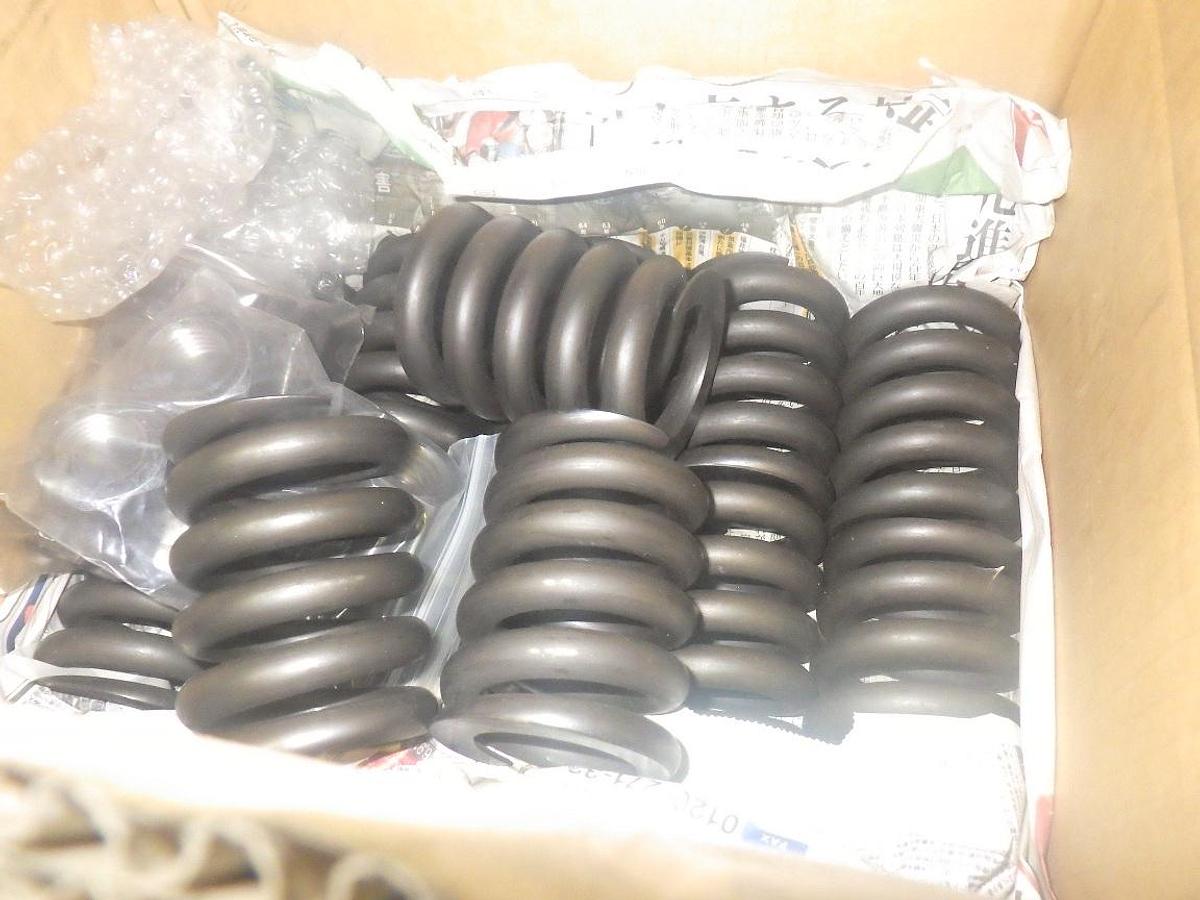

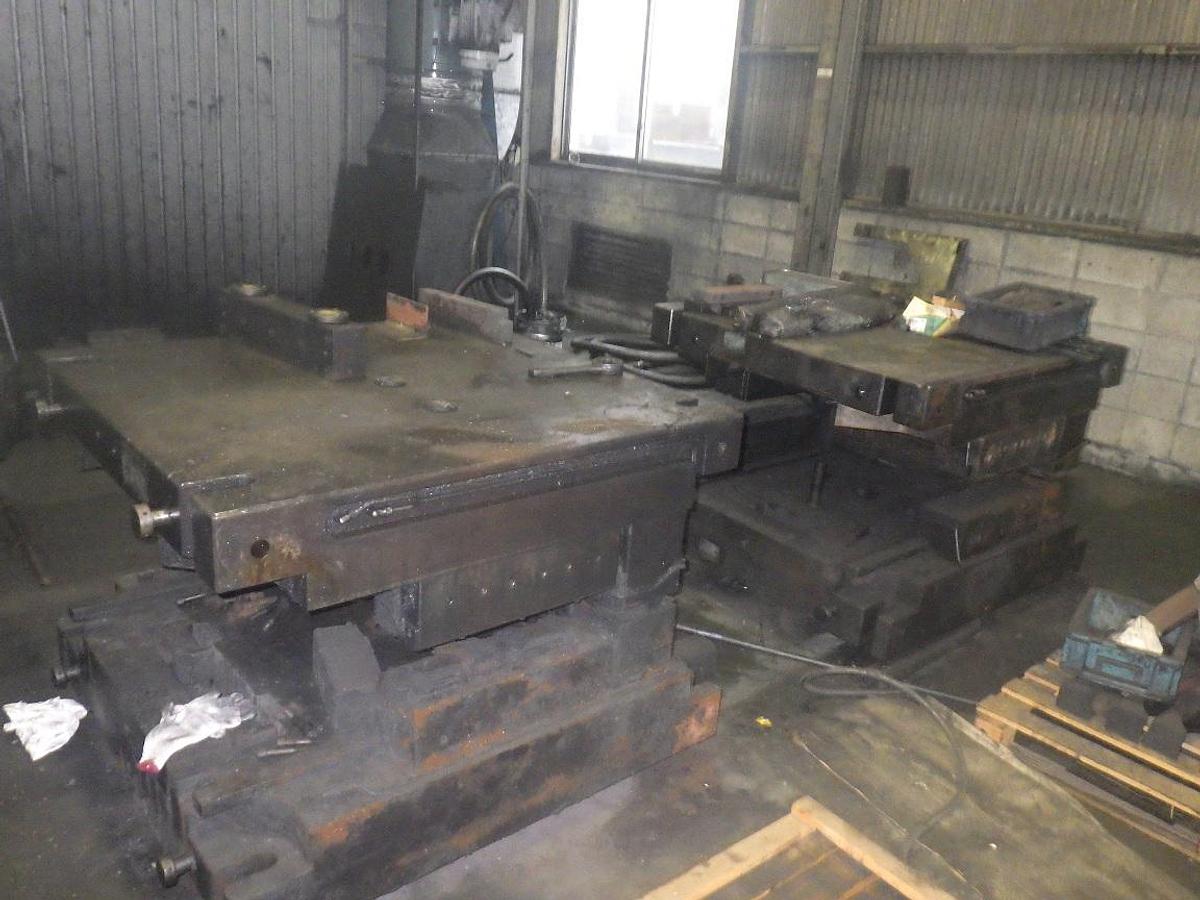

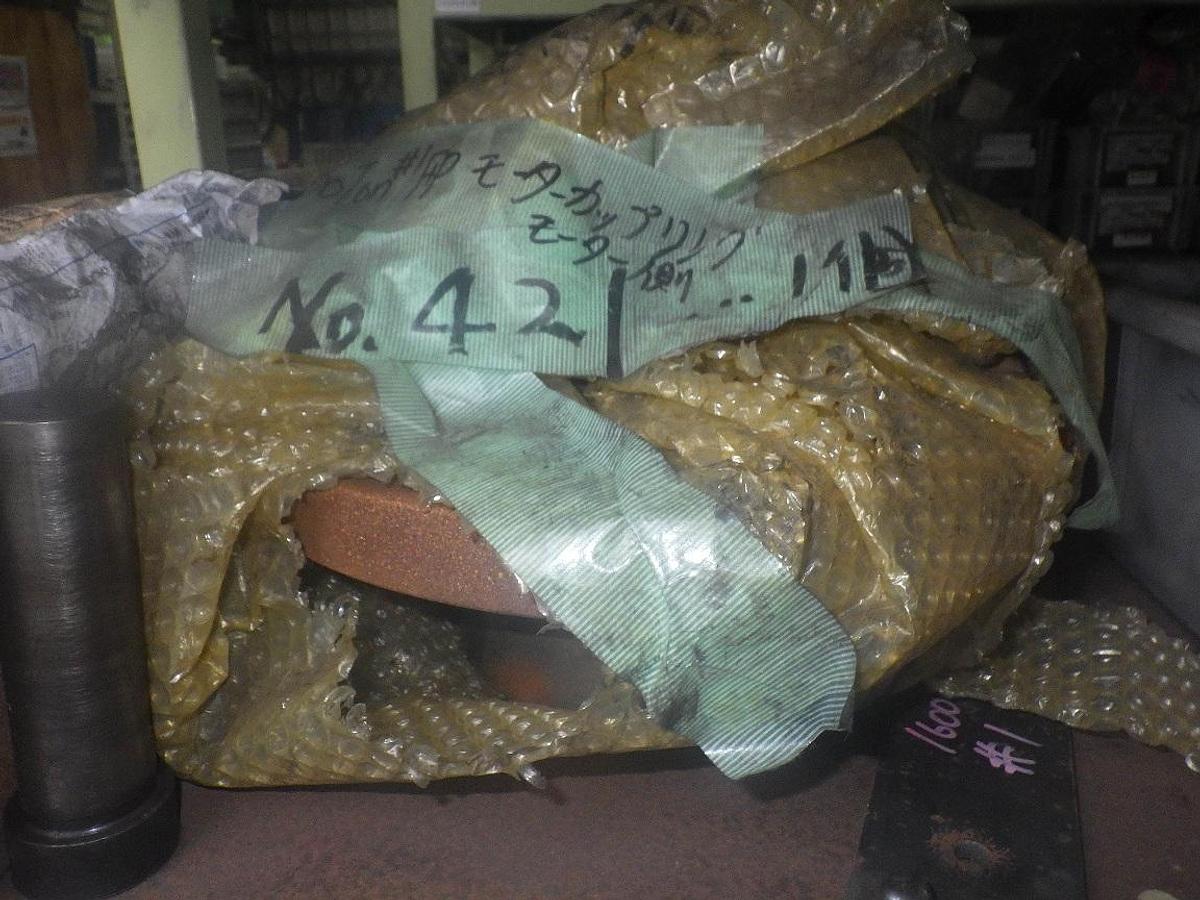

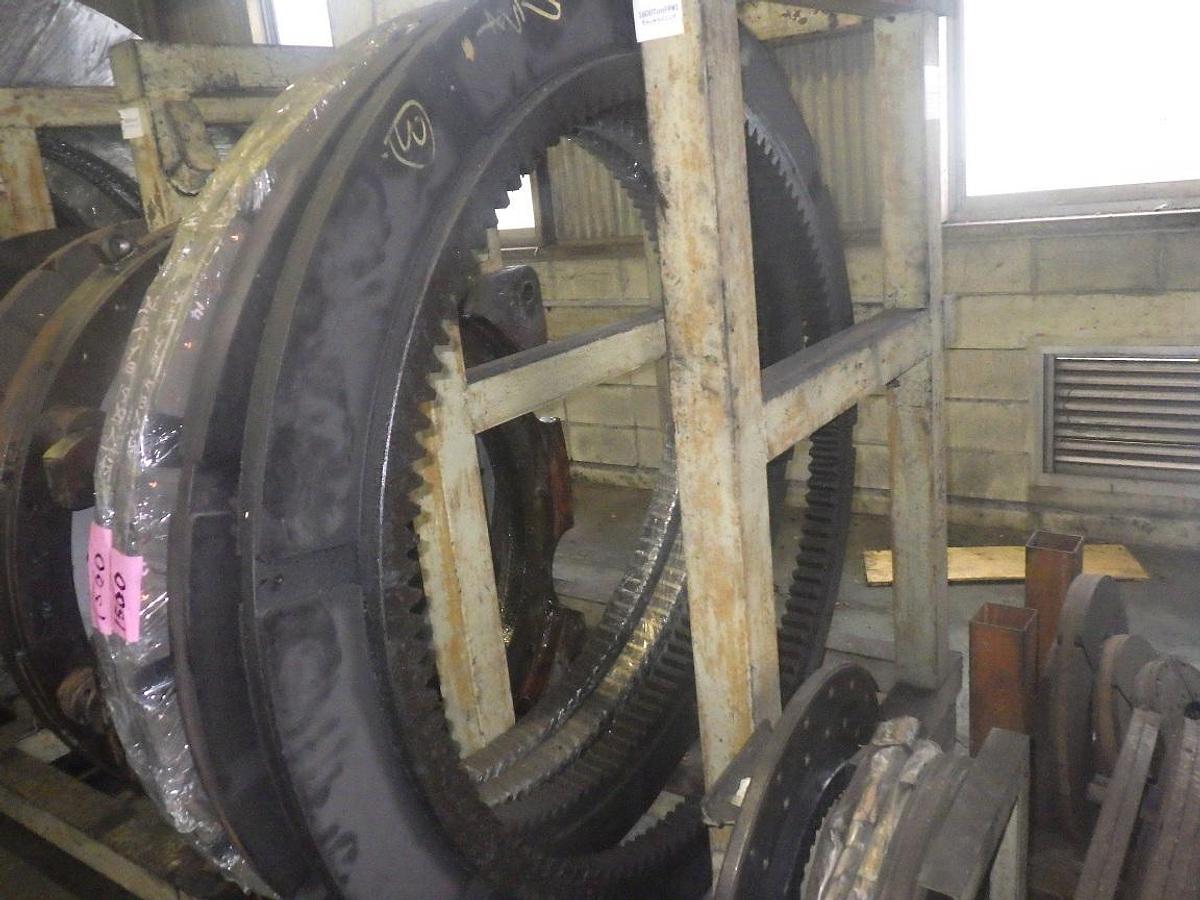

Main Motor 75KW, Bush Bearings, Clutch Linings, Die Holder etc available at extra cost.
