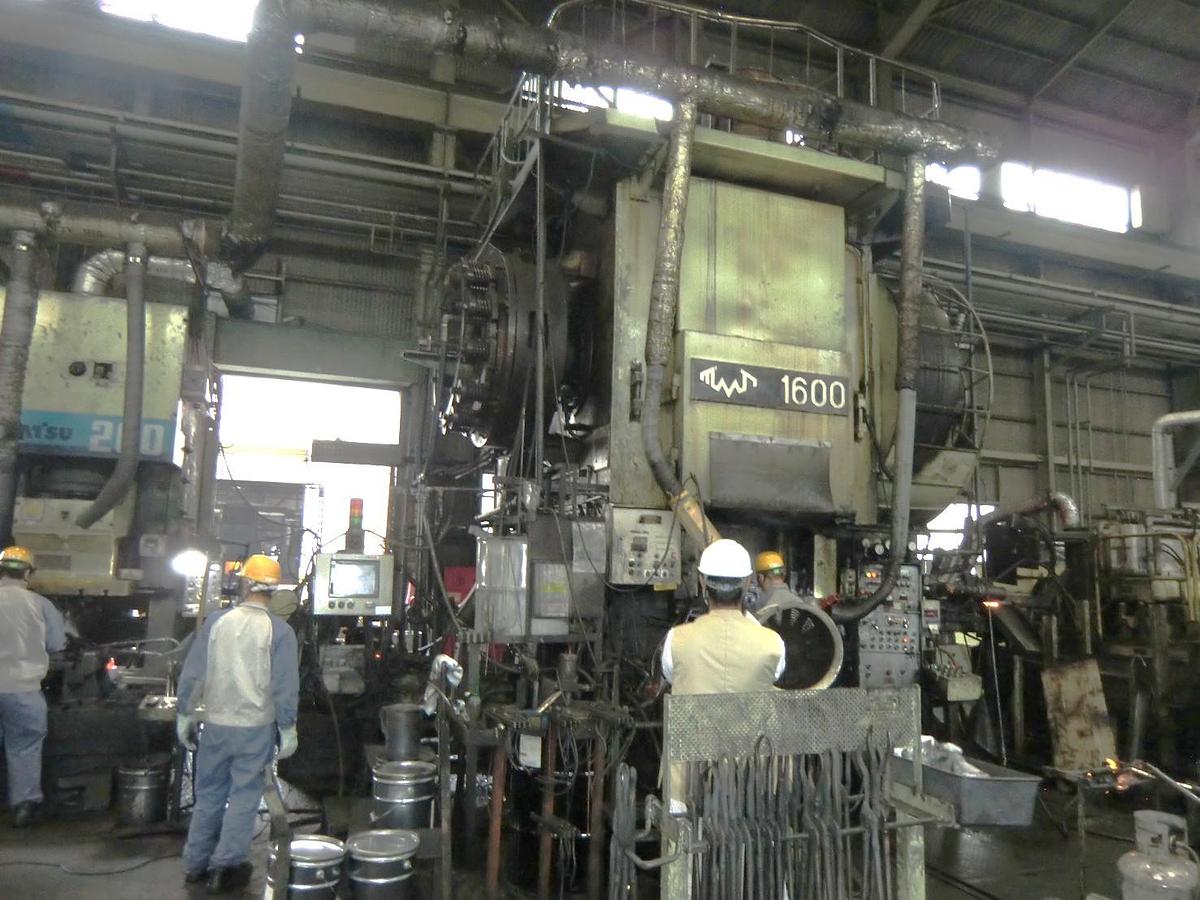

1600 tons Press Hot Forging TMP Voronezh KG8042

Double Conrod Press

Capacity : 1600 tons,

Connecting rod : 2,

Stroke : 300 mm,

Number of stroke per min-1 : 85,

Number of single switches : 26 min-1,

Die height : 850 mm,

Die space Adjustment in the ram : 10 mm,

Table dimension : 1260 x 1200 mm,

Ram dimensions : 1120 x 1400 mm,

Uprights opening Dimensions (W x H) : 800 x 910 mm,

Mechanic Upper knockout :

Power : 5 TN,

Stroke : 50 mm,

Pneumatic Lower knockout :

Power : 10 TN,

Stroke : 40 mm,

Main motor power : 40 mm,

Overall dimensions of the press (LR x FB x H) : 5340 x 4090 x 5640 mm,

Press weight : 120 tons.

Technical manuals available.
