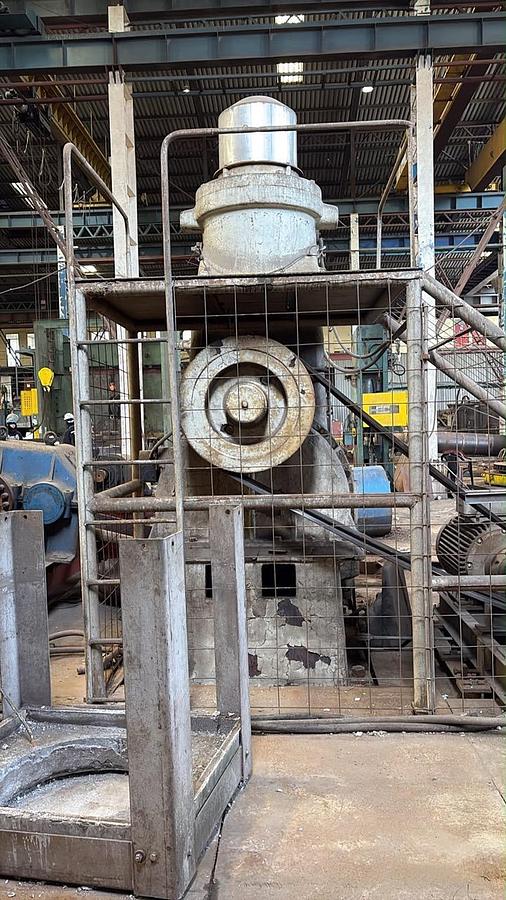

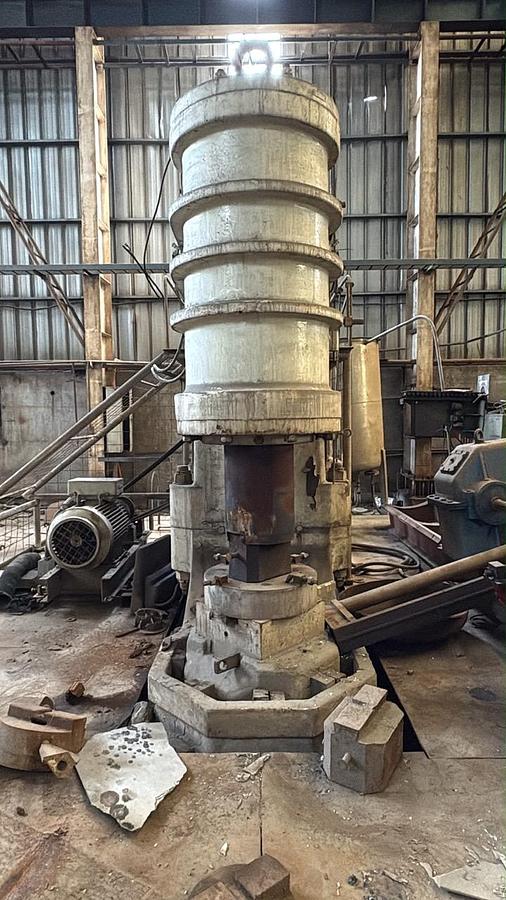

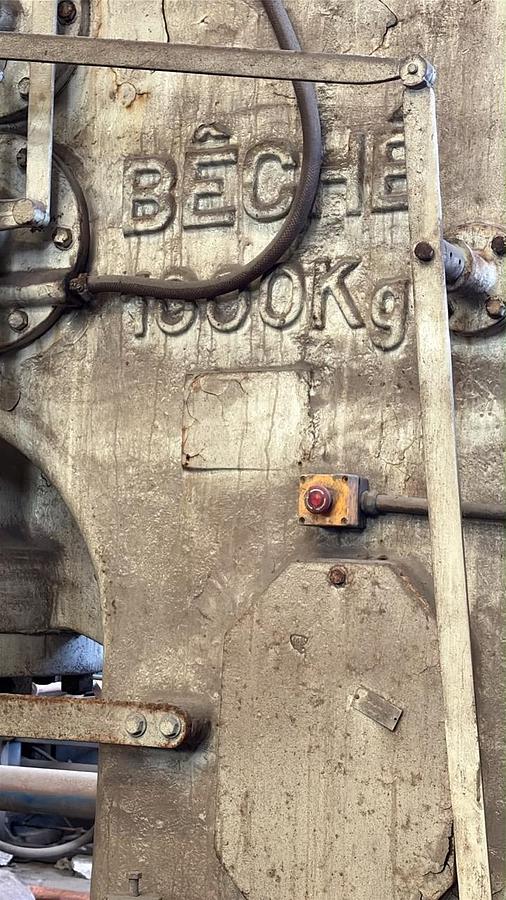

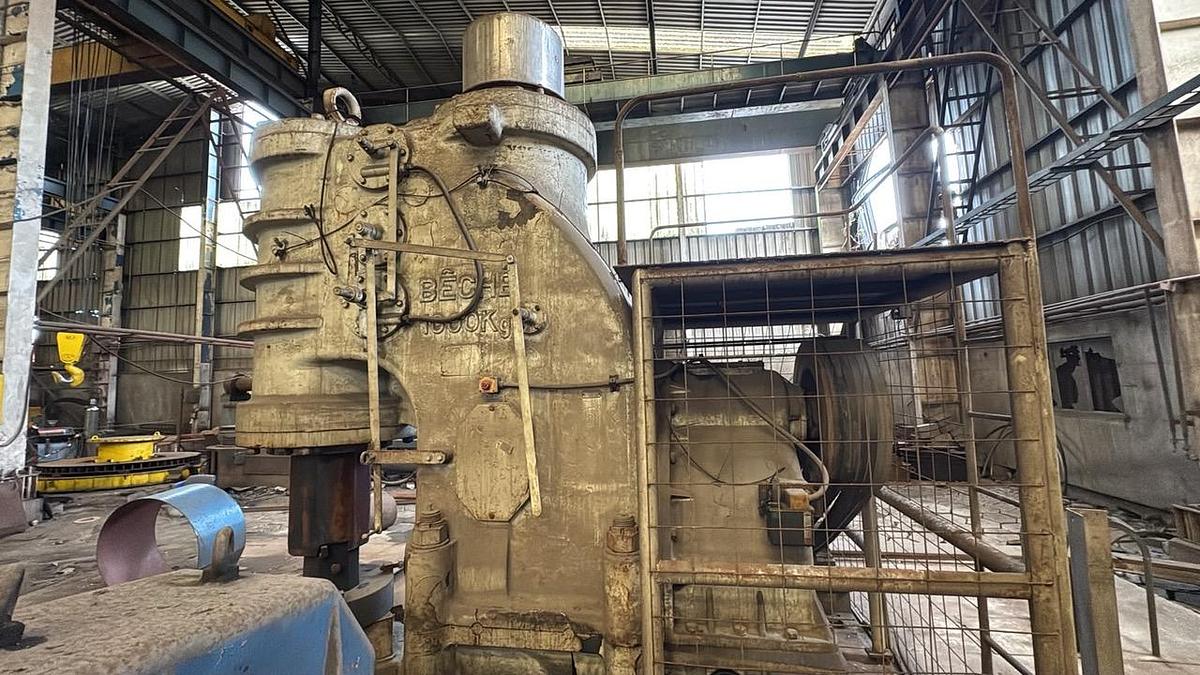

Hammer Forging Open Die Pneumatic Beche L10

Capacity : 1 tons,

No. of strokes : 90 / min,

Approx. effect of blow per blow : 3000 ca. kJ,

Approx. power required for fly-wheel : 90 kW,

Nominal rpm of motor : 1450,

Forges steel : Up to 280 mm, dia up to 320 mm,

Distance between bottom die and tup guide : 750 mm,

Working radius : 800 mm,

Standard dies : 380 x 140 mm,

Approx. main dimensions : 3400 x 1500 x 3650 mm,

Hammer weight : 20.5 tons,

Anvil block weight : 19.5 tons,

Total weight : approx 40 tons.
